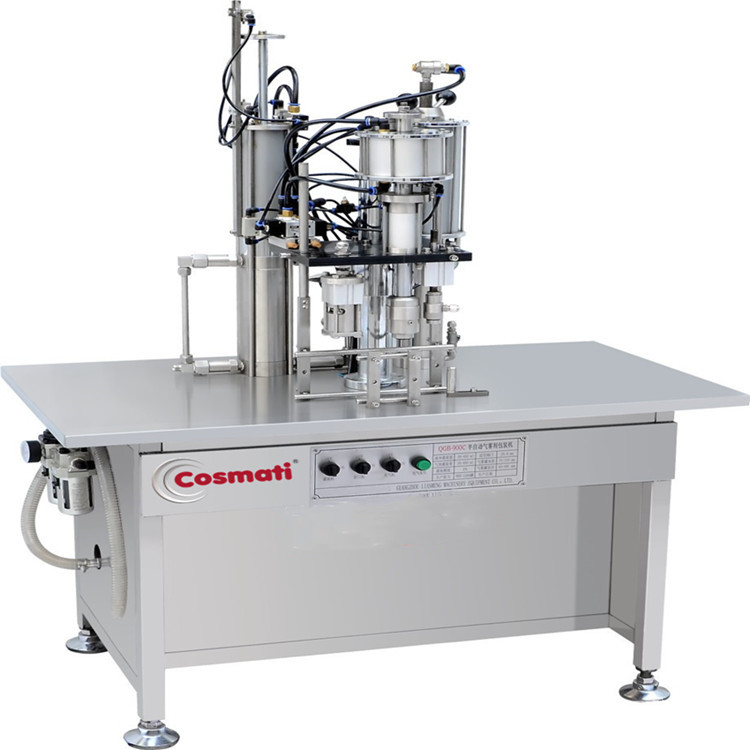

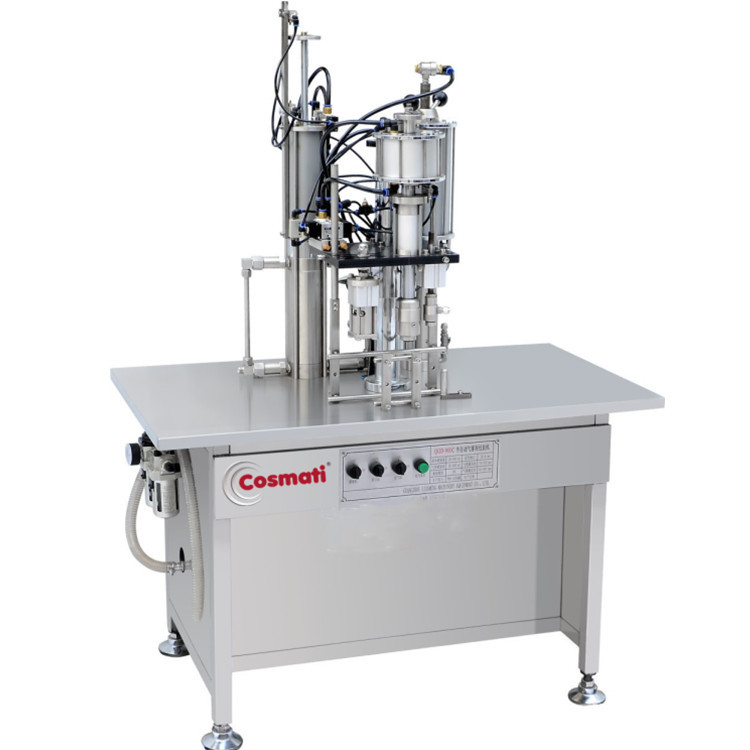

Semi automatic Oxygen Gas Fresh Air spray paint aerosol cans filling machine

Semi-automatic Oxygen Gas Fresh Air spray paint aerosol cans filling machine

Technological process:
Manual Bottling --- Single-head Inflatable Tapping --- Single-head Filling

Product Introduction:
1. The machine is an efficient filling equipment for aerosols binary packaging products. It has beautiful appearance, programmable control of micro-computer
(PLC) and photoelectric sensor.

2. The machine is a new type equipment independently researched by the company. It combines a sealing filling head and a forced filling head on a table to save land.

3. Linear screw pushing bottle system is used instead of the original transmission. Semi-automatic and automatic modes can be selected during operation of the
equipment, which is flexible, efficient and labor-saving.

4. The machine fills the valve with bag with propellant or compressed air at the same time, and then injects liquid material into the bag with high pressure.So that
the raw material can be completely isolated from the tank, which solves the problem that the raw material corrodes the tank or gas-liquid cannot be mixed.

5. Imported parts are used as the main seals to ensure sealing quality, stable operation of equipment and low failure.

Introduction:
Product number: CM-EY-QWJ
Product Name: Binary Aerosol Filler
Product Series: Aerosol Series
Operating mode: semi-automatic

Technical Parameter:

Filling range: 30-300ml
Filling accuracy: ≤± 1%
Sealing accuracy: ≤ 3%
Production speed:700-1000pcs/ h
Applicable valve: 1 " Applicable aerosol tank: Φ 30-65mm
Working pressure: 0.5-0.7 MPa
Maximum air consumption: 0.6m ³/ min
Overall dimension (mm): 1000 *600 * 1600
Weight: 245kg

Product advantages:
1. Touch screen control
2. Filling and sealing suitable for various products
3. Material is not easy to react with tank

Features

1. The machine integrates compressed air (or N2) filling and sealing with touchscreen + PLC program control before filling the raw material.

2. It is especially suitable for filling water-based aerosol products.

3. It has the advantages of fast speed, convenient operation, accurate measurement, good sealing air tightness and arbitrary adjustment of pressure and pressure.

Our Main Products:

Mixing equipment	Vacuum homogenization emulsifier	Labeling machine
Inquiry Now	Inquiry Now	Inquiry Now
Liquid paste filling machine	Digital small liquid filling machine	Aerosol filling machine
Inquiry Now	Inquiry Now	Inquiry Now
Perfume filling machine	Cosmetic powder press machine	Grinding machine
Inquiry Now	Inquiry Now	Inquiry Now

Company Profile:

We are a cosmetic machinery manufacturer which professional in researching and developing, producing cosmetic machines. Through the agency of South Korea, Japan, Italy,equipment brand, we have deposited leading technology and applied it to our products.We focus on color cosmetic fields and cosmetic fields and provide the complete set of solutions for your company.

Our main products including Vacuum mixer homogenizer,mixer machine,cosmetic filling machine,perfume filling machine,lip gloss filling machine ,mascara filling machine,lipstick filling machine and so on.

We provide fair price with competitive products. Excellent,Professional,Competitive products and good service are provided. Dedicate QC team is responsible for quality control from start producing to delivery to customers' side. Every product is carefully verified before delivery to customer, as well as detailed inspection record to provide accurate after-sales service.

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

FAQ

1. What products can this aerosol filling machine handle?

It is suitable for various aerosol products such as air freshener, spray paint, cosmetic spray, cleaning spray, disinfectant spray, pharmaceutical spray and other compatible aerosol products.

2. What functions can this machine perform?

Depending on the configuration, the machine can complete liquid filling, valve crimping and propellant gas filling for aerosol cans.

3. Is this machine fully automatic?

No. This model is a semi-automatic aerosol filling machine. The operator normally places and removes the aerosol cans manually while the filling, crimping or gas charging stations perform the required process.

4. What type of aerosol cans can it use?

It can work with compatible metal aerosol cans commonly used for air freshener, spray paint, cosmetic spray and chemical spray products.

Can diameter and height should be confirmed before ordering.

5. Can the machine fill both liquid and gas?

Yes, when equipped with the corresponding stations, it can handle both liquid product filling and propellant gas charging.

The exact filling system should be selected according to the product formula and propellant type.
