Automatic body spray aerosol can filling machinery

Introduction

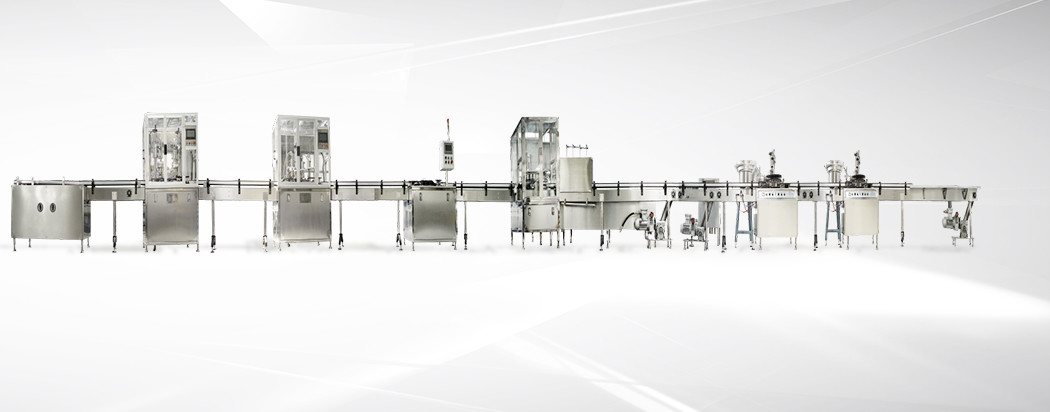

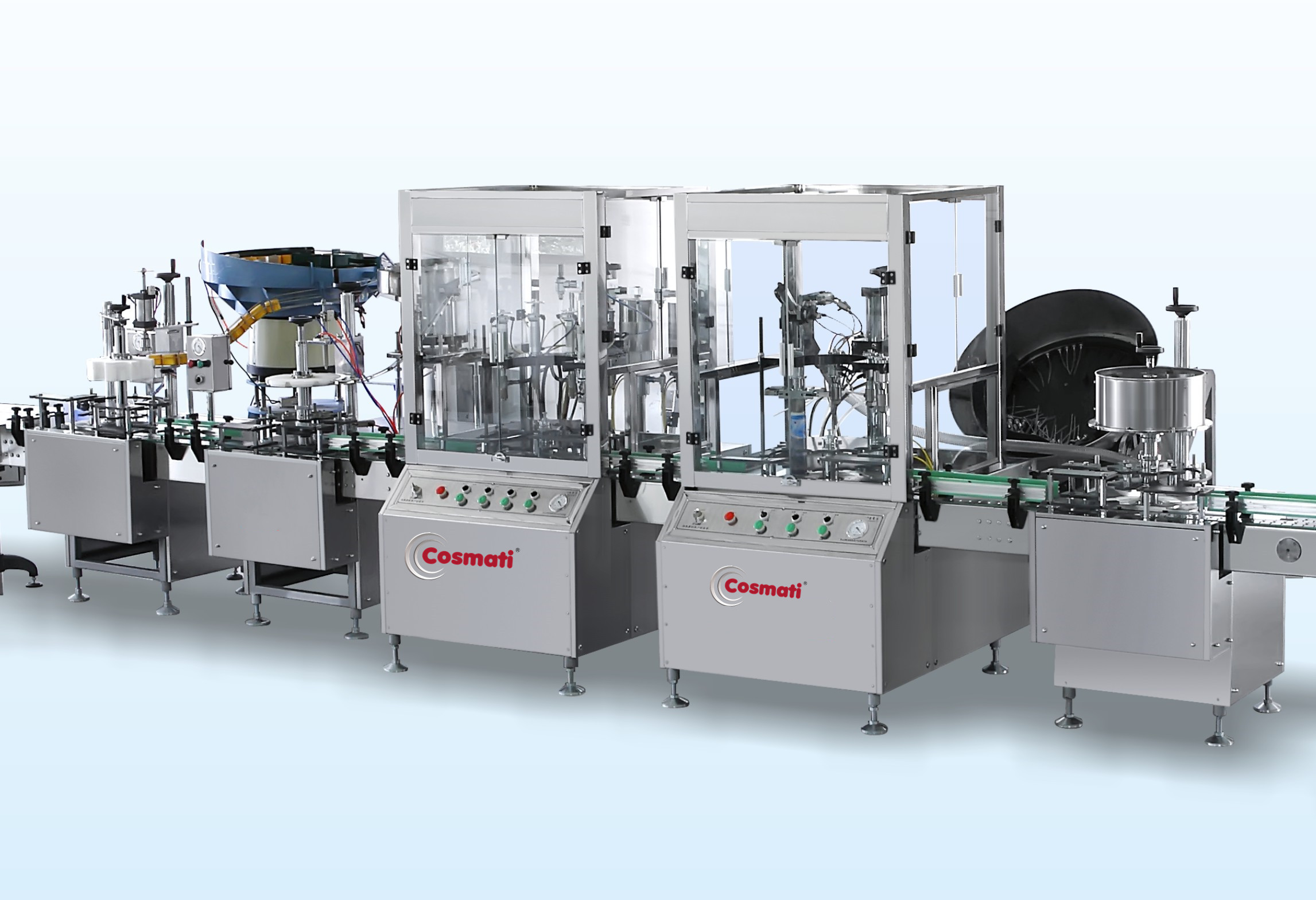

This Automatic Body Spray Aerosol Filling Line is designed for continuous aerosol can production, integrating can conveying, liquid filling, valve crimping, propellant filling, actuator feeding and cap feeding into one production line.

The supplied system uses 304 stainless steel construction, pneumatic filling and injection control, independent filling-head adjustment and a no-can-no-fill design. Three liquid filling heads and three injection heads support efficient continuous production while reducing manual handling.

The line is suitable for body spray, deodorant spray, fragrance spray, air freshener, cosmetic aerosol, pharmaceutical spray, chemical aerosol and compatible spray products.

Technical Parameters:

Machine name :Full Automatic Aerosol Filling Machine
Filling Volume:30-500ml(can be customerized)
Filling Accuracy:±1%
Can Height:70-330mm
Capacity:3000-3600cans/hr
Top speed :20 CPM
Height of cans:70-330 mm
Diameter of cans:30-65 mm
Filling tolerance:≤± 1%
Air working pressure:5 bar
Function:Autoamtic weighting,filling,capping,packing,etc

Details

Application:

Our Main Products:

Mixing equipment	Vacuum homogenization emulsifier	Labeling machine
Inquiry Now	Inquiry Now	Inquiry Now
Liquid paste filling machine	Digital small liquid filling machine	Aerosol filling machine
Inquiry Now	Inquiry Now	Inquiry Now
Perfume filling machine	Cosmetic powder press machine	Grinding machine
Inquiry Now	Inquiry Now	Inquiry Now

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

FAQ

1. Is this a fully automatic aerosol filling line?

Yes. This model is designed as a full automatic aerosol production line, combining conveying, liquid filling, valve processing, propellant filling and downstream cap handling.

2. What products can this machine fill?

It can be configured for body spray, deodorant spray, fragrance spray, air freshener, cosmetic aerosol, pharmaceutical aerosol, chemical spray and spray paint.

The final configuration depends on the product formula and propellant.

3. How many filling heads are included?

The supplied configuration has 3 liquid filling heads.

Each filling head can be controlled independently.

4. How many propellant filling heads are included?

The supplied system uses 3 injection heads for aerosol propellant filling.

5. Does the machine automatically crimp aerosol valves?

Yes. The line includes a valve capping or crimping section before propellant charging.

Valve dimensions should be confirmed before production.
