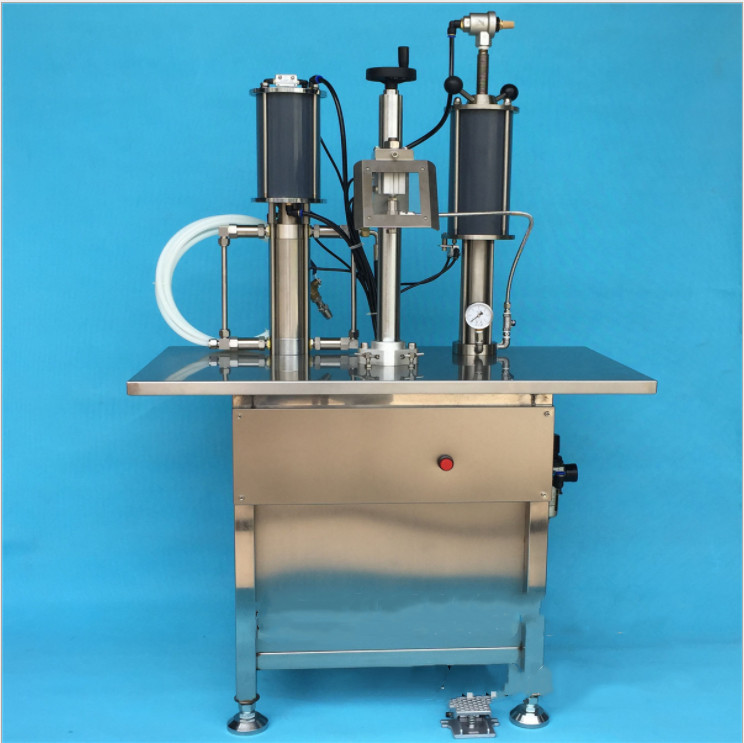

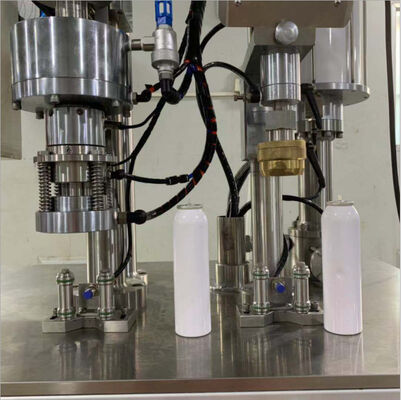

Name: Automatic Aerosol Spray Filling Machine For Cosmetic Industry
Brand: Guangzhou Cosmati Technology Co., Ltd.
SKU: CM-QWJ-B
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Automatic Aerosol Spray Filling Machine Machine Filling Spray Cans

Keyword: Aerosol Cans Filling Machine

Automatic Grade: Semi-automatic

Key Selling Points: High Productivity

Application: Chemical, Pharmaceutical,Medical

Packing: Wood Case

Usage: Aerosol Spray Filling

Voltage: 220V

Working Pressure: 0.5-0.7 MPa

Highlight:

Automatic Aerosol Spray Filling Machine

Automatic Spray Cans Filling Machine

Cosmetic Industry Aerosol Spray Filler

Basic Infomation

Place of Origin: GUANGZHOU,CHINA

Brand Name: COSMATI

Certification: CE

Model Number: CM-QWJ-B

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

Automatic Aerosol Spray Filling Machine For Cosmetic Industry

Product Description

Professional security automatic aerosol spray filling machine machine filling spray cans

Introduction:

Product number: CM-QWJ-B

Product Name: Three-in-one Aerosol Filler

Product Series: Aerosol Series

Operation mode: automation

Product advantages:

1. Fast speed, high accuracy, good stability, time and effort saving

2. All actions can be completed at the same time by only one person operating the pedal valve once.

Technical parameters:

Model		CM-AFM-01
Sealing diameter(mm)		Ф26.5-Ф27.5
Sealing depth(mm)		5.0-6.0
Applicable valve		1”
Applicable aerosol cans	Height(mm)	80-315mm
	Diameter(mm)	35-70mm
Maximum liquid filling volume		450ml
Liquid refilling accuracy		≤±1.0%
Maximum filling volume of propellant		450ml
Propellant repeat filling accuracy		≤±1.0%
Working pressure (MPa)		0.50-0.70MPa
Maximum air consumption		0.6m3/min
Production capacity		800-1200 cans/hour
Dimensions (mm)		1000×600×1600
Weight (kg)		240

Product characteristics:

1. The machine is integrated from the original semi-automatic aerosol filling machine through improvement, optimization and integration.

2. Install three semi-automatic filling, sealing and filling machines on one workbench.

3. All actions can be accomplished simultaneously by one person at a time operating the pedal valve.

4. Fast speed, high accuracy, good stability and time-saving are ideal choices for small and medium-sized aerosol manufacturers.

5. Suitable for filling various media, such as thin liquid (kerosene), viscous liquid (face wash, polyurethane foaming agent).

OUR MAIN PRODUCTS:


Mixing equipment	Vacuum homogenization emulsifier	Labeling machine
Inquiry Now	Inquiry Now	Inquiry Now

Liquid paste filling machine	Digital small liquid filling machine	Aerosol filling machine
Inquiry Now	Inquiry Now	Inquiry Now

Perfume filling machine	Cosmetic powder press machine	Grinding machine
Inquiry Now	Inquiry Now	Inquiry Now

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

FAQ

1. What products can this aerosol filling machine handle?

It is suitable for aerosol products such as air freshener, fragrance spray, cleaning spray, disinfectant spray, cosmetic spray, pharmaceutical spray, chemical spray and other compatible aerosol products.

2. Is this machine fully automatic?

No. This model is a semi-automatic aerosol filling machine. Operators normally place and remove the aerosol cans manually while the filling and related operations are completed by the machine.

3. What functions can this machine perform?

Depending on the final configuration, it can perform liquid filling, aerosol valve crimping and propellant filling for spray cans.

4. Can it fill both liquid and propellant gas?

Yes. The machine can be configured for both liquid product filling and propellant charging.

The exact gas filling system should be selected according to the propellant type and product formulation.

5. Can it crimp aerosol valves?

Yes. The machine can include an aerosol valve crimping station to secure the valve onto the aerosol can before propellant filling.
