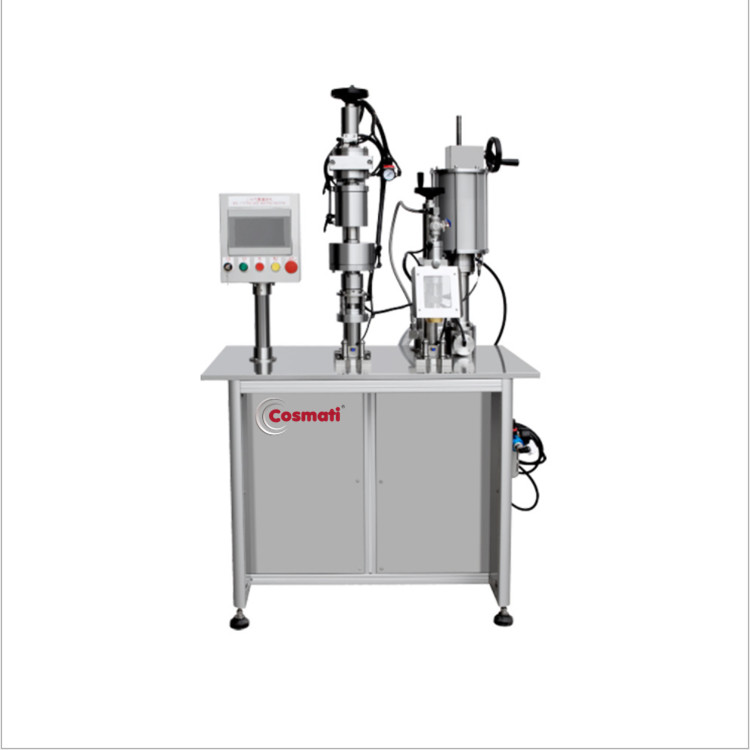

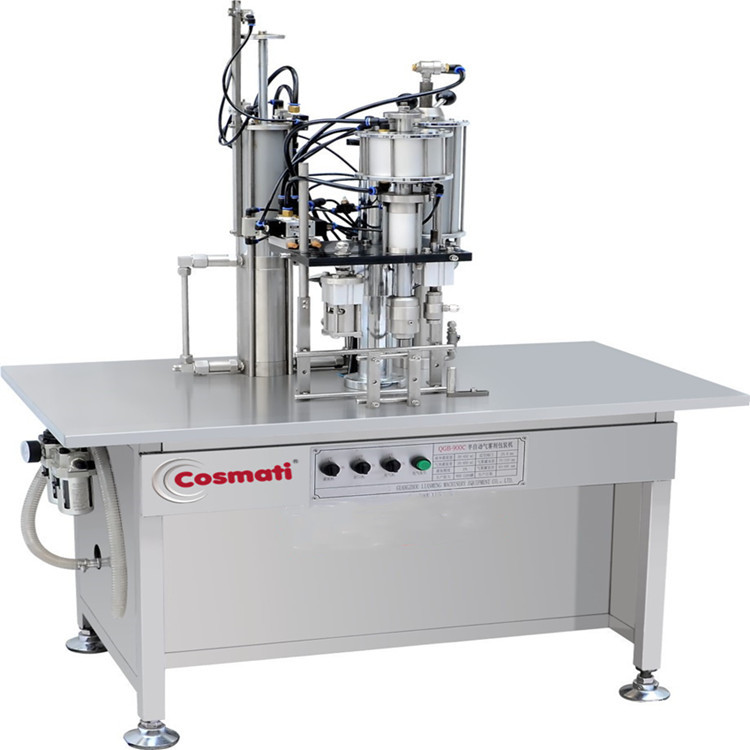

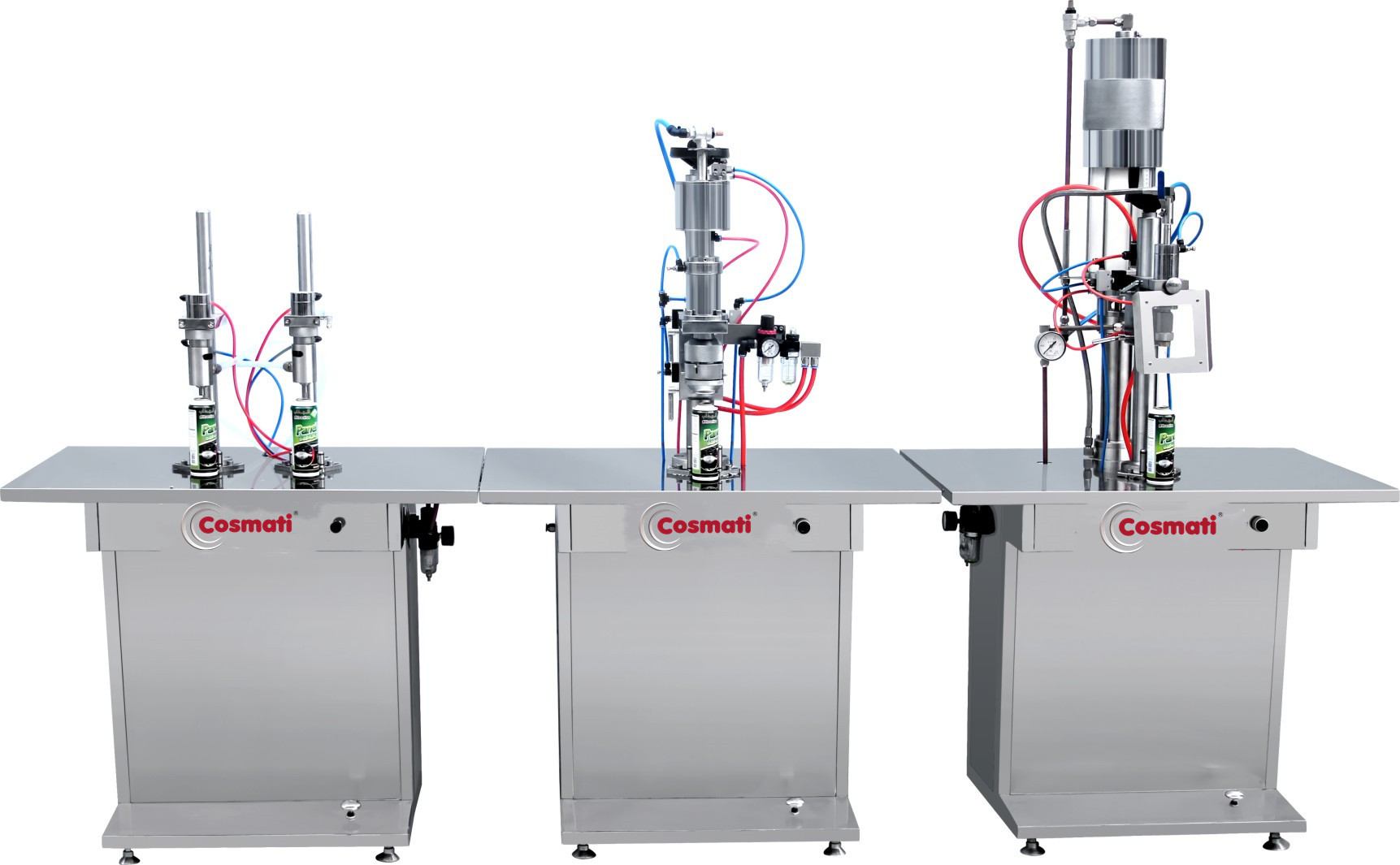

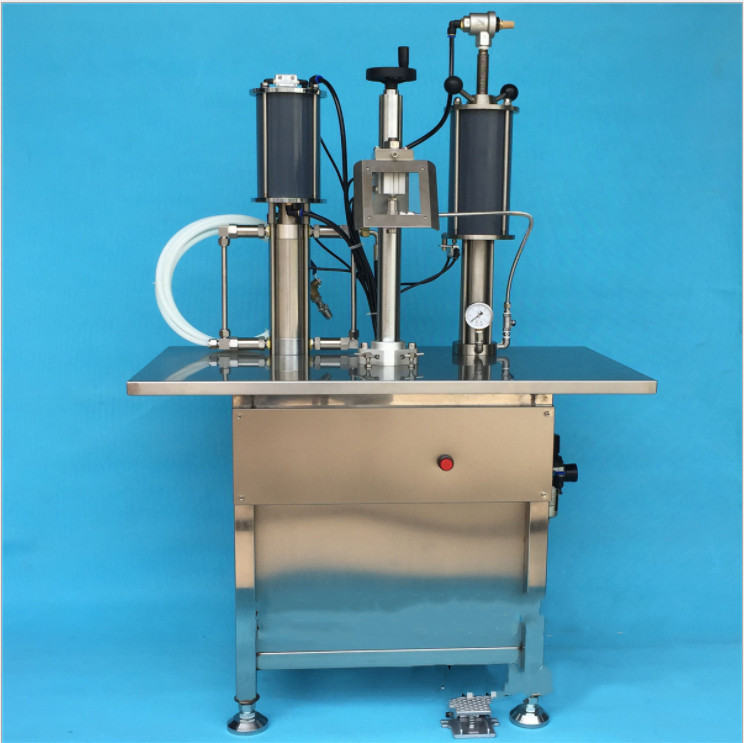

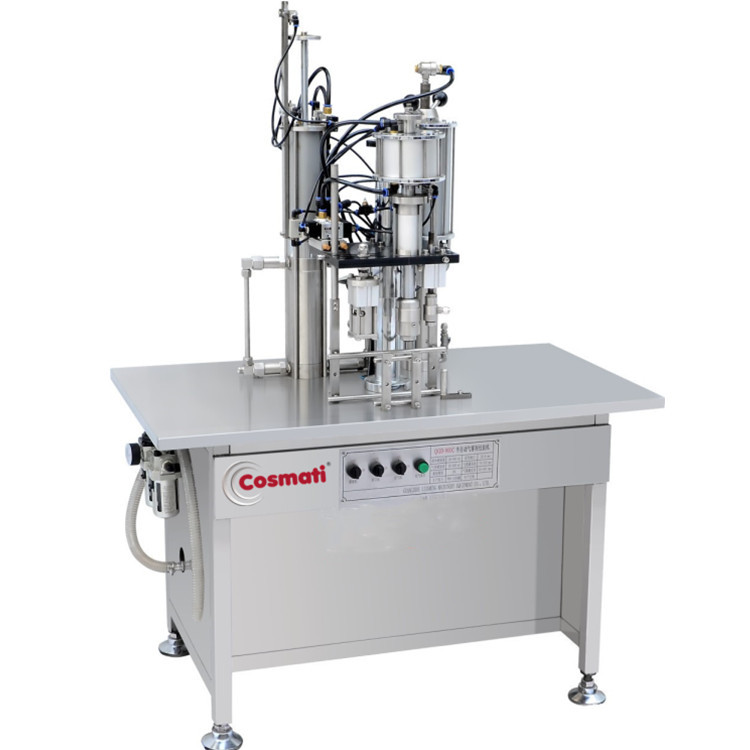

Automatic/Semi-automatic aerosol body spray cans filling machines gas filling machine
![]()
CM-QWJ-B aerosol filling machine, in the design of the contents will be semi-automatic filling machine, semi-automatic sealing machine, semi-automatic filling machine propellant (including booster pump) combined with the completion of a work platform, and any can work alone. Any two machine interaction work, can be adjusted. This Semi-automatic aerosol filling machine is usually used on aerosol filling. It is widely used in filling perfume, body spray, spray paint, air freshener and so on.
Technical Parameters:
| Model | CM-QWJ-B |
| For valves | 1 " (25.4 mm) |
| Contents of the input connector | 20 mm diameter stainless steel pagoda connector |
| Propellant filling volume (ml) | 30-500 |
| Propellant input connector | M22 * 1.5 Anti-teeth (for example, with standard 15KG, 50KG liquefied petroleum gas cylinder butt) |
| Filling accuracy | ± 1% |
| Aerosol cans for height (mm) | 70-330 |
| For aerosol can diameter Diameter (mm) | 30-65 |
| Working pressure | 5 bar |
| Maximum Air Consumption (m3/min) | 1 |
| Production capacity (cans / hour) | 1200 -1600cans / hour |
| Packing size | 1250mm*1400mm*2000mm |
| Weight | 140kg |
Our Main Products:
|
|
|
|
| Mixing equipment | Vacuum homogenization emulsifier | Labeling machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
|
|
|
|
| Liquid paste filling machine | Digital small liquid filling machine | Aerosol filling machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
| Perfume filling machine | Cosmetic powder press machine | Grinding machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
FAQ
1. What products can this semi automatic aerosol filling machine produce?
This machine is suitable for body spray, deodorant spray, perfume aerosol, fragrance spray, air freshener, household aerosol, pharmaceutical spray and other compatible aerosol products.
The final configuration depends on the liquid formula, propellant and aerosol can specification.
2. Is this an automatic or semi automatic aerosol filling machine?
This model is a semi automatic aerosol filling machine. Operators manually position the aerosol cans while the machine performs the required filling, gas charging or valve processing operations.
3. Can the machine fill both liquid and aerosol gas?
Yes. It can be configured for both liquid product filling and aerosol propellant filling, making it suitable for body spray and other aerosol can production.
4. Can it be used as a body spray filling machine?
Yes. The machine is suitable for body spray, deodorant aerosol and fragrance spray filling when equipped with the appropriate liquid and propellant filling configuration.
5. What propellants can the machine handle?
The compatible propellant depends on the product formula and required safety configuration.
Please provide the exact propellant type before ordering so the aerosol gas filling system can be correctly matched.
