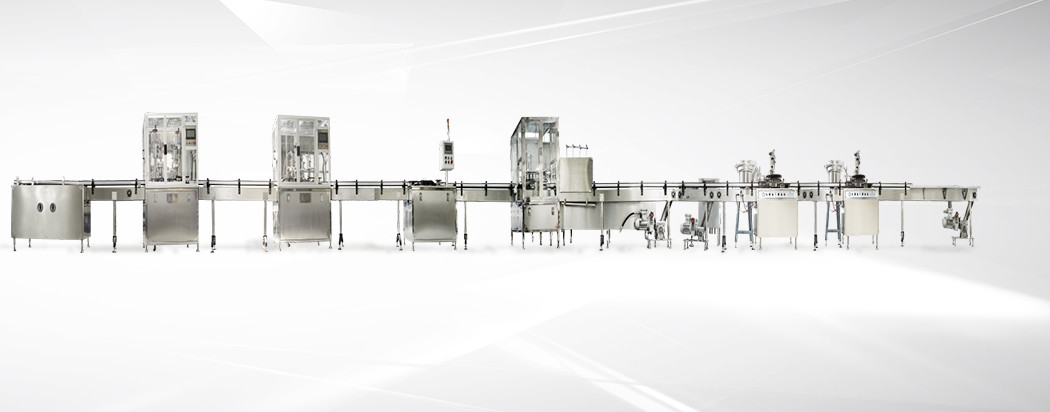

This automatic aerosol filling line mainly consists of unscrambler, filling device, capping device, conveyor.
1.Conveyor: Stainless steel main panel and side panels, 2440mm*3 sections; plate in 2mm thickness made of 304 stainless steel.
2. Filling device: Equipped with an air blowing head and 3 filling heads, fully-pneumatic control, and each head can be controlled separately; a set of Φ65mm aerosol can holder and can guidance panel are provided; main pneumatic control devices are introduced from Italy and Japan. It features: no material is discharged in absence of aerosol can. #304 stainless steel.
3. Injecting and Capping device: provided with a vacuum head, a capping head, 3 injecting heads. It features: guiding devices are provided at both capping heads and injecting heads. #304 stainless steel.
4. Control System: The main body including the aerosol filler and the capping and injecting device is under pneumatic control. With high efficiency, safe, simple and reliable operation and easy maintenance.
scope of speed: 4.5-23r/min.;
0.75kw anti-blast motor and anti-blast switch are attached;
Safety guarantee: Anti-blast motors are applied for tin unscrambler device and the conveyor; the circuit is through PVC pipes and anti-blast junction boxes, connected by anti-blast switch; the main body is absent from power supply; the casing is grounding to prevent electrostatic; both aerosol filler and injecting device are protected by cabinet (stainless steel frame with 4mm transparent organic glass) to prevent injury due to can blasting.
FAQ
1. What products can this automatic aerosol filling line produce?
This machine is suitable for various industrial aerosol products such as lubricant spray, spray paint, acrylic paint aerosol, rust inhibitor spray, cleaning aerosol, maintenance spray and other compatible chemical aerosol products.
Final configuration depends on the product formula, propellant, aerosol can and valve specifications.
2. Is this a fully automatic aerosol filling line?
Yes. This model is designed as a full automatic aerosol filling production line, suitable for continuous industrial aerosol production with reduced manual handling.
3. Can this machine be used for lubricant spray filling?
Yes. It can be configured as an Automatic Lubricant Spray Filling Machine for suitable lubricant formulations and aerosol propellants.
Customers should provide the liquid viscosity, filling volume and propellant type before machine selection.
4. Is the line suitable for spray paint and acrylic paint aerosol?
Yes. The line can be configured for spray paint, acrylic paint aerosol and other compatible coating aerosol products.
For formulations containing pigments or solids, the filling system should be selected according to the actual material characteristics.
5. What processes can the complete aerosol production line include?
Depending on configuration, the line can integrate:

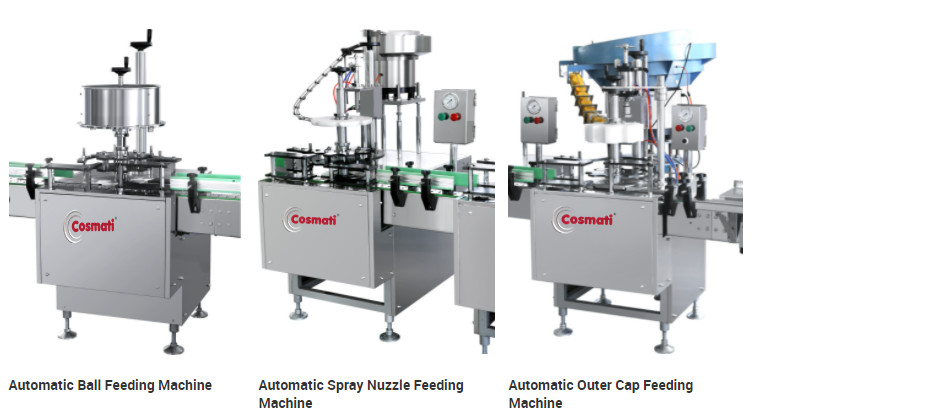

Can Feeding → Liquid Filling → Valve Feeding → Valve Crimping → Propellant Filling → Ball Feeding → Spray Nozzle Feeding → Outer Cap Feeding
This creates a continuous aerosol packaging process.
