3 In 1 Bag On Valve Aerosol Filling Machine Single Man Operate

1 SET
MOQ
1000-100000 USD
Price
3 In 1 Bag On Valve Aerosol Filling Machine Single Man Operate
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: 3 In 1 Single Man Operate Bag On Valve Aerosol Filling Machine
Keyword: Aerosol Cans Filling Machine
Automatic Grade: Semi-automatic
Key Selling Points: High Productivity
Application: Chemical, Pharmaceutical,Medical
Packing: Wood Case
Usage: Aerosol Spray Filling
Voltage: 220V
Highlight:

3 in 1 Aerosol Filling Machine

,

Bag On Valve Aerosol Filling Machine

,

Single Man Operate Aerosol Filler

Basic Infomation
Place of Origin: GUANGZHOU,CHINA
Brand Name: COSMATI
Certification: CE
Model Number: CM-AFM
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

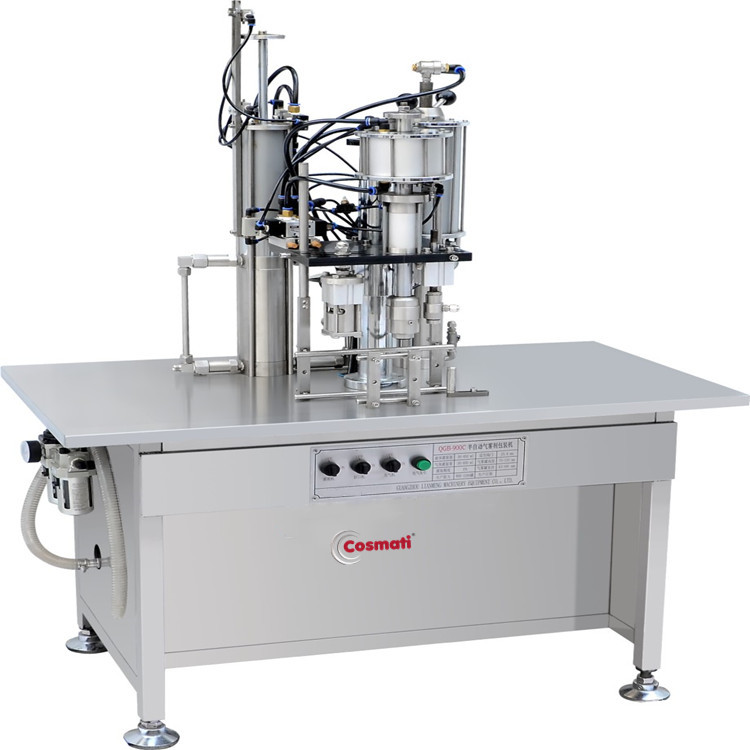

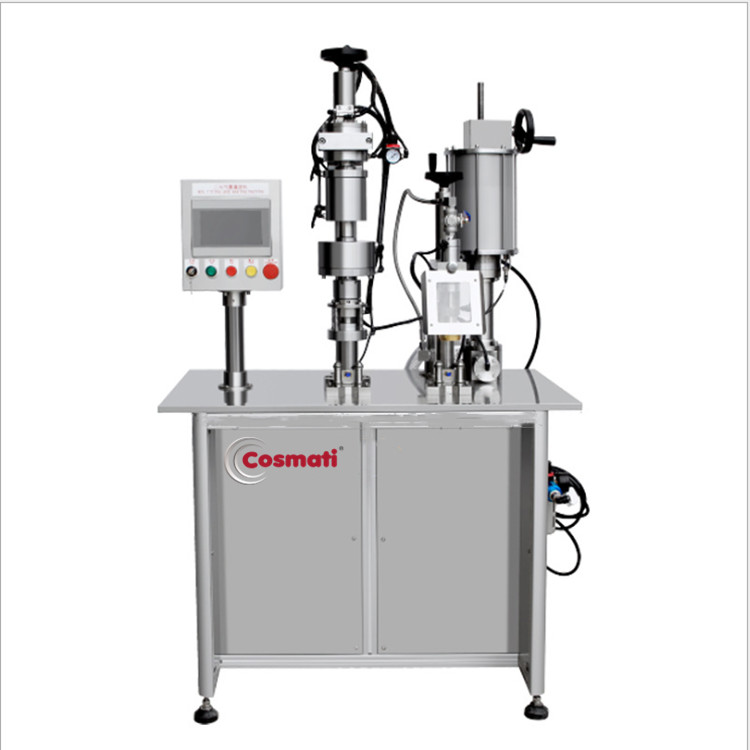

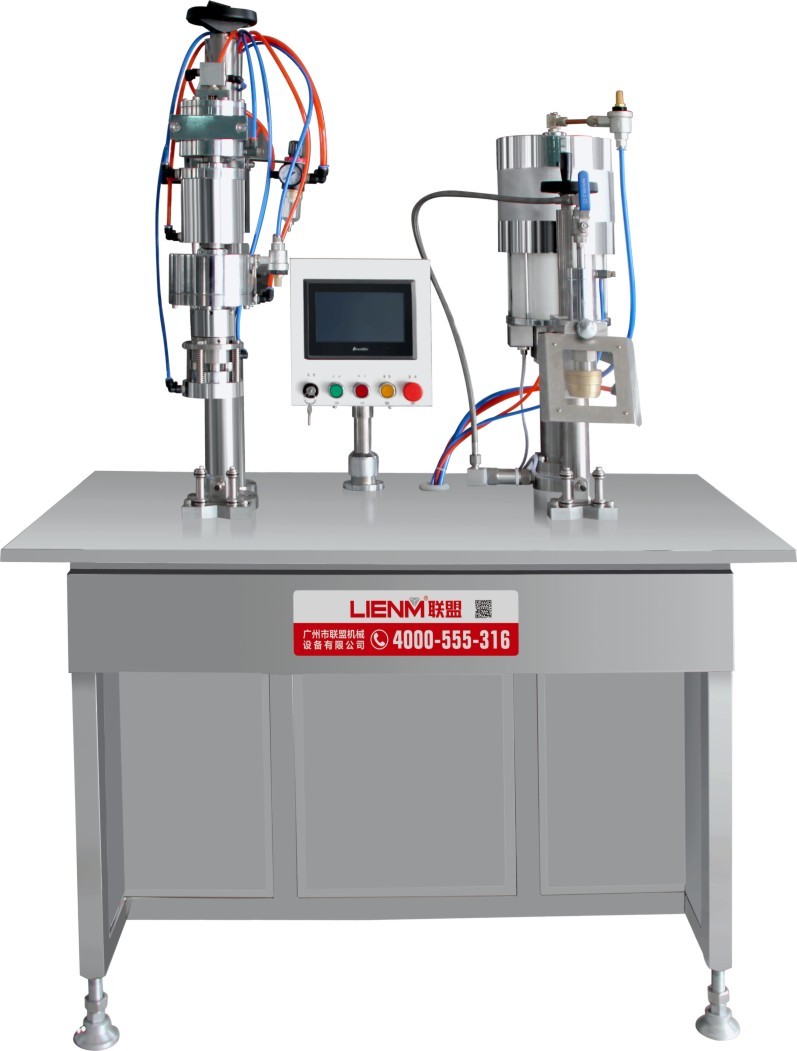

3 in 1 Single Man Operate Bag On Valve Aerosol Filling Machine

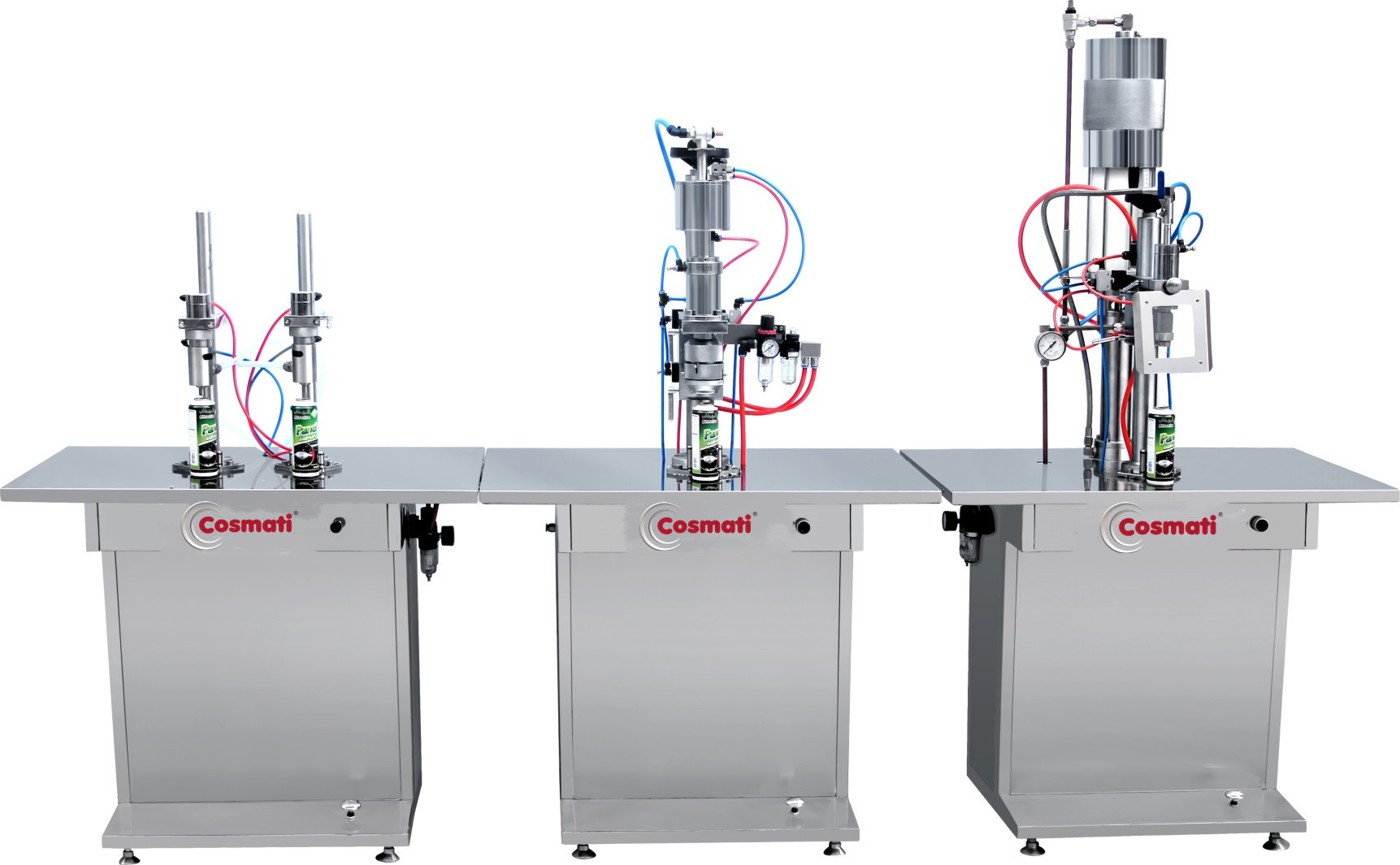

CM-QWJ-B aerosol filling machine, in the design of the contents will be semi-automatic filling machine, semi-automatic sealing machine, semi-automatic filling machine propellant (including booster pump) combined with the completion of a work platform, and any can work alone. Any two machine interaction work, can be adjusted. This Semi-automatic aerosol filling machine is usually used on aerosol filling. It is widely used in filling perfume, body spray, spray paint, air freshener and so on.


Technical Parameters:

Model CM-QWJ-B
For valves 1 " (25.4 mm)
Contents of the input connector 20 mm diameter stainless steel pagoda connector
Propellant filling volume (ml) 30-500
Propellant input connector M22 * 1.5 Anti-teeth (for example, with standard 15KG, 50KG liquefied petroleum gas cylinder butt)
Filling accuracy ± 1%
Aerosol cans for height (mm) 70-330
For aerosol can diameter Diameter (mm) 30-65
Working pressure 5 bar
Maximum Air Consumption (m3/min) 1
Production capacity (cans / hour) 1200 -1600cans / hour
Packing size 1250mm*1400mm*2000mm
Weight 140kg


Our Main Products:


6747

5363



Mixing equipment Vacuum homogenization emulsifier Labeling machine
Inquiry Now Inquiry Now Inquiry Now



3 In 1 Bag On Valve Aerosol Filling Machine Single Man Operate




0013

003
Liquid paste filling machine Digital small liquid filling machine Aerosol filling machine
Inquiry Now Inquiry Now Inquiry Now
10   10 10 .png
Perfume filling machine Cosmetic powder press machine Grinding machine
Inquiry Now Inquiry Now Inquiry Now
Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0
Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3
Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

FAQ

1. What is a Bag On Valve aerosol filling machine?

This Bag On Valve aerosol filling machine is designed for BOV aerosol packaging, combining key processes such as valve crimping, propellant gas filling and product filling in a compact semi-automatic system.

2. What does “3 in 1” mean on this aerosol filling machine?

The 3 in 1 aerosol filling machine integrates multiple BOV packaging operations into one workstation, reducing equipment footprint and simplifying operation compared with separate machines.

3. Can one operator run this machine?

Yes. The machine is designed for single-operator semi-automatic production, making it suitable for small and medium aerosol production lines.

4. What products can be filled with this BOV aerosol machine?

Depending on the formulation and valve system, it can be used for products such as body spray, sunscreen spray, cosmetic spray, pharmaceutical spray, disinfectant spray, personal care products and other aerosol liquids.

5. What is the difference between BOV filling and traditional aerosol filling?

A Bag On Valve system keeps the product inside a flexible bag while the propellant stays outside the bag.

This separates the product from the propellant and is widely used for cosmetic, pharmaceutical and personal-care aerosol packaging.
