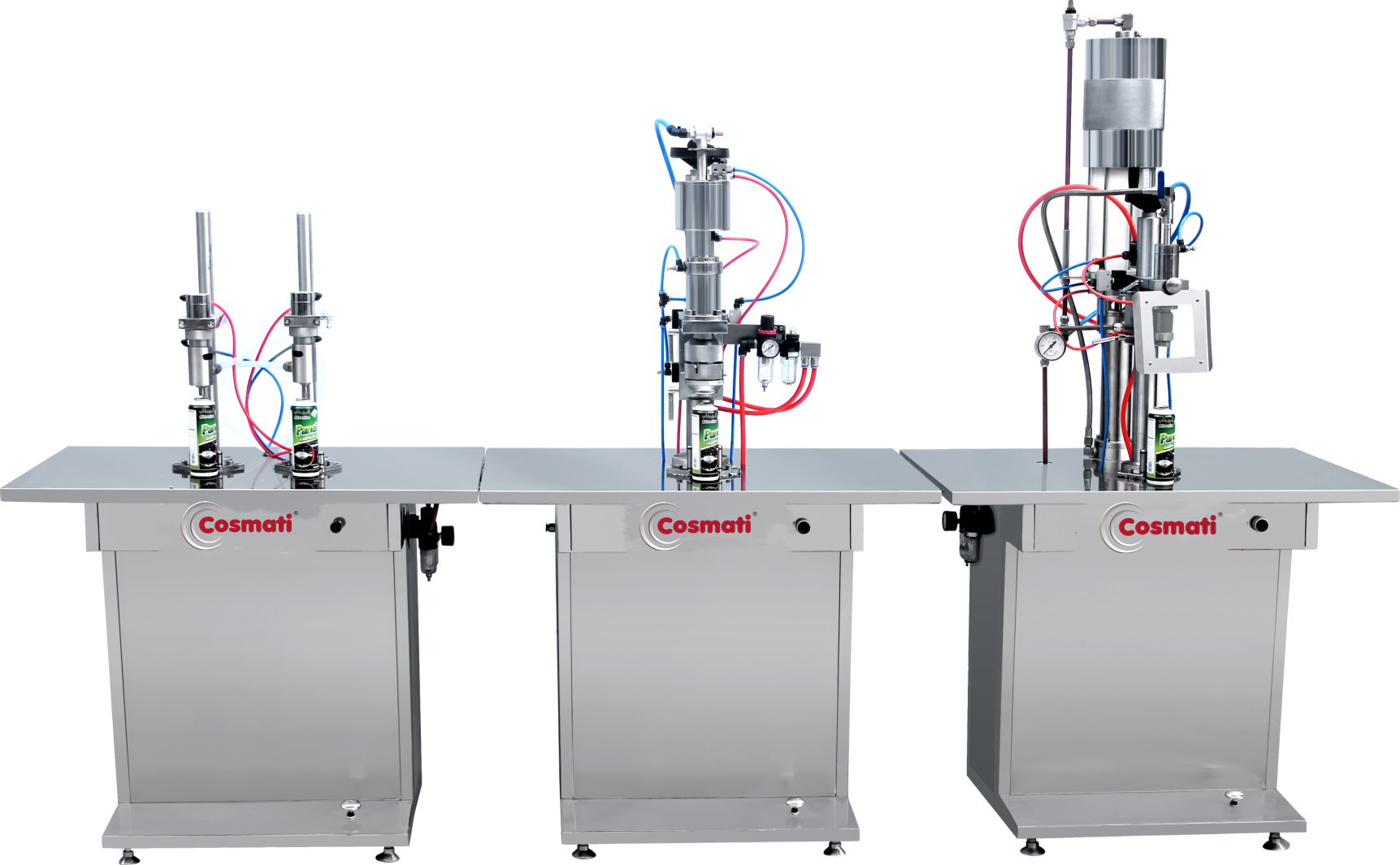

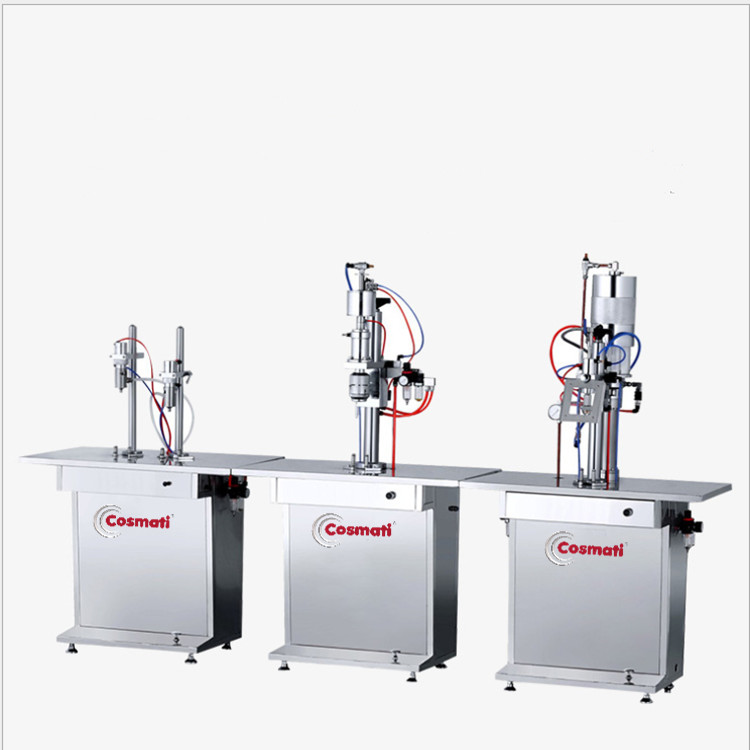

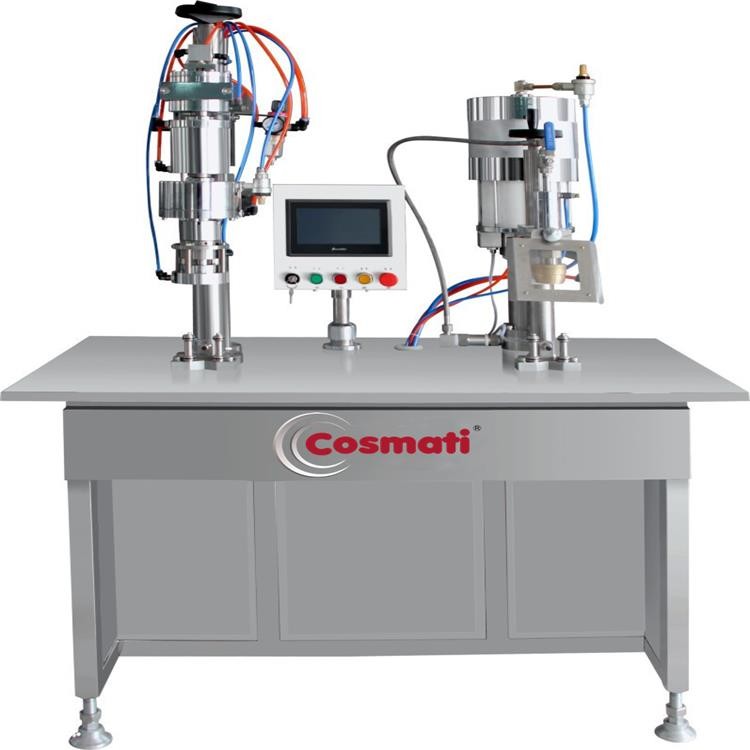

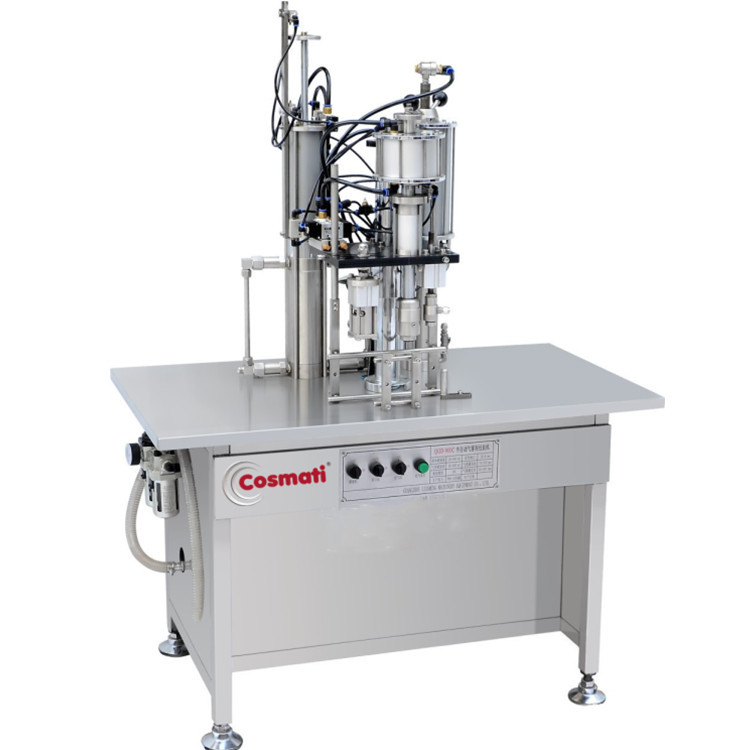

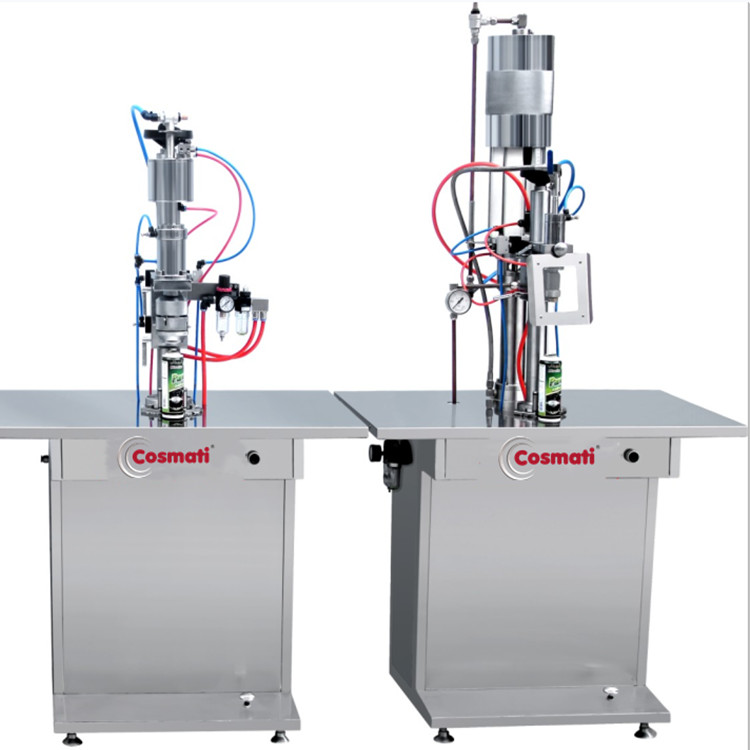

Semi-automatic aerosol gas Air fresher filling aerosol body spray cans filling machines
![]()
CM-QWJ-B aerosol filling machine, in the design of the contents will be semi-automatic filling machine, semi-automatic sealing machine, semi-automatic filling machine propellant (including booster pump) combined with the completion of a work platform, and any can work alone. Any two machine interaction work, can be adjusted. This Semi-automatic aerosol filling machine is usually used on aerosol filling. It is widely used in filling perfume, body spray, spray paint, air freshener and so on.
Technical Parameters:
| Model | CM-QWJ-B |
| For valves | 1 " (25.4 mm) |
| Contents of the input connector | 20 mm diameter stainless steel pagoda connector |
| Propellant filling volume (ml) | 30-500 |
| Propellant input connector | M22 * 1.5 Anti-teeth (for example, with standard 15KG, 50KG liquefied petroleum gas cylinder butt) |
| Filling accuracy | ± 1% |
| Aerosol cans for height (mm) | 70-330 |
| For aerosol can diameter Diameter (mm) | 30-65 |
| Working pressure | 5 bar |
| Maximum Air Consumption (m3/min) | 1 |
| Production capacity (cans / hour) | 1200 -1600cans / hour |
| Packing size | 1250mm*1400mm*2000mm |
| Weight | 140kg |
Our Main Products:
|
|
|
|
| Mixing equipment | Vacuum homogenization emulsifier | Labeling machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
|
|
|
|
| Liquid paste filling machine | Digital small liquid filling machine | Aerosol filling machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
| Perfume filling machine | Cosmetic powder press machine | Grinding machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
FAQ
1. What products can this semi automatic aerosol filling machine handle?
It is suitable for various aerosol products such as air freshener, body spray, spray, deodorant spray, fragrance spray, household chemical aerosol and other compatible aerosol products.
Final configuration depends on the liquid formula, propellant type and aerosol can specification.
2. Is this machine fully automatic?
No. This model is a semi automatic aerosol filling machine, suitable for small and medium production where operators manually load or position aerosol cans while the filling and related operations are completed by the machine.
3. Can this machine fill both liquid product and aerosol gas?
Yes. It can be configured for liquid filling and aerosol propellant or gas filling, making it suitable for complete aerosol can preparation.
The gas filling configuration should be selected according to the required propellant.
4. Can it be used for air freshener aerosol production?
Yes. The machine is suitable as an Air Freshener Aerosol Filling Machine for filling fragrance liquid and compatible aerosol propellant into suitable cans.
5. Is it suitable for aerosol cans?
Yes. It can be configured as an Aerosol Filling Machine for compatible liquid formulations and aerosol gases.
Product formula, solvent and propellant information should be confirmed before machine selection.
