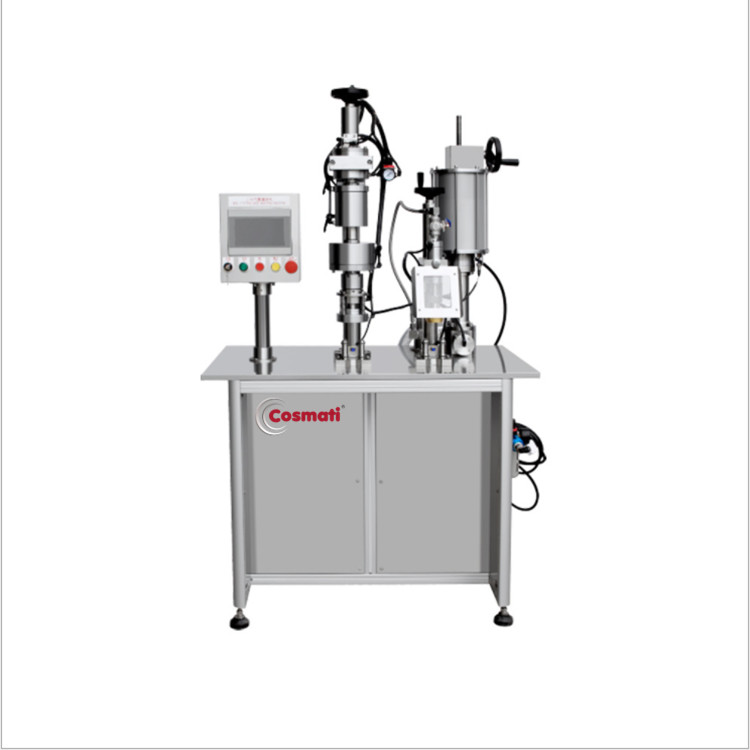

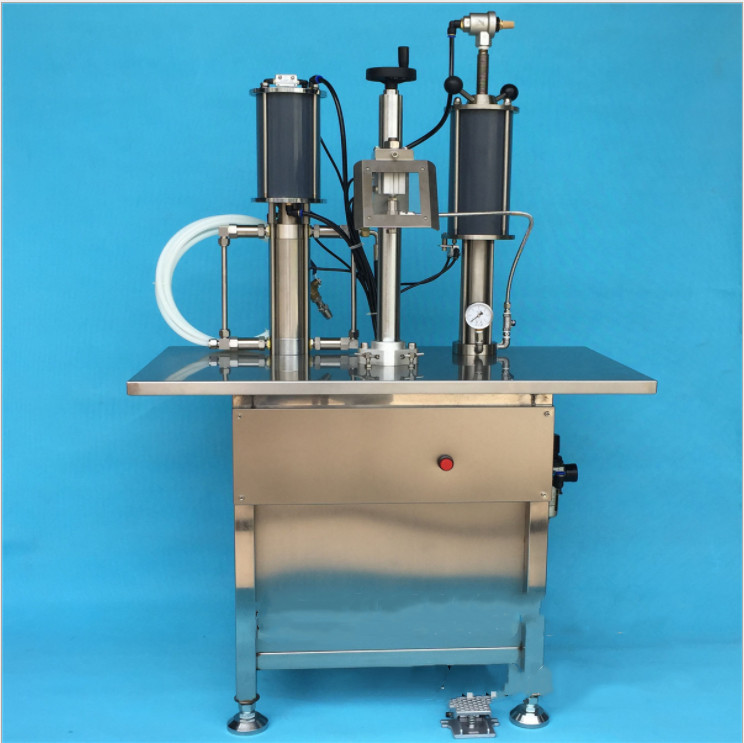

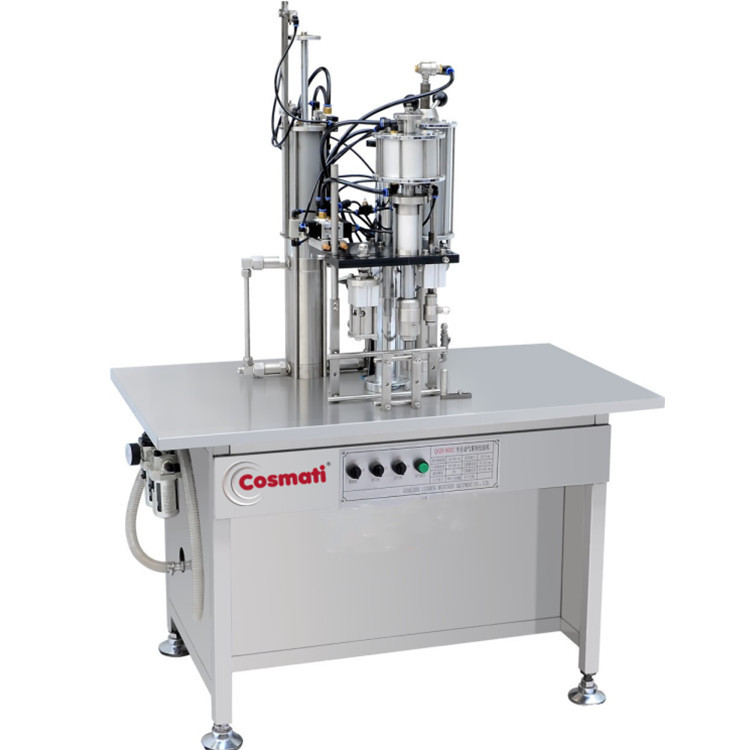

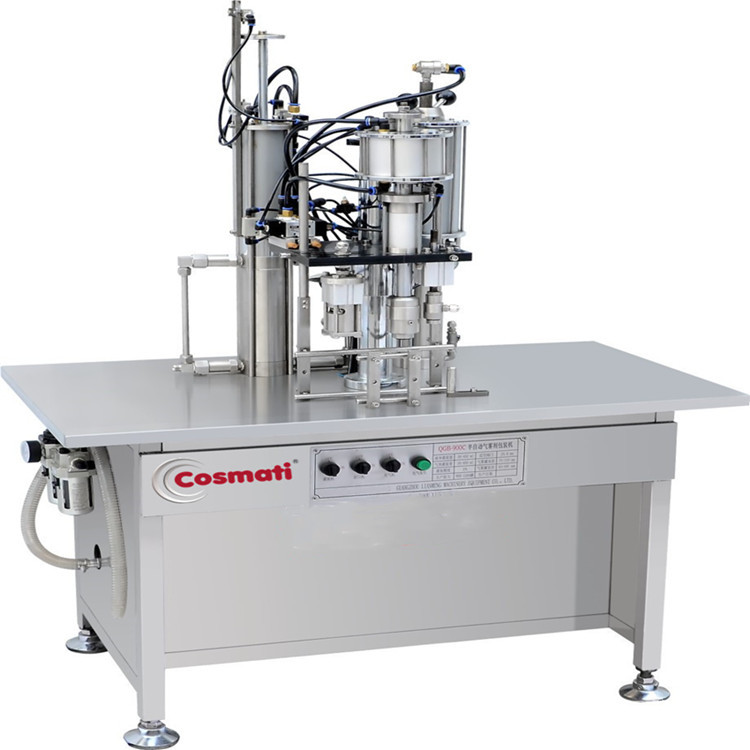

Small filling machinery aerosol liquid bottle filling machine spray filling machine
![]()
CM-QWJ-B aerosol filling machine, in the design of the contents will be semi-automatic filling machine, semi-automatic sealing machine, semi-automatic filling machine propellant (including booster pump) combined with the completion of a work platform, and any can work alone. Any two machine interaction work, can be adjusted. This Semi-automatic aerosol filling machine is usually used on aerosol filling. It is widely used in filling perfume, body spray, spray paint, air freshener and so on.
Technical Parameters:
| Model | CM-QWJ-B |
| For valves | 1 " (25.4 mm) |
| Contents of the input connector | 20 mm diameter stainless steel pagoda connector |
| Propellant filling volume (ml) | 30-500 |
| Propellant input connector | M22 * 1.5 Anti-teeth (for example, with standard 15KG, 50KG liquefied petroleum gas cylinder butt) |
| Filling accuracy | ± 1% |
| Aerosol cans for height (mm) | 70-330 |
| For aerosol can diameter Diameter (mm) | 30-65 |
| Working pressure | 5 bar |
| Maximum Air Consumption (m3/min) | 1 |
| Production capacity (cans / hour) | 1200 -1600cans / hour |
| Packing size | 1250mm*1400mm*2000mm |
| Weight | 140kg |
Our Main Products:
|
|
|
|
| Mixing equipment | Vacuum homogenization emulsifier | Labeling machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
|
|
|
|
| Liquid paste filling machine | Digital small liquid filling machine | Aerosol filling machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
| Perfume filling machine | Cosmetic powder press machine | Grinding machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
1. What products can this semi automatic aerosol filling machine produce?
This machine is suitable for body spray, air freshener, deodorant spray, fragrance spray, household aerosol, spray, cleaning spray and other compatible aerosol products.
The final configuration depends on the liquid formula, propellant and aerosol can specification.
2. What processes can this aerosol filling system complete?

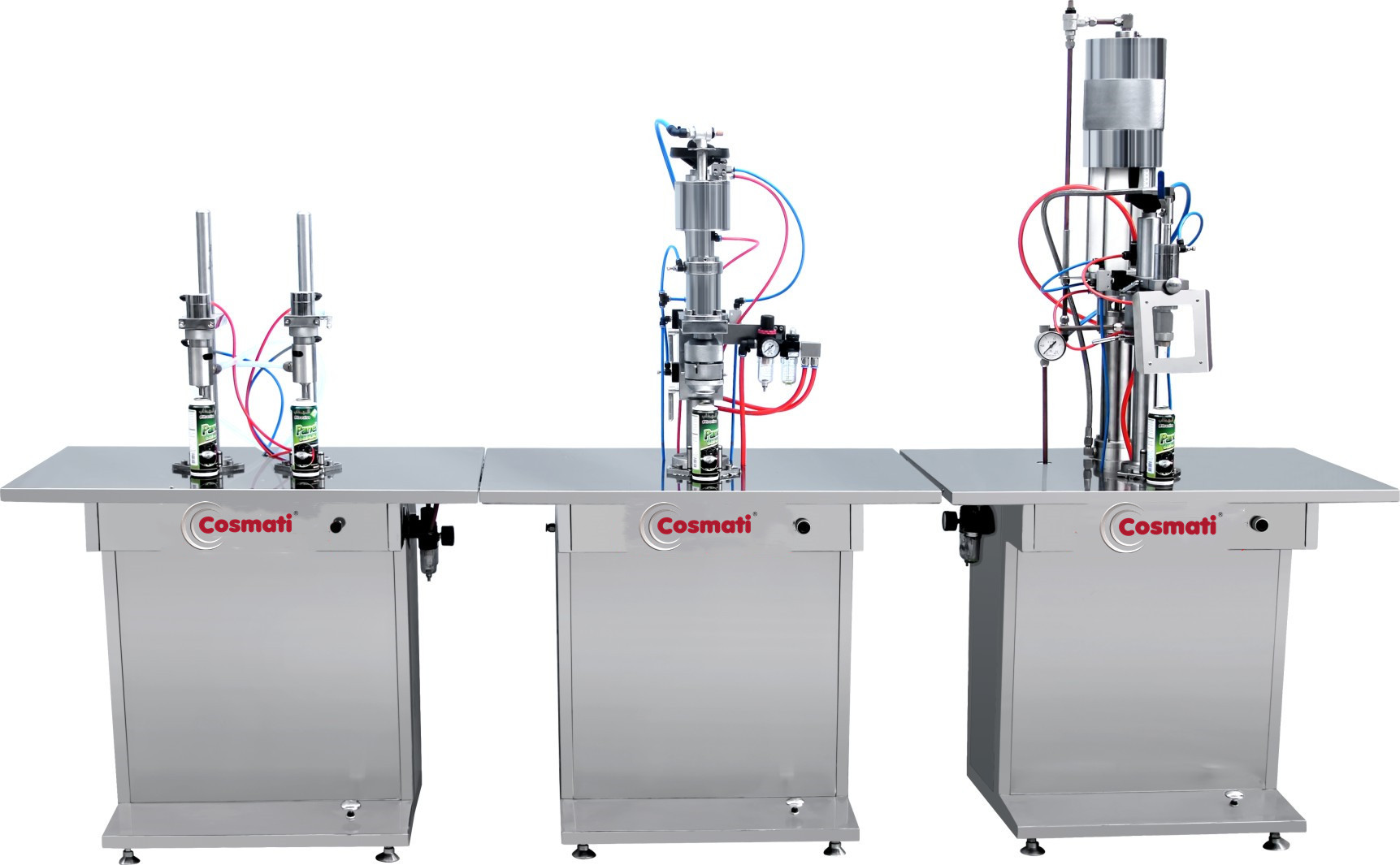

The system can be configured for three main aerosol production processes:
Liquid Filling → Valve Crimping → Propellant Gas Filling
This separate-station design is suitable for flexible small and medium batch production.
3. Is this a fully automatic aerosol filling line?
No. This model is a semi automatic aerosol filling machine. Operators manually place and transfer aerosol cans between working stations, while each filling or crimping process is performed by the corresponding machine.
4. Can it fill both liquid product and propellant gas?
Yes. The system can perform aerosol liquid filling and propellant gas filling using separate working stations.
The gas filling configuration should be selected according to the actual propellant.
5. Does the machine include aerosol valve crimping?
Yes, the system can include an aerosol valve crimping station between liquid filling and gas filling.
Valve size and crimping tooling should be confirmed according to customer samples.
