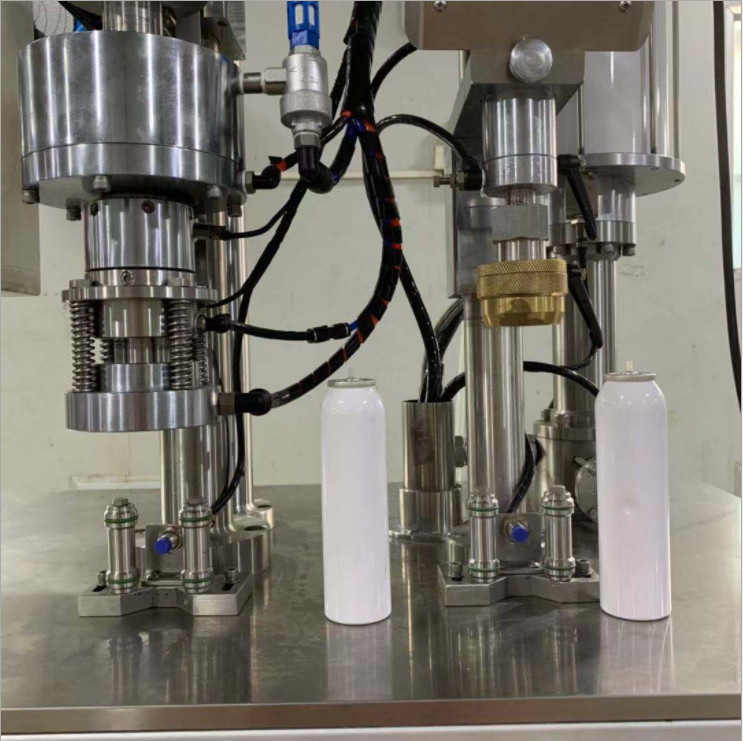

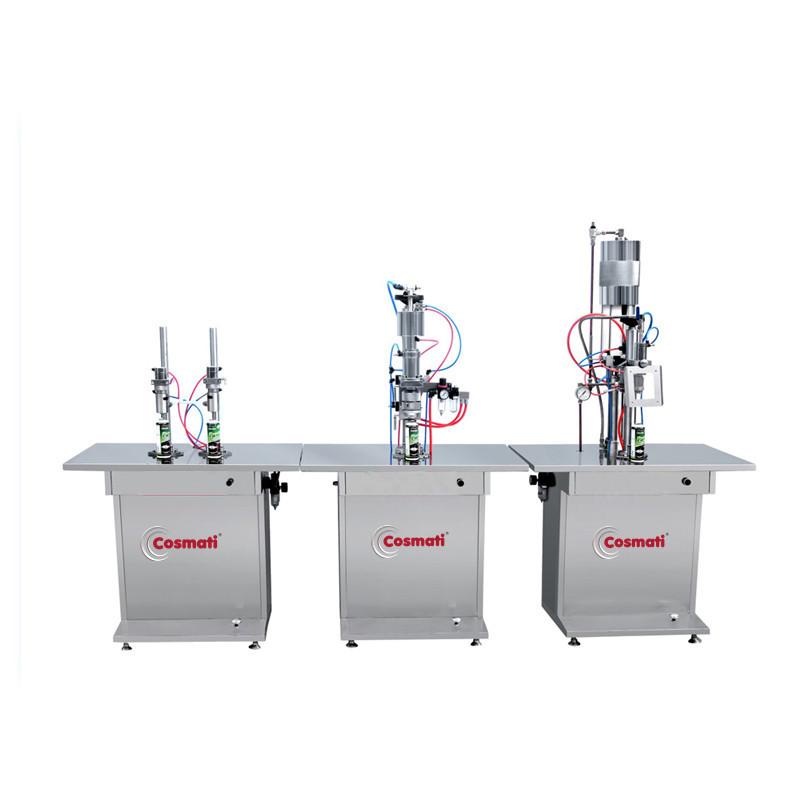

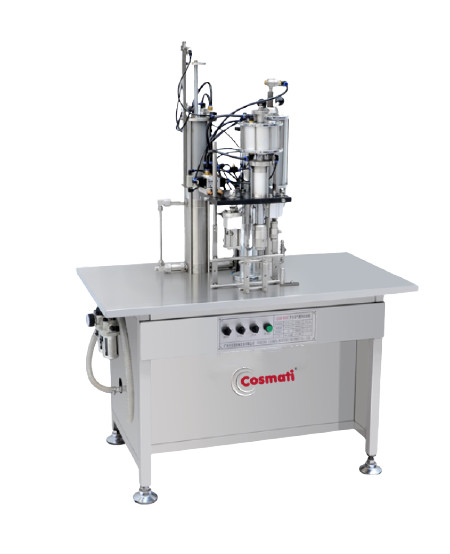

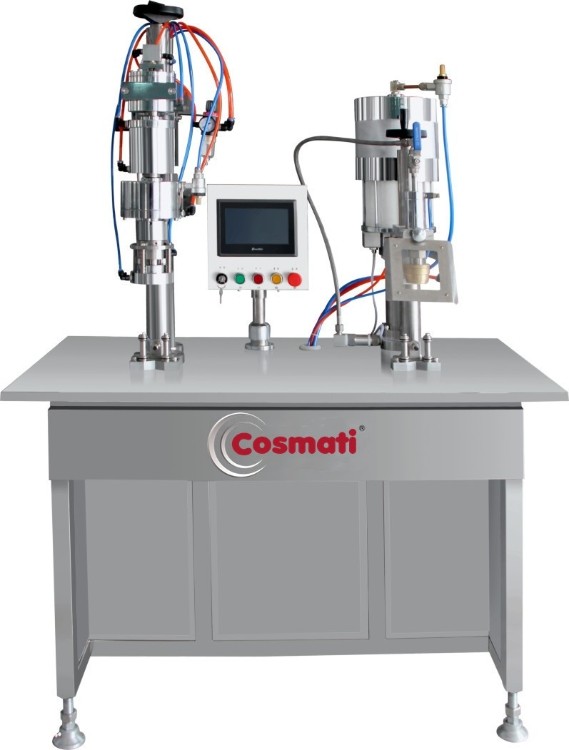

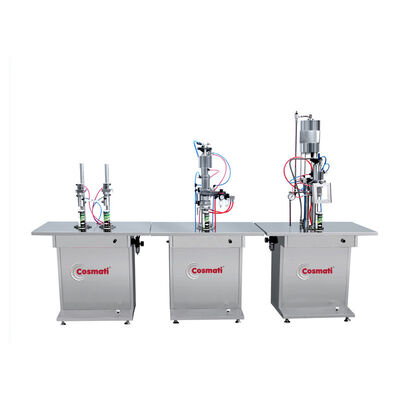

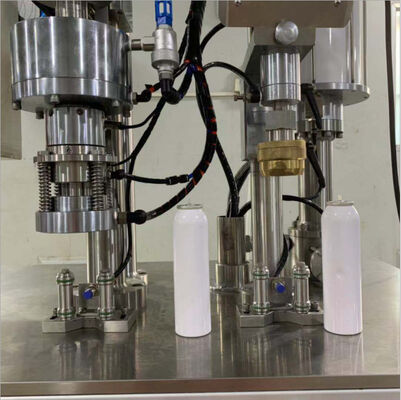

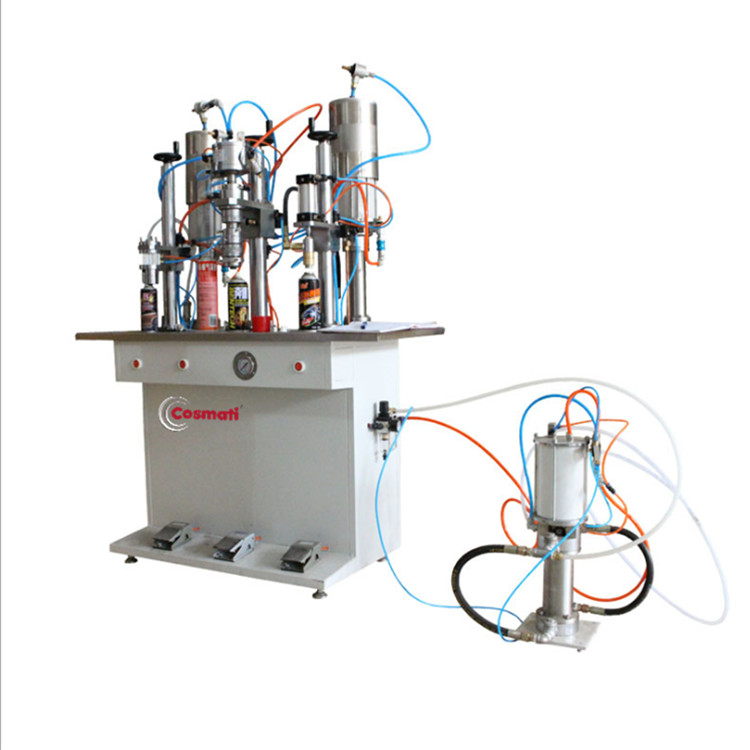

Aerosol Spray Cans Filling Machine Semi Automatic 30-300ml Filling Range

Factory direct pesticide spray aerosol cans filling machine

Technological process:
Manual Bottling --- Single-head Inflatable Tapping --- Single-head Filling

Product Introduction:
1. The machine is an efficient filling equipment for aerosols binary packaging products. It has beautiful appearance, programmable control of micro-computer
(PLC) and photoelectric sensor.

2. The machine is a new type equipment independently researched by the company. It combines a sealing filling head and a forced filling head on a table to save land.

3. Linear screw pushing bottle system is used instead of the original transmission. Semi-automatic and automatic modes can be selected during operation of the
equipment, which is flexible, efficient and labor-saving.

4. The machine fills the valve with bag with propellant or compressed air at the same time, and then injects liquid material into the bag with high pressure.So that
the raw material can be completely isolated from the tank, which solves the problem that the raw material corrodes the tank or gas-liquid cannot be mixed.

5. Imported parts are used as the main seals to ensure sealing quality, stable operation of equipment and low failure.

Introduction:
Product number: CM-EY-QWJ
Product Name: Binary Aerosol Filler
Product Series: Aerosol Series
Operating mode: semi-automatic

Technical Parameter:

Filling range: 30-300ml
Filling accuracy: ≤± 1%
Sealing accuracy: ≤ 3%
Production speed:700-1000pcs/ h
Applicable valve: 1 " Applicable aerosol tank: Φ 30-65mm
Working pressure: 0.5-0.7 MPa
Maximum air consumption: 0.6m ³/ min
Overall dimension (mm): 1000 *600 * 1600
Weight: 245kg

Product advantages:
1. Touch screen control
2. Filling and sealing suitable for various products
3. Material is not easy to react with tank

Features

1. The machine integrates compressed air (or N2) filling and sealing with touchscreen + PLC program control before filling the raw material.

2. It is especially suitable for filling water-based aerosol products.

3. It has the advantages of fast speed, convenient operation, accurate measurement, good sealing air tightness and arbitrary adjustment of pressure and pressure.
