Aerosol Oxygen Spray Cans and Spray Paint Filling Machine

1 SET
MOQ
1000-100000 USD
Price
Aerosol Oxygen Spray Cans and Spray Paint Filling Machine
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Aerosol Oxygen Spray Cans Oxygen Filling Machine
Keywords: Spray Cans Filling Machine
Automatic Grade: Semi-automatic
Usage: Aerosol Spray Filling Machine
Key Selling Points: High Productivity
Packing: Wood Case
Weight: 140kg
Voltage: 220v
Power: 0.55kw
Highlight:

Oxygen Spray Cans Filling Machine

,

Spray Paint Filling Machine

,

Aerosol Oxygen Filler
Basic Infomation
Place of Origin: GUANGZHOU,CHINA
Brand Name: COSMATI
Certification: CE
Model Number: CM-AFM
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

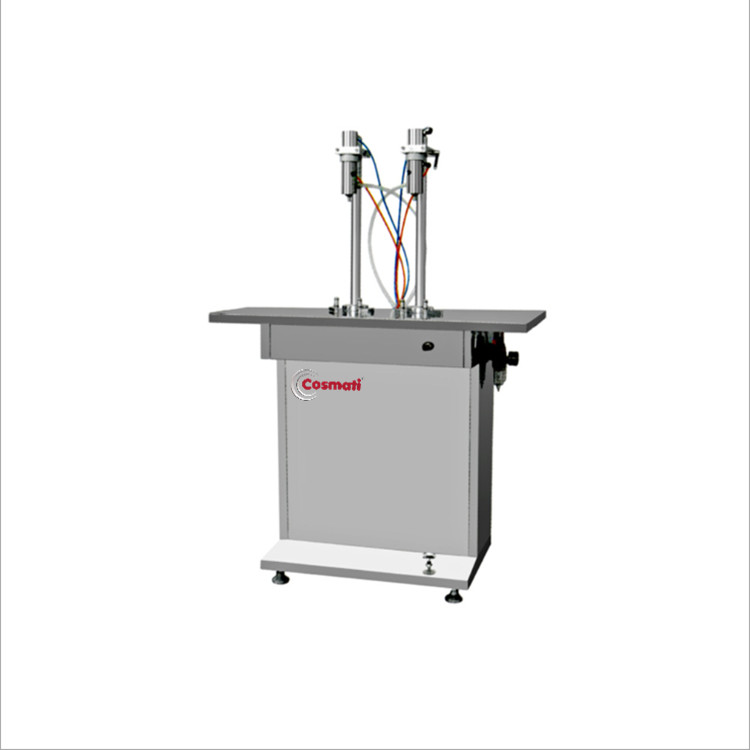

Aerosol Oxygen spray cans Oxygen filling machine

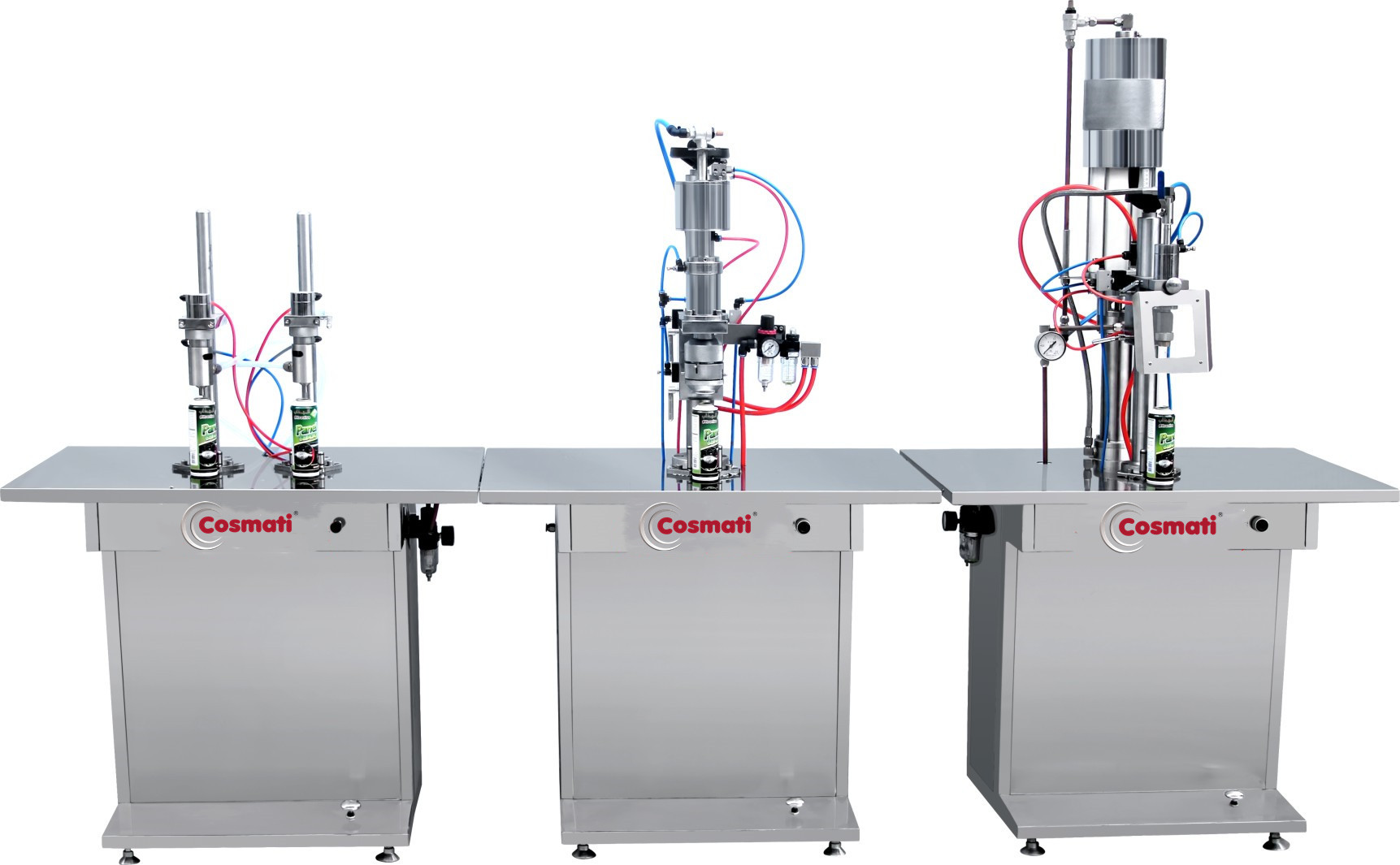

CM-AFM aerosol filling machine, in the design of the contents will be semi-automatic filling machine, semi-automatic sealing machine, semi-automatic filling machine propellant (including booster pump) combined with the completion of a work platform, and any can work alone. Any two machine interaction work, can be adjusted. This Semi-automatic aerosol filling machine is usually used on aerosol filling. It is widely used in filling perfume, body spray, spray paint, air freshener and so on.


Technical Parameters:

Model CM-EY
For valves 1 " (25.4 mm)
Contents of the input connector 20 mm diameter stainless steel pagoda connector
Propellant filling volume (ml) 30-500
Propellant input connector M22 * 1.5 Anti-teeth (for example, with standard 15KG, 50KG liquefied petroleum gas cylinder butt)
Filling accuracy ± 1%
Aerosol cans for height (mm) 70-330
For aerosol can diameter Diameter (mm) 30-65
Working pressure 5 bar
Maximum Air Consumption (m3/min) 1
Production capacity (cans / hour) 1200 -1600cans / hour
Packing size 1250mm*1400mm*2000mm
Weight 140kg

Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0
Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3
Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

FAQ

1. What products can this aerosol filling machine handle?
This semi-automatic aerosol filling machine is suitable for products such as body spray, perfume spray, air freshener, spray paint and other compatible aerosol products.

2. What functions are included in this aerosol filling system?
The system can combine liquid filling, aerosol valve sealing/crimping and propellant filling, reducing the need for separate workstations.

3. What is the propellant filling range?
According to the supplied specification, the propellant filling volume is 30–500 ml.

4. What aerosol can sizes can the machine handle?
The supplied configuration is suitable for cans approximately 30–65 mm in diameter and 70–330 mm in height.

5. What valve size is supported?
The listed configuration is designed for approximately 1 inch / 25.4 mm aerosol valves. Other valve specifications can be confirmed according to samples.
