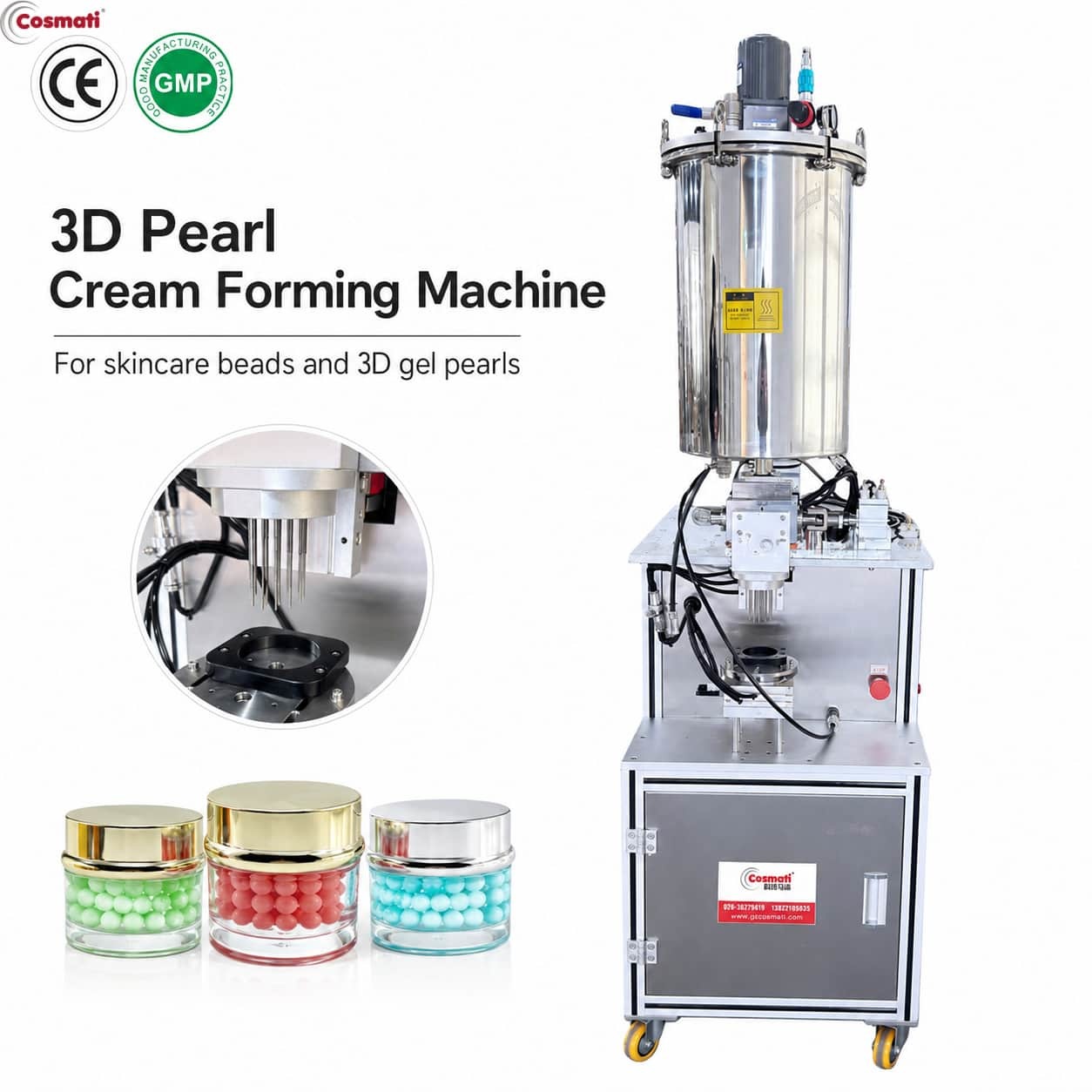

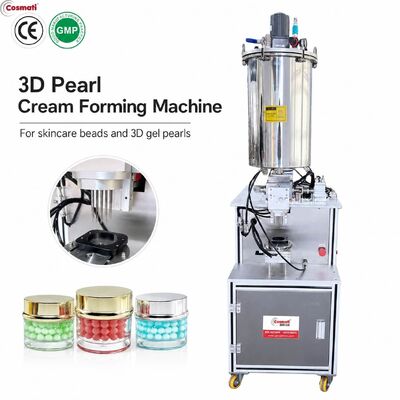

3D Pearl Cream Filling Machine 3-15mL Servo Cosmetic Gel Pattern Filler

Introduction

The 3D Pearl Cream Filling Machine is specially designed for decorative filling of skincare creams, gels and compatible cosmetic formulations.

Unlike a conventional filling machine, this model combines servo quantitative filling with a servo-controlled lifting mould to create pearl, spherical, water-drop and other three-dimensional filling effects inside suitable cosmetic containers.

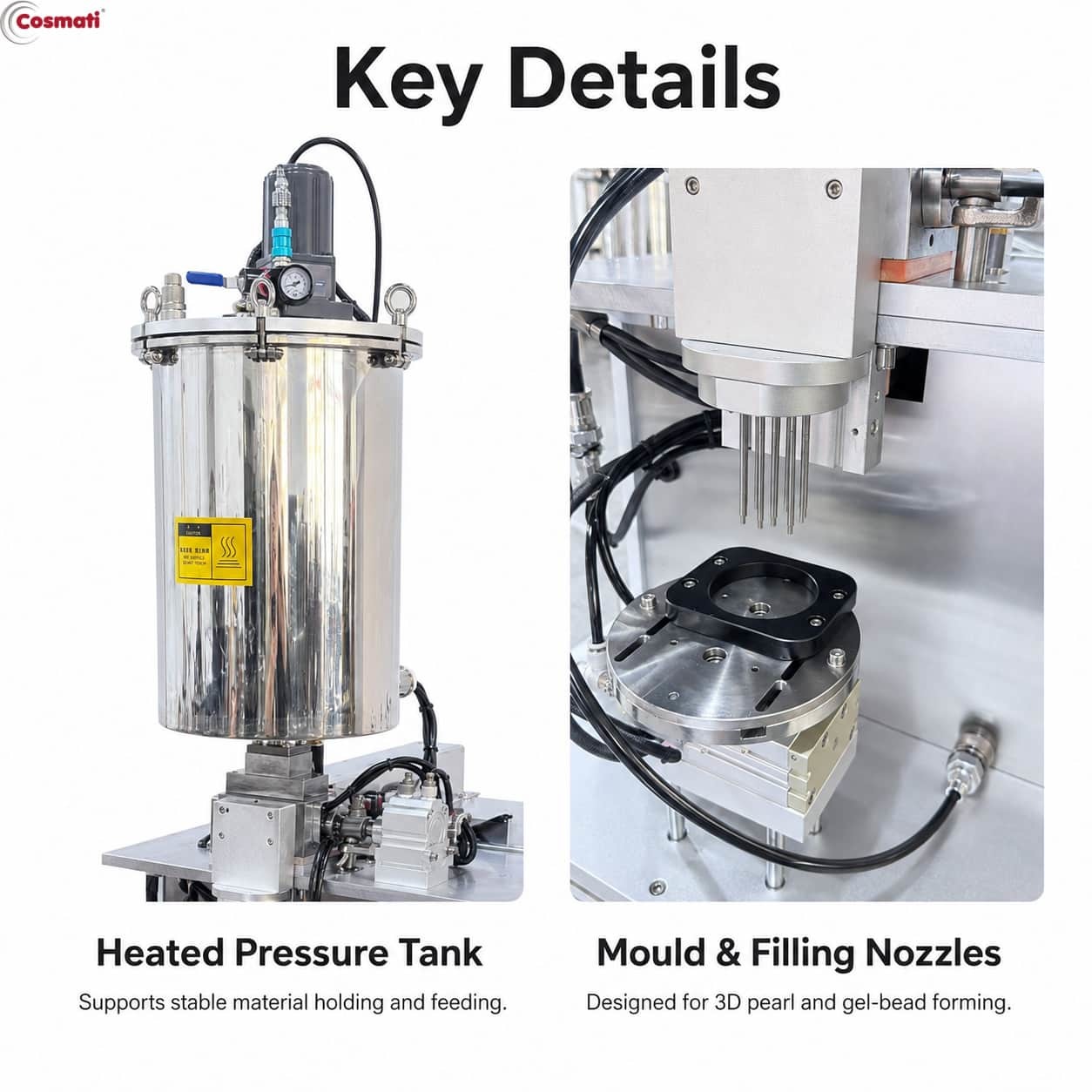

The machine is equipped with a 15L jacketed pressurized hopper with heating and stirring functions. An internal piston separates the pressurizing gas from the cosmetic material, helping maintain controlled material feeding without direct gas contact with the formulation.

With PLC touch-screen control, dual filling nozzles and an adjustable 3–15 mL filling range, the machine is suitable for premium skincare products requiring both accurate dosing and decorative visual presentation.

Features

1. Servo quantitative filling provides controlled dosing for decorative cosmetic filling.
2. Servo lifting mould moves vertically during filling to create different 3D cream or gel patterns.
3. Dual filling nozzles are suitable for decorative filling and special pattern formation.
4. 15L double-layer jacketed hopper supports heating, pressurization and stirring.
5. Internal piston separates compressed gas from the raw material during pressurization.
6. Adjustable stirring speed from approximately 0–90 rpm helps maintain material consistency.
7. PLC touch screen with button controls provides convenient parameter setting and operation.
8. Filling range of approximately 3–15 mL is suitable for small-dose premium cosmetic packaging.
9. SUS304 / SUS316 stainless steel options are available according to product-contact requirements.
10. Filling nozzle and mould configuration can be customized according to container design and desired 3D pattern.
