Features

Specifications

Application: Food, Beverage, Commodity, Chemical

Packaging Type: Barrel, Bottles, Cans, Cartons

Packaging Material: Metal, Paper, Plastic, Glass, Wood

Automatic Grade: Semi-Automatic

Driven Type: Pneumatic

Voltage: 220 V, 110 V

Dimension(l*w*h): Refer To Drawings

Warranty: 1 Year

Key Selling Points: Low Noise Level

Filling Material: Cream, Liquid Soap, Viscous Liquid, Peanut Butter, Paste, Honey

Filling Accuracy: 99%

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Bearing

Filling Nozzle: 2

After-sales Service Provided: Field Installation, Commissioning And Training, Video Technical Support, Online Support

Weight (KG): 70

Filling Volume: 200mL, 500 ML, 100mL, 300mL, 1L, 400 ML, 3-30ml, 5-150ml, 30-500ml, 60-1000ml

Product Name: Manual Jam Cream Paste Lotion Filling Machine With Hopper

Temperature: 0-95°C

Material Hopper: 35L

Specification: Stainless Steel

Filling Material: Beer, Other, Milk, Water, Oil

Range: 5-150ml(can Be Customized)

Mixing Speed: 0-90rpm

Type: Suitable For Different Bottle Type

Highlight:

Heated Piston Filling Machine

Water Circulation Filling Machine

Lip Balm Jam Cream Filler

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

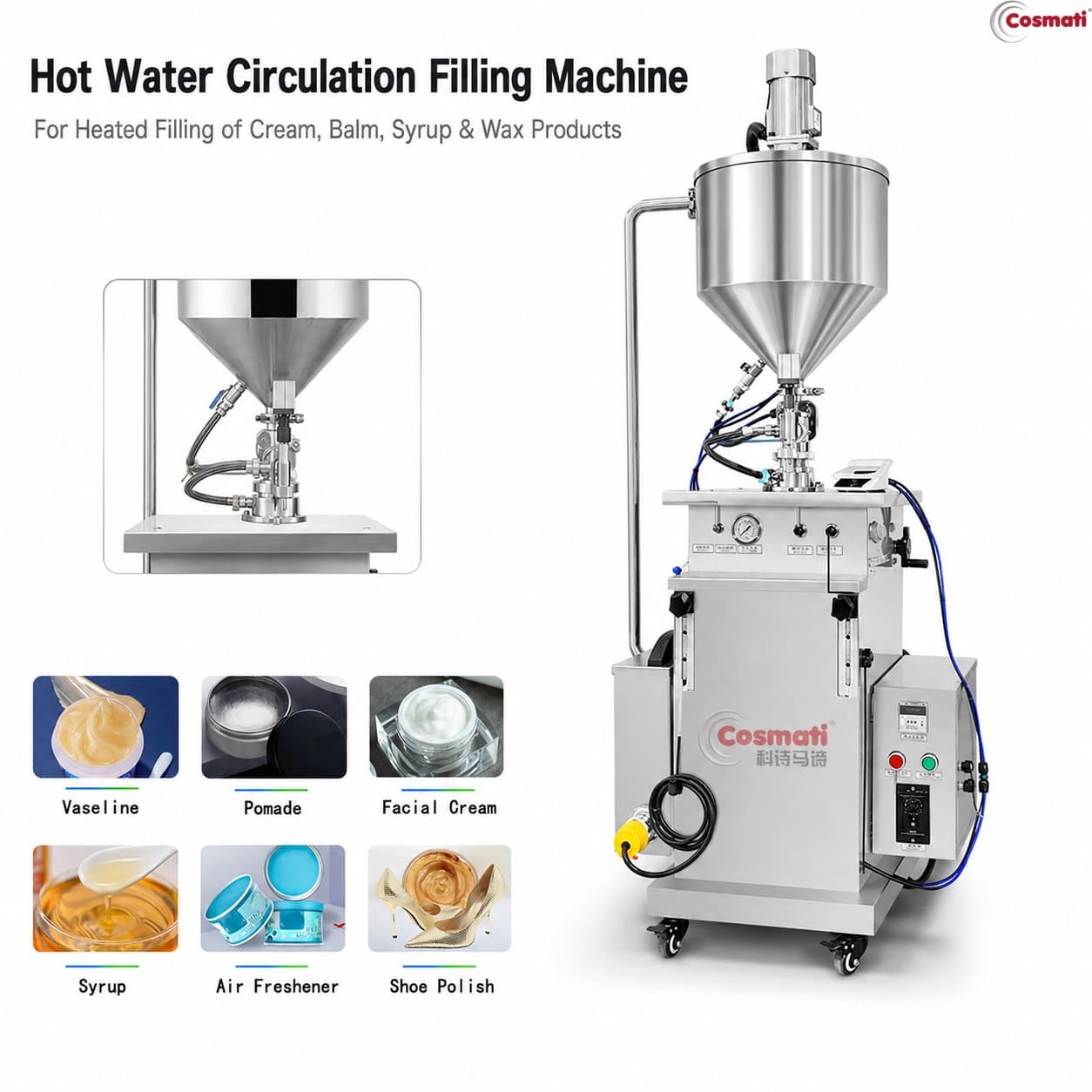

Water Circulation Heated Piston Filling Machine Lip Balm Jam Cream Paste Filler

Product Description

Manual Jam Cream Paste Lotion Filling Machine Piston Heating Filling Machine for Lip Balm

Introduction

The Water Circulation Heated Piston Filling Machine is designed for quantitative filling of lip balm, jam, cream, paste, wax-based materials and other products that require controlled heating during filling.

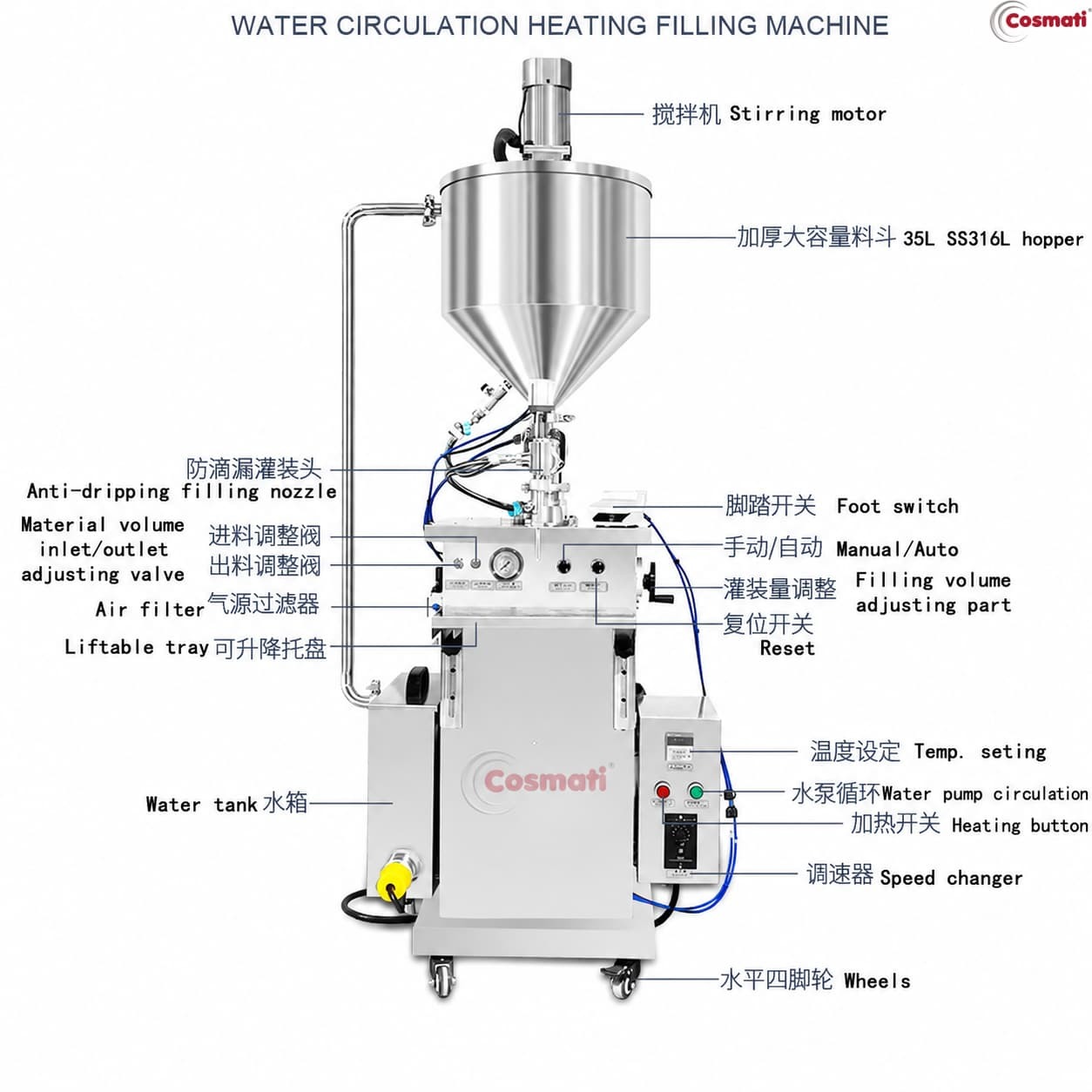

The machine combines water circulation heating, continuous stirring, pneumatic piston filling and temperature control in one compact system. The heated water circulates around the hopper to maintain a stable material temperature, while the internal stirrer keeps the product evenly mixed and helps prevent premature solidification.

A pneumatic piston system provides stable quantitative filling, while the anti-drip filling nozzle reduces dripping and stringing after each filling cycle. Filling volume and filling speed can be adjusted according to different product viscosities and container sizes.

The machine supports both manual and automatic operating modes, making it suitable for flexible small and medium batch production.

Features

1. The filling volume and filling speed are easily adjustable. It is easy to change bottles of different specifications and shapes without changing parts and easy to adjust.

2. The feed pipe of the equipment is equipped with a start rotary valve, which can be closed in time while filling the material to prevent the material from being filled. Reverse flow of materials occurs, which improves the accuracy of filling materials.

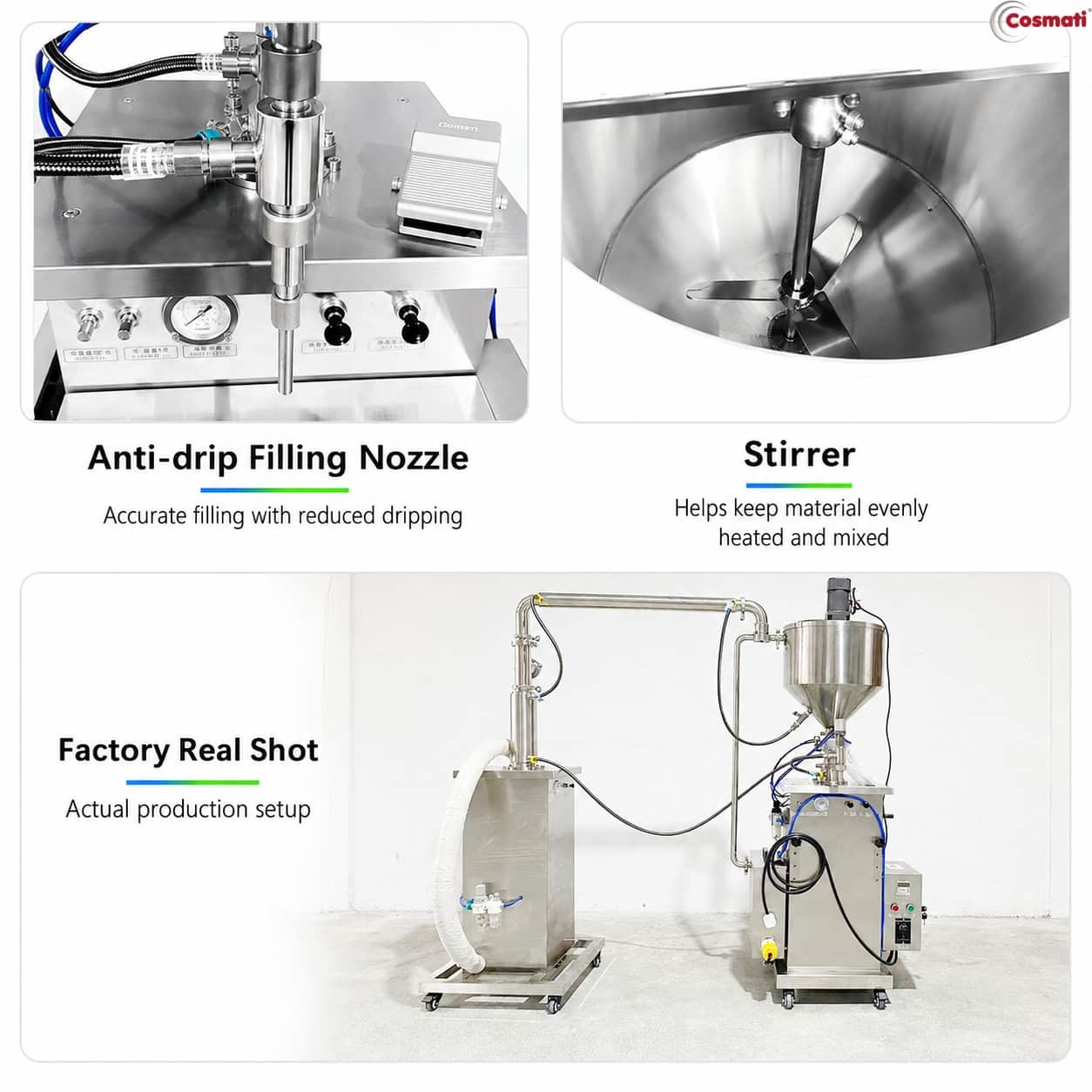

3. The filling head is equipped with an anti-drip device, and there is no wire drawing or dripping during filling.

4. This machine adds a heating and temperature control device to the original vertical bucket filling machine, and is equipped with a stirrer. It is heated by a water circulation compartment. It is suitable for filling wax products, lipsticks, jams, and materials that need to be heated to dissolve.

5. According to the actual situation, it can be freely switched between "manual" and "automatic".

6. The filling speed can be adjusted according to the actual situation of the material. To prevent the filling speed from being too fast during the filling process, causing the material to overflow out of the bottle.

7. Pneumatic control and mechanical positioning ensure that the filling accuracy is within ±0.5%.

8. The parts in contact with materials are made of high-quality stainless steel, which meets GMP requirements.

9. Simple operation, stable performance, easy to disassemble and wash.

Model	Filling Volume	Filling Speed	Air pressure
CM-HF-250	10-1000ml (Customized)	10-30 bpm	0.5-0.7Mpa
Air consumption	Filling accuracy	Power supply	Heating temperature
4L/min.	Within ±0.5%	1P/220V, 5KW	40℃- 95℃ adjustable

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

Application

FAQ

1. What products can this machine fill?

The machine is suitable for lip balm, jam, cream, lotion, paste, hair wax, ointment and other products requiring heated or temperature-controlled filling.

2. What is the filling range?

The reference filling range is approximately 10 to 1000ml, and the filling configuration can be customized according to the required volume.

3. What is the filling speed?

The reference filling speed is approximately 10 to 30 bottles per minute.

Actual speed depends on filling volume, viscosity and operating temperature.

4. What is the filling accuracy?

The reference filling accuracy is within approximately ±0.5% under suitable operating conditions.

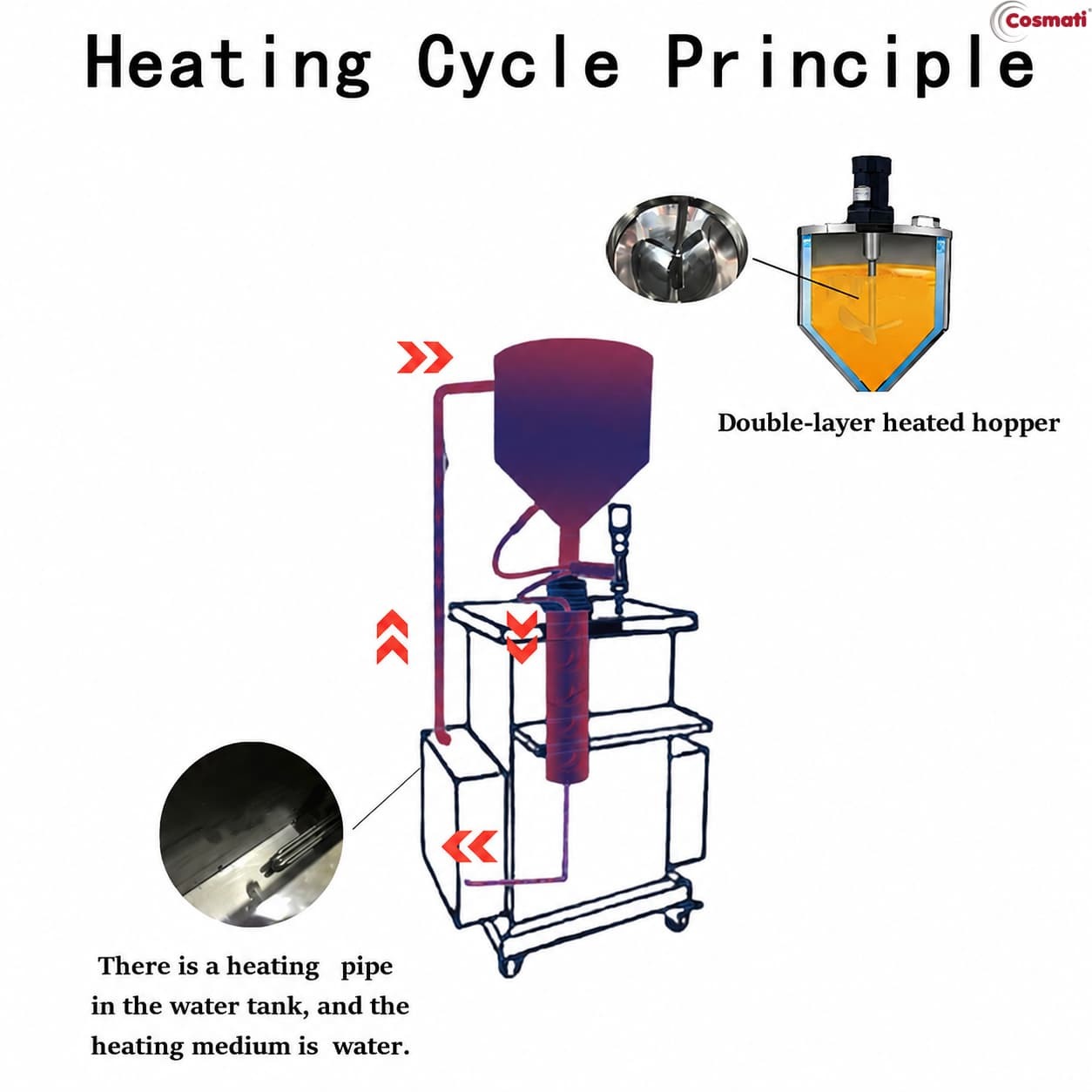

5. How does the machine heat the material?

The machine uses water circulation heating.

Water is heated in a separate tank and circulated around the hopper to maintain a stable product temperature.
