Introduction

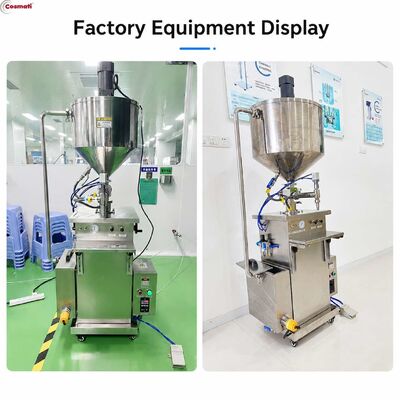

The Semi Automatic Hot Melt Filling Machine is designed for quantitative filling of palm wax, solid perfume, aroma candle, lip balm, cosmetic balm and other materials that require melting before filling.

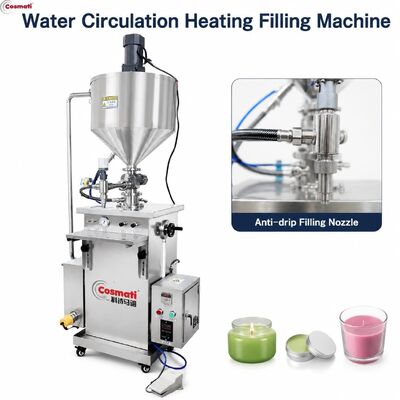

The machine integrates material heating, stirring, pneumatic piston filling and temperature control. Water circulation heating maintains the molten material at a stable filling temperature, while the top agitator helps keep the product uniform during production.
|
Model
|
Filling Volume
|
Filling Speed
|
Air pressure
|
|
CM-HF-250
|
10-1000ml (Customized)
|
10-30 bpm
|
0.5-0.7Mpa
|
|
Air consumption
|
Filling accuracy
|
Power supply
|
Heating temperature
|
|
4L/min.
|
Within ±0.5%
|
1P/220V, 5KW
|
40℃- 95℃ adjustable
|
1. What products can this machine fill?

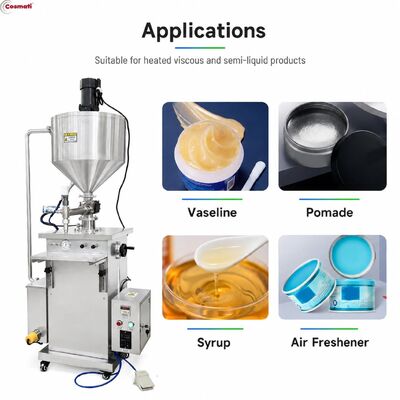

It is suitable for lip balm, candle wax, solid perfume, cream, honey, jam and other heated liquid or paste products.
2. What is the filling range?
The filling range can be customized from approximately 10 to 1000ml.
3. How does the machine heat the material?

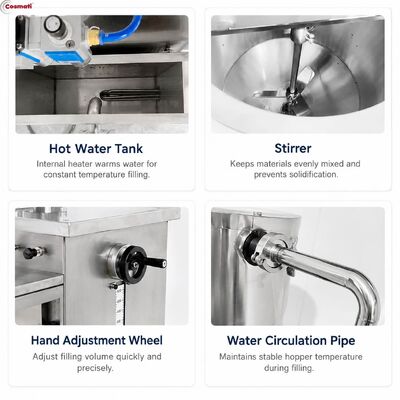

The machine uses water circulation heating. Heated water circulates around the hopper to maintain a stable material temperature.
4. What is the heating temperature range?
The reference temperature range is approximately 40–95°C adjustable.
5. Does the machine have a mixer?
Yes. A top-mounted stirrer continuously mixes the material during heating and filling.
6. Can it fill products that solidify after cooling?
Yes. This is one of the main applications. The heating and stirring system helps keep wax-based materials fluid during filling.
