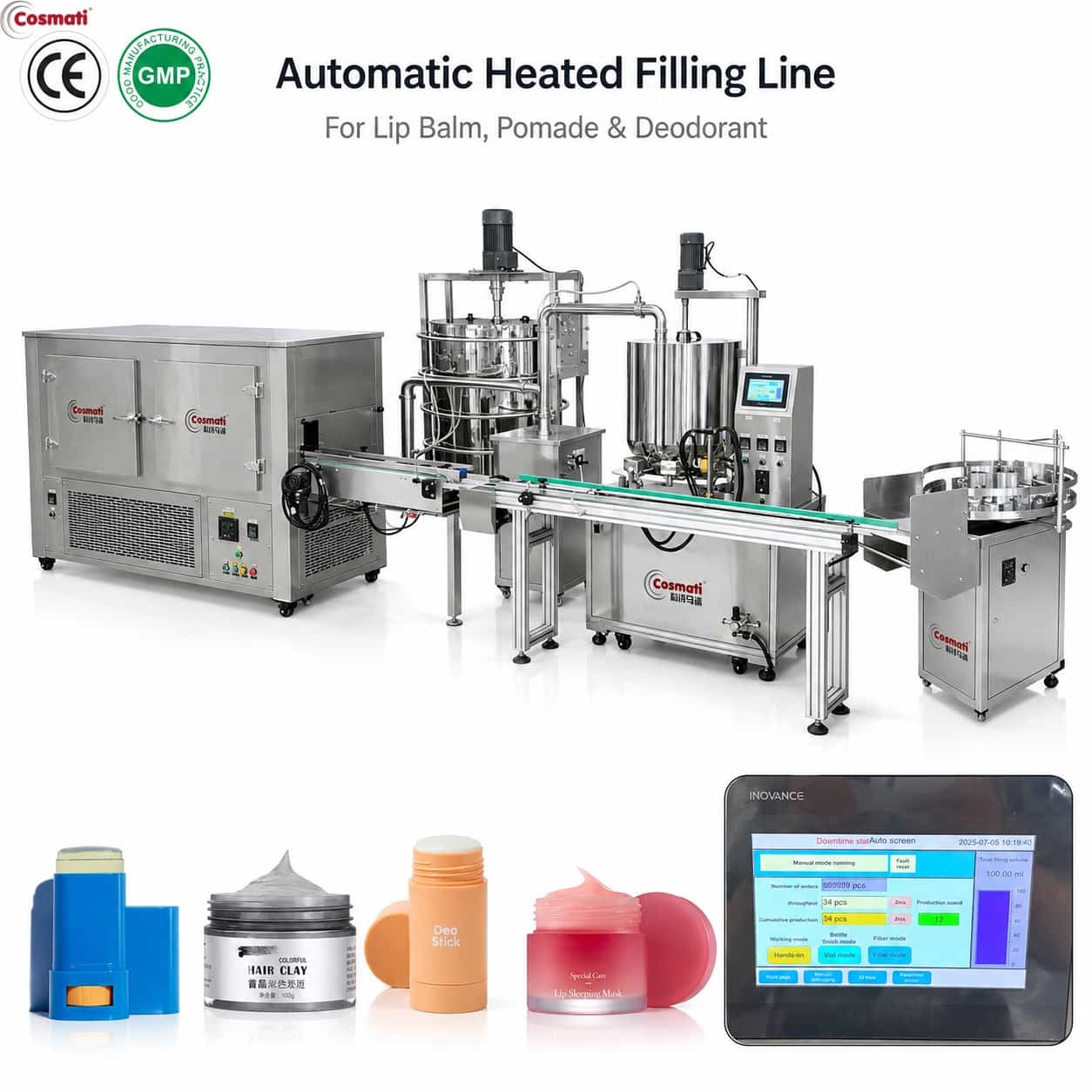

Automatic Heated Gear Pump Filling Machine Lip Balm Pomade Deodorant Filler

Introduction

The Automatic Heated Gear Pump Filling Machine is designed for hot filling of wax-based, oil-based and other products that need to remain fluid at a controlled temperature during production.

The system combines a heated material tank, stirring system, gear pump dosing, independently heated product path and filling nozzles, helping maintain a stable material temperature from the hopper to the filling point. This reduces the risk of wax-based products cooling or solidifying inside the filling system.

The current configuration uses two filling nozzles and an automatic conveyor for continuous production. PLC and HMI control allow operators to adjust filling and process parameters conveniently.

It is especially suitable for lip balm, pomade, hair wax, Vaseline-type products, deodorant sticks and other heated cosmetic or personal-care formulations.

Features

1. Heated filling system designed for wax-based and heat-sensitive cosmetic formulations.
2. Gear pump dosing provides stable and continuous material delivery during filling.
3. Two filling nozzles improve production efficiency for automatic batch production.
4. Material tank is equipped with heating and stirring to maintain uniform product temperature and consistency.
5. Stirring speed is adjustable from approximately 0–90 rpm.
6. Pump section and filling nozzles can be heated independently, helping reduce cold spots and material solidification in the product path.

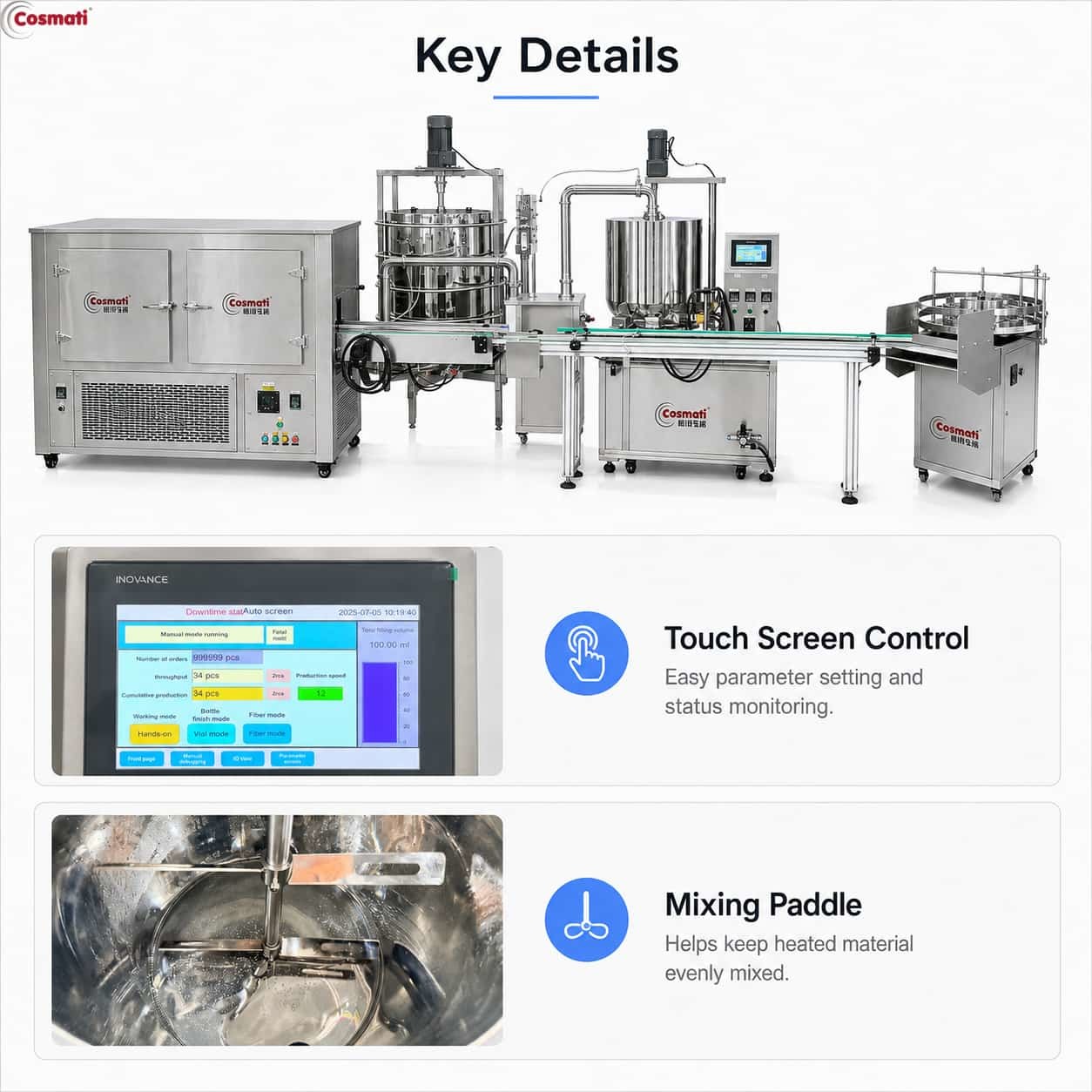

7. PLC + HMI control provides convenient adjustment of filling and operating parameters.
8. Automatic conveyor transports containers continuously through the filling station.
9. Filling nozzles can be customized according to container type, filling volume and required output.
10. Mixing components use quick-connect design for easier disassembly and routine cleaning.
