Features

Specifications

Application: Commodity, Chemical, Cosmetic

Packaging Type: Bottles, Other

Packaging Material: Plastic, Glass, Other

Automatic Grade: Semi-Automatic

Driven Type: Pneumatic

Dimension(l*w*h): L350xW400XH650mm

Warranty: 1 Year

Key Selling Points: High-Accuracy

Filling Material: Water, Oil, Other, Perfume

Filling Accuracy: ±1%

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Pressure Vessel, Pump, Bearing, Engine, Other

After-sales Service Provided: Online Support

Weight (KG): 18

Product Name: 2 Nozzles Perfume Filling Machine

Keywords: Vacuum Perfume Filling Machine

Production Capacity: 15-20 Bottles/min

Filling Volume: 5-120ml

Usage: Filling Liquid Products

Material: Stainless Steel 304/316L

Filling Nozzels: 2pcs

Bottle Type: Glass Bottle Plastic Bottle

Advantage: Vacuum Filling

Weight: 18

Highlight:

Vacuum Perfume Filling Machine

Double Nozzle Filling Machine

Fragrance Bottle Filler

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

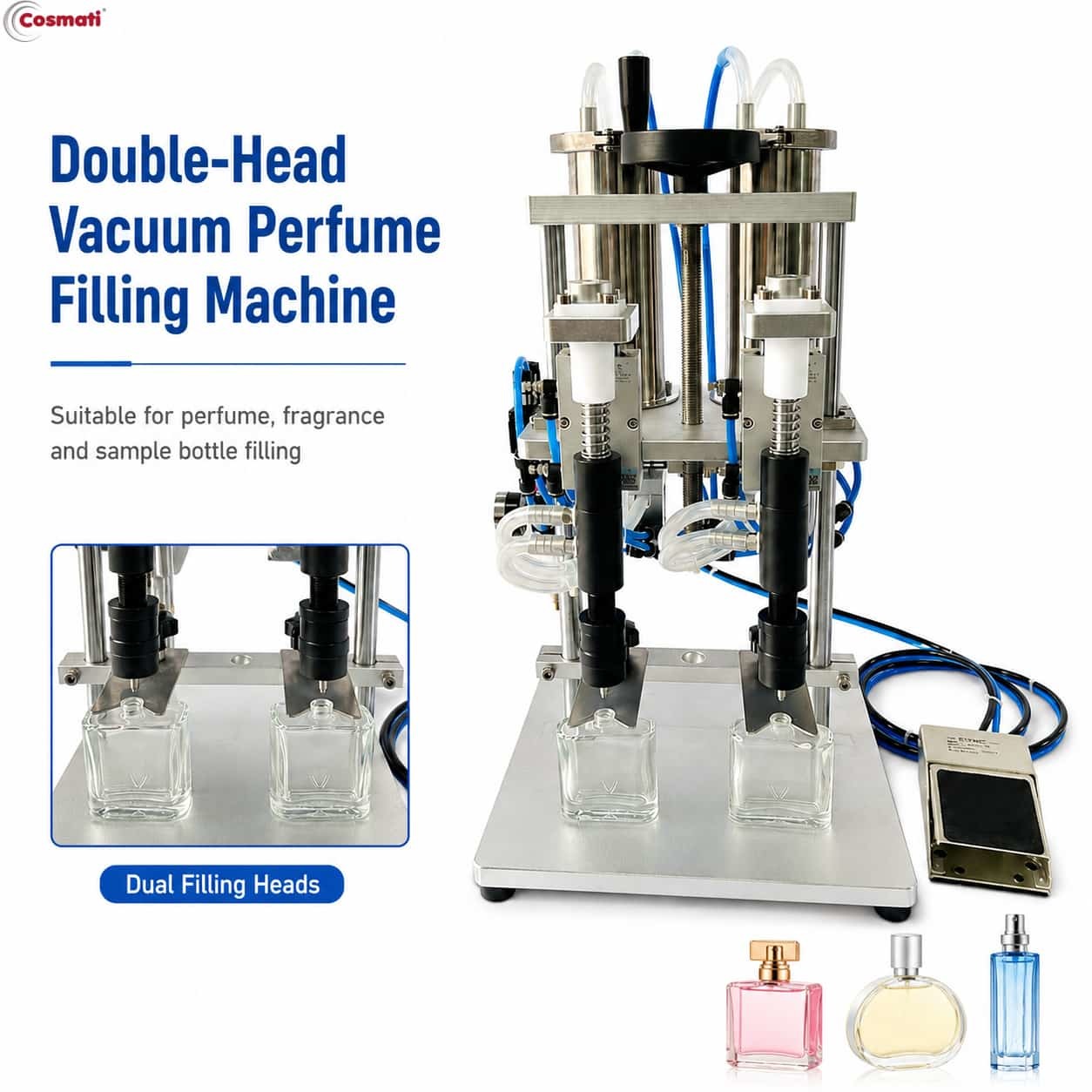

Double Nozzle Vacuum Perfume Filling Machine Semi Automatic Fragrance Bottle Filler

Product Description

2 nozzles semiautomatic essential oil perfume diffuser filling machine dry mouth spray filling machine

Introduction

This 2 heads perfume filling machine is suitable for filling products with good fluidity such as various water preparations and high-foaming products. The machine is compact and reasonable in design and simple in appearance.

It has 2 vacuum filling heads, and its capacity is about 10-20 bpm.

Working principle

It is controlled by air supply. It uses continuous vacuum suction to pump the product into the container.

The surface height is determined by the depth of the filling head into the container, so whether the filling container is consistent or not, the filling liquid level can be kept the same.

The return barrel is of medical grade, and the products in the barrel can be reused.

Features

1. The semi-automatic vacuum negative pressure filling machine is pure pneumatic equipment, electric eye detection, no bottle no filling, this machine has the characteristics of filling and constant liquid level.

2. The filling volume is determined by the depth that the filling head extends into the container, so no matter whether the bottle volume is the same, the filling level will remain the same. Especially suitable for perfumes and liquid medicines, etc.
3. Suitable for small batch production.

Technical Data

Capacity	15-30 bottles/min (filling speed and pumping speed can be adjusted according to the characteristics of the material)
Filling accuracy	Liquid level: ±1mm
Filling head (double layer)	2 pcs
Power supply	/
Filling range	2-1000ml
Weight	About 25KG
Gas source	After drying, the working pressure is ≥6kg/cm2, and the air consumption varies with the output.

Perfume Production Line

Raw Water Tank-Water Treatment Equipment-Pure Water Tank-Perfume Chiller-Perfume Storage Tank-Bottle Washer-Perfume Filling Machine-Perfume Crimping Machine-Perfume Collaring Machine-Labeling Machine-Inkjet Printer

Company Profile

Trade show participation

Packaging & shipping specifications

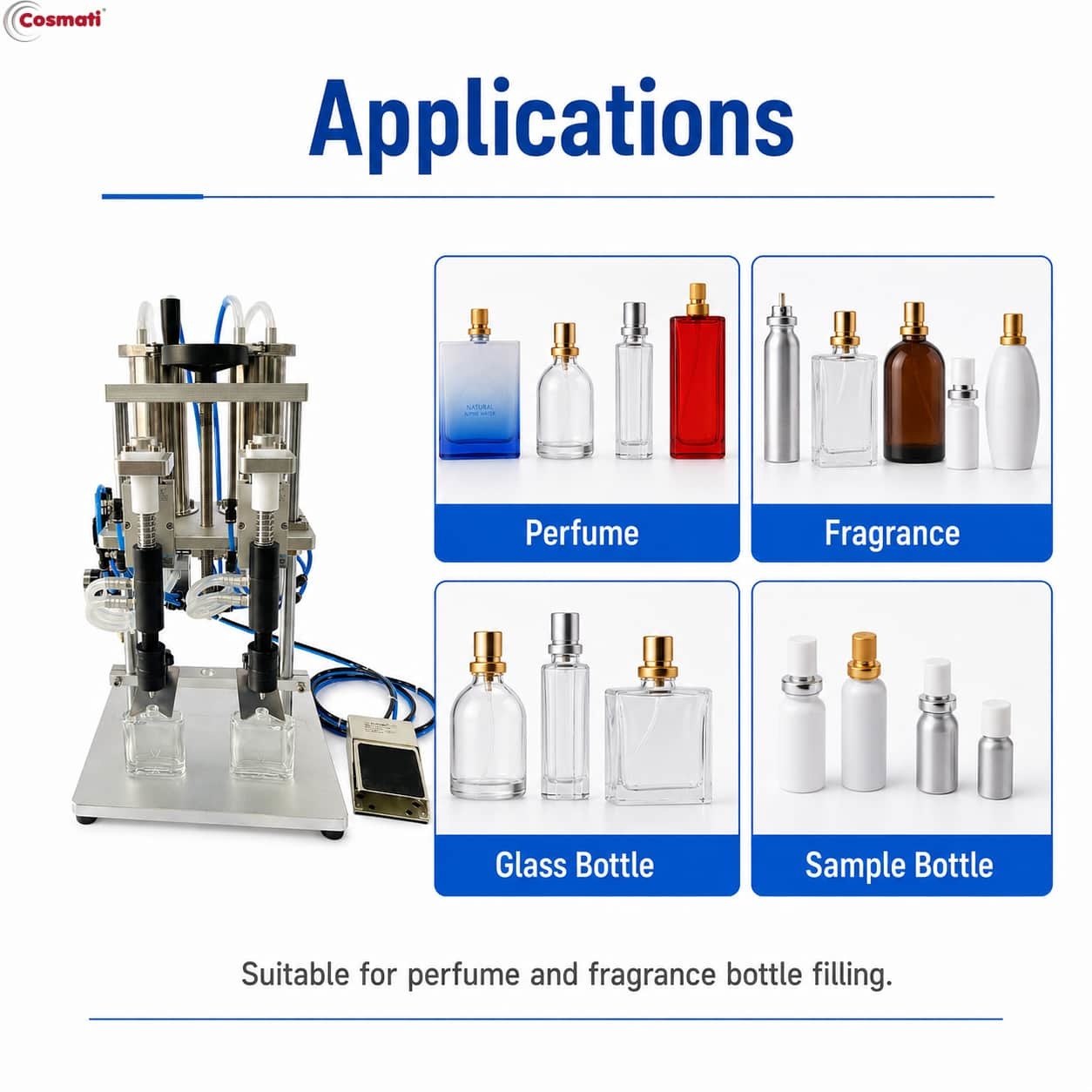

Application

FAQ

Q1: What products can this machine fill?
A: It is mainly suitable for perfume, fragrance, cologne, aromatherapy liquid, reed diffuser liquid and other low-viscosity products.

Q2: How many filling nozzles does the machine have?
A: The current machine uses two filling nozzles, allowing two bottles to be processed at the same time.

Q3: What is the filling range?
A: The reference filling range is approximately 5–120 mL, suitable for many common perfume bottle sizes.

Q4: What is the production speed?
A: The reference production capacity is approximately 15–20 bottles per minute. Actual output depends on bottle size, filling volume and operator workflow.

Q5: Is this machine fully automatic?
A: No. It is a semi-automatic filling machine designed for flexible small and medium batch production.
