Features Gallery Product Description Chat Now

Features

Specifications

Application: Food, Chemical

Packaging Type: Case

Packaging Material: Wood

Automatic Grade: Semi-Automatic

Driven Type: Pneumatic

Dimension(l*w*h): 550*580*1600 Mm(21.65*22.83*62.99in)

Warranty: 1 Year

Key Selling Points: High Productivity

Filling Material: Water, Oil

Filling Accuracy: 99%

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Pressure Vessel, PLC, Gear, Piston, Other

Filling Nozzle: 2, 1, 4

After-sales Service Provided: Online Support

Weight (KG): 50

Filling Volume: 100mL, 200mL, 500 ML, 300mL, 400 ML

Product Name: Semi-automatic Shampoo Lotion Bottle Liquid Filling Machine

Keywords: Paste Filling Machine

Material: SUS304 Or SS316L

Applicable Bottle Height: 30-200(mm)

Filling Accuracy: ±1%

Degree Of Automation: Semi-automatic

Applicable Bottle Diameter: 10-120(mm)

Production Capacity: 10-30 (bottles/minute)

Filling Volume: 10-1000(ml)

Type: Pneumatic

Highlight:

Pneumatic Filling Machine

High Viscosity Filling Machine

Cosmetic Paste Gel Filler

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

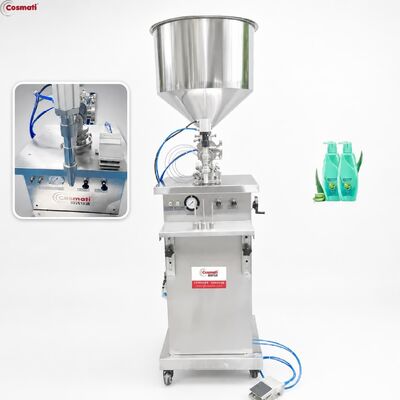

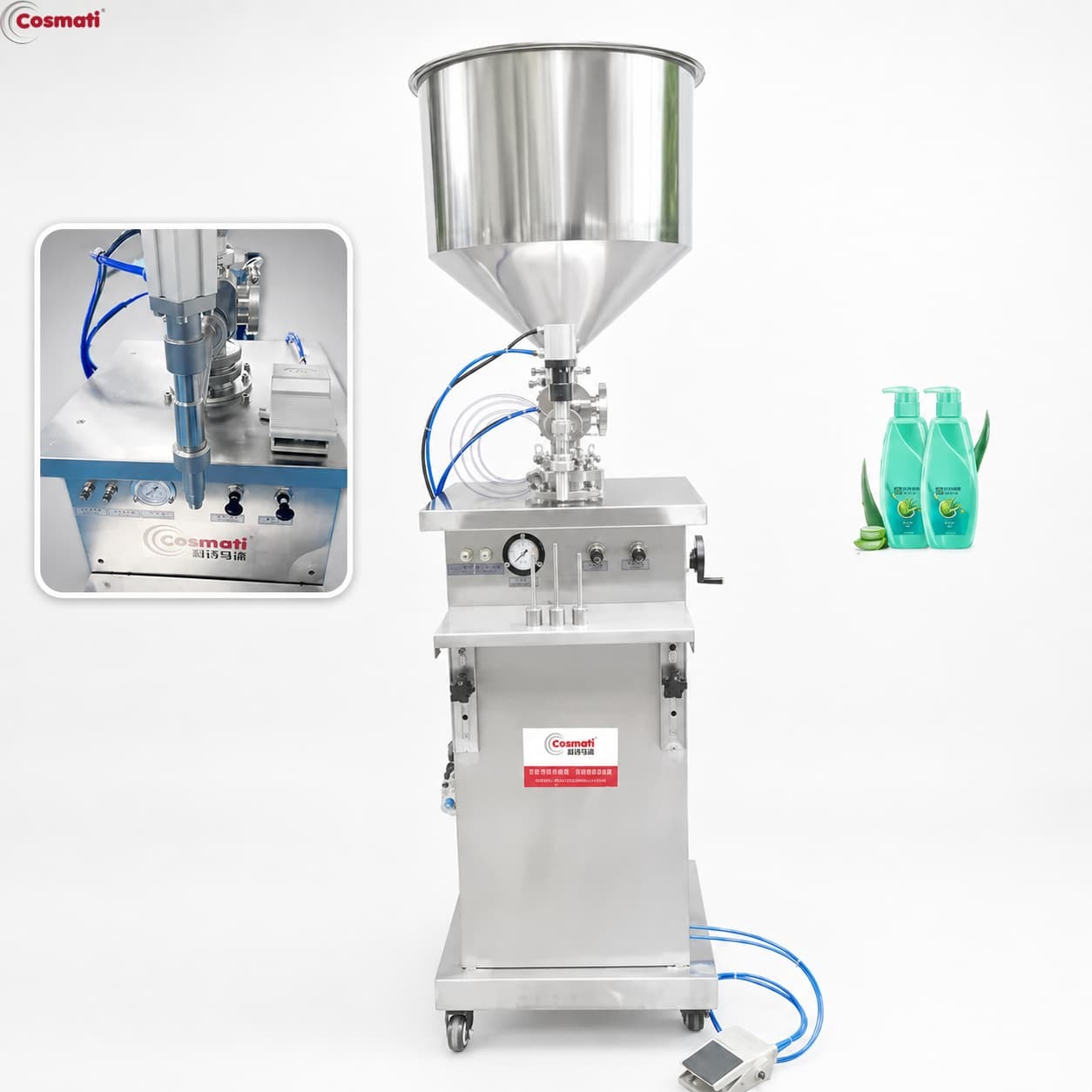

Pneumatic Filling Machine for High Viscosity Cosmetic Paste Gel Lotion Shampoo

Product Description

Cosmetic High Viscosity Filler Face Cream Filling Machine Shampoo Ointment Paste Gel Filling Machine

Introduction

The paste filling machine uses compressed air as power and is composed of precision pneumatic components to form an automatic filling system. It has simple structure, sensitive and reliable action, and convenient adjustment. It is suitable for various liquids, viscous fluids and paste filling. It is also suitable for easy filling. Working in flammable and explosive environments, it is the most ideal filling equipment for daily chemical, food, cosmetics and other industries.

Features

1. Simple structure, convenient maintenance and reliable drive.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.

Model	Filling Volume	Filling Speed	Pressure Supply
CM-SF-60	5-60ml; 10-120ml; 25-250ml; 50-500ml; 100-1000ml	10-30 bpm	0.4-0.6 Mpa

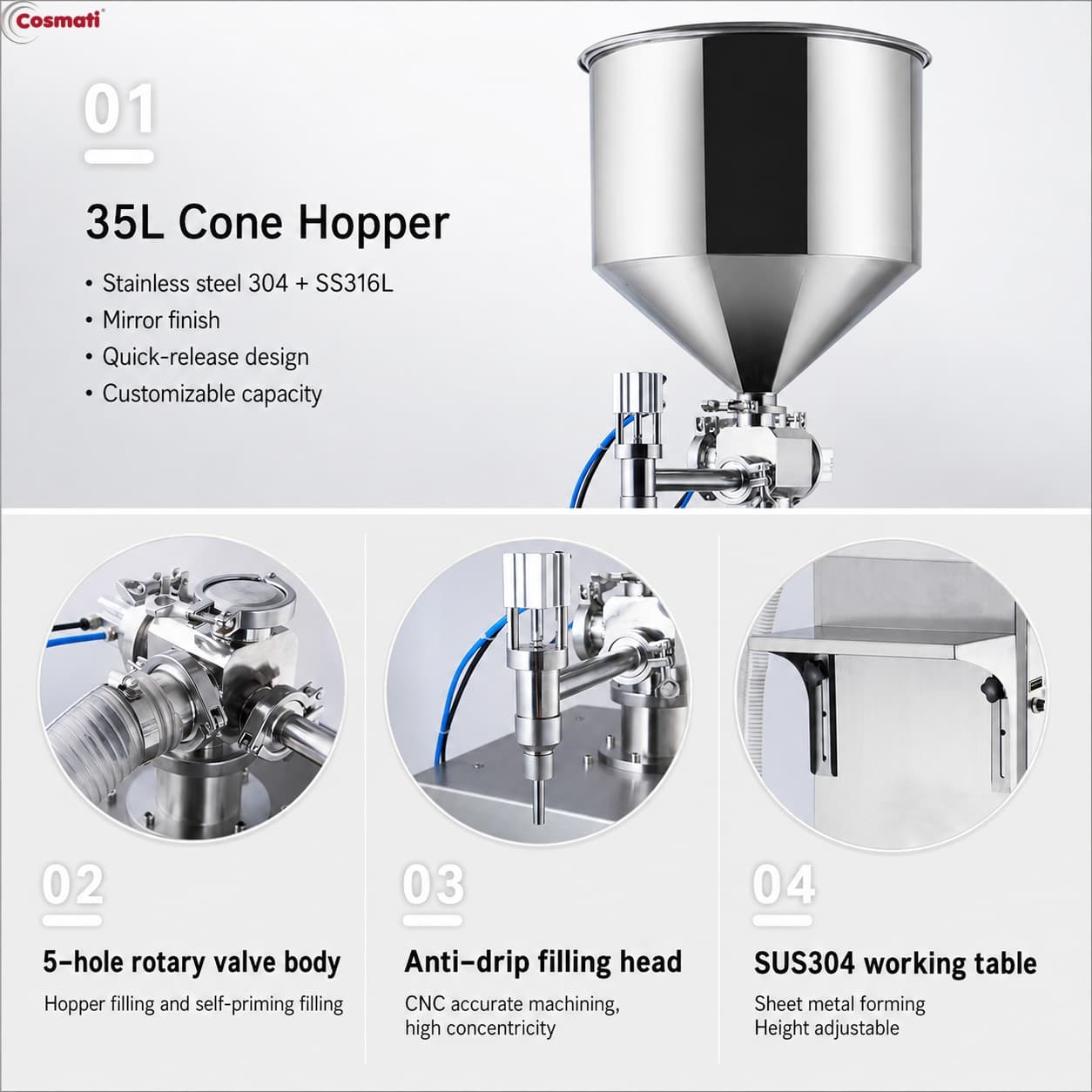

Hopper	Material	mixer	Nozzle size
35L	SUS316L/304	option	2/4/6/8/10mm

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

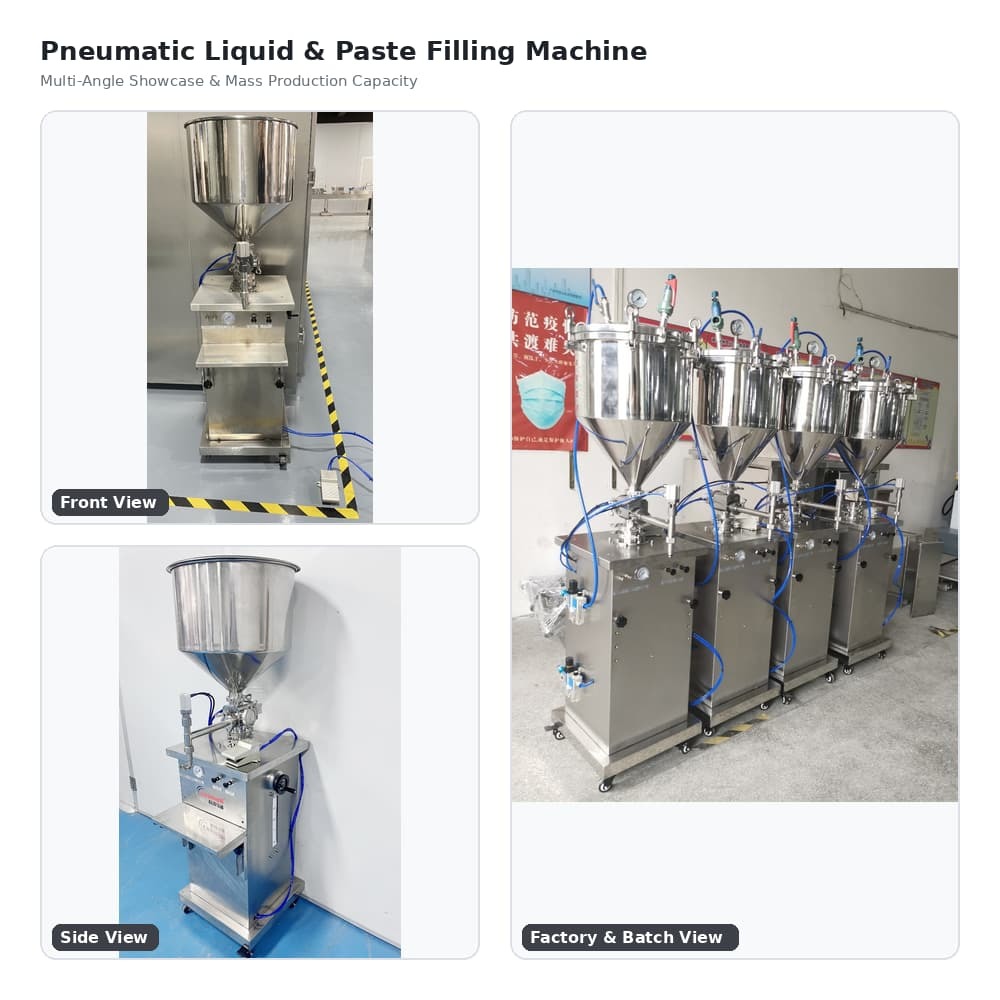

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

Application

FAQ

Q1: What products can this filling machine handle?
A: It is suitable for filling various liquid and high-viscosity products, such as shampoo, lotion, cream, gel, paste, oil and other cosmetic or daily chemical products.

Q2: What is the filling range?
A: The filling volume can be adjusted according to production requirements. The available filling range is 10–1000 ml.

Q3: What is the filling accuracy?
A: The filling accuracy can reach approximately ±1%, depending on the product viscosity, filling volume and operating conditions.

Q4: What is the production capacity?
A: The filling speed is approximately 10–30 bottles per minute. Actual output depends on filling volume, product viscosity, nozzle quantity and operator speed.

Q5: How many filling nozzles are available?
A: 1, 2 or 4 filling nozzles can be configured according to different production capacity requirements.
