Features

Specifications

Application: Food, Chemical

Packaging Type: Bottles

Packaging Material: Wood

Automatic Grade: Semi-Automatic

Driven Type: Pneumatic

Dimension(l*w*h): 550*580*1600 Mm

Warranty: 1 Year

Key Selling Points: High Productivity

Filling Material: Milk, Water, Oil, Juice, Viscous Liquid, Honey, Paste, Ketchup, Peanut Butter, JAM, Shampoo, Liquor, Yogurt, Nail Polish

Filling Accuracy: 99%

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Pressure Vessel, Pump, Gear, Other

Filling Nozzle: 2, 4

After-sales Service Provided: Video Technical Support, Online Support

Weight (KG): 50

Filling Volume: 200mL, 100mL, 500 ML, 300mL, 400 ML

Product Name: Semi Automatic Face Cream Shampoo Paste Filling Machine

Keywords: Filling Machine Pneumatic

Size: 550*580*1600mm

Applicable Bottle Height: 30-200(mm)

Filling Accuracy: ±1%

Degree Of Automation: Semi-automatic

Applicable Bottle Diameter: 10-120(mm)

Production Capacity: 10-30 (bottles/minute)

Filling Volume: 100-1000(ml)

Type: Pneumatic

Highlight:

Honey Face Cream Filling Machine

Pneumatic Liquid Filling Machine

Cream Paste Honey Filler

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

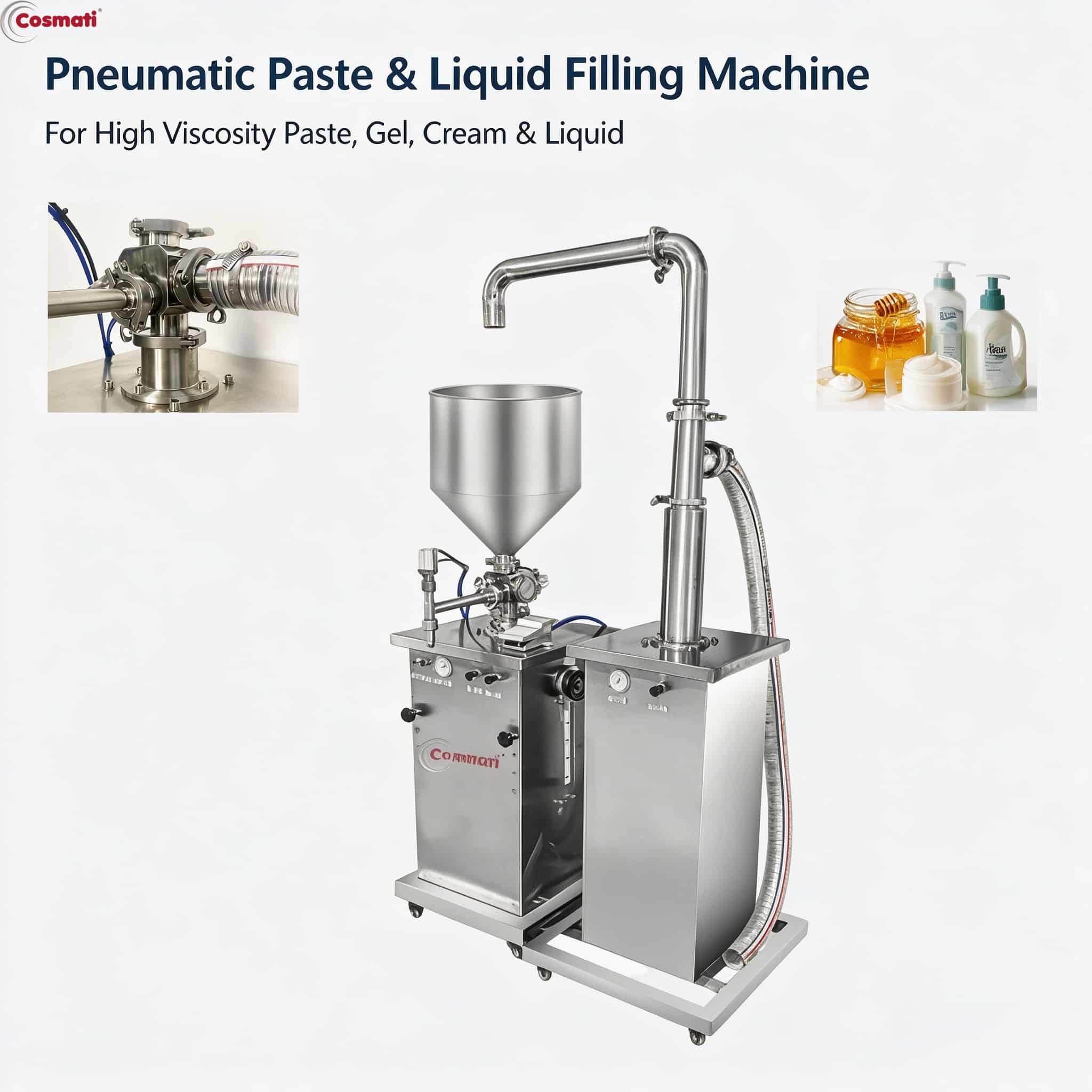

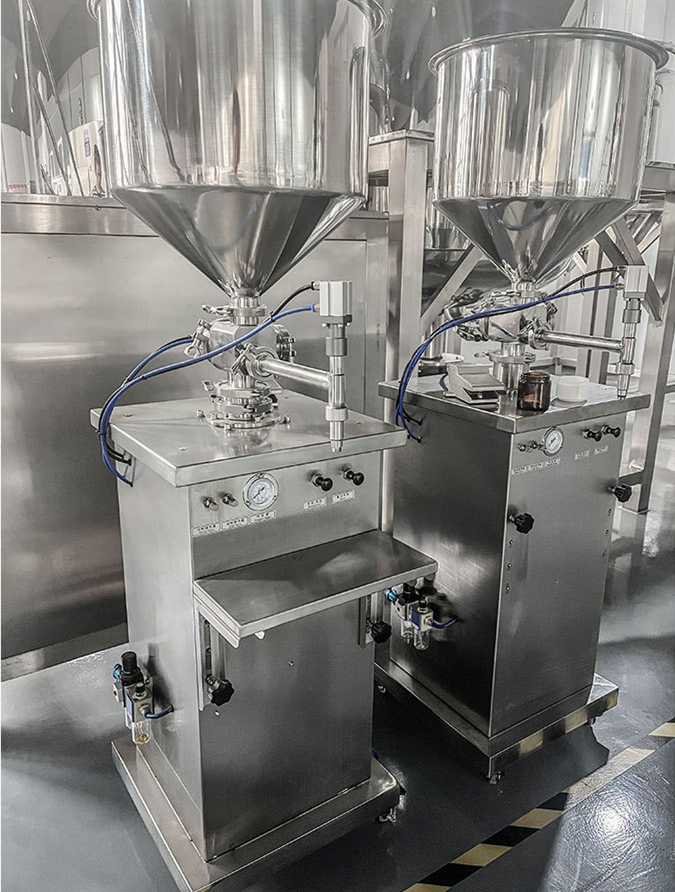

Pneumatic Semi Automatic Honey Face Cream Paste Liquid Filling Machine

Product Description

Semi Automatic Face Cream Shampoo Paste Ointment Suce Filling Machine

Introduction

The paste filling machine uses compressed air as power and is composed of precision pneumatic components to form an automatic filling system. It has simple structure, sensitive and reliable action, and convenient adjustment. It is suitable for various liquids, viscous fluids and paste filling. Working in flammable and explosive environments, it is the most ideal filling equipment for daily chemical, food, cosmetics and other industries.

Filling Machine contacted part material: SS316L

Frame material: SUS304

Used to feeding material to the hopper on filler

*Automatic Feeding Machine is optional

Features

1. Simple structure, convenient maintenance and reliable drive.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.

Model	Filling Volume	Filling Speed	Pressure Supply
CM-GT-5	5-50ml	10-45 bpm	0.2-0.6 Mpa
CM-GT-10	10-120ml	10-35 bpm	0.2-0.6 Mpa
CM-GT-25	25-250ml	10-30 bpm	0.2-0.6 Mpa
CM-GT-50	50-500ml	10-30 bpm	0.2-0.6 Mpa
CM-GT-100	100-1000ml	10-25 bpm	0.2-0.6 Mpa
CM-GT-250	250-2500ml	5-18 bpm	0.2-0.6 Mpa
CM-GT-500	500-5000ml	5-12 bpm	0.2-0.6 Mpa

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

FAQ

Q1 Can this machine handle high-viscosity products like honey or face cream?

Yes. This equipment utilizes a pneumatic gear pump/piston structure (depending on configuration) specifically engineered for high-viscosity pastes and liquids. The hopper design combined with powerful pneumatic drive easily handles creams, honey, shampoos, and various chemical ointments without clogging or dripping.

Q2 What is the filling accuracy? Will it cause material waste?

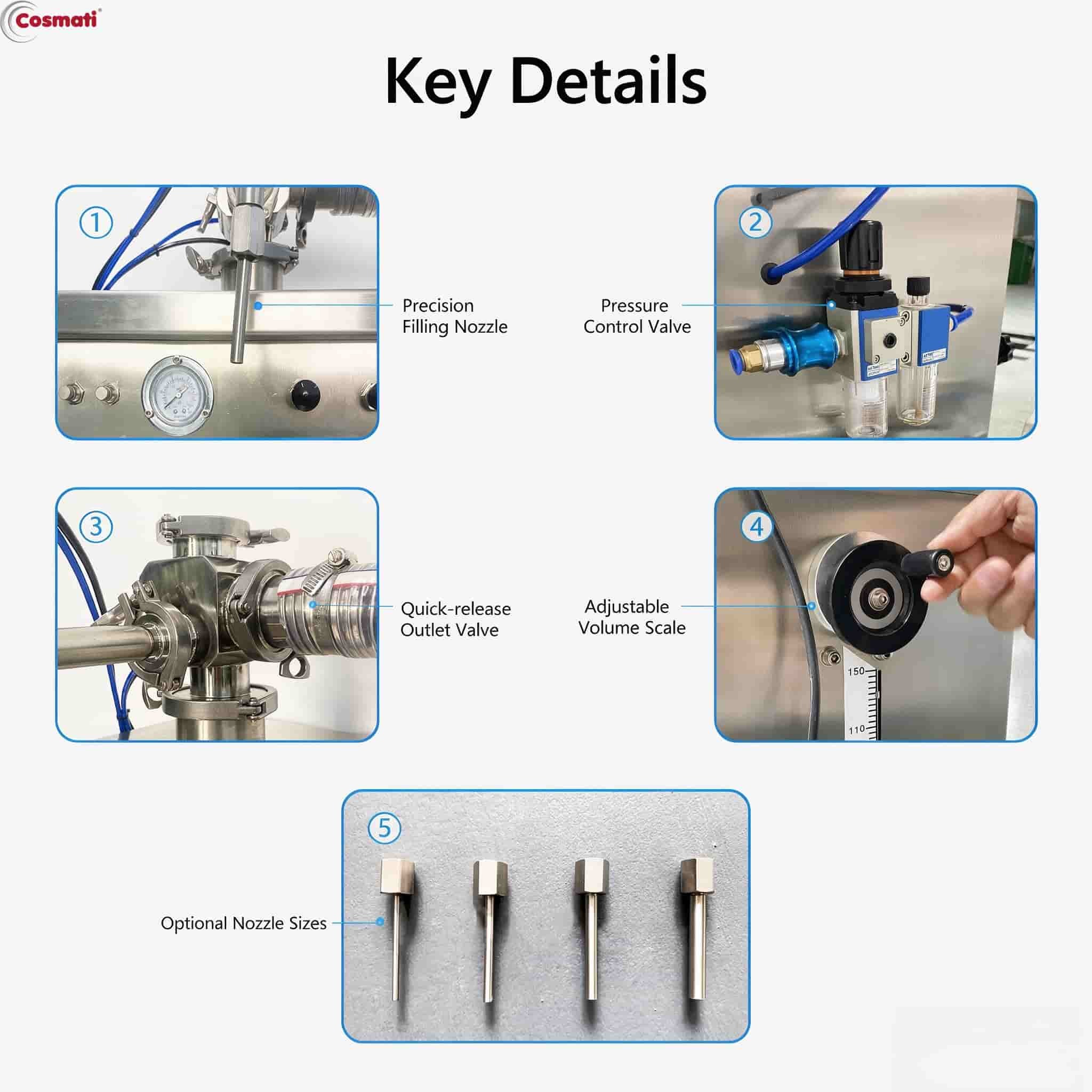

The filling accuracy reaches ±1%. Equipped with a precision adjustment handwheel and scale, the machine allows strict control over the filling volume (adjustable from 10-200ml). This ensures consistency across every bottle and significantly minimizes the loss of expensive raw materials.

Q3 Is it easy to clean when switching between different materials?

Extremely easy. All parts in contact with the material are made of SS304 or SS316L stainless steel, adhering to GMP standards. The use of quick-release tri-clamps allows for easy disassembly of the hopper and filling nozzle for thorough cleaning without professional tools, preventing cross-contamination.

Q4 What additional equipment is required to run this machine?

As this is a pneumatic-driven machine, you will need an air compressor with a power rating of 1.1kW to 2.2kW or higher (air pressure requirement: 0.4-0.6MPa). The control circuit supports 110V/220V voltage, and we will configure the plug according to your local standard before shipping.
