Semi Automatic Pneumatic Piston Filling Machine Cream Shampoo Lotion Paste Filler

Introduction

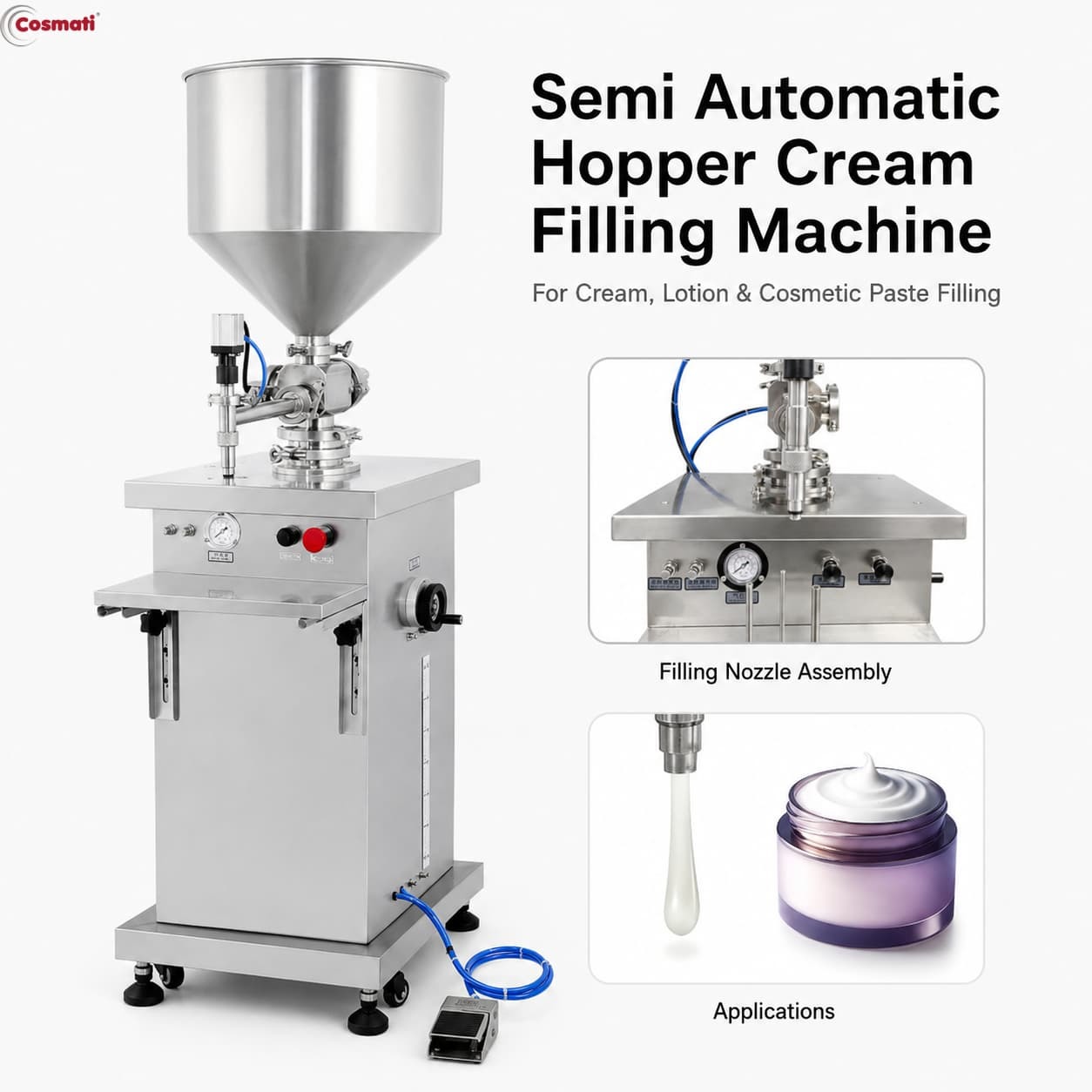

The Semi Automatic Pneumatic Piston Filling Machine is designed for quantitative filling of cream, lotion, shampoo, ointment, cosmetic paste, oil and other liquid or viscous products.

The machine adopts a pneumatic piston filling system, using compressed air to drive the piston for stable and repeatable material dosing. The large stainless steel hopper feeds material directly into the filling cylinder, making the machine particularly suitable for medium and high viscosity products that do not flow easily through ordinary liquid filling systems.

The semi automatic design provides simple operation and flexible production. Operators can start each filling cycle using the control system or foot pedal, making the machine suitable for small batch production, multiple product sizes and factories requiring frequent product changeovers.

The supplied configuration supports filling volumes around 500ml, while the actual filling range can be customized according to product viscosity and container capacity.

For temperature sensitive materials, a heated hopper, heated pump or heated filling nozzle can be configured according to the production process.

Key Features

1. Pneumatic piston filling system provides stable quantitative dosing.
2. Suitable for cream lotion shampoo ointment paste oil and viscous liquid products.

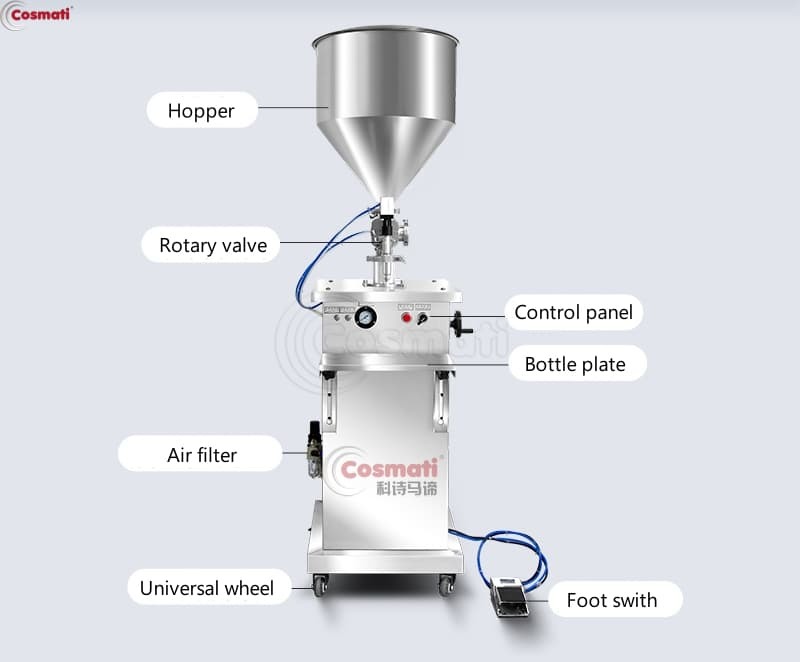

3. Large hopper supports continuous material feeding during production.
4. Semi automatic operation provides flexible small batch manufacturing.
5. Filling volume can be adjusted according to container capacity.
6. Reference filling accuracy reaches approximately 99 percent according to supplied data.
7. Pneumatic drive provides simple structure and convenient maintenance.
8. Foot pedal control allows operators to start filling conveniently.

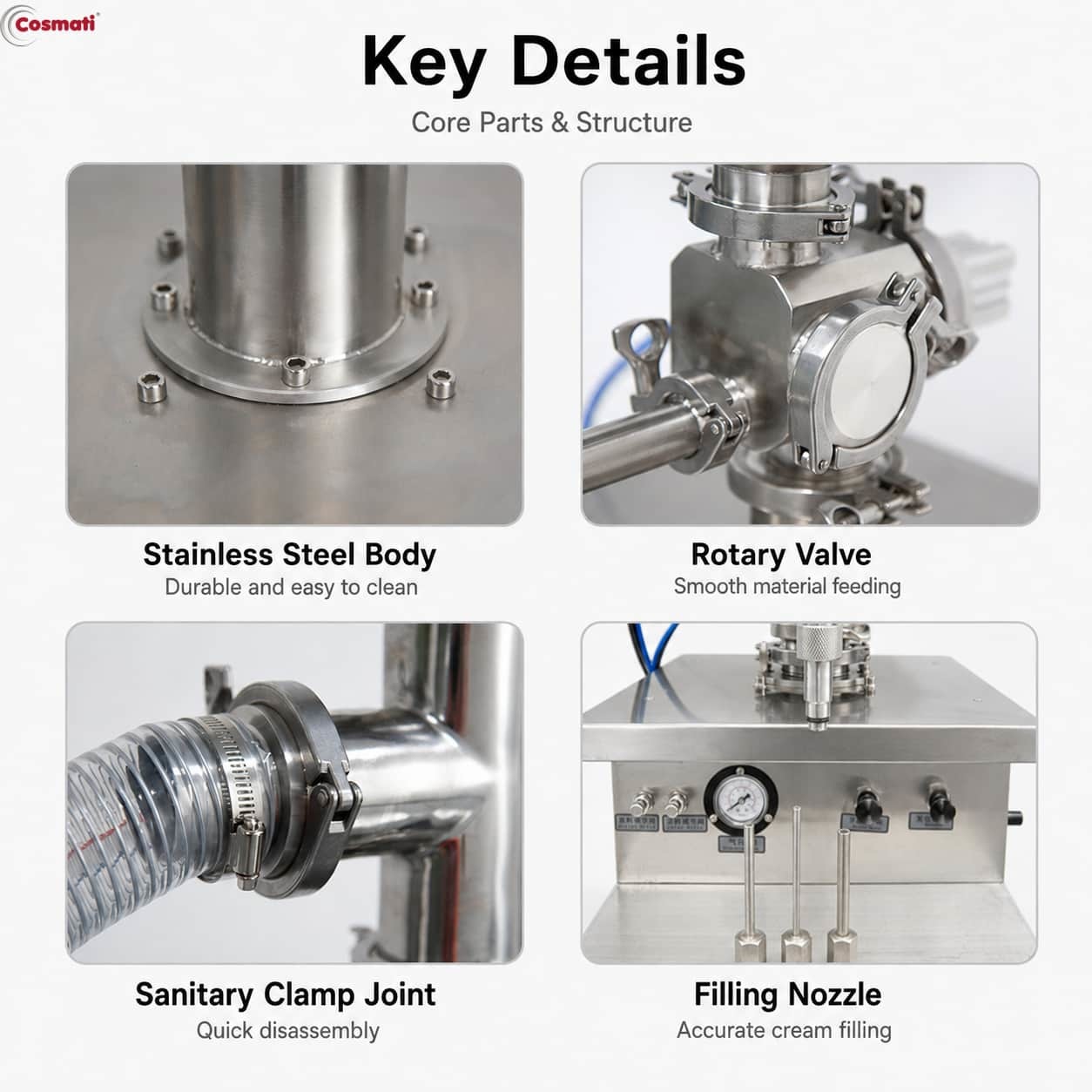

9. Stainless steel product contact components provide easy cleaning.
10. Anti dripping filling nozzle helps reduce product residue and material waste.
11. Filling speed can be adjusted according to viscosity and filling volume.
