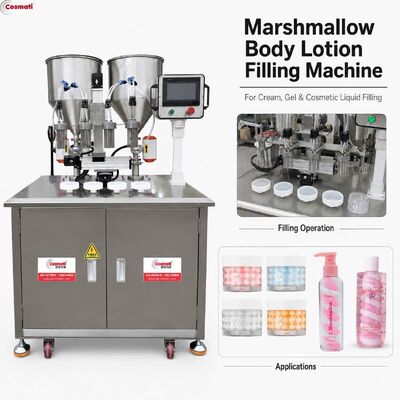

Automatic Two Color Spiral Filling Machine Pearl Eye Cream Cosmetic Lotion Filler

Introduction

The Automatic Two Color Spiral Filling Machine is designed for decorative cosmetic filling applications including pearl eye cream, body lotion, facial cream, gel and other cosmetic products requiring two color, spiral or 3D pattern effects.

The machine uses a dual material filling system that allows two different colors or formulations to be dispensed according to preset filling parameters. By controlling material dosage and filling movement, the machine can create attractive spiral, pearl and decorative patterns inside cosmetic jars, bottles and other containers.

The standard filling range reaches up to 50ml per station, making the machine especially suitable for small and medium cosmetic packaging. According to the supplied configuration, up to four containers can be processed simultaneously, helping improve production efficiency.

The machine adopts PLC and touch screen control, allowing filling parameters to be set directly through the interface. Automatic operation, electric drive and filling accuracy within ≤0.5% provide stable performance for cosmetic production.

It can be configured for plastic, glass and metal containers including jars, bottles and other cosmetic packaging.

Feature

1. Dual material filling system creates two color spiral pearl and decorative cosmetic patterns.

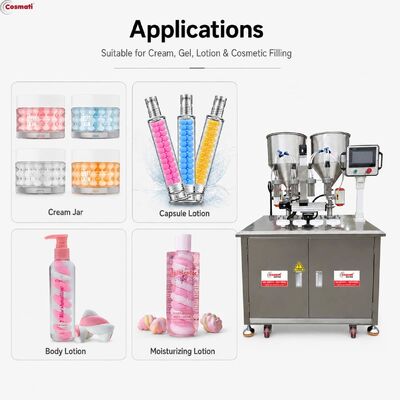

2. Suitable for pearl eye cream body lotion facial cream gel and cosmetic formulations.
3. Maximum filling range reaches 50ml per station.
4. Up to four containers can be processed simultaneously according to machine configuration.
5. Filling accuracy reaches ≤0.5% under suitable operating conditions.
6. PLC and touch screen control provides convenient parameter adjustment.
7. Automatic operation reduces manual filling work and improves production consistency.
