Features Gallery Product Description Chat Now

Features

Specifications

Application: Food, Chemical, Other, Cosmetic

Packaging Type: Bottles, Barrel, Bags, Pouch, Case, VIAL, Tube, Jar

Packaging Material: Wood

Automatic Grade: Semi-Automatic

Driven Type: Pneumatic

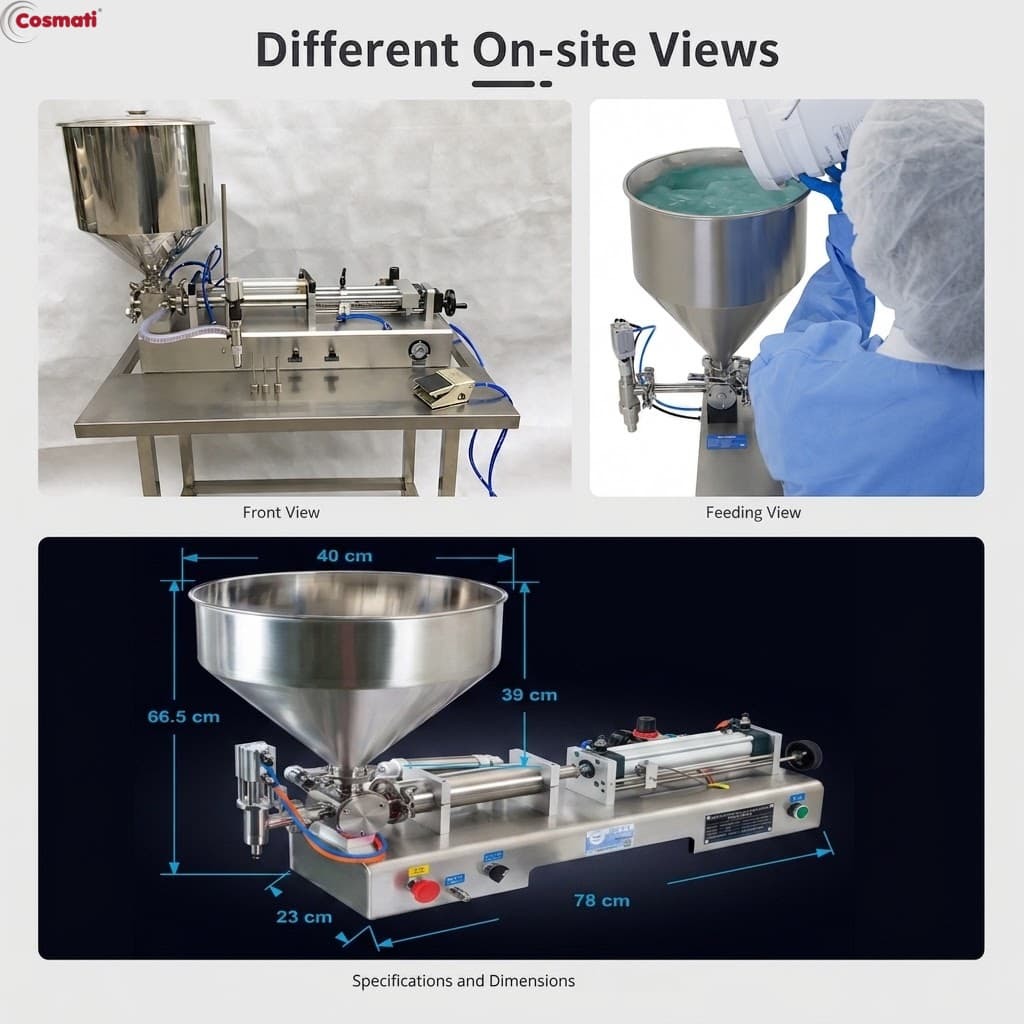

Dimension(l*w*h): 550*580*1600 Mm(21.65*22.83*62.99in)

Warranty: 1 Year

Key Selling Points: High Productivity

Filling Material: Water, Oil

Filling Accuracy: 99%

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Pressure Vessel, PLC, Gear, Other

Filling Nozzle: 2, 4

After-sales Service Provided: Video Technical Support, Online Support

Weight (KG): 40

Product Name: Semi-automatic Shampoo Lotion Bottle Liquid Filling Machine

Keywords: Vertical Filling Machine For Paste

Material: Stainless Steel 304/316L

Applicable Bottle Height: 30-200(mm)

Filling Accuracy: ±1%

Degree Of Automation: Semi-automatic

Applicable Bottle Diameter: 10-120(mm)

Production Capacity: 20-35 Bpm

Filling Volume: 50-1000(ml)

Advantage: Pneumatic Control

Highlight:

Piston Filling Machine

Pneumatic Piston Filling Machine

Cream Ointment Filler

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

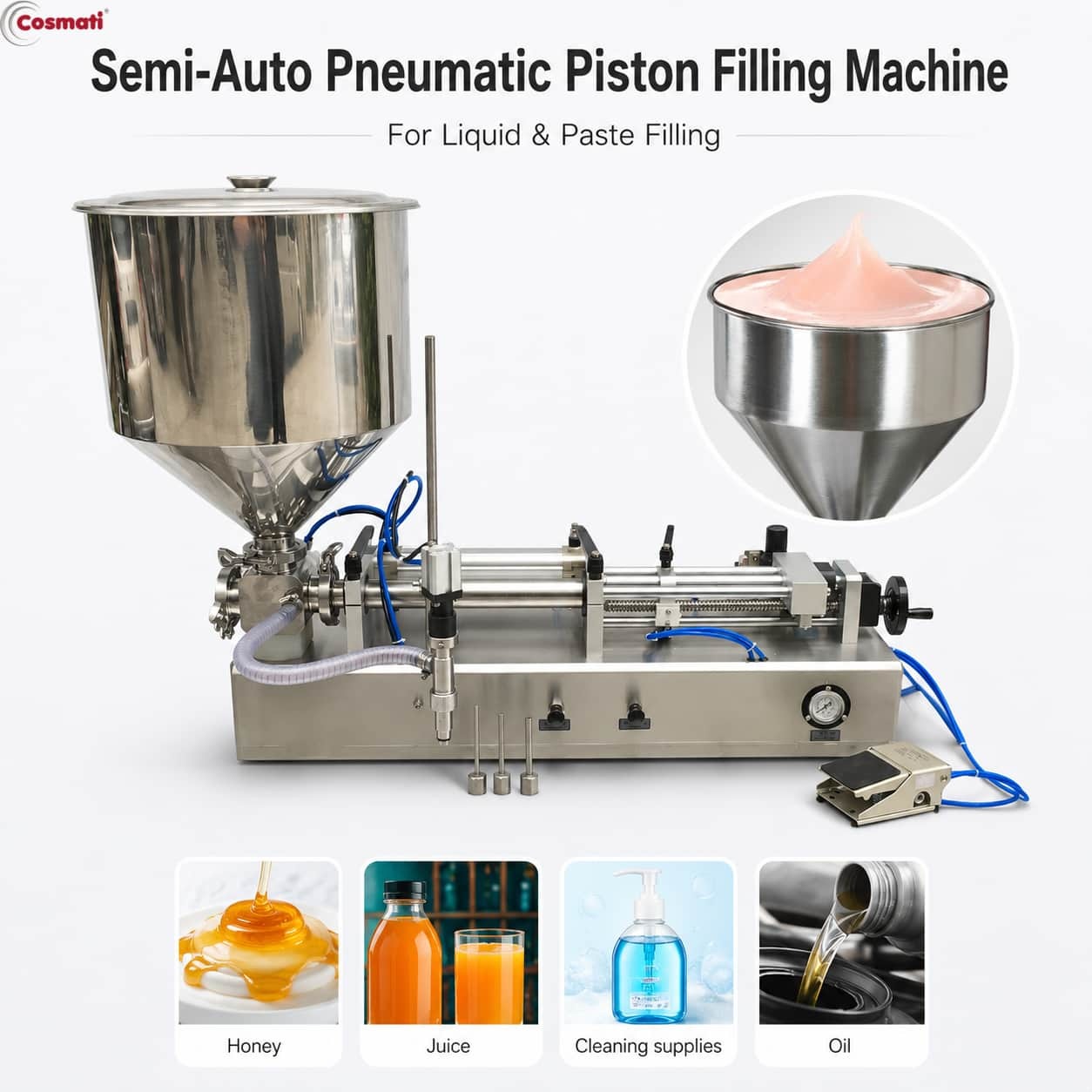

Pneumatic Semi Automatic Piston Filling Machine Cream Paste Ointment Cosmetic Filler

Product Description

Pneumatic semi automatic filling machine horizontal body scrub filling machine thick cream paste ointment sauce filler

Introduction

The paste filling machine uses compressed air as power and is composed of precision pneumatic components to form an automatic filling system. It has simple structure, sensitive and reliable action, and convenient adjustment. It is suitable for various liquids, viscous fluids and paste filling. It is also suitable for easy filling. Working in flammable and explosive environments, it is the most ideal filling equipment for chemical, food, cosmetics and other industries.

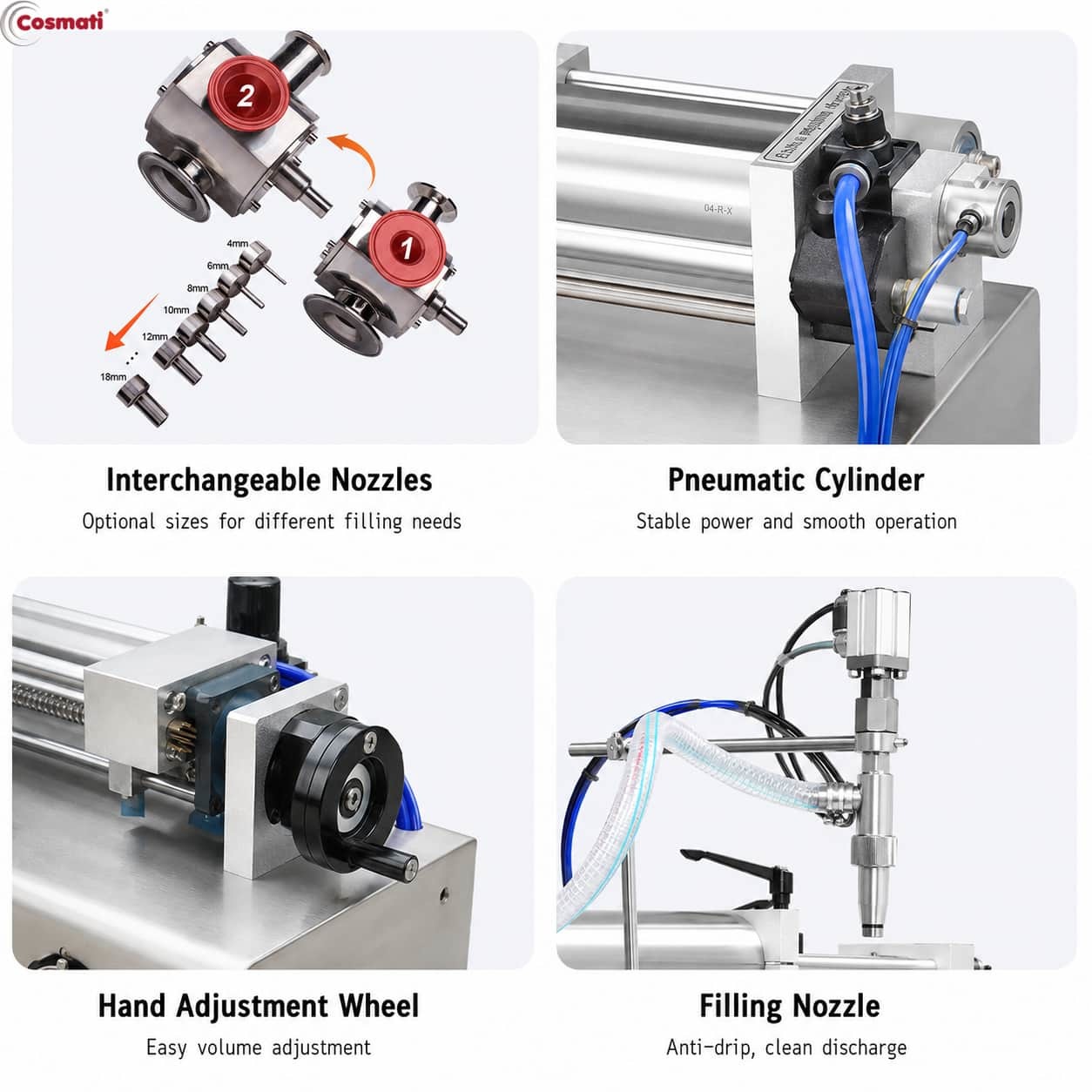

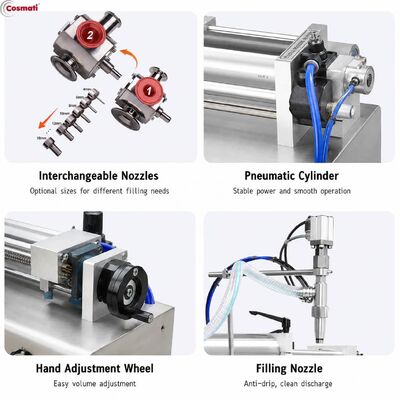

Features

1. Simple structure, convenient maintenance and reliable drive.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.

Model	Filling Volume	Filling Speed	Pressure Supply
CM-GT-5	5-50ml	10-45 bpm	0.4-0.6 Mpa
CM-GT-10	10-120ml	10-35 bpm	0.4-0.6 Mpa
CM-GT-25	25-250ml	10-30 bpm	0.4-0.6 Mpa
CM-GT-50	50-500ml	10-30 bpm	0.4-0.6 Mpa
CM-GT-100	100-1000ml	10-25 bpm	0.4-0.6 Mpa
CM-GT-250	250-2500ml	5-18 bpm	0.4-0.6 Mpa
CM-GT-500	500-5000ml	5-12 bpm	0.4-0.6 Mpa

Advantages

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

Application

FAQ

Q1. What materials can this filling machine handle?

A:This pneumatic filling machine is suitable for filling various liquid and semi-liquid materials, including cream, paste, ointment, gel, lotion, sauce, honey, and other high-viscosity products. It is widely used in cosmetic, food, pharmaceutical, and chemical industries.

Q2. What is the filling accuracy of this machine?

A:The machine adopts a piston filling system, which provides stable filling performance. The filling accuracy can reach around ±1% depending on the material characteristics, filling volume, and operating conditions.

Q3. What is the filling volume range?

A:The filling volume can be customized according to customer requirements. Different piston sizes are available to meet various production needs, from small containers to larger packaging applications.

Q4. Does the machine require electricity?

A:This machine is mainly driven by compressed air and uses a pneumatic control system. It does not require a complicated electrical system, making it suitable for small factories, laboratories, and production workshops.
