Semi Automatic Pneumatic Paste Filling Machine Cream Gel Ointment Cosmetic Filler

1
MOQ
196,975-205,182
Price
Semi Automatic Pneumatic Paste Filling Machine Cream Gel Ointment Cosmetic Filler
Features Gallery Product Description Chat Now
Features
Specifications
Application: Chemical, Food, Commodity, Cosmetic
Packaging Type: Cans, Bottles, Barrel, Stand-up Pouch, Sachet, Tube, Jar
Packaging Material: Plastic, Metal, Glass
Automatic Grade: Semi-Automatic
Driven Type: Electric
Dimension(l*w*h): Refer To Drawings
Warranty: 1 Year
Key Selling Points: Easy To Operate, Low Noise Level, High-Accuracy, Long Service Life, High Safety Level, Flexible Manufacturing, Competitive Price, Eco-Friendly, High Productivity, Multifunctional, Digital
Filling Material: Milk, Water, Oil, Juice, Viscous Liquid, Honey, Ketchup, Peanut Butter, Shampoo, Nail Polish, Cream, Gel, Ointment, Shower Gel, Hair Conditioner
Filling Accuracy: ±0.1%
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Pressure Vessel, Pump, PLC, Gear, Piston, Other, Cylinder
Filling Nozzle: 2
After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Online Support, Field Maintenance And Repair Service, Free Spare Parts
Products Name: Gear Pump Cosmetic Filling Machines
Keywords: Paste Filling Machine,cream Filling Machine
Degree Of Automation: Semi-automatic
Material: Stainless Steel 304/316L
Applicable Bottle Height: 30-200(mm)
Applicable Bottle Diameter: 10-120(mm)
Capacity: 10-30BPM
Filling Volume: More Than 3ml
Weight: 50
Highlight:

Pneumatic Paste Filling Machine

,

Cream Gel Filling Machine

,

Ointment Cosmetic Filler

Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Cosmati
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description
Semi-automatic Very Viscous Cream Paste Filler Liquid Material Packaging Equipment Gel Ointment Filling Machine for Cosmetics

Introduction

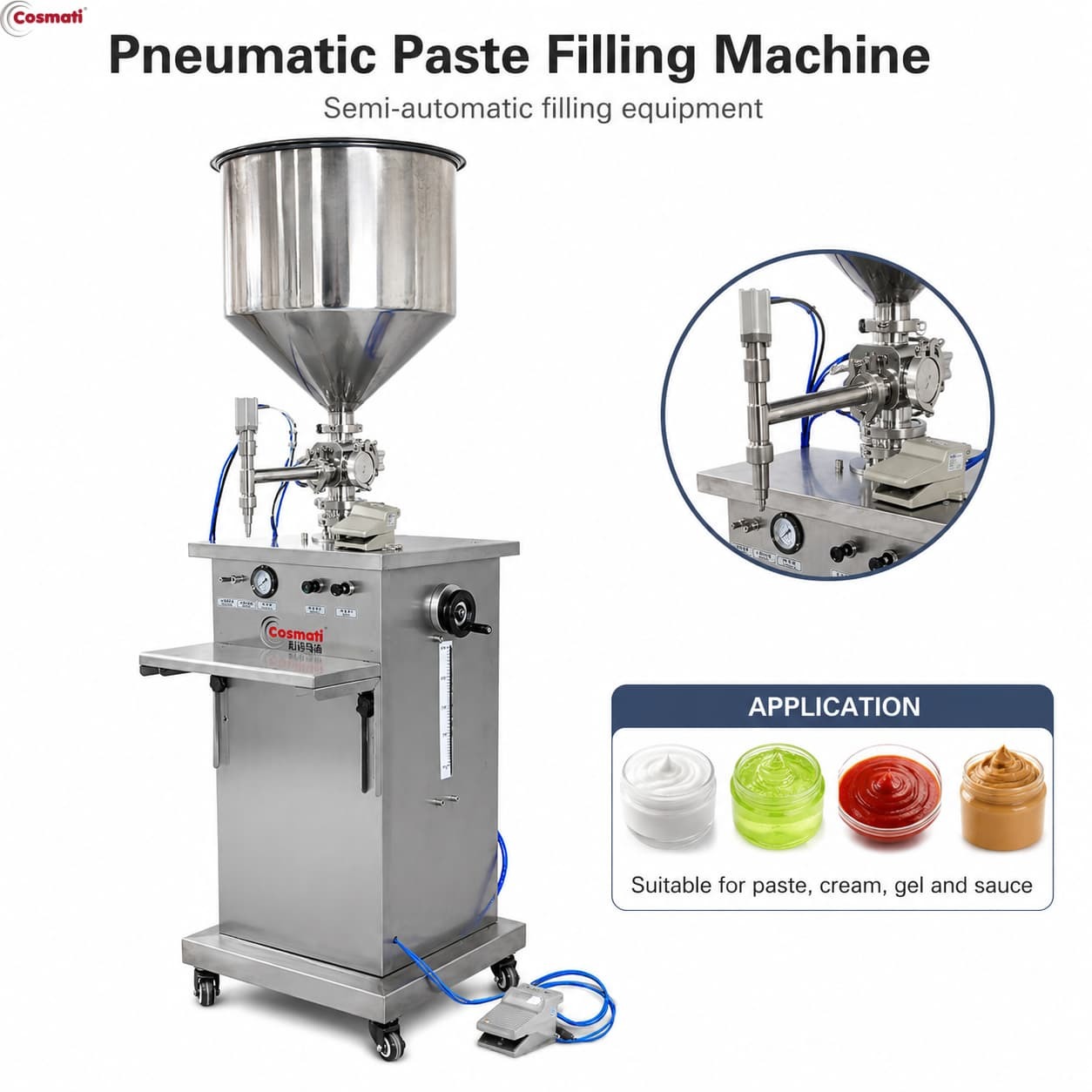

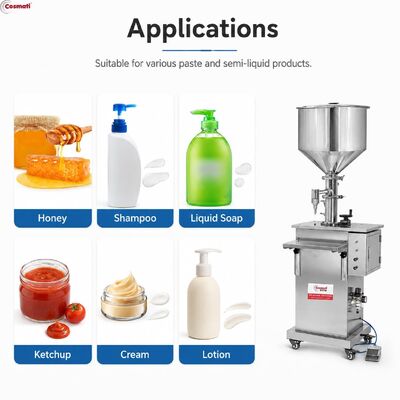

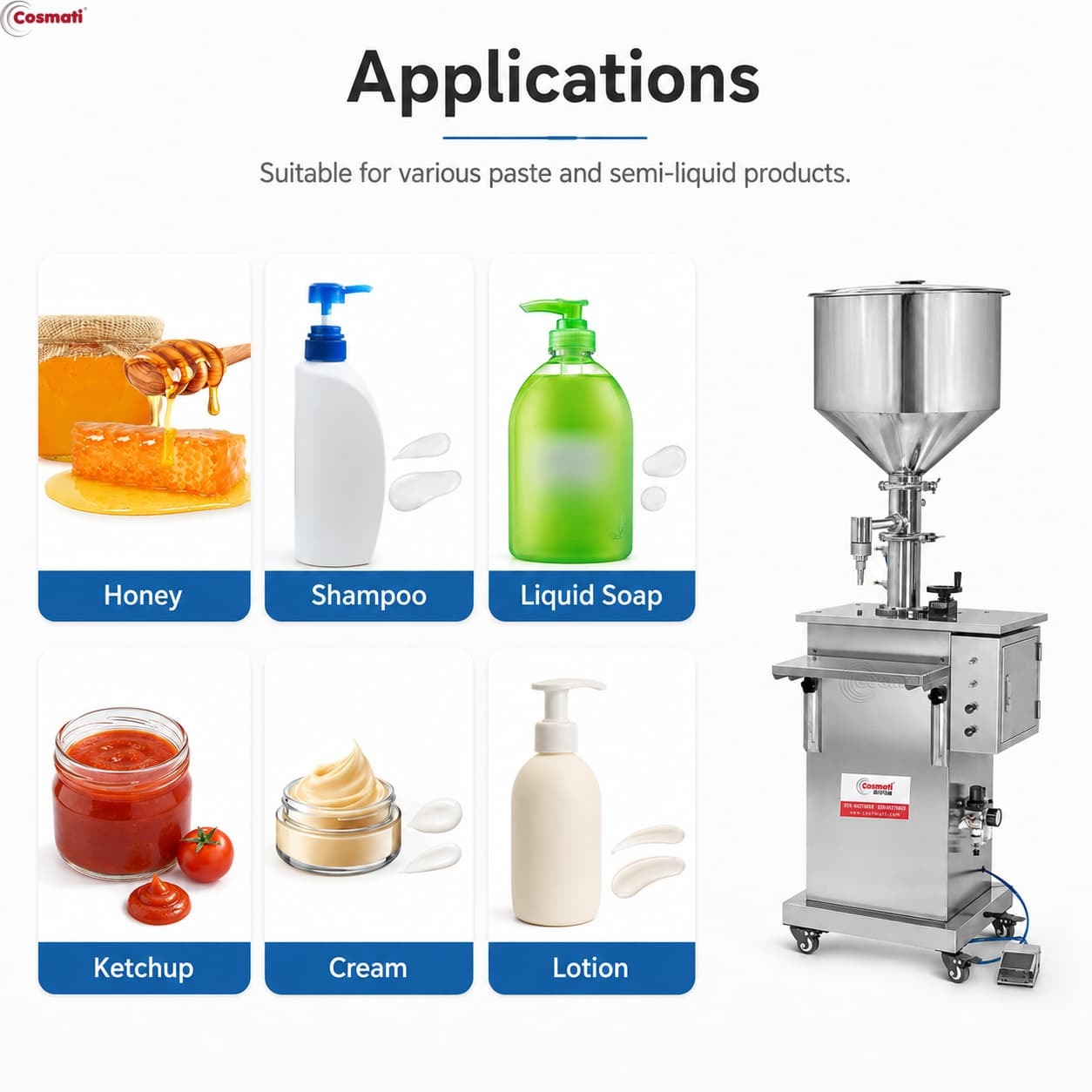

Semi Automatic Pneumatic Paste Filling Machine is designed for accurate filling of high viscosity materials such as cream, gel, ointment, lotion, paste and other liquid products.

The machine adopts a pneumatic piston filling system, providing stable filling performance, easy operation and high filling accuracy. The filling volume can be adjusted according to different production requirements, and multiple nozzle sizes are available for different container types.

Made of stainless steel structure with smooth surface treatment, this filling machine meets the requirements of cosmetic, pharmaceutical and food production environments. The compact design makes it suitable for small and medium production lines, laboratories and factories requiring flexible filling solutions.

The machine can be equipped with an optional automatic feeding system to improve production efficiency and reduce manual operation.

Please noticed!
The filling nozzles can be changed during filling different bottles with different volumes

Features

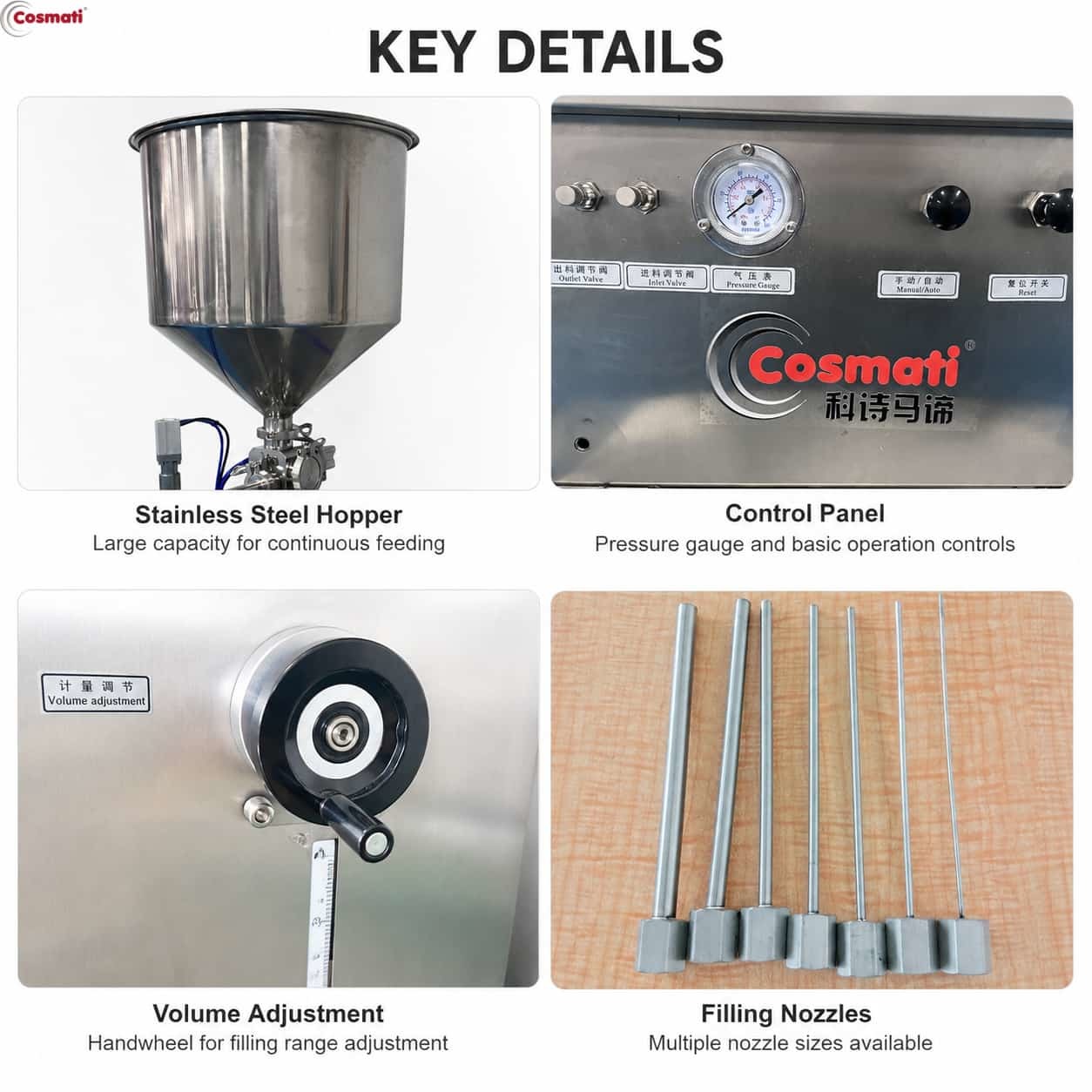

1. Simple structure, convenient maintenance and reliable drive.
2. Imported cylinders and pneumatic components ensure the reliability of the machine.
3. High measurement accuracy, no dripping phenomenon.
4. The filling speed is fast and can be filled automatically and continuously.
5. Imported stainless steel material, polished inside and outside, in line with GMP standards.
6. Feeding method: ordinary gravity type.
7. Control method: full pneumatic control.
Model
Filling Volume
Filling Speed
Pressure Supply
CM-GT-5
5-50ml
10-45 bpm
0.2-0.6 Mpa
CM-GT-10
10-120ml
10-35 bpm
0.2-0.6 Mpa
CM-GT-25
25-250ml
10-30 bpm
0.2-0.6 Mpa
CM-GT-50
50-500ml
10-30 bpm
0.2-0.6 Mpa
CM-GT-100
100-1000ml
10-25 bpm
0.2-0.6 Mpa
CM-GT-250
250-2500ml
5-18 bpm
0.2-0.6 Mpa
CM-GT-500
500-5000ml
5-12 bpm
0.2-0.6 Mpa

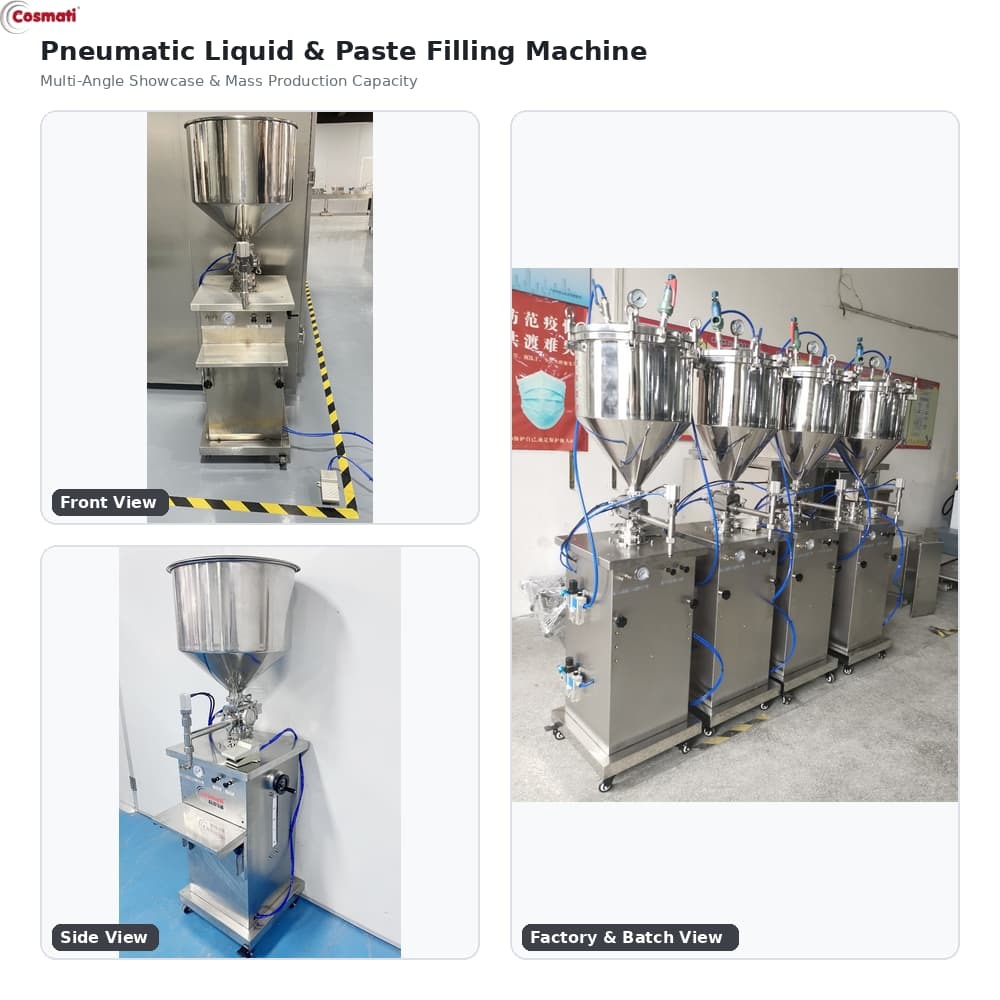

Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0
Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Semi Automatic Pneumatic Paste Filling Machine Cream Gel Ointment Cosmetic Filler
Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5
Semi Automatic Pneumatic Paste Filling Machine Cream Gel Ointment Cosmetic Filler

FAQ

Q1: What products can this filling machine handle?

This machine is mainly designed for high viscosity materials, including cosmetic cream, gel, ointment, lotion, shampoo, honey, sauce and other paste products.

Q2: What is the filling volume range?

The standard filling range is 5ml-5000ml. The filling volume can be customized according to different production requirements.

Q3: Is this machine suitable for cosmetic production?

Yes. The machine is widely used in cosmetic factories for filling cream, facial products, gel and ointment. Stainless steel construction makes it suitable for clean production environments.

Q4: Can the filling nozzle be changed?

Yes. Different filling nozzles can be installed according to bottle size, filling volume and material characteristics.

Q5: Does the machine require compressed air?

Yes. This is a fully pneumatic filling machine and requires an external compressed air supply for operation.
