Features Gallery Product Description Chat Now

Features

Specifications

Application: Food, Chemical, Textiles

Packaging Type: Bottles

Packaging Material: Wood

Automatic Grade: Semi-Automatic

Driven Type: Mechanical

Voltage: 220v/1P

Dimension(l*w*h): 730*830*1860mm

Warranty: 1 Year

Key Selling Points: High Productivity

Filling Material: Oil, Lotion, Cream, Foundation

Filling Accuracy: 99.5%

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Pressure Vessel, PLC, Gear, Bearing, Other

Filling Nozzle: 2

After-sales Service Provided: Field Installation, Commissioning And Training, Video Technical Support, Online Support

Weight (KG): 100

Filling Volume: 3-15ml

Product Name: Semi-automatic 3d Pearl Pattern Filler

Keywords: Serum Cosmetics Cream Ball Pattern Filling Machine

Degree Of Automation: Semi-automatic

Filling Range: 3-15mm

Table Height: 910mm

Mould Height: 750mm

Hopper: 15L Double Layer Hopper

Material: Stainless Steel 304/316

Type: Pneumatic+electric

Advantage: Filling Special Pattern For Cosmetics

Highlight:

3D Pattern Cosmetic Filling Machine

Pearl Cream Cosmetic Filling Machine

Foundation Lotion Filling Machine

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

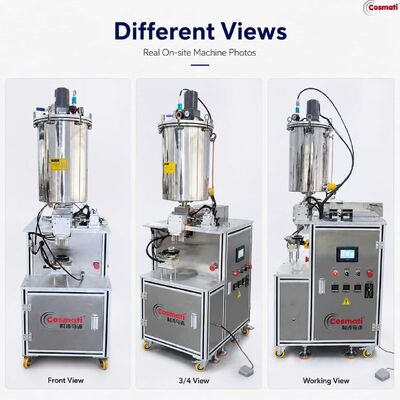

Gallery

3D Pattern Cosmetic Filling Machine Single Color Pearl Cream Lotion Foundation Filler

Product Description

COSMATI Single Color Pearl Cream Filler Lotion Liquid Foundation Dispenser 3D Pattern Fancy Cosmetic Filling Machine

Features

1.Barrel pressurization;
2.Table height: 750mm; Weight: 100kg;
3.Servo quantitative filling, servo lifting mold (based on client’s package);
4.A piston is added inside the barrel so that the gas does not come into contact with the raw materials during pressurization;
5.Filling range: 3-15ml, filling accuracy: ±0.05g

Technical Data

Model	Filling Volume	Filling Speed	Air pressure
CM-PF-01	3-15ml	10-30 bpm	0.4-0.6Mpa
Dimension	Filling accuracy	Power supply	Hopper volume
L730W830H1860mm	Within ±0.5%	1P/220V, 4KW	15L

Details

Stirrer

Material: SUS304, stirring speed; 0-90rpm

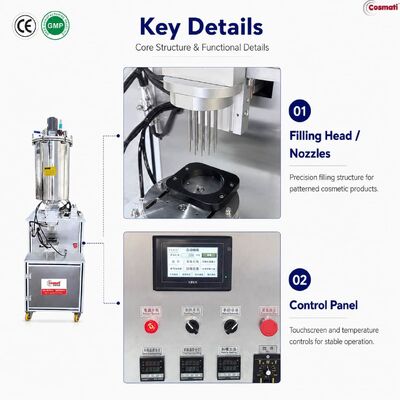

Control panel

PLC touch screen + button control; PLC touch screen adopt Xinjie brand

Jacketed Hopper

Hopper volume is 15L, with pressure, heating and stirrer

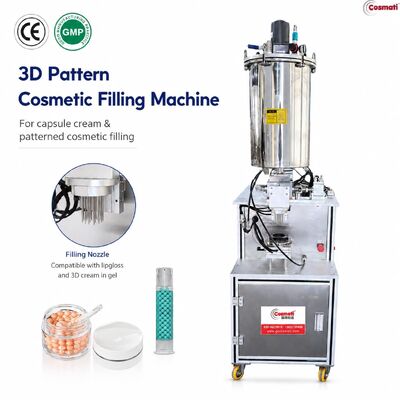

Mould & filling nozzles

Mould can lift up & down, nozzles are compatible with lipgloss and 3D cream in gel

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

Application

FAQ

Q1: What products can this 3D pattern filling machine handle?
A: It is suitable for cosmetic materials such as cream, lotion, liquid foundation, cosmetic oil and similar fluid or semi-viscous formulations.

Q2: What is the main function of this machine?
A: The machine is designed for cosmetic filling applications where controlled dispensing is required to create decorative or 3D-style filling effects inside suitable containers.

Q3: Can it be used for pearl cream or foundation products?
A: Yes. Pearl cream and liquid foundation are suitable applications when the formulation viscosity and flow characteristics match the filling system.

Q4: Is this machine suitable for every cream viscosity?
A: No. Filling performance and pattern formation depend strongly on material viscosity, fluidity and formulation. Product samples should be tested before confirming the final configuration.

Q5: How many filling nozzles does the machine have?
A: The current configuration uses 2 filling nozzles.
