Automatic 12 Head Lipstick Filling Machine Lip Balm Heated Stirring Cosmetic Filler

Introduction

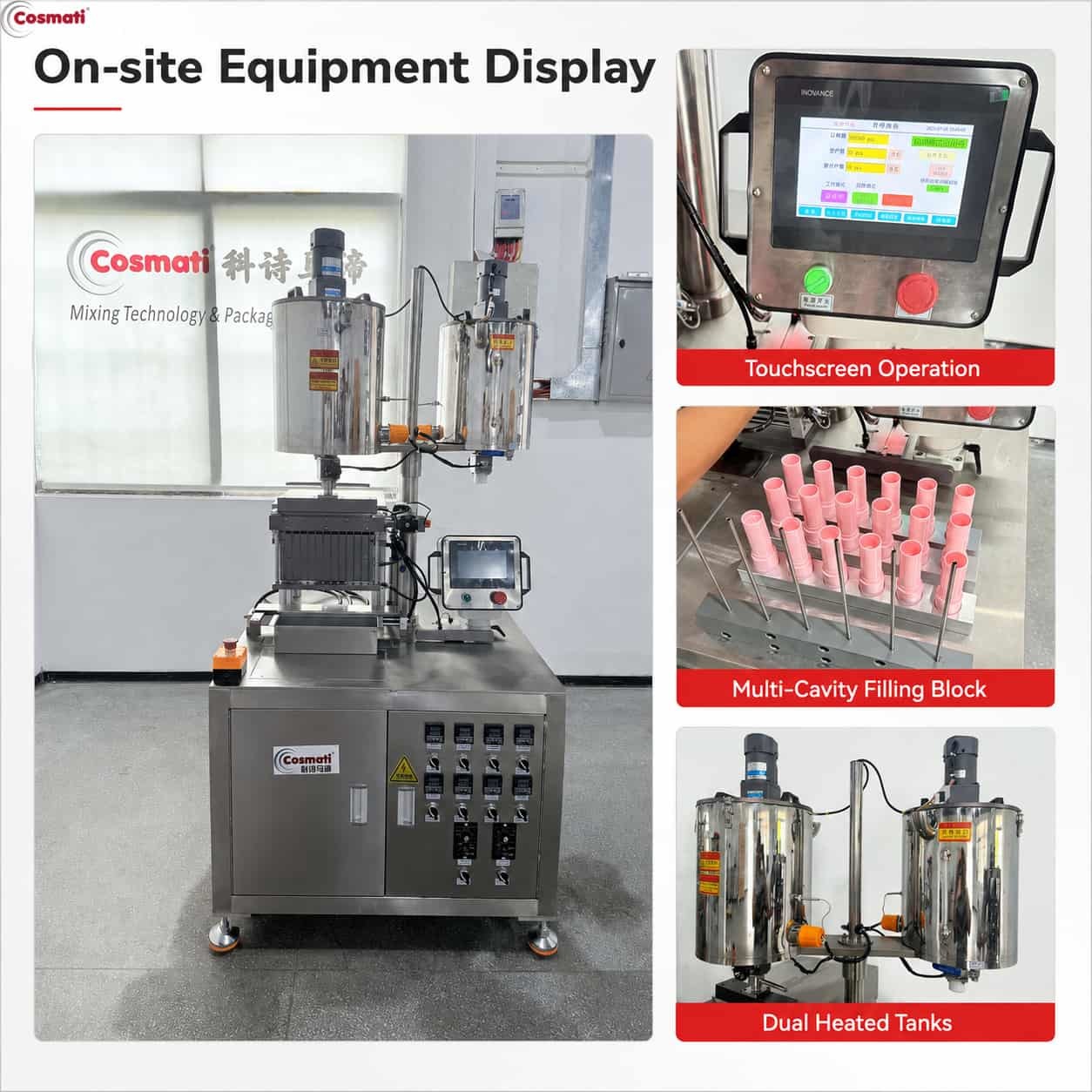

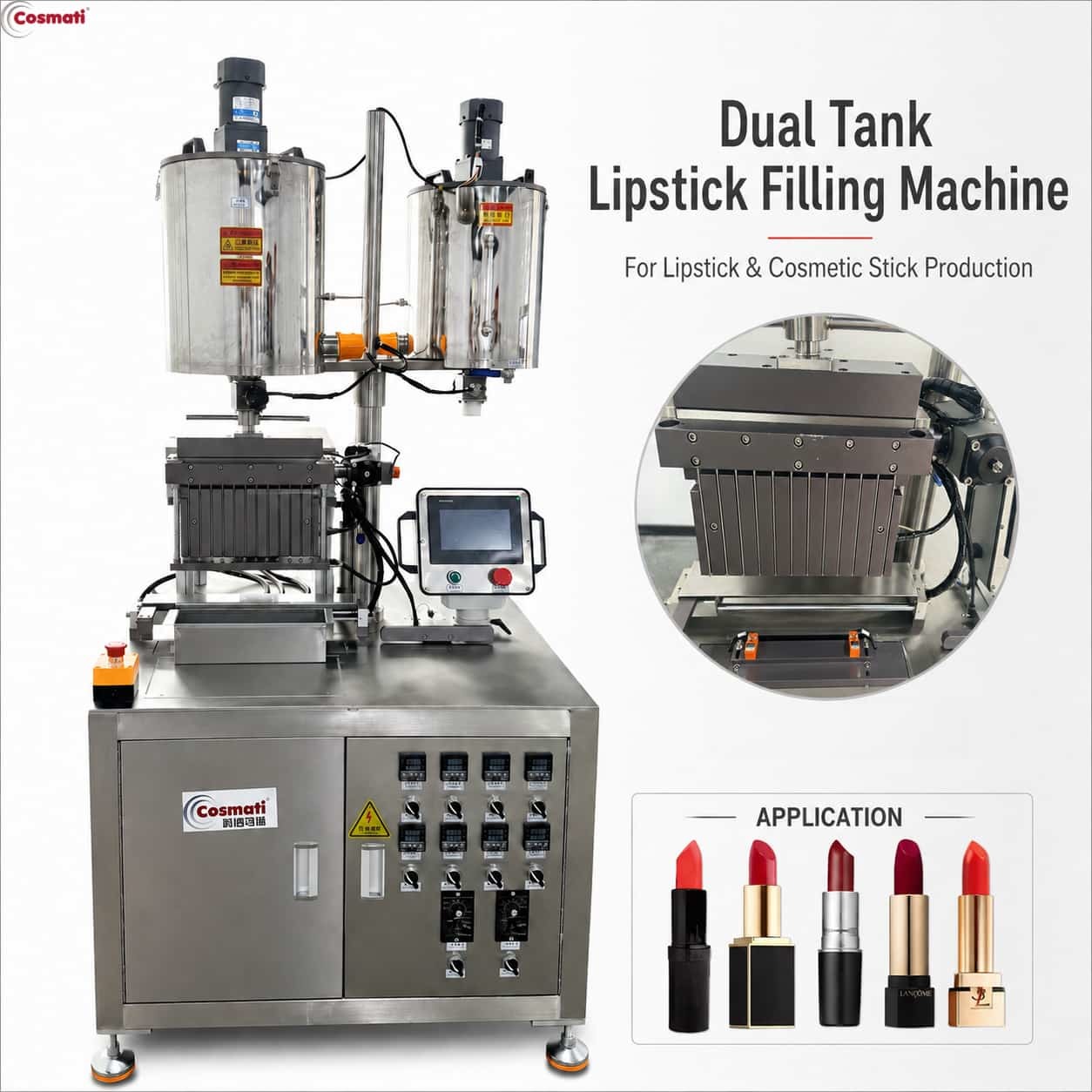

The Automatic 12 Head Lipstick Filling Machine is designed for accurate small-volume filling of lipstick, lip balm and other heated cosmetic formulations.

The machine combines material heating, continuous stirring and multi-nozzle filling in one compact production system. Two 20L stainless steel tanks provide sufficient material capacity for continuous production, while the stirring system helps maintain consistent product temperature and texture during filling.

The shown CM-LF-12 model can be configured with up to 12 filling nozzles, allowing multiple lipstick molds or containers to be filled simultaneously. Other configurations including 6, 8 and 10 filling nozzles are also available according to production requirements.

The standard filling range is approximately 1 to 15ml, making the machine suitable for lipstick, lip balm and other small-dose cosmetic products. PLC control simplifies filling parameter adjustment and provides convenient operation during batch production.

Features

1. Heated material tanks help maintain stable flowability during cosmetic filling.
2. Dual 20L stainless steel tanks support continuous material preparation and production.
3. 12-head configuration improves multi-cavity lipstick filling efficiency.
4. Optional 6 8 10 12 filling nozzle configurations support different production capacities.
5. Filling range from 1 to 15ml suits small cosmetic containers and lipstick molds.
6. Continuous stirring helps maintain uniform temperature and material consistency.
7. PLC control provides convenient parameter setting and operation.
