Cosmetic Cooling Tunnel Lip Balm Lipstick Hair Wax Deodorant Stick Cooling Machine

1
MOQ
$3,000-5,000
Price
Cosmetic Cooling Tunnel Lip Balm Lipstick Hair Wax Deodorant Stick Cooling Machine
Features Gallery Product Description Chat Now
Features
Specifications
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Core Components: Engine, Bearing, Motor
Type: Spiral Freezer
Voltage: 380V
Power(w): 7.5HP
Dimension(l*w*h): 3000*750*1300mm
Warranty: 1 Year
Key Selling Points: High-Accuracy
Compressor Brand: Maneurop
Temperature Control: -20℃ To 0℃
Refrigerant: R-22
Door: Two Doors
Weight (KG): 1000
Product Name: Lip Stick Lip Balm Cooling Tunnel
Keyword 01: Cooling Tunnel For Cosmetic
Keyword 02: Tunnel Freezer
Frozen Products: Cosmetics Food Chemical
Material: Stainless Steel 304
Freezing Techniques: High-tech Temperature Controller System
Freezing Temperature: -25°C
Cooling Rate: 20 C/min
Cooling Type: Air Cooling Chiller
Feature: Dust Removal, Filtration, Defrosting, Dehumidification, Drainage
Highlight:

Lip Balm Cooling Tunnel

,

Lipstick Hair Wax Cooling Machine

,

Deodorant Stick Cooling Tunnel
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: COSMATI
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

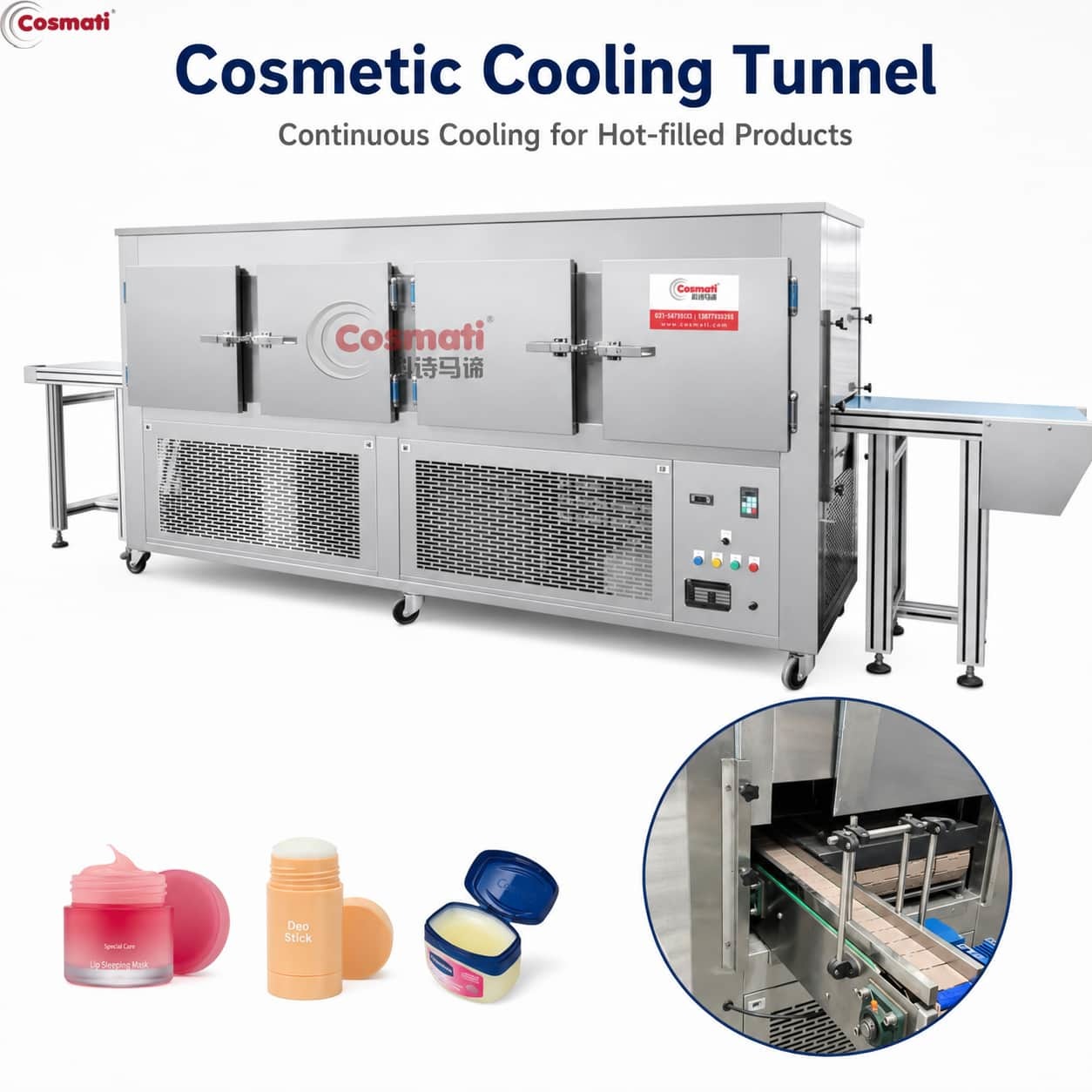

Cosmetic cooling tunnel cosmetic cream lipstick freezing tunnel lip balm tunnel freezer with conveyor belt
Features
  1. Totally enclosed structure, single-channel configuration, small range of temperature range, no loss of cooling energy, adopts environmentally friendly ultra-low refrigerant refrigeration system, imported key components, low temperature, high efficiency and energy saving.
  2. The built-in key components adopt ultra-low failure, no failure design, concentrated jet, rapid cooling and shaping of lipstick products, and output a powerful cold source.
  3. Specially designed thick-walled copper tube evaporator with high cooling efficiency at low temperature, completely eliminates the adverse effects of thermal expansion and contraction on the evaporator and insulation layer, and reliably guarantees the use effect and service life.
  4. Dust removal, filtration, defrosting, dehumidification, drainage and system drying dual-configuration integrated structure, so that the cooling effect and product quick-freezing are efficient and stable.
  5. Refrigeration uses a high-tech temperature controller system to control the entire system.
  6. The semi-closed refrigeration compressor unit adopts air (water or compound) condensation configuration, and the refrigeration or dehumidification operation is controlled by semi-automatic control, which makes the operation simple and reliable, ensures stable and reliable product refrigeration effect, and low maintenance costs.
  7. The shell is designed with 304 stainless steel wire drawing, and the appearance is beautiful and generous.
Technical Data
Dimensions
L3000*W750*H1300mm
Power supply
7.5HP/380V/50Hz
Conveyor belt
L4200*W400mm / L4200*W100mm
Blowing mode
Down blowing
Freezing temperature
-25°C
Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0


Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3

Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

Application

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 6

FAQ

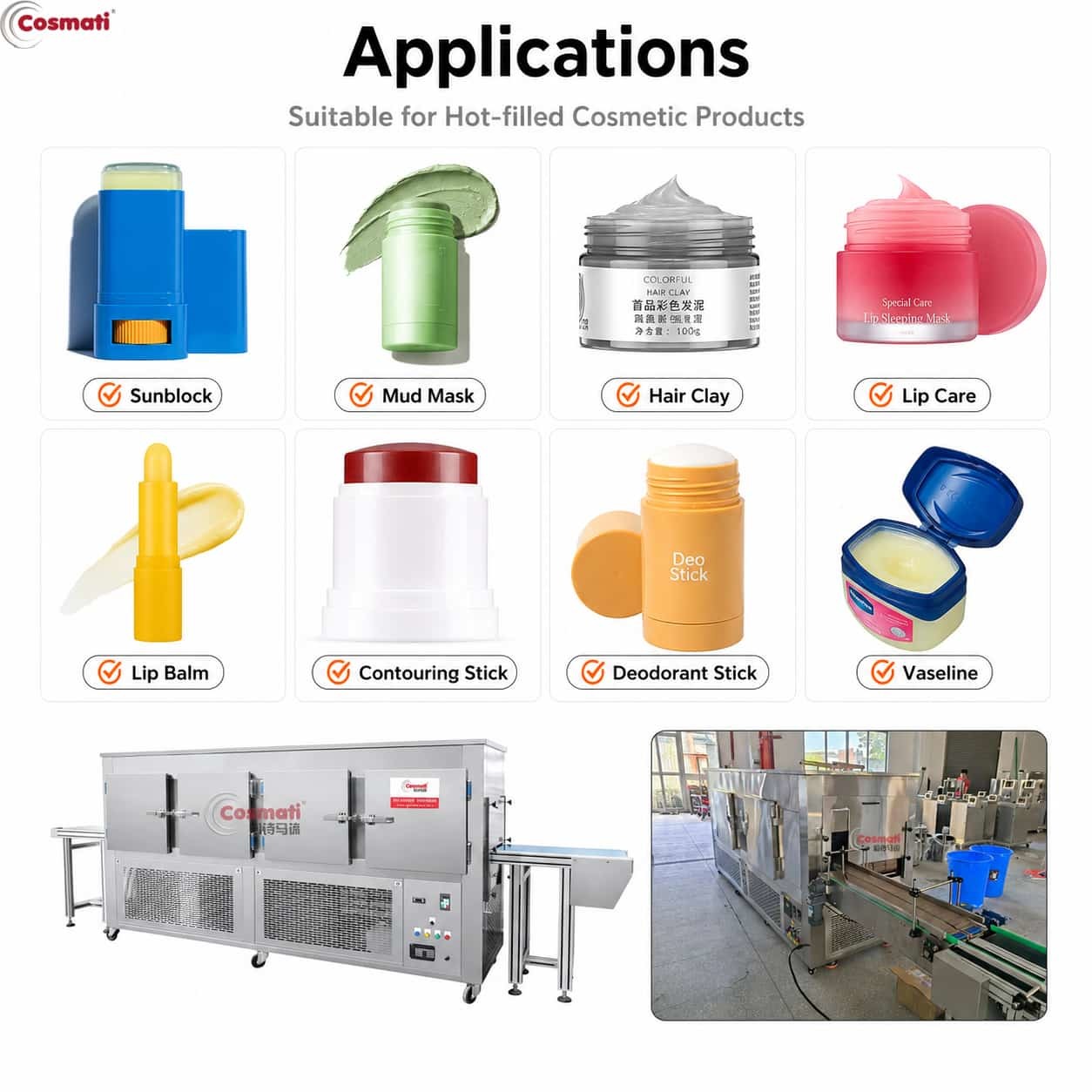

Q1: What products is this cooling tunnel suitable for?
A: It is mainly suitable for lipstick, lip balm, deodorant sticks, hair wax, pomade and other wax-based or heat-filled cosmetic products that require rapid cooling and solidification after filling.

Q2: What is the operating temperature range?
A: The reference cooling temperature range is approximately -20°C to 0°C. The actual setting should be adjusted according to the product formula and required solidification time.

Q3: Why is a cooling tunnel needed after hot filling?
A: It helps molten or semi-molten cosmetic products cool and solidify quickly, improving product shape, surface stability and downstream handling efficiency.

Q4: Can the cooling temperature be adjusted?
A: Yes. The cooling temperature can be adjusted according to the melting point, formulation and production requirements of the product.

Q5: Can it be connected directly to a filling machine?
A: Yes. The conveyor can be connected with lipstick, lip balm, deodorant stick or other hot filling equipment to create a continuous filling and cooling process.
