Home /Products/Cosmetic Filling Machine/Automatic Lipstick Filling Machine 12 Nozzles Heating Stirring Makeup Production

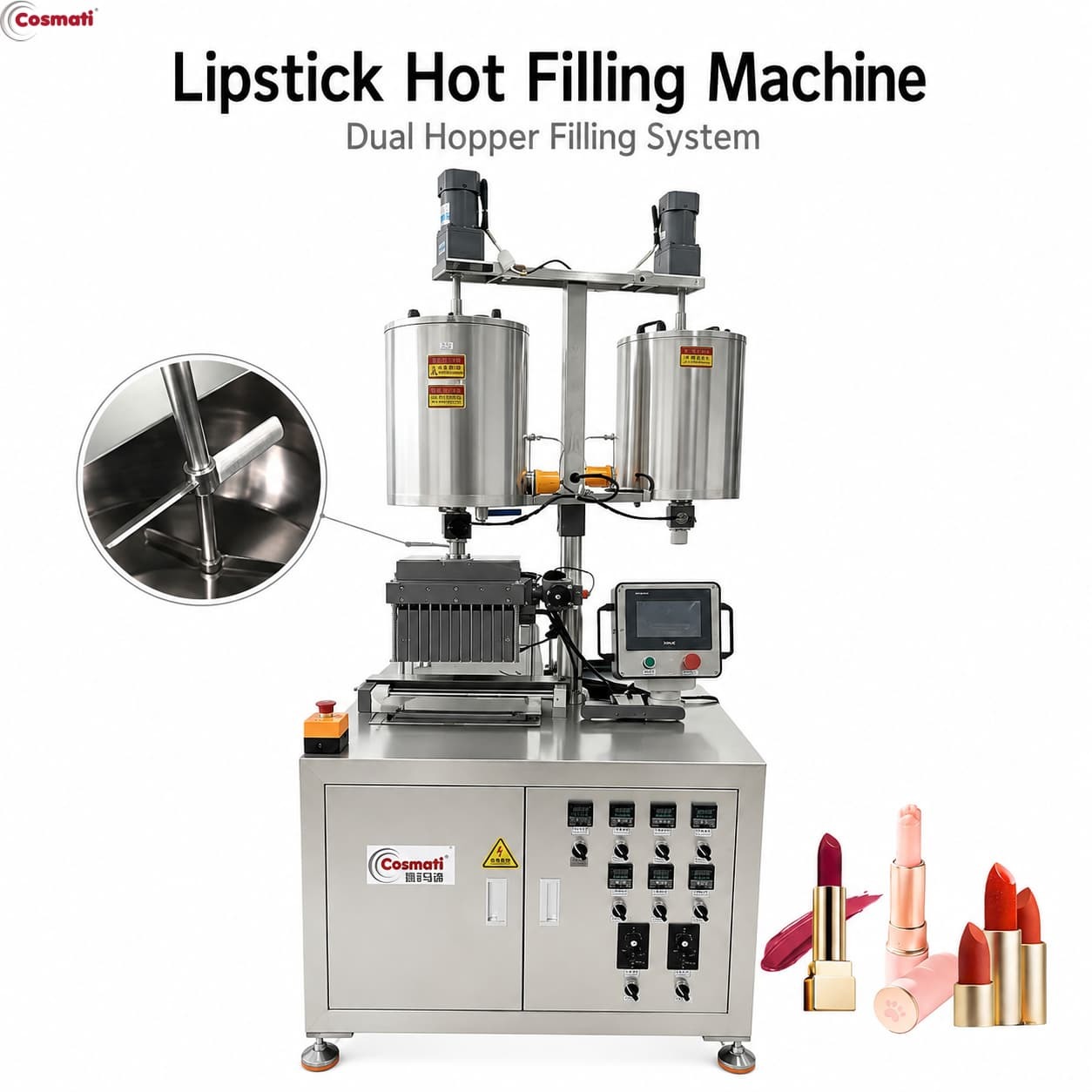

Automatic Lipstick Filling Machine 12 Nozzles Heating Stirring Makeup Production

1
MOQ
$1,450-2,000
Price
Automatic Lipstick Filling Machine 12 Nozzles Heating Stirring Makeup Production
Features Gallery Product Description Chat Now
Features
Specifications
Application: Cosmetic, Lip Gloss
Packaging Type: Sachet
Packaging Material: Wood
Automatic Grade: Automatic
Driven Type: Electric
Voltage: 220 V, 380 V
Dimension(l*w*h): 900*900*1900mm(35.43*35.43*74.80in)
Warranty: 1 Year
Key Selling Points: Long Service Life
Filling Material: Oil, Nail Polish, Lipstick, Lip Balm, Mascara
Filling Accuracy: ±1%
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: PLC, Motor
Filling Nozzle: 6, 8, 10, 12
After-sales Service Provided: Video Technical Support, Online Support, Free Spare Parts
Weight (KG): 320
Filling Volume: 1-15ml(0.03-0.51fl.oz)
Brand: Cosmati
Model: CM-LF-12
Power Supply: 380(220)V/5.5KW
Production Capacity: 5-6 Molds/min
Filling Range: 1-15ml
Tank Volume: 20L*2 Stainless Steel Barrel
Weight: 320KG
Compressed Air: 6Kg/cm2
Highlight:

12 Nozzles Lipstick Filling Machine

,

Heating Stirring Filling Machine

,

Lipstick Makeup Production Line
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Cosmati
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description
Fully Automatic Lipstick Filling Machine Heating Stirring Making Makeup 12 Nozzles Lipstick Making Machine
Features
  1. This product is designed for liquid cosmetics, such as lipstick, pen-type lipstick, eyebrow pencil, lip gloss, lip oil, lipstick, contour stick, etc.
  2. Independent barrel mixing and temperature control design to meet the diverse needs of raw materials.
  3. Using advanced automation technology (human-machine interface, PLC program control, etc.), the parameters that need to be set for the whole machine (time, temperature control setting) are all set by the human-machine interface, simplifying the system operation procedure and making the overall performance more stable.
  4. The body is an aluminum extrusion structure, and the platform is an aluminum flat surface that is easy to clean.
  5. The system operation program is simple and does not require time-consuming education and training.
  6. Each unit (barrel, pump, material pipe, nozzle) is independently controlled by an intelligent temperature controller, making the equipment easier to use.
  7. Infrared sensing positioning is accurate, suitable for products of different specifications 8) Automatic counting.
Details
Production capacity
Power supply
Filling range
Compressed air
5-6 molds/min.
380(220)V/ 5.5KW
1-15ml
6Kg/cm2
Temperature range
Weight
Tank volume
Filling accuracy
0-150C
320KG
20L*2 stainless steel barrel.
±1%
PLC & Touch Screen
Adopts Inovance from China, high quality, can be set any lanaguage

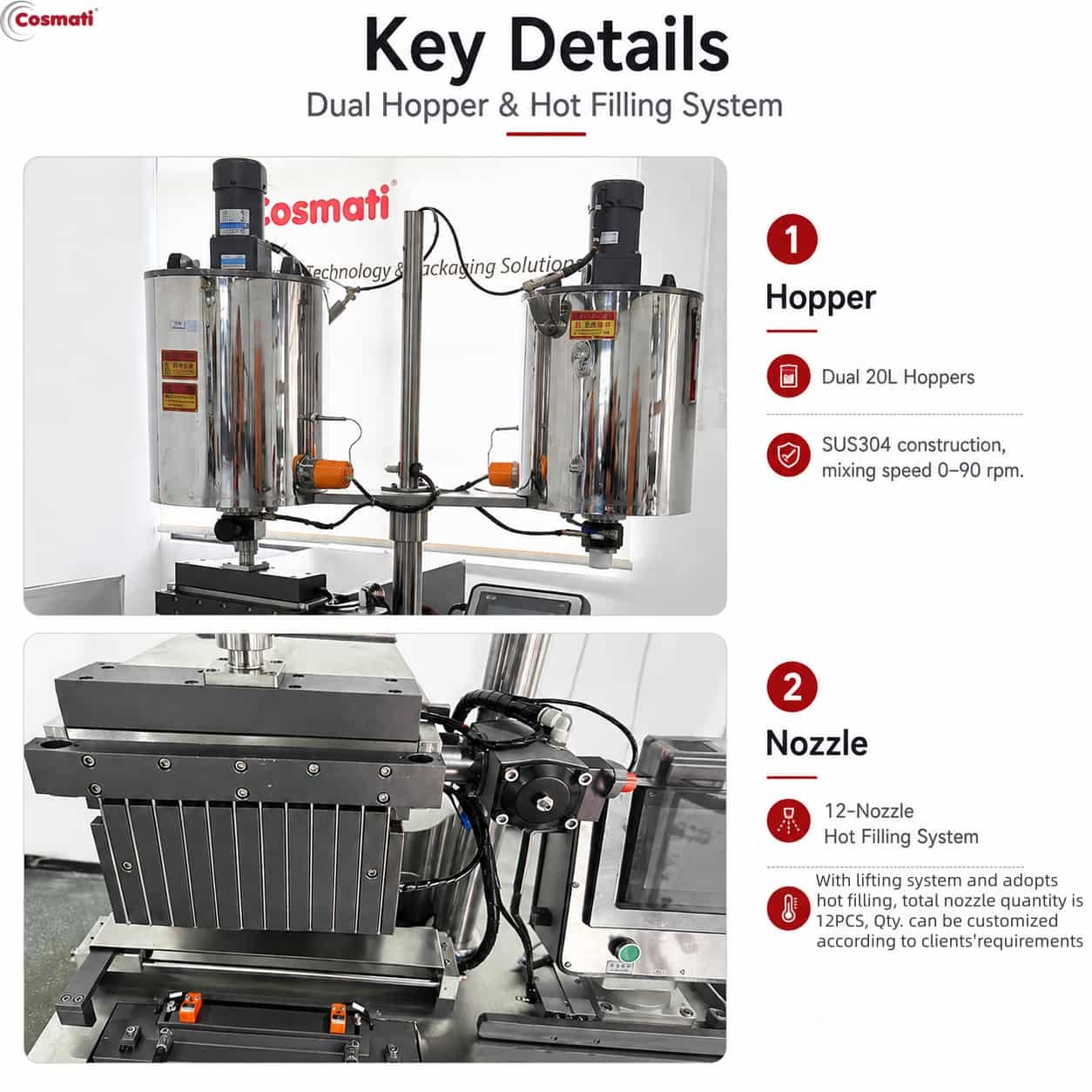

Hopper
2 units, each unit is 20L, material is SUS304, mixing speed is 0-90rpm
Nozzle
With lifting system and adopts hot filling, total nozzle quantity is 12PCS, Qty. can be customized according to clients' requirements
Working Principle
Automatic Lipstick Filling Machine 12 Nozzles Heating Stirring Makeup Production
Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0


Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Automatic Lipstick Filling Machine 12 Nozzles Heating Stirring Makeup Production
Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

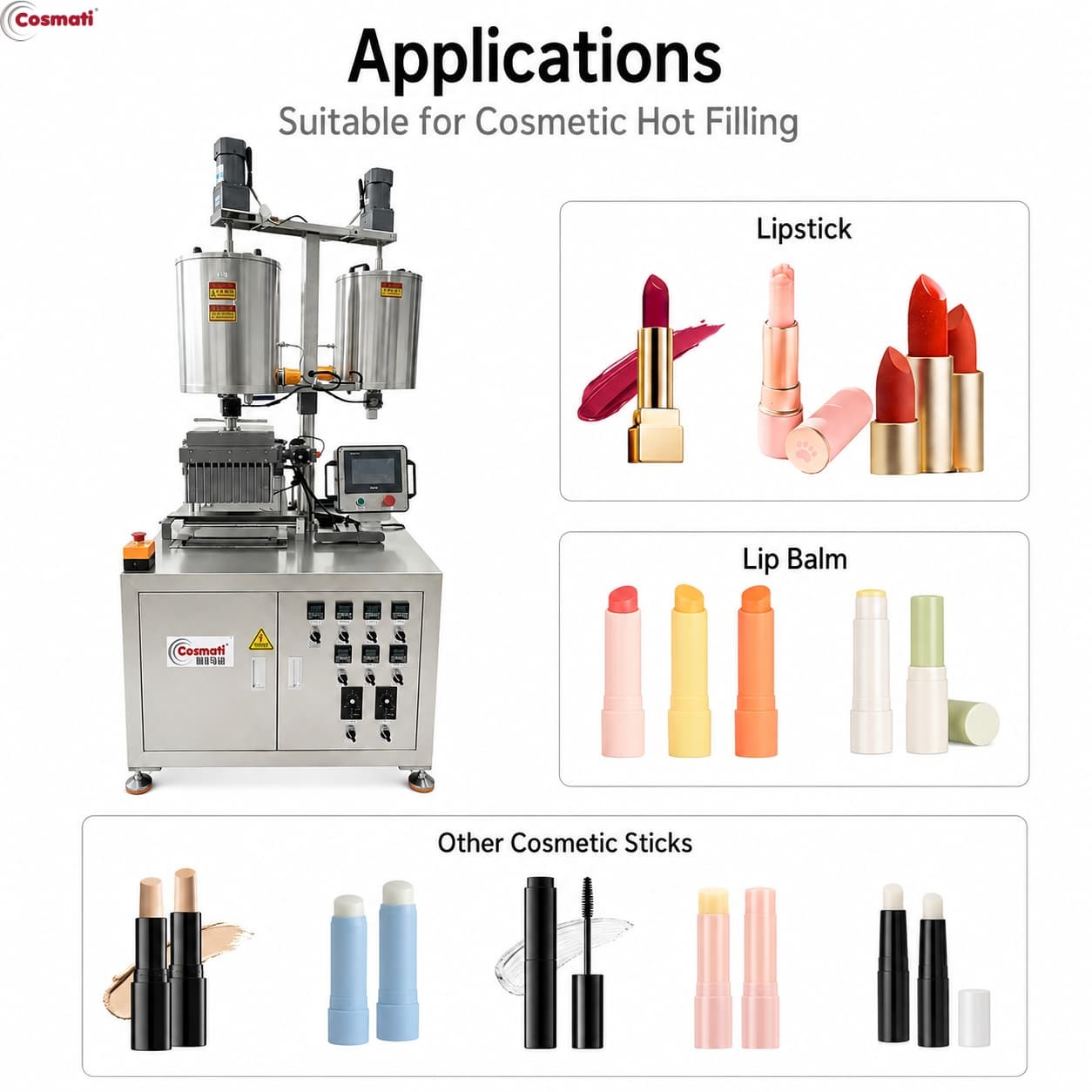

Application
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 6
Automatic Lipstick Filling Machine 12 Nozzles Heating Stirring Makeup Production

FAQ

Q1: What products can this lipstick filling machine handle?
A: It is mainly suitable for lipstick, lip balm and other heated cosmetic formulas that need to remain fluid during filling. Other materials should be confirmed according to viscosity and filling temperature.

Q2: How many filling nozzles are available?
A: The machine can be configured with 6, 8, 10 or 12 filling nozzles according to the required production capacity.

Q3: Does the machine support heating and stirring?
A: Yes. The material system can maintain heating and stirring during production to help keep wax-based lipstick formulas in a stable filling condition.

Q4: Is this machine fully automatic?
A: Yes. It is an automatic filling machine designed for continuous cosmetic production. The exact loading, filling and downstream handling process depends on the selected line configuration.

Q5: What is the filling accuracy?
A: The reference filling accuracy is approximately ±1%. Actual accuracy depends on product viscosity, filling temperature, filling volume and machine setup.
