Plastic Tube Filling Sealing Machine for Toothpaste Cream Lotion Cosmetic

1
MOQ
$8,000-10,000
Price
Plastic Tube Filling Sealing Machine for Toothpaste Cream Lotion Cosmetic
Features Gallery Product Description Chat Now
Features
Specifications
Application: Chemical
Packaging Type: Cartons
Packaging Material: Wood, Other
Automatic Grade: Automatic
Driven Type: Mechanical
Voltage: 220/380V, Customized
Dimension(l*w*h): L1940*W1280*H1780(mm)
Warranty: 1 Year
Key Selling Points: Long Service Life
Filling Material: Water, Oil, Powder, Other
Filling Accuracy: ±0.1%
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Motor, PLC, Engine
Filling Nozzle: 2, 1, 4
Weight (KG): 750
Product Name: Automatic Soft Tube Filling And Sealing Machine
Keywords: Automatic Plastic Tube Filling And Sealing Machine
Driven Type: Electric
Filling Range: 10-300ml
Capacity: 30-50 PCS/Min
Structure: Rotary
Air Pressure: 0.4-0.6MPa
Filling Volume: 10-50ml, 30-100ml, Can Be Customized
Filling Nozzles: 4/6/8/10/12(customized)
Highlight:

Toothpaste Cream Tube Filling Sealing Machine

,

Lotion Cosmetic Tube Filling Sealing Machine

,

Plastic Tube Filling Machine
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Cosmati
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

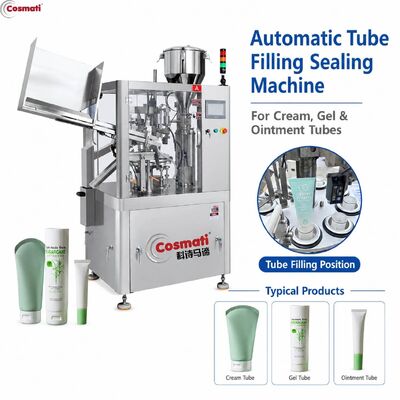

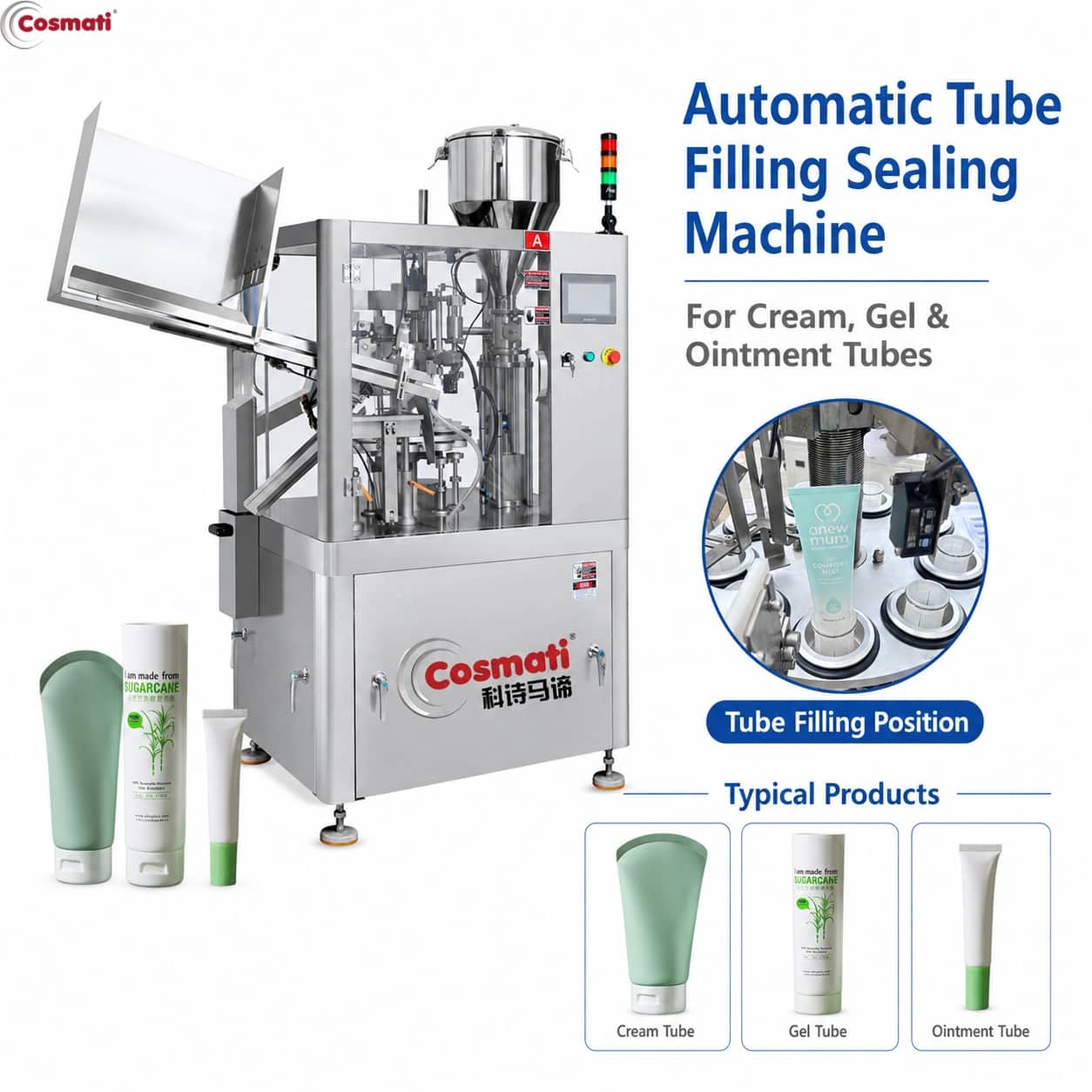

Automatic lotion cream toothpaste soft tube filling and sealing machine with automatic tube feeder

Introduction

The Automatic Tube Filling and Sealing Machine is widely used in the cosmetic, toothpaste, pharmaceutical, food and personal care industries. It integrates automatic tube loading, color mark detection, filling, sealing, batch number printing and tube discharging into one production system, helping improve production efficiency and reduce manual operation.

The machine adopts an internal hot air sealing system equipped with a Swiss LEISTER hot air heater, which heats the inner wall of the tube tail before sealing to achieve stable and neat sealing performance.

Product-contact parts are made of SS316L stainless steel, providing good corrosion resistance and easy cleaning for different filling materials.

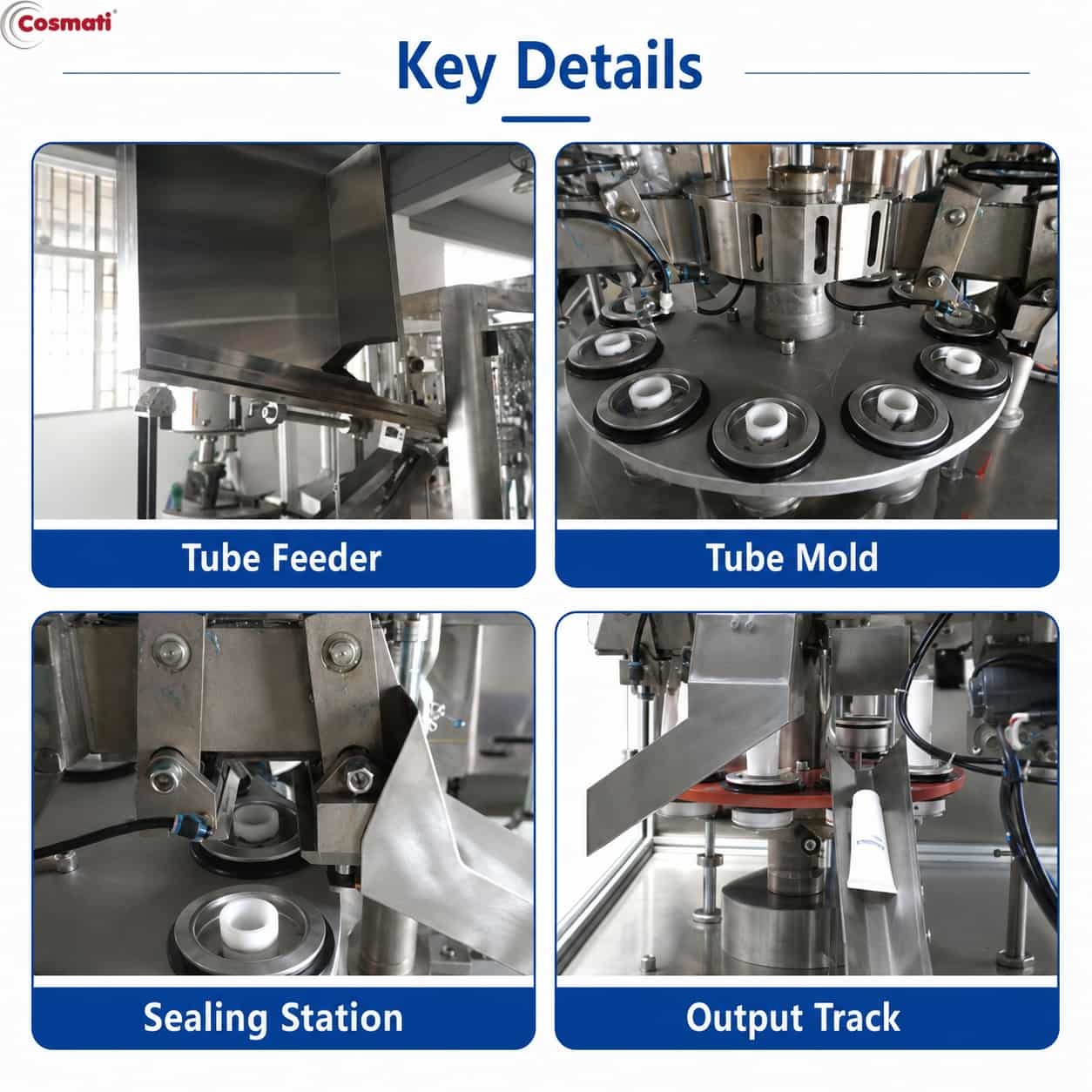

The automatic tube loader can be adjusted according to different tube lengths, allowing tubes to be fed continuously into the machine. Each tube mold set includes 9 tube holders, which can be customized according to the tube diameter, size and shape.


Features

  1. The filling and sealing part is installed above the platform, and the semi-closed non-static outer frame can be seen inside the visible cover, which is easy to observe, operate and maintain;
  2. Stainless steel operation panel, plexiglass protective cover and door protection function installed;
  3. The upper tube device is equipped with a vacuum adsorption device. After the upper tube interacts with the pressure tube device, the hose is inserted into the upper tube station;
  4. Optoelectronic benchmarking station, using high-precision probes, stepper motors, etc. to control the hose pattern to be in the correct position;
  5. No tube and no filling, after the injection is completed, the air blowing device blows off the tail of the paste; anti-drawing, anti-drip filling;
  6. The waste cutting manipulator cuts the waste edge at the tail of the hose, and has special-shaped sealing such as right angle, R angle or arc;
  7. Failure alarm, overload shutdown, water pressure protection, air pressure protection.
Capacity
Dimension(mm)
Power supply
Sealing diameter
Filling accuracy
40-50 tubes/min.
L1700*W1000*H2000mm
220v/380v, 4.1KW(Total)
15-50mm
≤±1%
Filling range
Weight
Air consumption
Sealing height
Working pressure
5-250ml
750KG
more than 600L/min
50-220mm
0.60MPa



Water Chiller Features
Microcomputer PLC control system, automatically control of whole units with error correcting operation system.
Original "SCHNEIDER" electrical components, and stability and durability guaranteed.
Built-in titanium tube water tank evaporator, avoid solid and other metal impurities.
Various models designed for different laser equipments. Water temperature tolerance at ±1℃(even±0.1℃) by precise digital control system.
With push button operation, work normally without professional personnel.
Easy installation and compatible with equipments in any height.
High efficiency heat exchanger in special design, and static spraying casing with compact size.
Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0
Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3
Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5
Application

Suitable for ointment, toothpaste, facial cleanser, conditioner, shampoo, hand cream, eye cream, hair color cream, shoe polish and other products.

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 6

FAQ

1. What products can this tube filling and sealing machine handle?

The machine is suitable for toothpaste, cream, lotion, cosmetic paste, ointment and other liquid or paste products packed in soft tubes.

2. What is the filling range?

The standard filling range is 10 to 300ml. The actual filling system can be configured according to the required product volume.

3. What is the production speed?

The reference production capacity is approximately 30 to 50 tubes per minute. Actual speed depends on filling volume, product viscosity, tube size and machine configuration.

4. What is the filling accuracy?

The filling accuracy can reach approximately ±0.1% under suitable product and operating conditions.

5. How does the machine seal the tube?

The machine uses an internal hot air sealing system. A Swiss LEISTER hot air heater heats the inner tube wall before sealing, helping achieve a neat and stable tube tail seal.
