Features Gallery Product Description Chat Now

Features

Specifications

Application: Chemical, Cosmetic, Other

Packaging Type: Cartons

Packaging Material: Wood, Other

Automatic Grade: Automatic

Driven Type: Electric

Voltage: 110 V, 220 V, 380 V

Dimension(l*w*h): L1630mm*W1380mm*H1600mm

Warranty: 1 Year

Key Selling Points: Long Service Life

Filling Material: Cream, Water, Oil, Other

Filling Accuracy: ±0.1%

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: PLC, Engine, Motor

Filling Nozzle: 1

After-sales Service Provided: Video Technical Support, Field Installation, Commissioning And Training, Online Support, Free Spare Parts

Weight (KG): 180

Filling Volume: 10-250ml (can Be Customized)

Product Name: Semi Automatic Soft Tube Filling And Sealing Machine

Model: CM-AFS-03

Capacity: 22-28 PCS/Min

Air Pressure: 0.4-0.6MPa

Filling Accuracy: ±1%

Power Supply: 1P/220V/50Hz, 2.6KW

Filling Range: 6-60ml, 10-150ml, 25-250ml Customized

Dimensions (L*W*H): L1630mm*W1380mm*H1600mm

Weight: 450kg

Highlight:

PET Rotary Tube Filling Sealing Machine

Gel Cream Tube Filling Sealing Machine

Rotary Tube Sealer

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: COSMATI

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

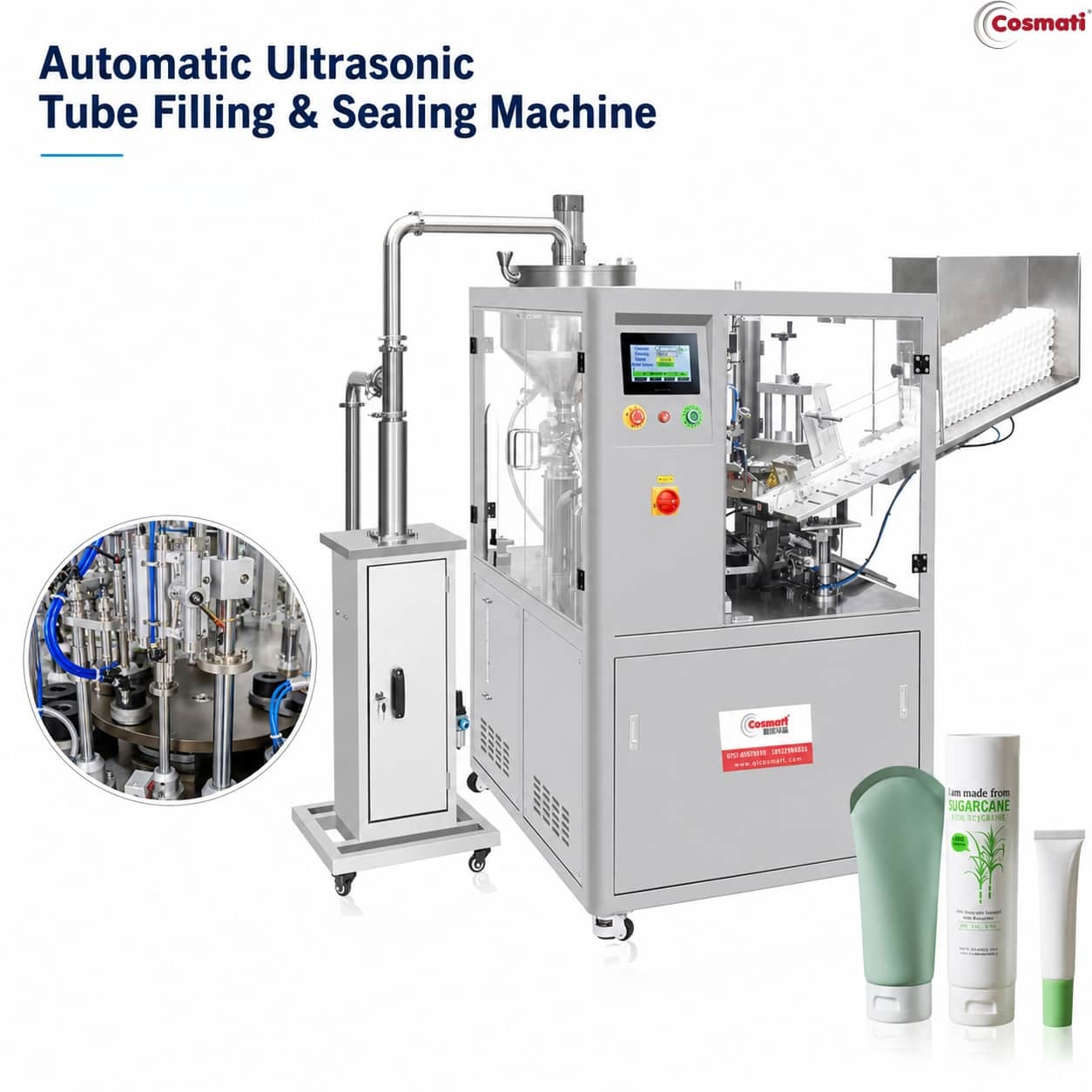

PET Rotary Ultrasonic Tube Filling Sealing Machine for Hand Cream Toothpaste Gel

Product Description

Automatic Rotary Hand Cream Gel Sample Toothpaste Filler Making Machine Ultrasonic PET Tube Filling and Sealing Machine

Introduction

The soft tube filling and sealing machine is suitable for all kinds of plastic tubes, aluminum-plastic composite tubes, automatic filling and sealing, color coding, date printing, trimming and tube outlet, suitable for ointment, toothpaste, facial cleanser, conditioner, shampoo, hand cream, eye cream, hair color cream, shoe polish and other products.

Features

This machine manually completes a series of actions such as dropping the tube,automatic labeling, filling, sealing and printing, cutting the tail, and outputting the finished product;
This machine is equipped with safety device, no tube no filling, no tube no tail sealing, tail cutting, overload protection;
Suitable for filling sealing soft tubes, such as toothpaste, hand cream, eye cream, face cleanser, shampoo, hair dye, etc. It is an ideal equipment for cosmetic tube.

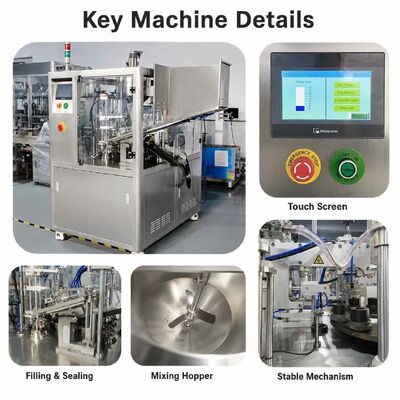

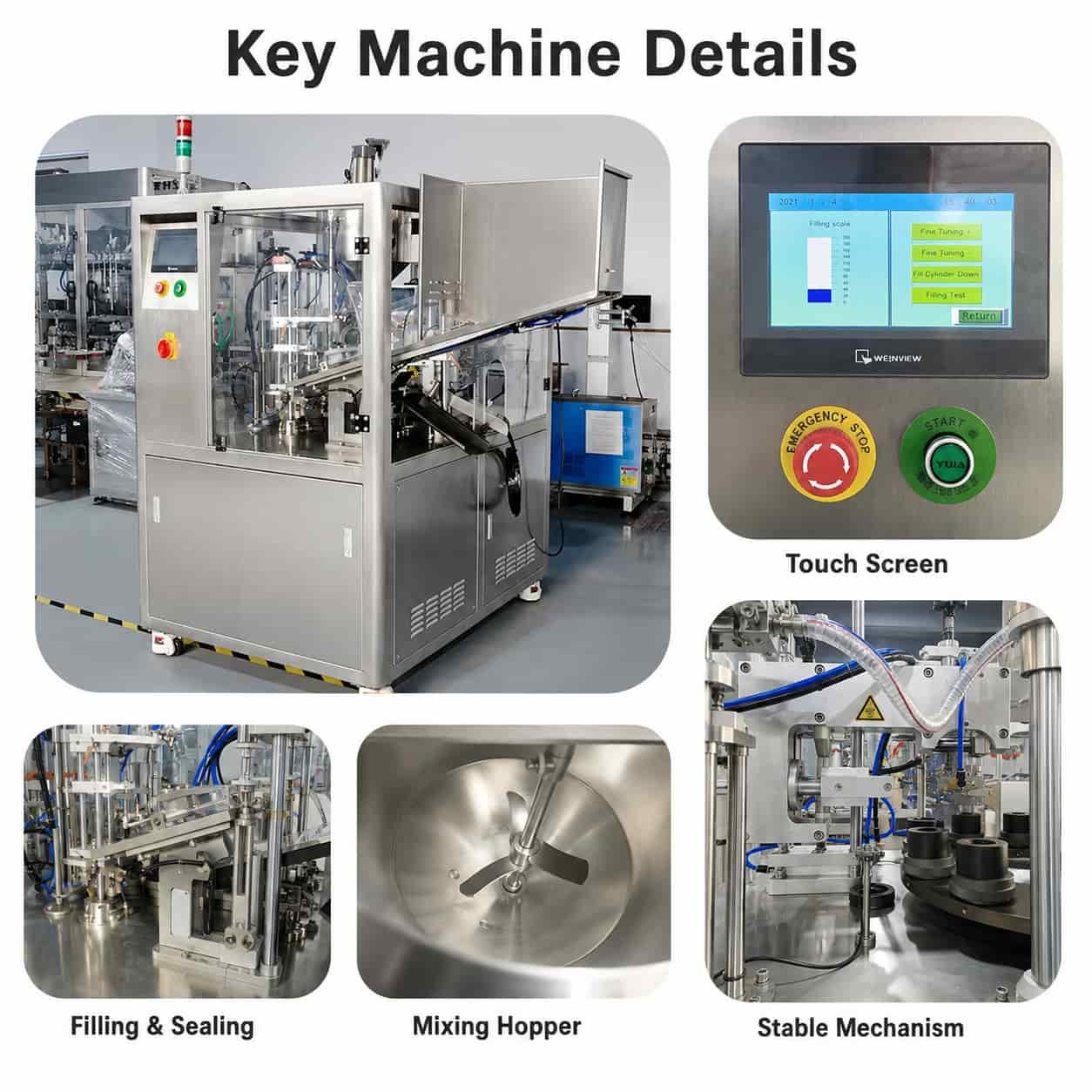

Detail

Capacity	Dimension(mm)	Power supply	Sealing diameter	Filling accuracy
20-25 tubes/min.	L900W1100H1600mm	220v/380v, 2.6KW	16-50mm	±1%
Filling range	Weight	Hopper volume	Sealing height	Body material
6-60ml/10-120ml/ 25-250ml(Optional)	420KG	40L	50-250mm	SUS304

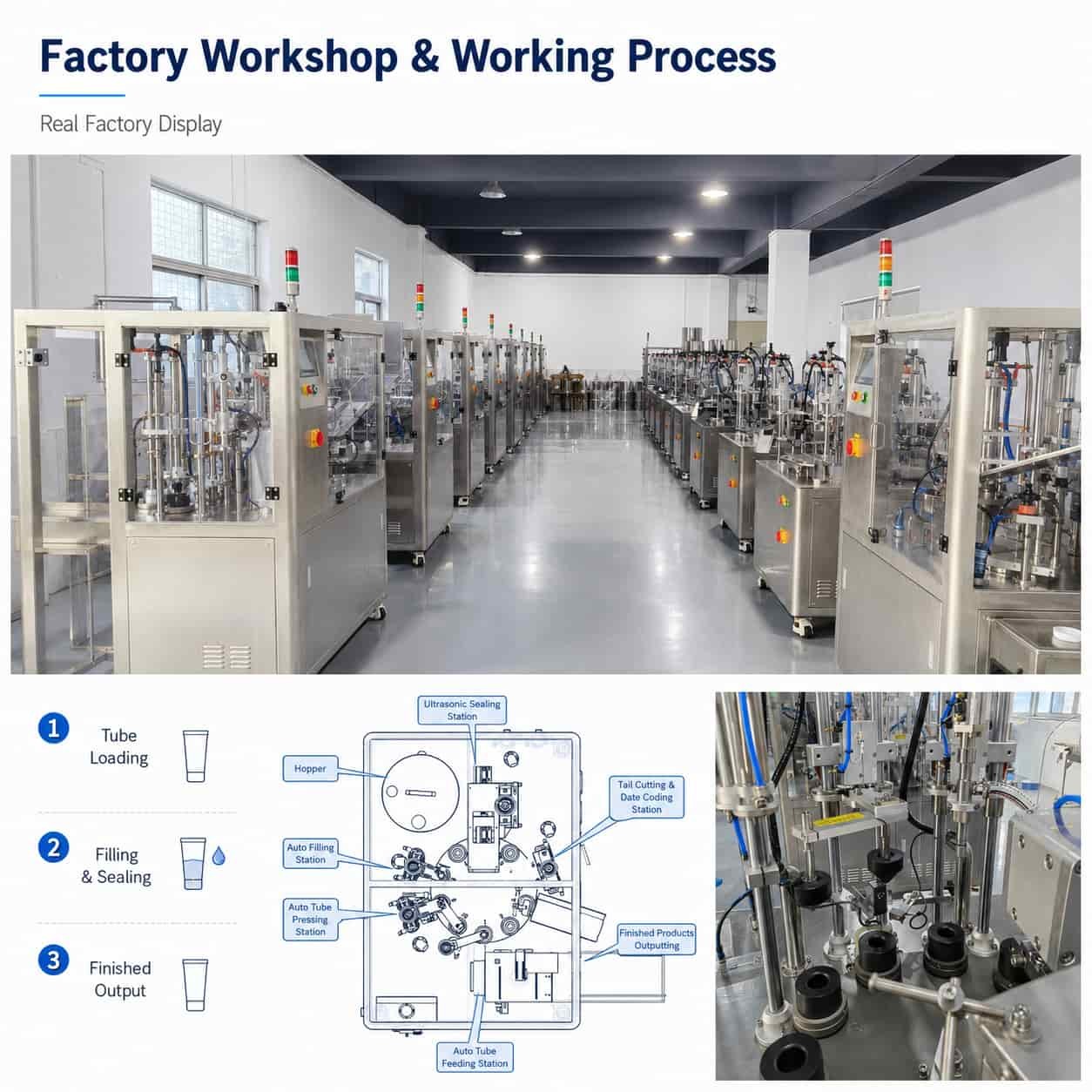

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

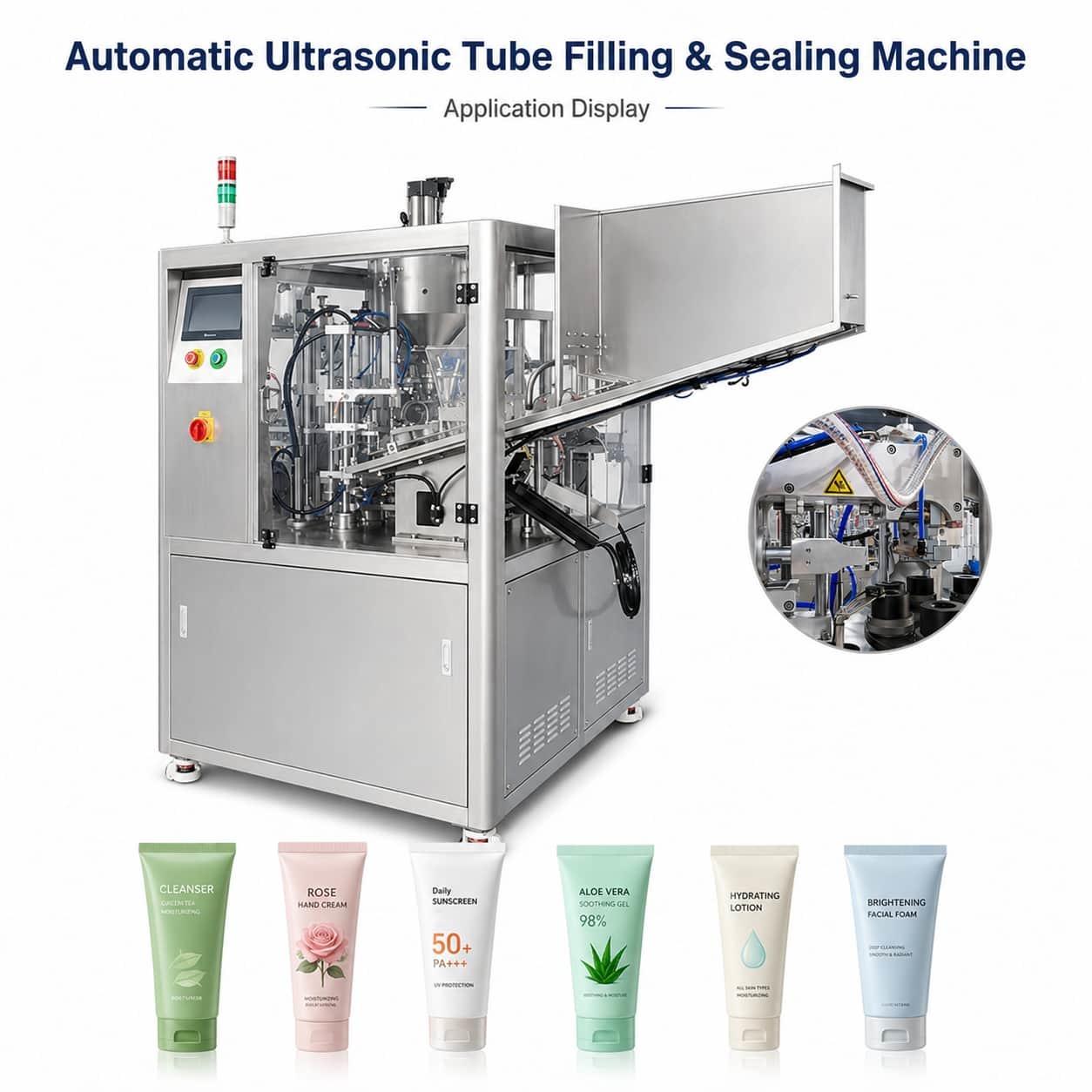

Application

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 6

FAQ

Q1: What products can this rotary tube filling and sealing machine fill?
A: It is suitable for hand cream, toothpaste, gel, facial cleanser, lotion, cosmetic cream and other liquid or semi-viscous products.

Q2: What type of tubes can the machine process?
A: It is mainly suitable for PET and compatible plastic soft tubes. Tube material, diameter, length and sealing area should be confirmed before ordering.

Q3: What sealing method does the machine use?
A: The machine uses ultrasonic sealing technology to provide a clean and stable tube seal.

Q4: Is this machine fully automatic?
A: Yes. It is an automatic rotary model designed to complete tube positioning, filling and sealing through a continuous rotary working process.

Q5: How many filling nozzles does the machine have?
A: The standard configuration shown uses one filling nozzle.
