Name: Plastic Tube Filling Ultrasonic Sealing Machine Semi Automatic for Shampoo
Brand: Guangzhou Cosmati Technology Co., Ltd.
SKU: CM-TFS-01
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Automatic Plastic Tube Filling And Sealing Machine

Keyword: Hand Cream Tube Filling Sealing Machine

Material: 304+SS316L

Filling Range: 10-250ml Can Be Customized

Capacity: 20-30tubes/min.

Filling Nozzle: 4/6/8/10/12

Weight: 380KG

Function: Filling+sealing+cutting+recycling

Voltage: 220V

Dimension: L900*W1100*H1600mm

Keyword 2: Soft Tube Filling And Sealing Machine

Structure: Rotary

Advantage: Ultrasonic Sealing System

Highlight:

Plastic Tube Filling Ultrasonic Sealing Machine

Semi Automatic Tube Sealing Machine

Shampoo Tube Sealer

Basic Infomation

Place of Origin: GUANGZHOU,CHINA

Brand Name: COSMATI

Certification: CE

Model Number: CM-TFS-01

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

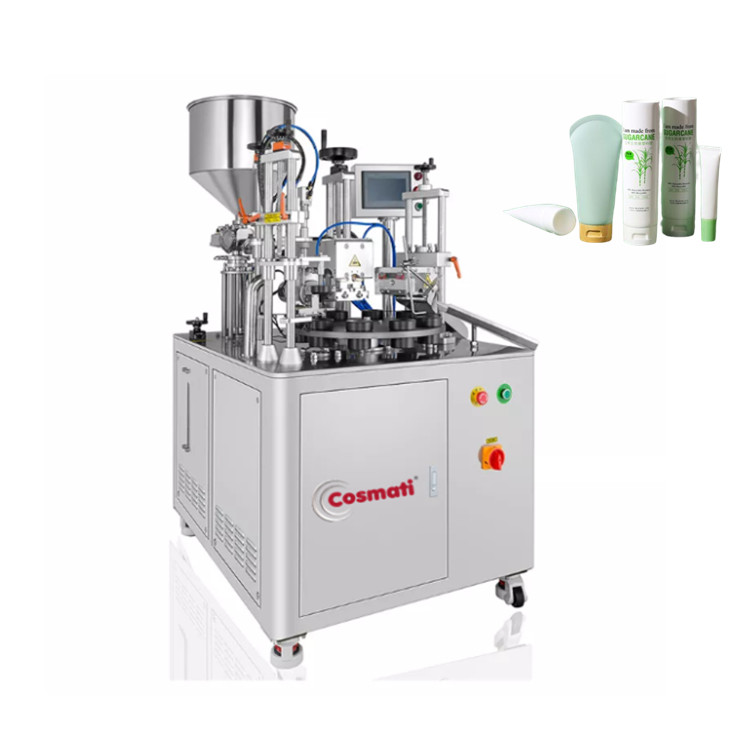

Plastic Tube Filling Ultrasonic Sealing Machine Semi Automatic for Shampoo

Product Description

Semi automatic plastic tube filling and ultrasonic sealing machine for shampoo

Plastic Tube Filling Ultrasonic Sealing Machine Semi Automatic for Shampoo

Introduction

The soft tube filling and sealing machine is suitable for all kinds of plastic tubes, aluminum-plastic composite tubes, automatic filling and sealing, color coding, date printing, trimming and tube outlet, and is widely used in daily chemical, pharmaceutical and food industries.

Description

Features

3. This machine manually completes a series of actions such as dropping the tube,automatic labeling, filling, sealing and printing, cutting the tail, and outputting the finished product;
2. This machine is equipped with safety device, no tube no filling, no tube no tail sealing, tail cutting, overload protection;
1. Suitable for filling sealing soft tubes, such as toothpaste, hand cream, eye cream, face cleanser, shampoo, hair dye, etc. It is an ideal equipment for cosmetic tube.

Flow

1. Automatic drop pipe: the plastic tube is placed in the collection tank, and the opening is placed outward. The tubes are

controlled by the swing mechanism to enter the drop tube channel one by one. The drop tube mechanism swings back and forth 90° to place the hose into the tube seat below to complete the drop tube action.

2. Automatic alignment: the turntable drives the hose to the alignment station, and the photoelectric switch is used to identify the alignment mark on the hose, so that all the hoses face the same direction.

3. Automatic filling: The filling part consists of filling head, material tank and other parts. The piston is driven by the pneumatic element to squeeze the material and pour the material into the lower hose. The filling volume can be controlled by controlling the extrusion time, from 20g to 250g.

4. Ultrasonic sealing: The plastic molecules are oscillated by ultrasonic waves and fused with each other to achieve the purpose of sealing, which can be sealed under different conditions.

5. Removal of waste edges: automatic edge trimming, cutting off excess waste edges at the tail of the hose after sealing, making the tail smoother, and can cut out a variety of tails of different shapes or lines to meet the design requirements.

Technical parameter

Capacity	Dimension(mm)	Power supply	Sealing diameter	Filling accuracy
20-25 tubes/min.	L900W1100H1600mm	220v/380v, 2.6KW	16-50mm	±1%
Filling range	Weight	Hopper volume	Sealing height	Body material
6-60ml/10-120ml/ 25-250ml(Optional)	380KG	40L	50-250mm	SUS304

Structure

Plastic Tube Filling Ultrasonic Sealing Machine Semi Automatic for Shampoo

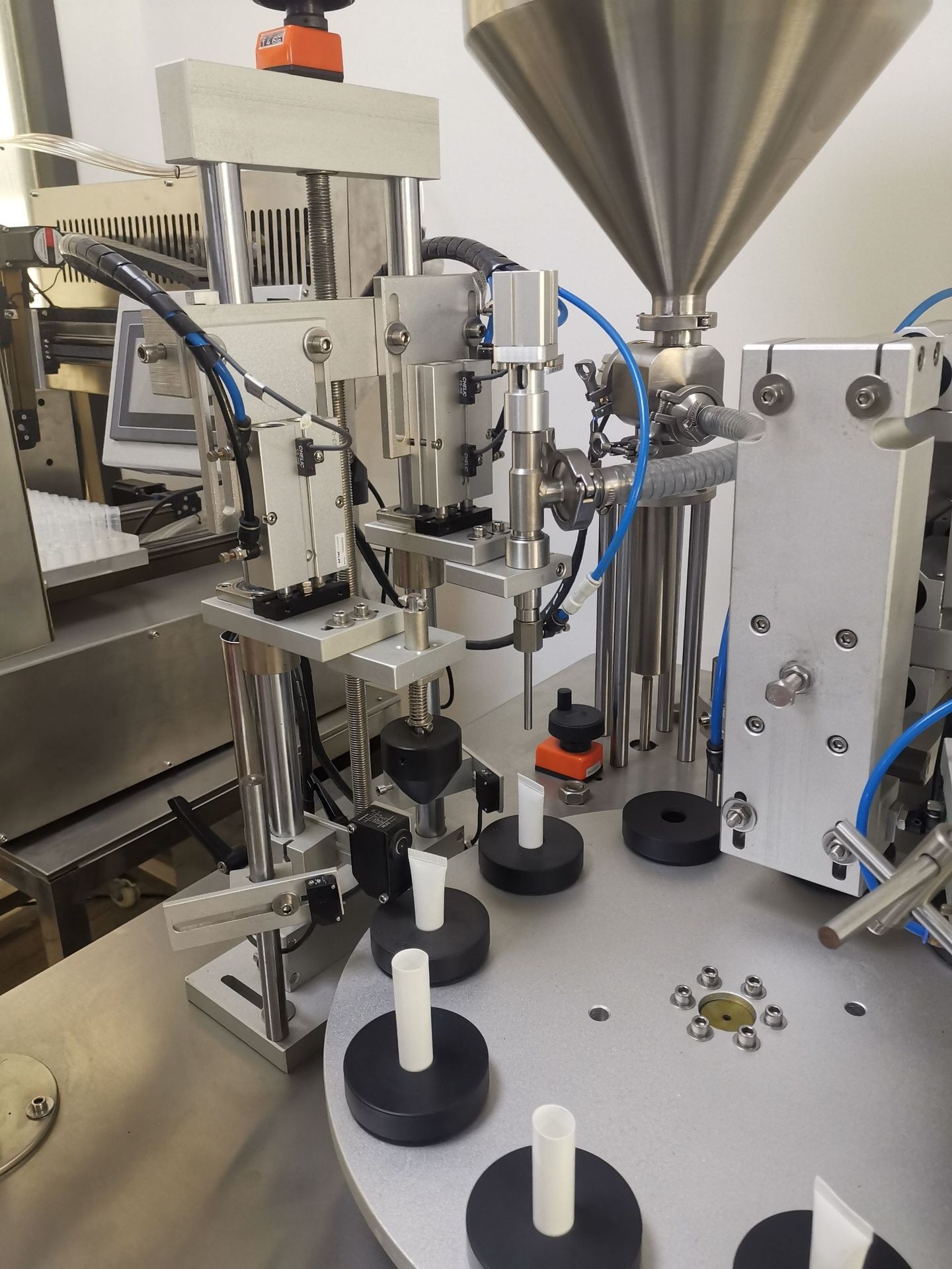

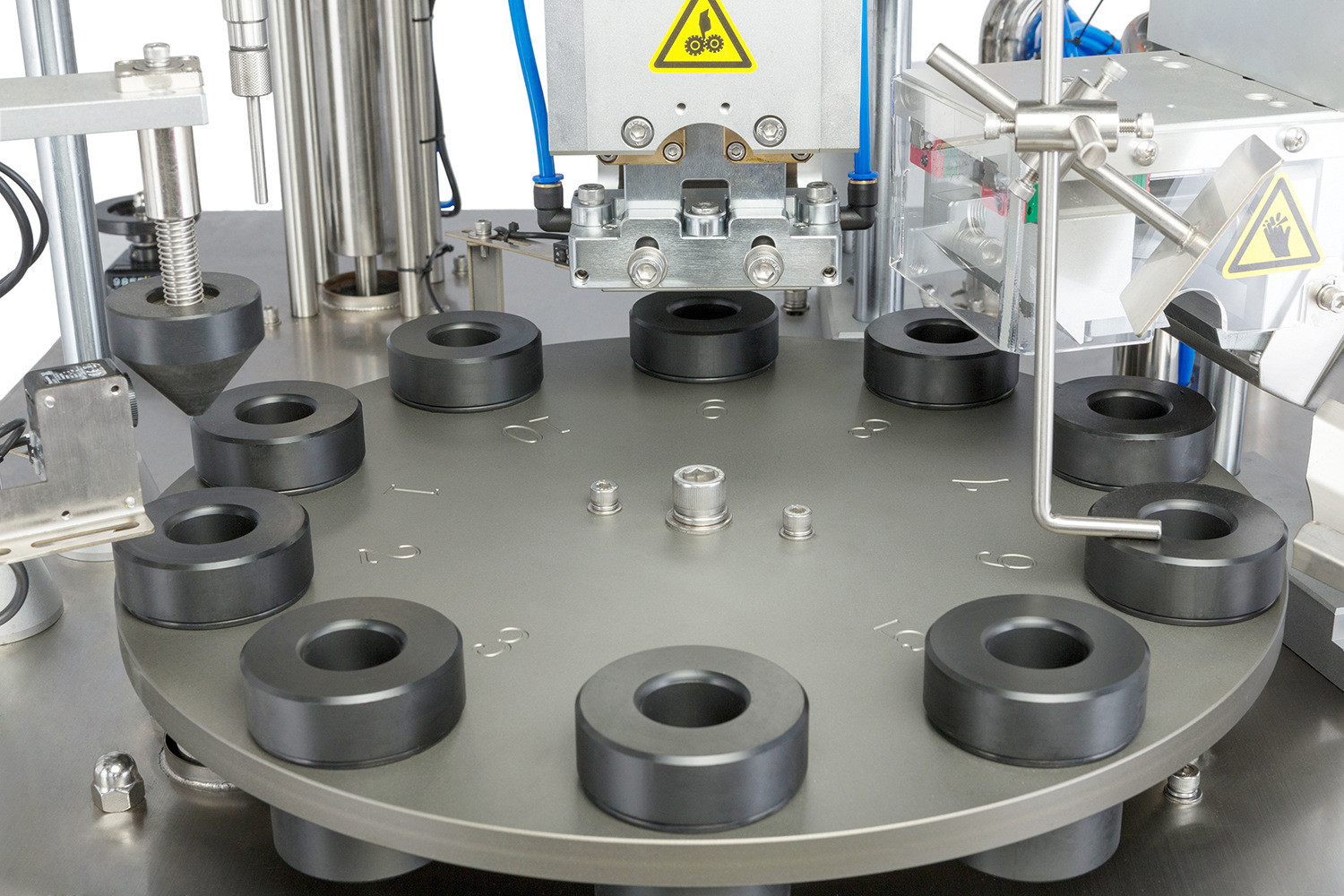

Detailed pictures

Plastic Tube Filling Ultrasonic Sealing Machine Semi Automatic for Shampoo

Application

Plastic Tube Filling Ultrasonic Sealing Machine Semi Automatic for Shampoo

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

FAQ

1. What products can this tube filling and sealing machine handle?
This machine is suitable for compatible hand cream, lotion, facial cleanser, cosmetic gel, ointment, cream and other liquid or paste products packed in soft tubes.

2. What type of tubes can the machine process?
It is mainly designed for compatible plastic and soft cosmetic tubes. The exact tube material and wall structure should be confirmed before selecting the sealing system.

3. Is this machine suitable for hand cream tubes?
Yes. Hand cream is one of the typical applications of this soft tube filling and sealing machine.

4. Can it fill cosmetic cream and lotion?
Yes. Compatible cream, lotion, gel and other cosmetic materials can be filled after matching the filling nozzle and dosing system to the product viscosity.

5. Can it fill facial cleanser?
Yes. Compatible facial cleanser and similar semi-viscous personal-care products can be processed.
