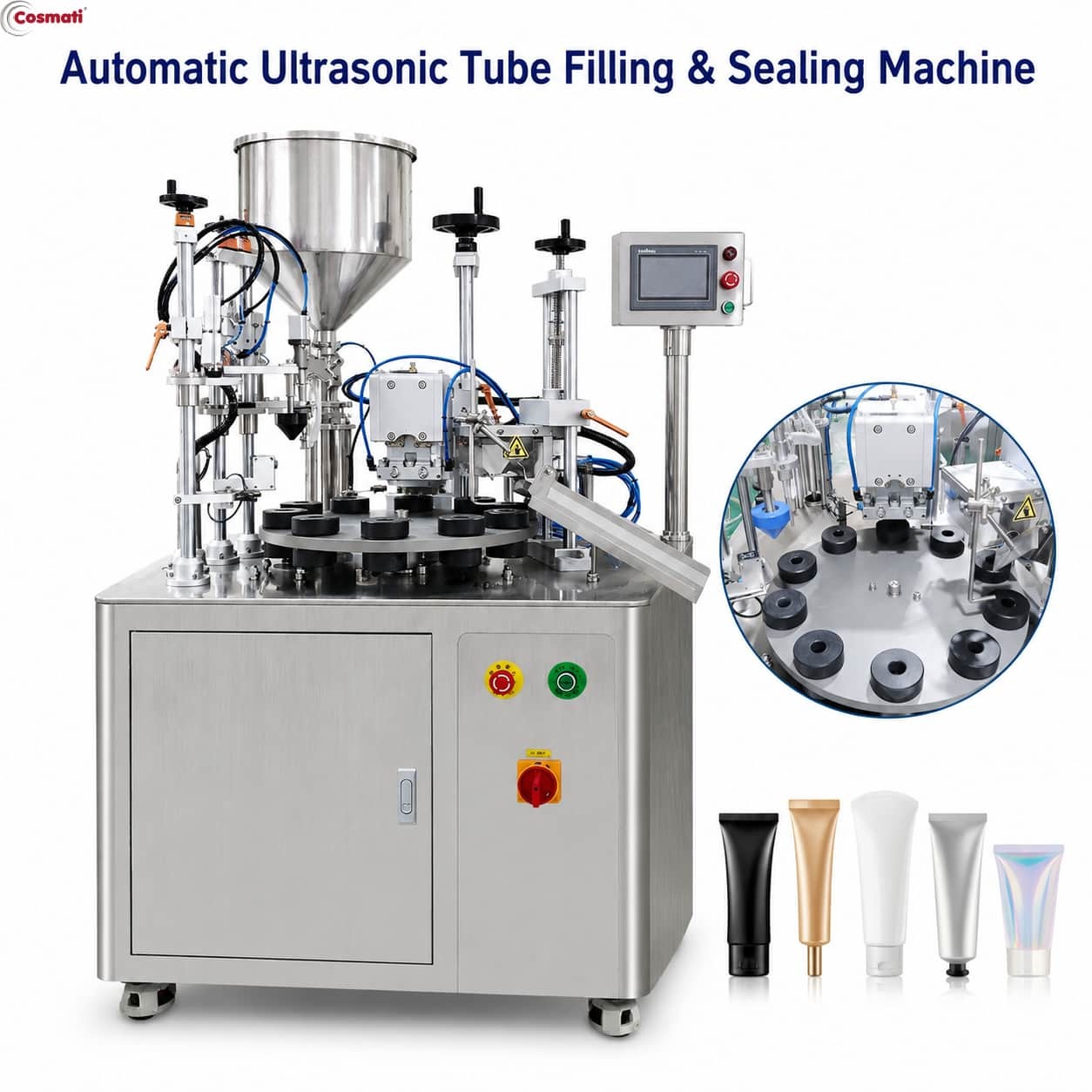

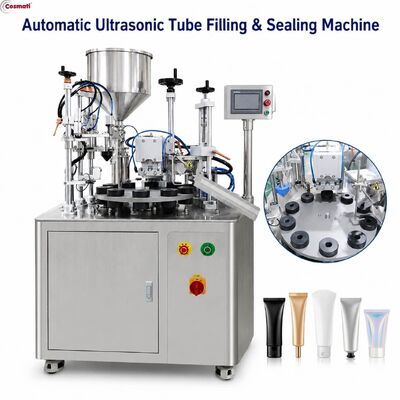

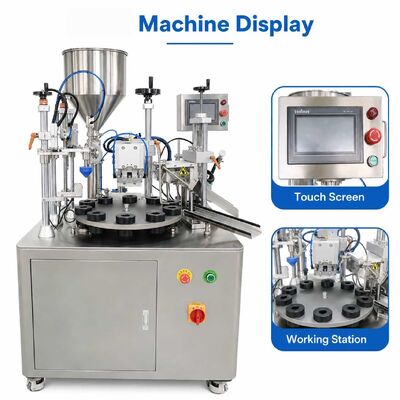

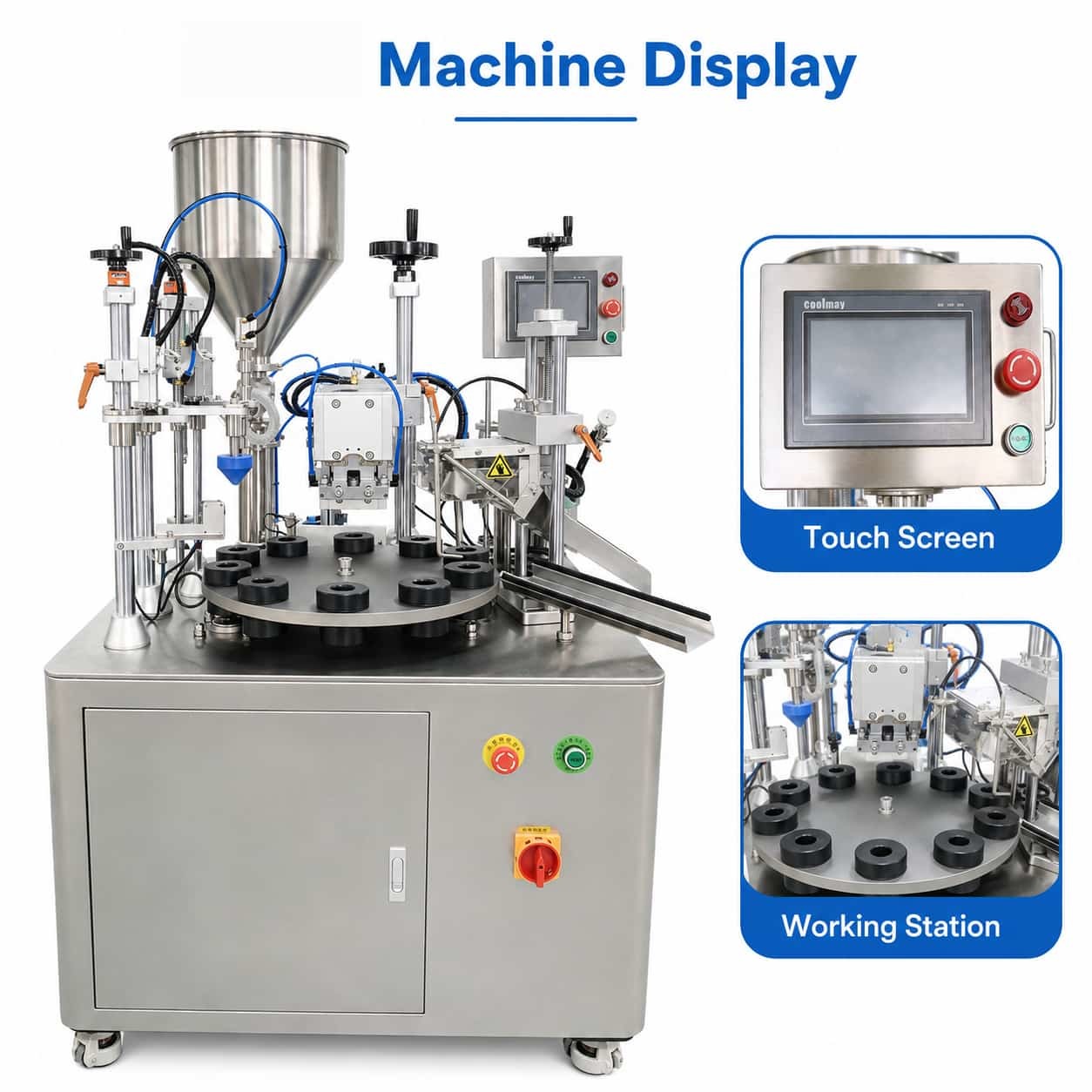

Soft Rotary Tube Filling Sealing Machine for Cream Ointment Toothpaste Gel

Features

1. This machine manually completes a series of actions such as dropping the tube, automatic labeling, filling, sealing and printing, cutting the tail, and outputting the finished product;
2. This machine is equipped with safety device, no tube no filling, no tube no tail sealing, tail cutting, overload protection;

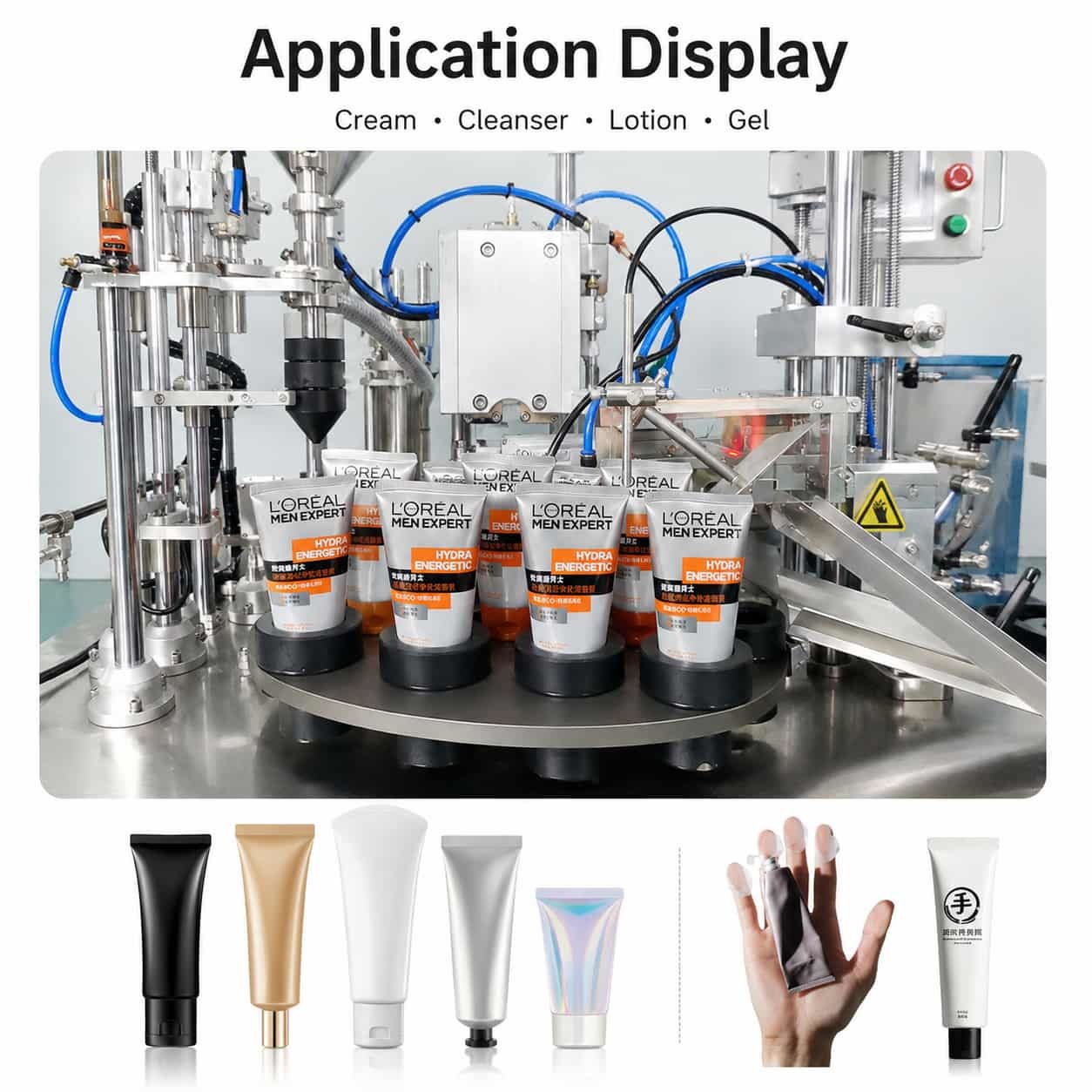

3. Suitable for filling sealing soft tubes, such as toothpaste, hand cream, eye cream, face cleanser, shampoo, hair dye, etc. It is an ideal equipment for cosmetic tube.

Flow
1. Manually put tubes into the tube holder, the quantity of tube holder is 9 pcs.
2. Automatic alignment: the turntable drives the tubes to the alignment station, and the photoelectric switch is used to identify the alignment mark on the tube, so that all the tubes face the same direction.

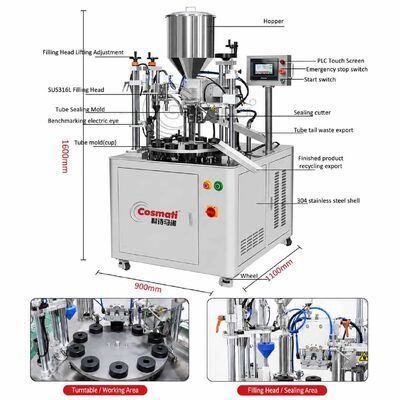

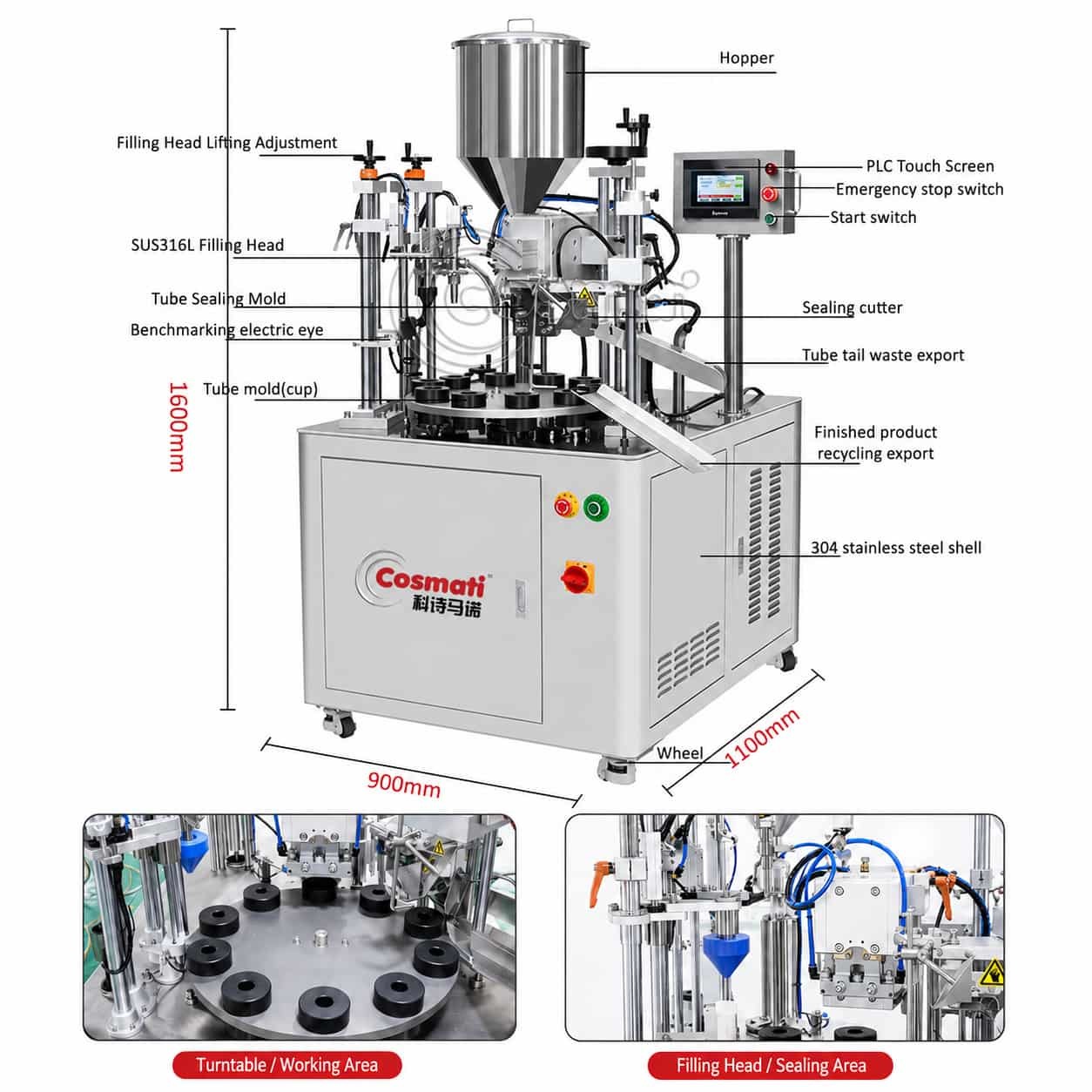

3. Automatic filling: The filling part consists of filling head, material tank and other parts. The piston is driven by the
pneumatic element to squeeze the material and pour the material into the empty tube. The filling volume can be controlled by controlling the extrusion time, from 20g to 250g.
4. Ultrasonic sealing: The plastic molecules are oscillated by ultrasonic waves and fused with each other to achieve the purpose of sealing, which can be sealed under different conditions.
5. Removal of waste edges: automatic edge trimming, cutting off excess waste edges at the tail of the tube after sealing, making the tail smoother, and can cut out a variety of tails of different shapes or lines to meet the design requirements.
