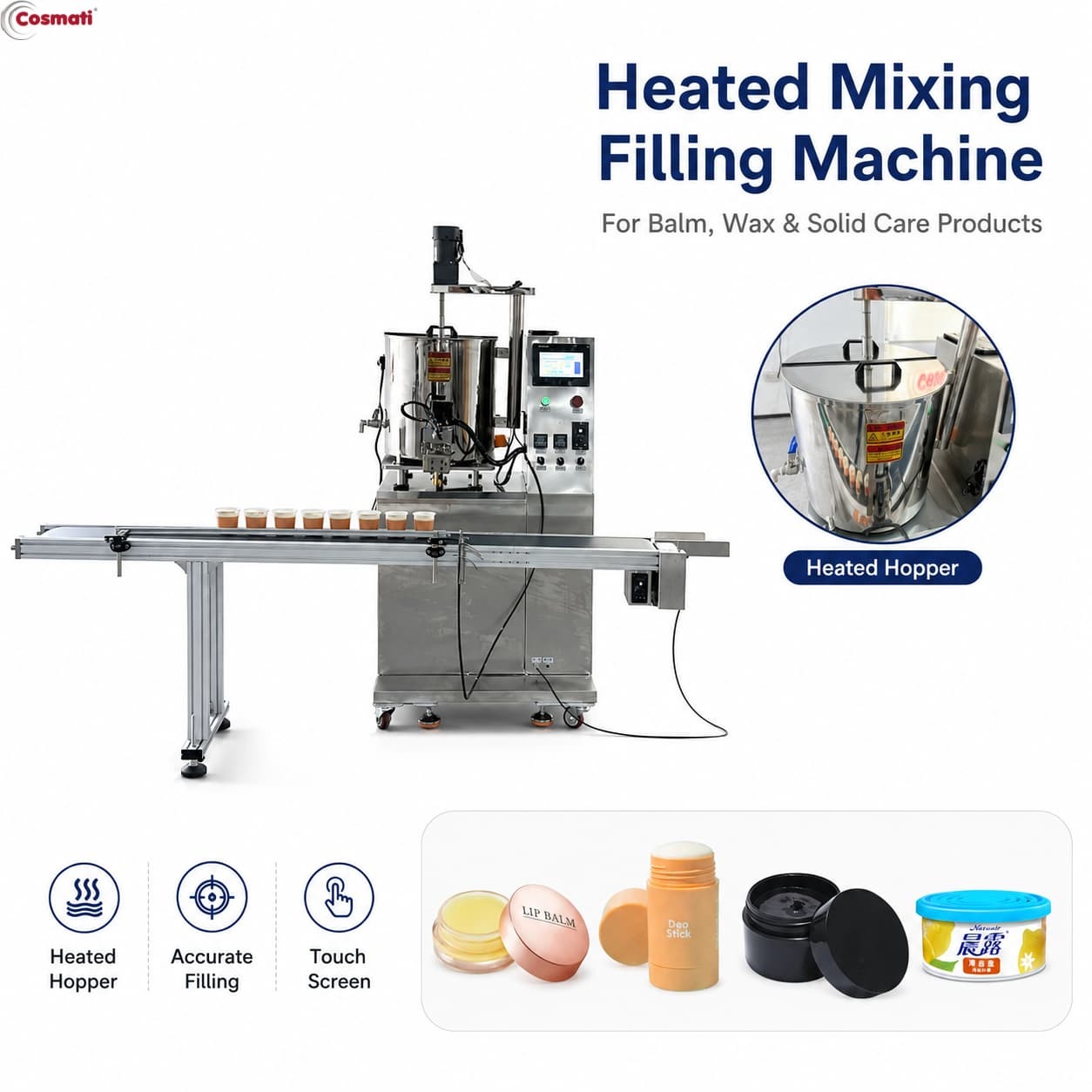

Heated Wax Filling Machine Automatic Lip Balm Hair Wax Candle Deodorant Filler

Introduction

The Automatic Heated Wax Filling Machine is designed for accurate filling of heated liquid, paste, wax based and semi solid products including lip balm, hair wax, lipstick, sunblock balm, deodorant, candle wax and cosmetic creams.

The machine combines heating, stirring, quantitative filling and conveyor transfer in one production system. The jacketed hopper provides uniform heating during production, while the pump and filling nozzle can be heated independently to help maintain stable material temperature throughout the filling process.

A gear pump quantitative filling system delivers stable and efficient dosing performance. Filling speed can reach approximately 20 to 70 bottles per minute, depending on filling volume, material characteristics and nozzle configuration.

The machine uses PLC and touch screen control, providing convenient parameter adjustment and straightforward operation. Standard hopper capacities include 30L and 80L, while filling nozzle quantities can be customized from 2 to 12 nozzles according to required production output.

An optional cooling tunnel can be added after filling, especially suitable for products requiring rapid cooling and solidification.

Key Features

1. Jacketed heating system provides uniform heating throughout the material hopper.
2. Pump and filling nozzle support independent heating for stable material flow.
3. Gear pump quantitative filling provides consistent and efficient dosing performance.
4. Filling speed reaches approximately 20 to 70 bottles per minute depending on filling volume.
5. Adjustable stirring speed from 0 to 90 rpm maintains uniform material consistency.
6. 30L and 80L heated hopper options support different batch requirements.
7. Filling nozzles can be customized from 2 to 12 heads according to production capacity.

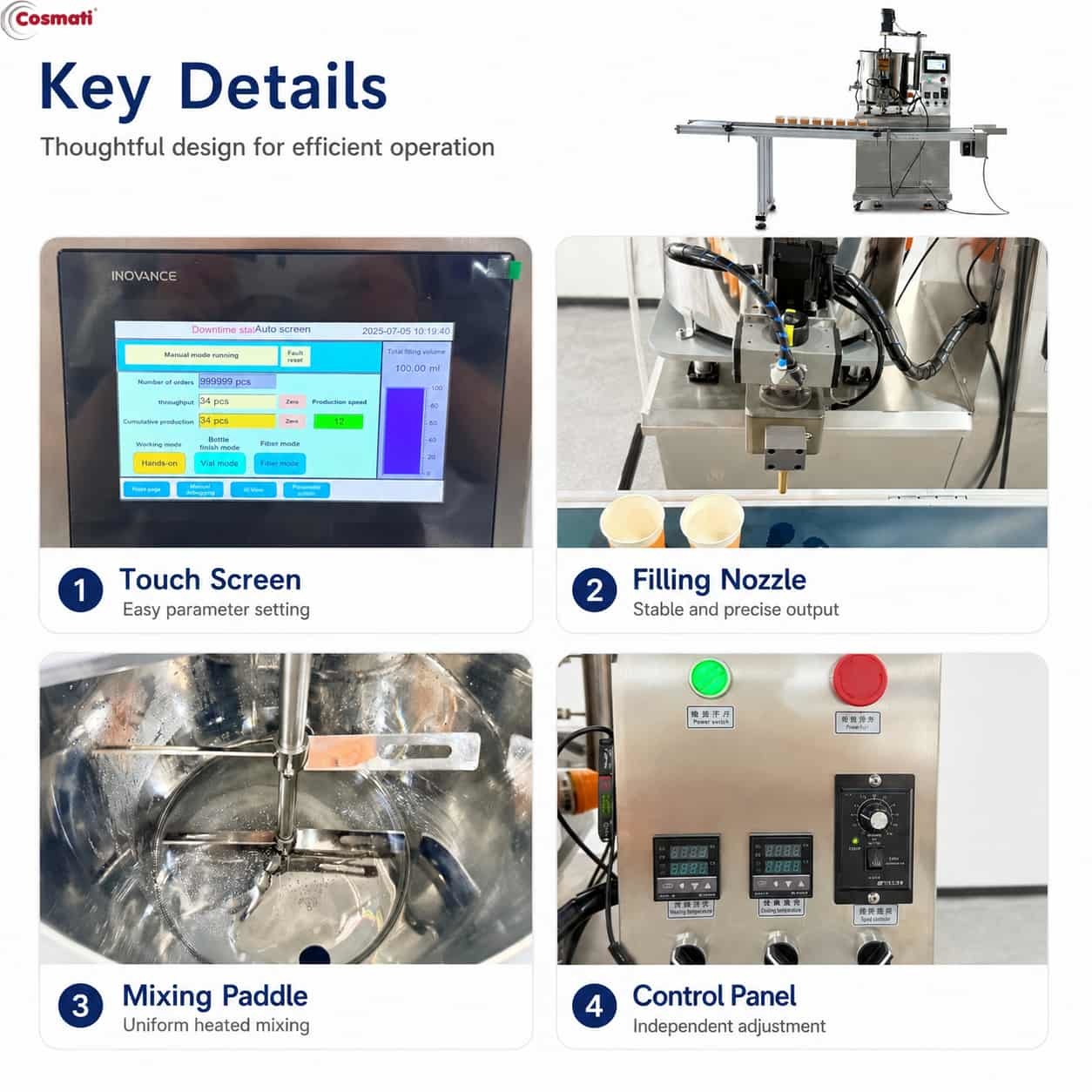

8. PLC and INOVANCE touch screen provide convenient automatic operation.
9. Hopper lifting and lowering design improves production operation and maintenance access.
