Home /Products/Tube Filling Sealing Machine/Hand Cream Face Cleanser Plastic Tube Filling Sealing Machine with Hot Air Gun

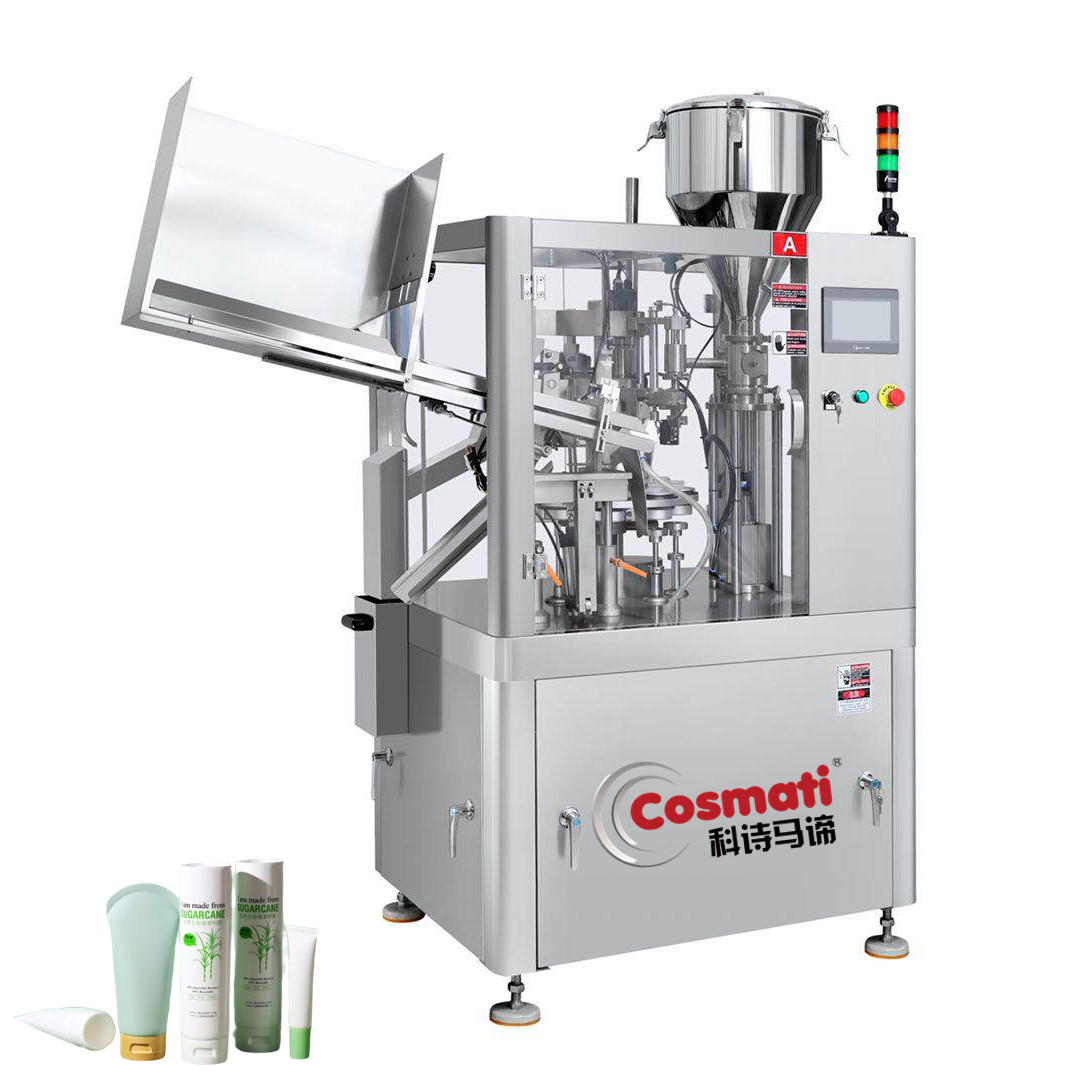

Hand Cream Face Cleanser Plastic Tube Filling Sealing Machine with Hot Air Gun

1 SET
MOQ
1000-100000 USD
Price
Hand Cream Face Cleanser Plastic Tube Filling Sealing Machine with Hot Air Gun
Features Gallery Product Description Chat Now
Features
Specifications
Product Name: Automatic Plastic Tube Filling And Sealing Machine
Keyword: Hand Cream Tube Filling Sealing Machine
Material: 304+SS316L
Filling Range: 10-300ml Can Be Customized
Capacity: 30-50tubes/min.
Filling Nozzle: 4/6/8/10/12
Weight: 750KG
Function: Filling+sealing+cutting+recycling
Voltage: 380V/220V
Dimension: L1940*W1280*H1780(mm)
Keyword 2: Soft Tube Filling And Sealing Machine
Highlight:

Plastic Tube Filling Sealing Machine

,

Hand Cream Tube Filling Sealing Machine

,

Hot Air Sealing Machine
Basic Infomation
Place of Origin: GUANGZHOU,CHINA
Brand Name: COSMATI
Certification: CE
Model Number: CM-TFS
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

Automatic hand cream face cleanser plastric tube filling and sealing machine with hot air gun

Hand Cream Face Cleanser Plastic Tube Filling Sealing Machine with Hot Air Gun​​​

Introduction
The automatic tube filler sealer is widely used in toothpaste, cosmetic, pharmaceutical and food industries.
This equipment has a high degree of automation, automatic tube loading, automatic color marking, automatic tail sealing, batch number printing, and automatic tube discharge. Using the internal heating method, use the Swiss-made "LEISTER" air heater to blow hot air from the inner wall of the tube to melt the plastic.

Application

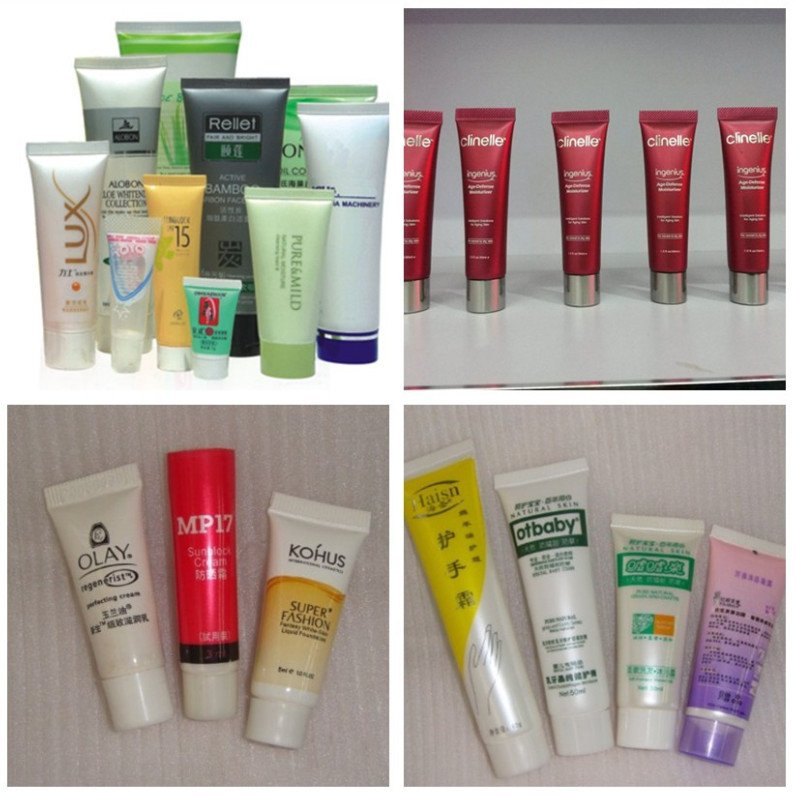

Suitable for ointment, toothpaste, facial cleanser, conditioner, shampoo, hand cream, eye cream, hair color cream, shoe polish and other products.
Hand Cream Face Cleanser Plastic Tube Filling Sealing Machine with Hot Air Gun

Features

1. The filling and sealing part is installed above the platform, and the semi-closed non-static outer frame can be seen inside the visible cover, which is easy to observe, operate and maintain;
2. Stainless steel operation panel, plexiglass protective cover and door protection function installed;
3. The upper tube device is equipped with a vacuum adsorption device. After the upper tube interacts with the pressure tube device, the hose is inserted into the upper tube station;
4. Optoelectronic benchmarking station, using high-precision probes, stepper motors, etc. to control the hose pattern to be in the correct position;
5. No tube and no filling, after the injection is completed, the air blowing device blows off the tail of the paste; anti-drawing, anti-drip filling;
6. The waste cutting manipulator cuts the waste edge at the tail of the hose, and has special-shaped sealing such as right angle, R angle or arc;
7. Failure alarm, overload shutdown, water pressure protection, air pressure protection.

Technical parameter
Capacity
Dimension(mm)
Power supply
Sealing diameter
Filling accuracy
40-50 tubes/min.
L1700*W1000*H2000mm
220v/380v, 4.1KW(Total)
15-50mm
≤±1%
Filling range
Weight
Air consumption
Sealing height
Working pressure
5-250ml
750KG
more than 600L/min
50-220mm
0.60MPa

Details Images

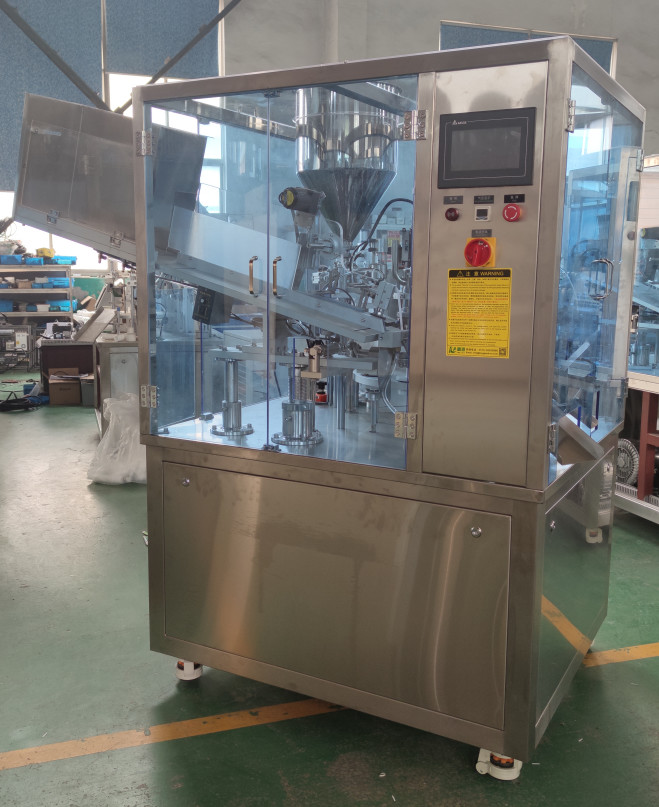

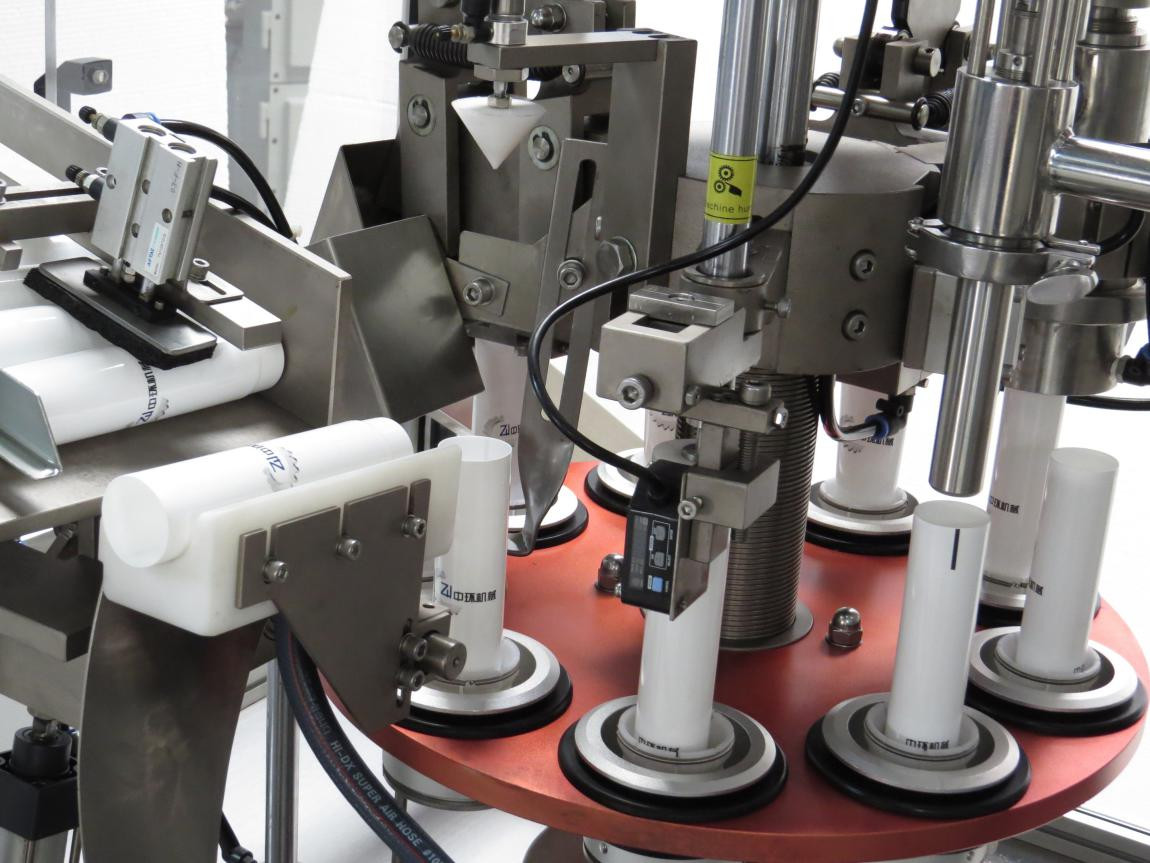

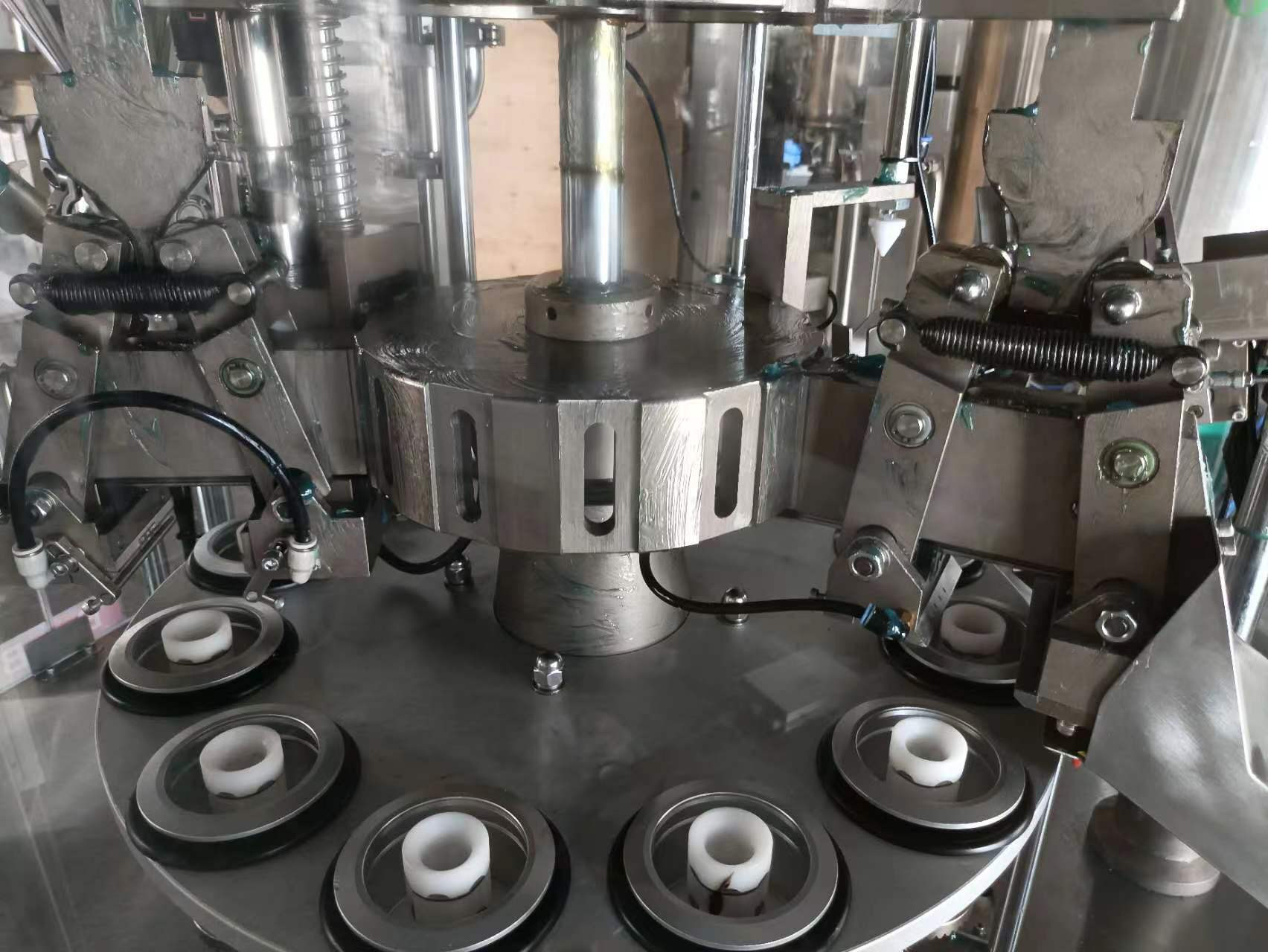

Hand Cream Face Cleanser Plastic Tube Filling Sealing Machine with Hot Air GunHand Cream Face Cleanser Plastic Tube Filling Sealing Machine with Hot Air GunHand Cream Face Cleanser Plastic Tube Filling Sealing Machine with Hot Air Gun
Factory profile
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0
Engineer case
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3

Trade show participation
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4
Packaging & shipping specifications
Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

FAQ

1. What products can this automatic tube filling and sealing machine handle?
This machine is suitable for filling and sealing compatible hand cream, facial cleanser, lotion, gel, cosmetic cream, ointment and other liquid or paste products packed in soft tubes.

2. What type of tubes can this machine process?
It is mainly designed for compatible plastic and laminated soft tubes. The actual tube material should be confirmed before selecting the hot-air sealing parameters.

3. What sealing method does this machine use?
This model uses a hot-air tube sealing system to heat the inner wall of the plastic tube before pressing and forming the tube tail.

4. What is the advantage of hot-air tube sealing?
Hot-air sealing provides controlled heating at the tube tail and is widely used for compatible plastic and laminated cosmetic tubes.

5. Is hot-air sealing different from ultrasonic sealing?
Yes. Hot-air sealing uses heated air to soften the tube wall before sealing, while ultrasonic sealing uses high-frequency vibration. The appropriate method depends on the tube material.
