Name: Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder
Brand: Guangzhou Cosmati Technology Co., Ltd.
SKU: CM-TFS
Price: Negotiable USD
Availability: InStock

Features Gallery Product Description Chat Now

Features

Specifications

Product Name: Automatic Soft Tube Filling And Sealing Machine

Keyword: Plastic Tube Filler And Sealer

Material: 304+SS316L

Filling Range: 10-300ml Can Be Customized

Capacity: 30-50tubes/min.

Filling Nozzle: 4/6/8/10/12

Weight: 750KG

Function: Filling+sealing+cutting+recycling

Voltage: 380V/220V

Dimension: L1940*W1280*H1780(mm)

Keyword 2: Soft Tube Filling And Sealing Machine

Highlight:

Soft Tube Filling Sealing Machine

Lotion Cream Tube Filling Sealing Machine

Tube Feeder Machine

Basic Infomation

Place of Origin: GUANGZHOU,CHINA

Brand Name: COSMATI

Certification: CE

Model Number: CM-TFS

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder

Product Description

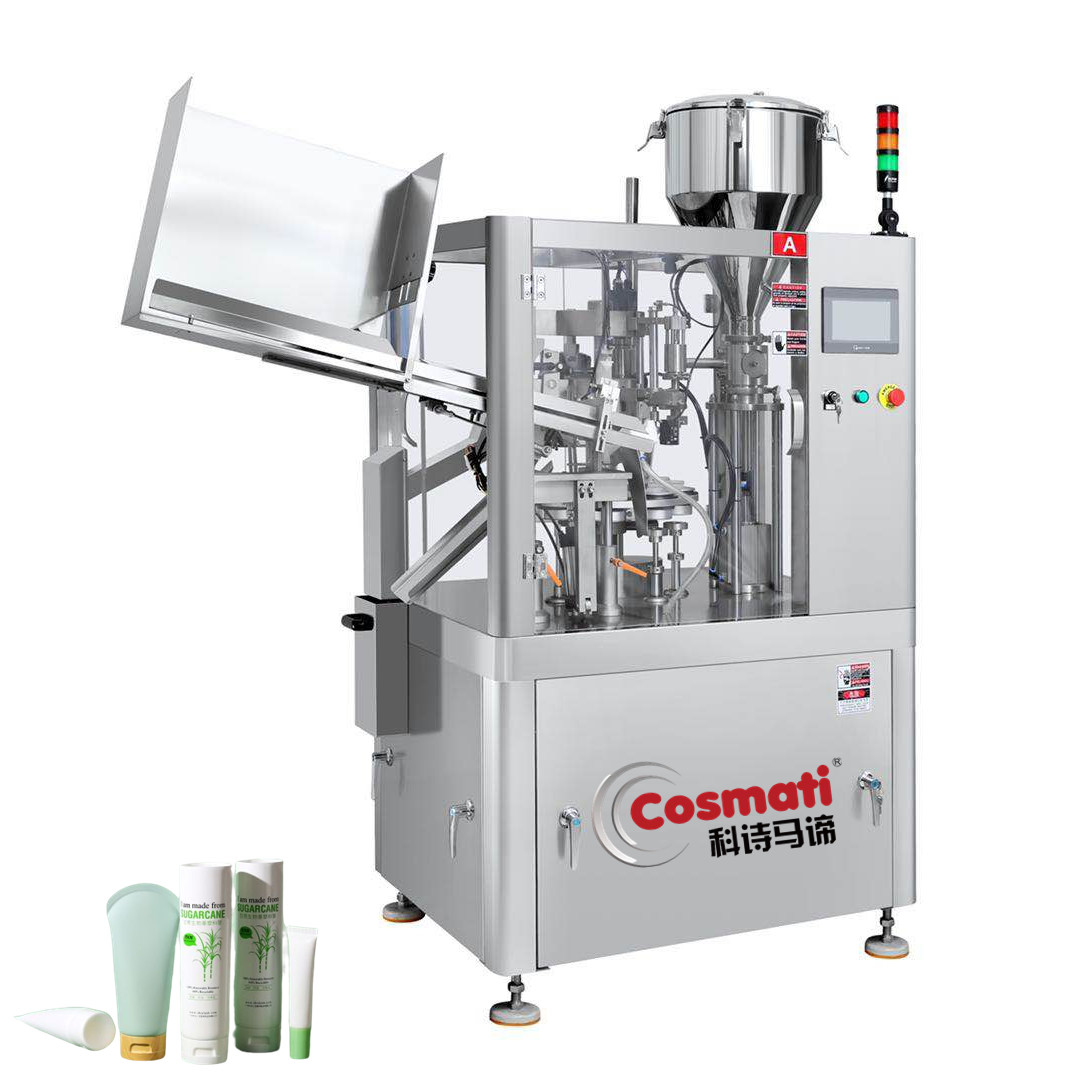

Automatic lotion cream toothpaste soft tube filling and sealing machine with automatic tube feeder

Lotion Cream Toothpaste Soft Tube Filling Sealing Machine with Automatic Tube Feeder

Introduction

The automatic tube filler sealer is widely used in toothpaste, cosmetic, pharmaceutical and food industries.

This equipment has a high degree of automation, automatic tube loading, automatic color marking, automatic tail sealing, batch number printing, and automatic tube discharge. Using the internal heating method, use the Swiss-made "LEISTER" air heater to blow hot air from the inner wall of the tube to melt the plastic.

Application

Suitable for ointment, toothpaste, facial cleanser, conditioner, shampoo, hand cream, eye cream, hair color cream, shoe polish and other products.

Features

1. The filling and sealing part is installed above the platform, and the semi-closed non-static outer frame can be seen inside the visible cover, which is easy to observe, operate and maintain;

2. Stainless steel operation panel, plexiglass protective cover and door protection function installed;

3. The upper tube device is equipped with a vacuum adsorption device. After the upper tube interacts with the pressure tube device, the hose is inserted into the upper tube station;

4. Optoelectronic benchmarking station, using high-precision probes, stepper motors, etc. to control the hose pattern to be in the correct position;

5. No tube and no filling, after the injection is completed, the air blowing device blows off the tail of the paste; anti-drawing, anti-drip filling;

6. The waste cutting manipulator cuts the waste edge at the tail of the hose, and has special-shaped sealing such as right angle, R angle or arc;

7. Failure alarm, overload shutdown, water pressure protection, air pressure protection.

Technical parameter

Capacity	Dimension(mm)	Power supply	Sealing diameter	Filling accuracy
40-50 tubes/min.	L1700W1000H2000mm	220v/380v, 4.1KW(Total)	15-50mm	≤±1%
Filling range	Weight	Air consumption	Sealing height	Working pressure
5-250ml	750KG	more than 600L/min	50-220mm	0.60MPa

Details Images

Factory profile

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 0

Engineer case

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 1

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 2

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 3

Trade show participation

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 4

Packaging & shipping specifications

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System 5

FAQ

1. Is this machine suitable for hand cream tubes?
Yes. Hand cream tube filling and sealing is one of the main applications of this machine.

2. Can it fill facial cleanser?
Yes. Compatible facial cleanser, cleansing cream and similar semi-viscous cosmetic products can be processed.

3. Can it fill lotion and cosmetic gel?
Yes. It can handle compatible lotion, gel and cream products when the filling system and nozzle are matched to the material viscosity.

4. What is the filling range?
According to the supplied specification, the filling range is approximately 10–300ml, and other ranges can be customized.

5. Can the filling volume be adjusted?
Yes. The filling quantity can be adjusted within the applicable range according to different tube capacities.
