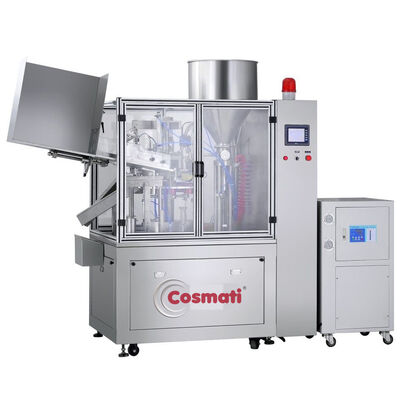

Automatic Tube Filling Sealing Machine for Inner Heating Toothpaste Cosmetic

Automatic Tube Filling And Sealing Machine For Inner Heating Type Toothpaste for cosmetic

Detail Descriptions

It is designed for aluminum tube and metal soft tube filling and sealing . It’s widely used in pharmacy, cosmetic and chemical industries.

Working process:

Manually put the metal tubes (max. 16 tubes) into the tube-holding base, the second-station for color-line marking detection. The third station is filling and then come to the tail bending station for folding, clamping, batch number printing and at last finished products discharging. Every tube should go through the whole procedure and then finished after filling and crimping.

Change angular potion of each tube by means of mechanical transmission. Photoelectric device is used to detect the position of tube and if there is any tube in right position, then filling system starts to fill the tube with fixed quantity. The tube is sealed by cam, which is steady, safe and with no air leaving. It can also achieve number/batch printed on the end, finally the tube is ejected.

Features:

The machine, with a controllable filling volume or quantity, is featured with a reliable performance. The machine is suitable for the filling of metallic tubes of any type because the tube-holding base can be easily replaced in purpose. A perfect and reliable sealing can be reached. The parts which touch material are made of stainless steel 304.(SUS316 is option)

Specification:

1. Power Supply: AC220V±10% 50HZ, single phase(can be customized)

2. Filling Quantity: 5-50 ml

3. Quantity Error: ± 1%

4. Motor power: 0.75~1.1 kw

5. Compressed Air: pressure0.6~0.7Mpa Volume: 0.2m³/min

6. Capacity: 10~40tube/min (adjustable)

7. Dimension: 1000mm×600mm×1700mm

8. Weight: 480kg

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

FAQ

1. What is this automatic tube filling and sealing machine used for?
This machine is designed for automatic tube feeding, filling and sealing of compatible toothpaste, cosmetic cream, lotion, gel and other paste products.

2. Is this machine suitable for toothpaste filling?
Yes. Toothpaste is one of the main applications of this automatic tube filling and sealing machine.

3. Can it fill cosmetic cream?
Yes. It can be used for compatible hand cream, facial cream, body cream, lotion, gel and other cosmetic paste products.

4. What types of tubes can this machine handle?
This inner-heating configuration is mainly suitable for compatible plastic tubes, PE tubes and laminated tubes, depending on the tube material and sealing requirements.

5. Can it seal laminated toothpaste tubes?
Yes. Compatible laminated tubes can be processed after the tube dimensions and material structure are confirmed.
