Introduction

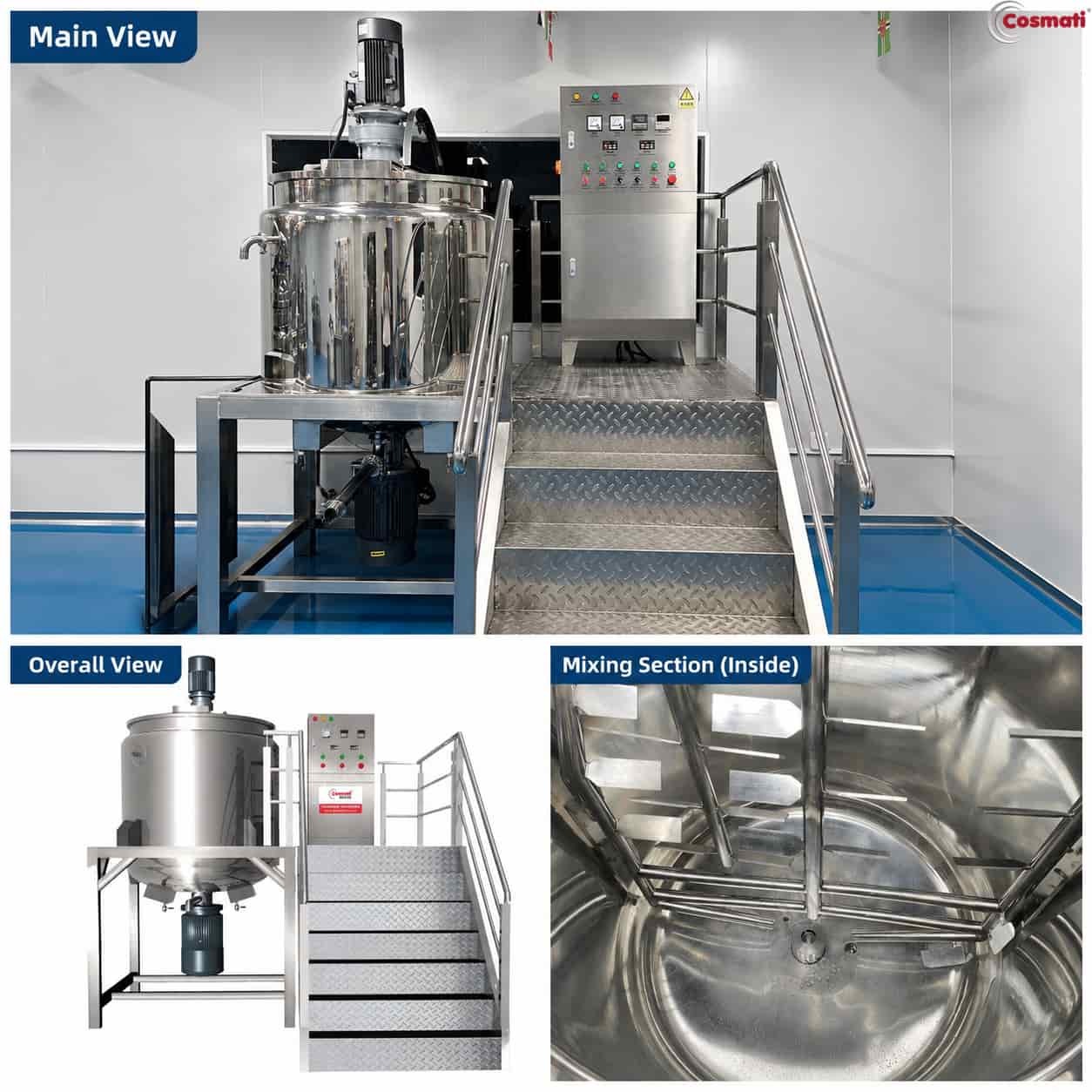

The Stainless Steel Mixing and Homogenizing Tank is designed for batch preparation of liquid and medium-viscosity products used in cosmetic, personal care and daily chemical manufacturing.

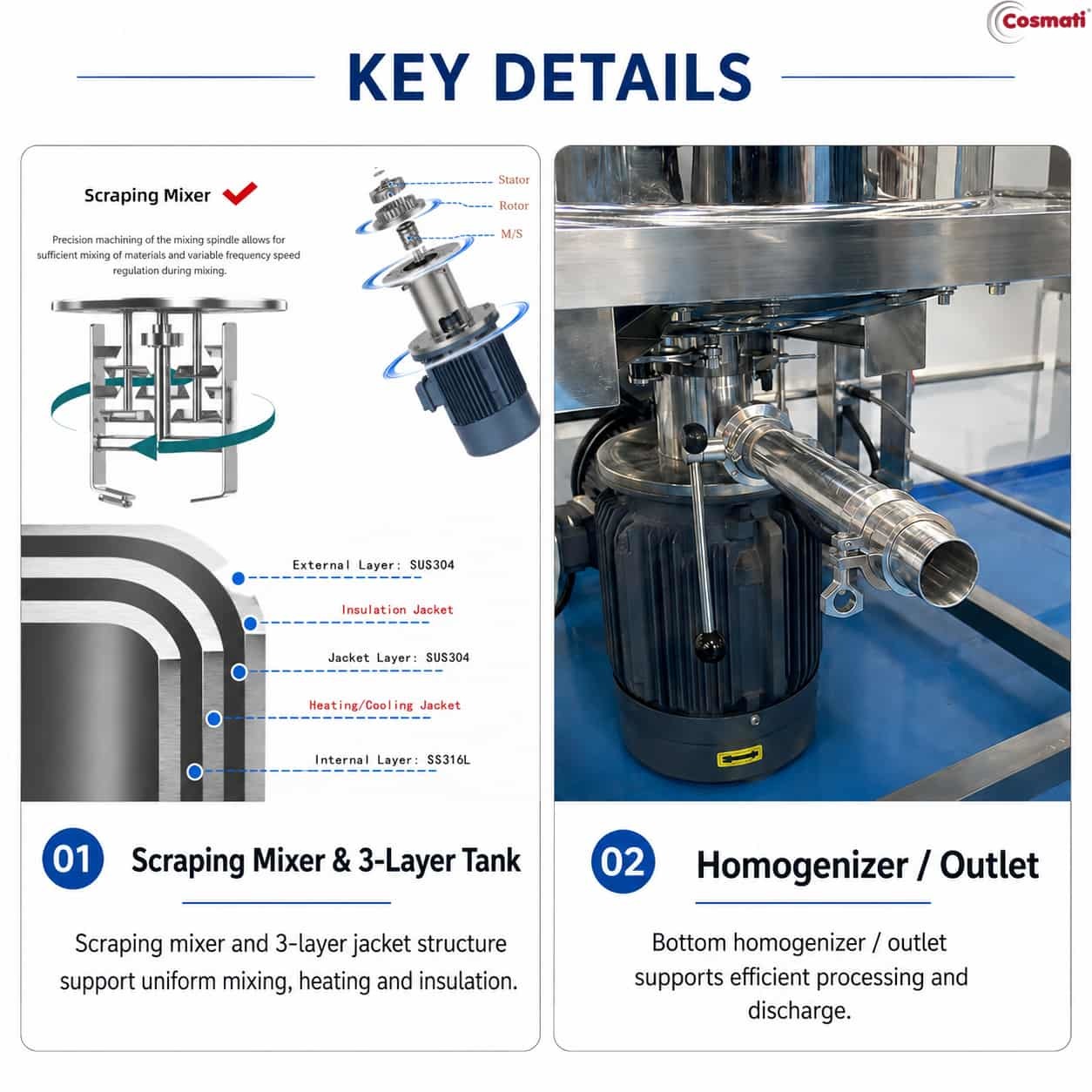

The system combines a low-speed agitator with a PTFE wall scraper and a high-speed homogenizer. The main agitator continuously circulates the material, while the scraper helps reduce material buildup on the inner wall. The homogenizer provides higher shear for dispersion and more uniform processing when required.

For the configuration, the mixing speed is adjustable up to approximately 63 rpm, while the homogenizing system can operate up to approximately 3000 rpm. Variable-frequency control allows the operating speed to be adjusted according to different formulations.

The fixed vertical tank can also be configured with heating, and the electrical control system is available with button control or optional touch-screen operation.

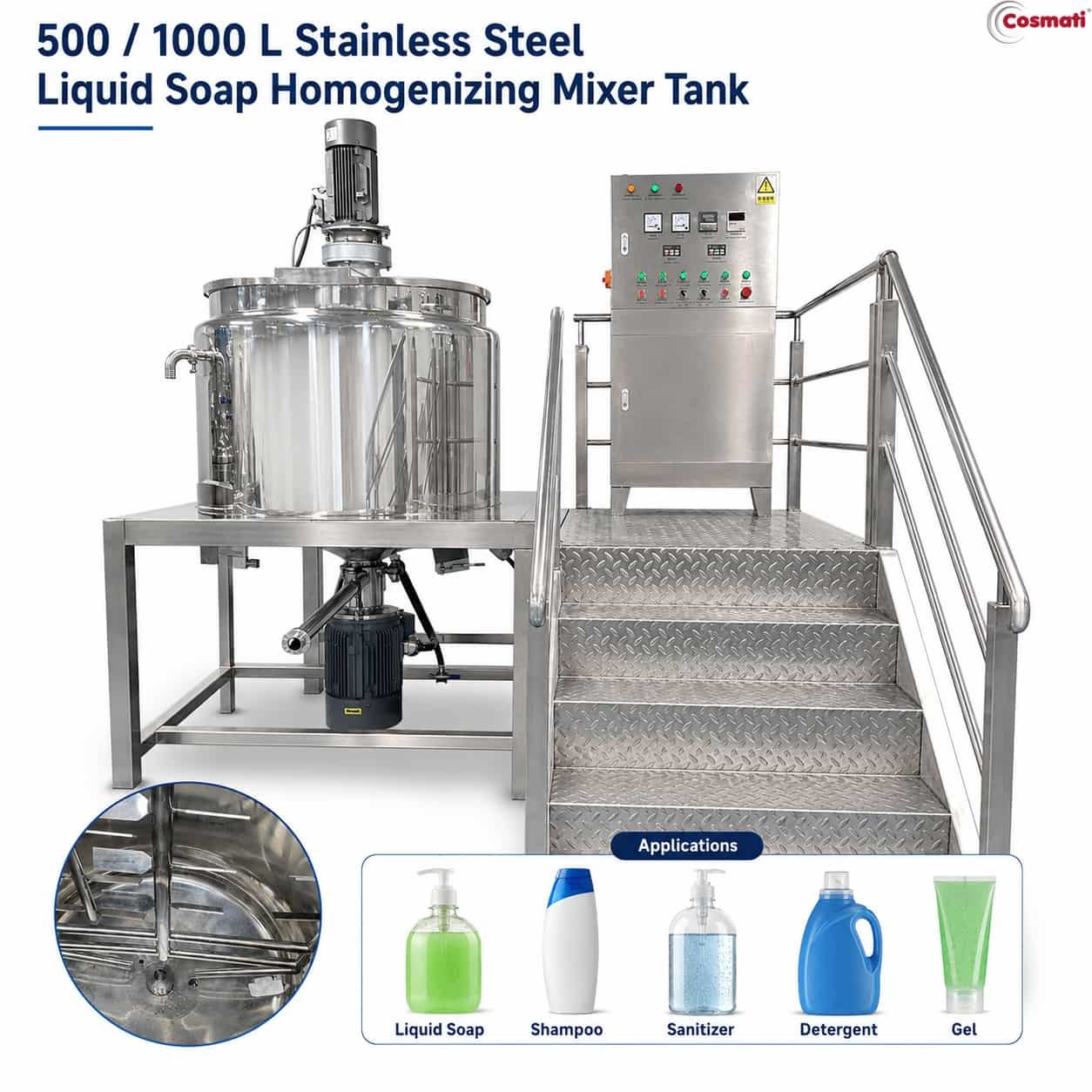

It is suitable for commercial batch production of shampoo, liquid soap, liquid detergent, hand sanitizer gel and similar cosmetic or daily chemical formulations.

Features

1. Mixing + homogenizing in one tank for blending, dispersion and uniform product preparation.
2. PTFE wall scraper helps continuously remove material from the vessel wall during mixing.
3. Adjustable low-speed mixing, approximately 0–63 rpm for the configuration.
4. High-speed homogenizing up to 3000 rpm for stronger dispersion and improved product uniformity.
5. Variable-frequency speed control allows mixing parameters to be adjusted according to different materials.
6. SS316L product-contact parts are available according to the current specification.
7. Electric heating configuration can be provided for processes requiring controlled heating.
8. Fixed vertical design is suitable for stable industrial batch production.
9. Operating platform and stairs provide convenient access for feeding, inspection and maintenance.
10. Button control or optional touch screen can be selected according to production requirements.
