Jacketed Mixing Homogenizing Tank 100L Shampoo Liquid Detergent Heated Mixer

Product Introduction

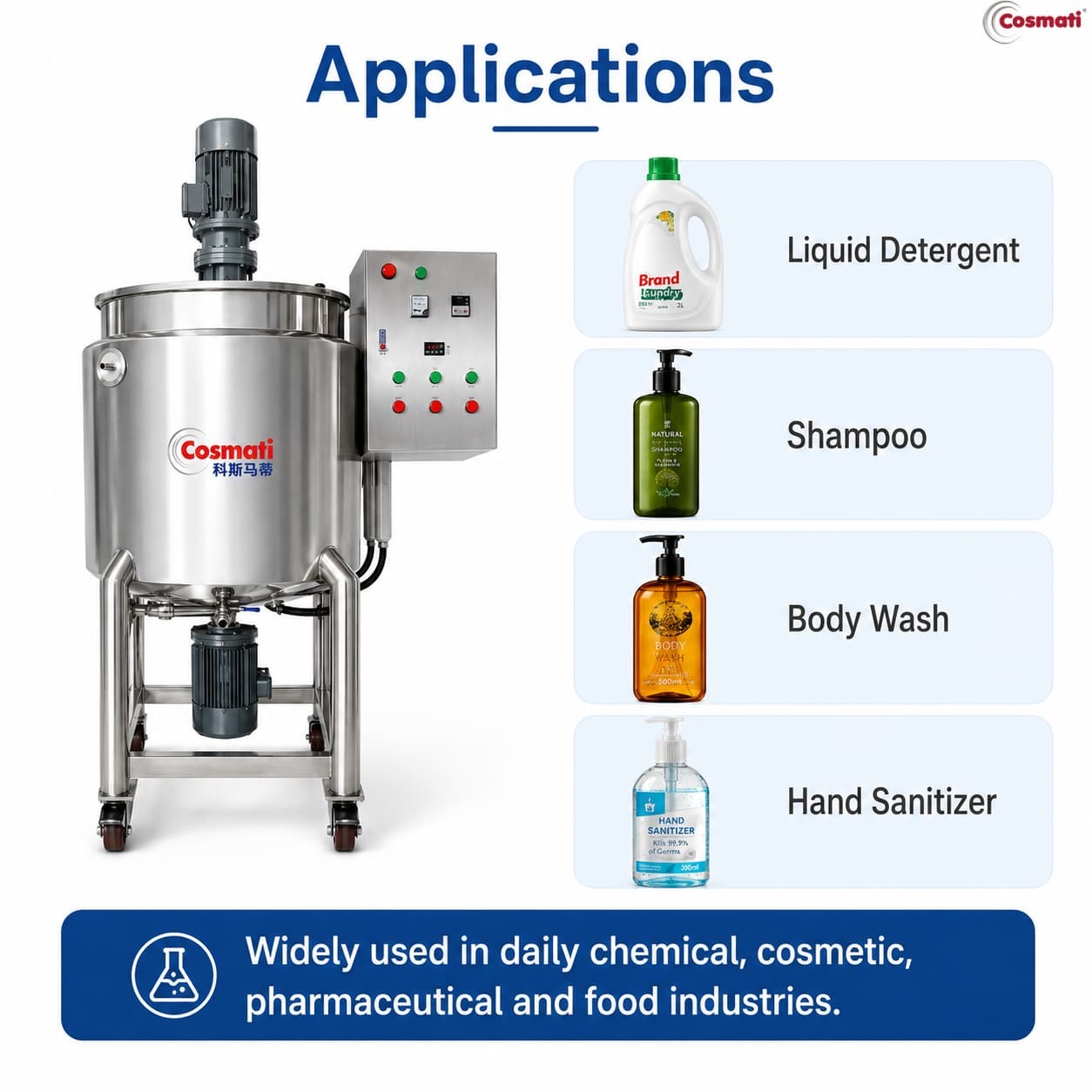

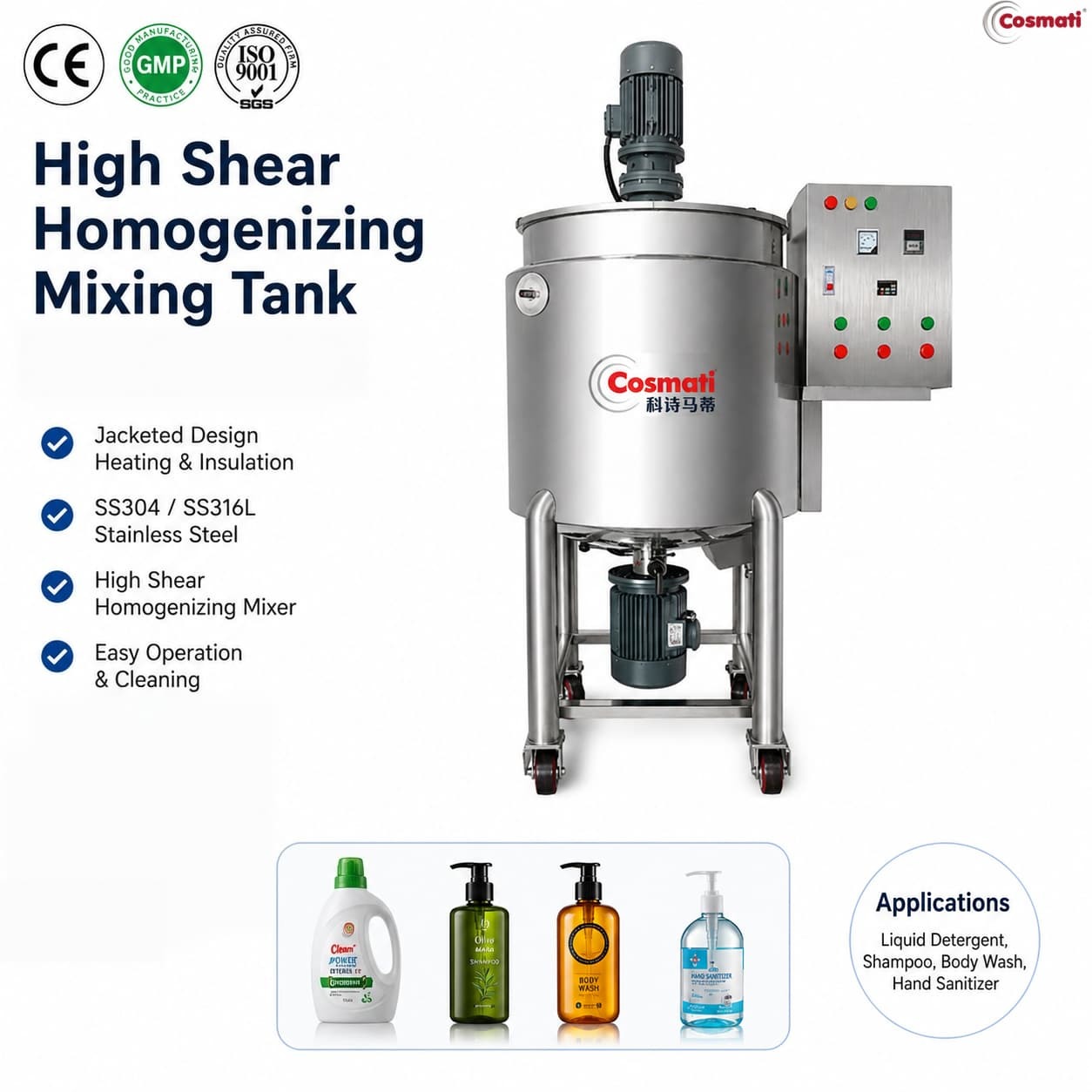

The 100L Stainless Steel Mixing and Homogenizing Tank is designed for batch mixing, blending, heating and homogenizing of liquid and medium-viscosity cosmetic and daily chemical products.

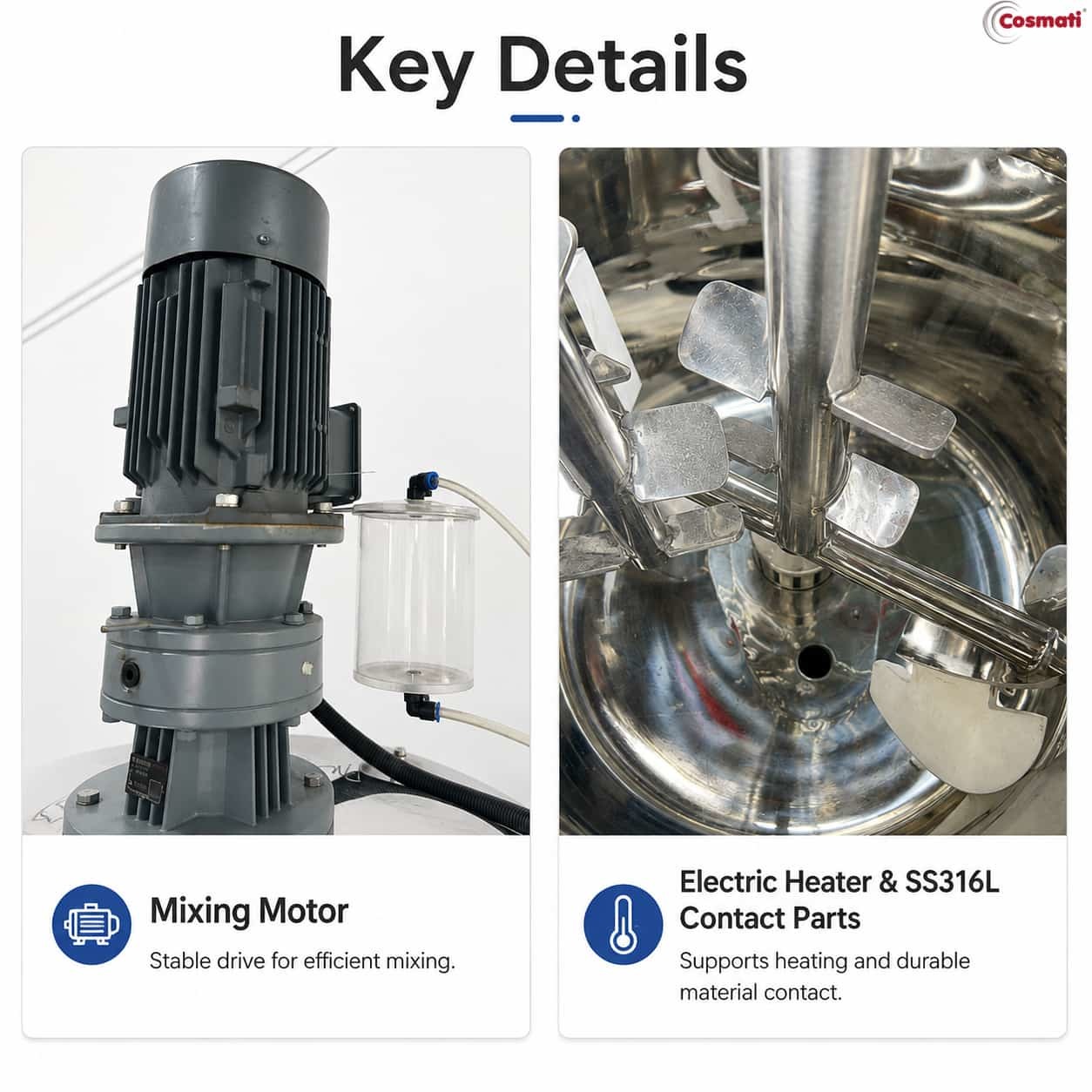

The machine combines a top-mounted low-speed agitator with a bottom high-speed homogenizer. The main agitator provides continuous material circulation and uniform mixing, while the bottom homogenizer provides stronger shear for dispersion and homogenization when required.

The tank is equipped with a jacketed structure for electric heating and water cooling according to the production process. Mixing speed can be adjusted by inverter, and the homogenizing system can operate at speeds up to approximately 3000 rpm depending on configuration.

The current machine is mounted on caster wheels, making it suitable for flexible small-to-medium batch production and convenient movement inside the workshop.

Features

1. Low-speed top agitator provides stable and uniform bulk mixing.
2. Bottom high-speed homogenizer supports stronger dispersion and homogenizing.
3. Mixing speed is adjustable from approximately 0–60 rpm.
4. Homogenizing speed can reach approximately 0–3000 rpm.
5. Jacketed tank supports electric heating for temperature-controlled processing.
6. Tap-water cooling can be used according to production requirements.
7. SS316L product-contact parts are available according to the current specification.
8. Independent electrical control cabinet provides convenient operation and parameter adjustment.
9. Button control is standard, while touch-screen control can be selected as an option.
10. Bottom outlet provides convenient product discharge and connection to downstream equipment.
11. Mobile caster design allows easier movement and repositioning inside the workshop.
