Features

Specifications

Mixer Type: Agitator

Material Processed: Chemicals, Food

Range Of Spindle Speed(r.p.m): 1200 - 22000 R.p.m

Weight (kg): 16

Material: SUS304, SUS316L

Product Type: Cosmetic

Additional Capabilities: Milling

Voltage: Can Be Customized

Dimension(l*w*h): 300*325*780mm

Power (kW): 1 KW

Warranty: 1 Year

Key Selling Points: Long Service Life

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Other, Bearing, Engine, Other

Capacity: 5 L

Product Name: High-quality High Speed Laboratory Liquid Mixer

Keyword: Lab Scale Homogenizer

Material: Stainless Steel 304 / SUS316L

Function: Mixing Raw Material

Voltage: Custom Made

Machine Type: Dispersion Blender Mixer

Feature: High Efficiency

Working Pressure: 0.1-0.8MPa

Gas Consumption: 110L / Min

Mixing Capacity: 0-5l Water (optional)

Application: Liquid With Suspended Solids

Highlight:

Tabletop High Shear Homogenizer

Lab Dissolving High Shear Homogenizer

Quick Install High Shear Homogenizer

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

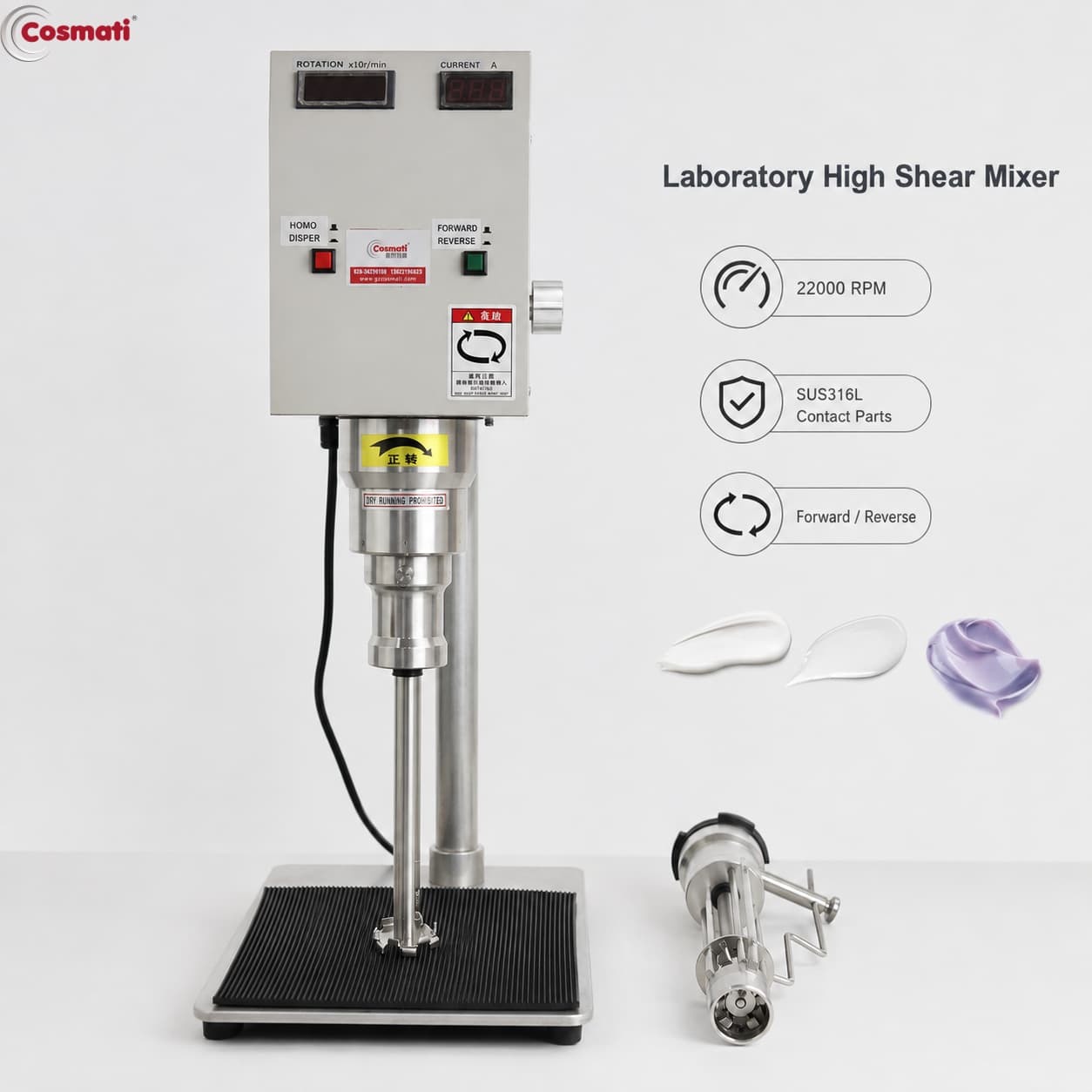

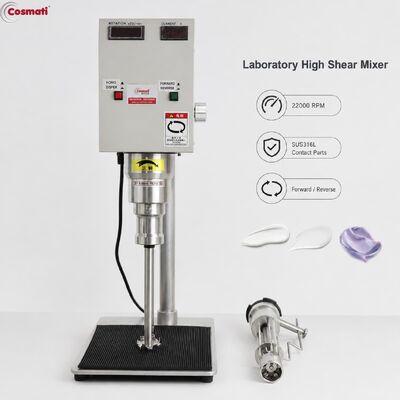

High Shear Homogenizer Lab 22000RPM Tabletop Emulsifier Mixer Dissolver

Product Description

Ultra Shear Batch Laboratory Homogenizer High Speed 22000RPM Dissolver Tabletop Emulsifier Mixer

Suitable for cosmetic, biochemical, food, nanomaterials, coatings, adhesives, daily chemicals, printing and dyeing, petrochemical, paper chemistry, polyurethane, inorganic salt, asphalt, silicone, pesticide, water treatment, heavy oil emulsification and other industries

Features

1. The mixing part adopts a quick-installation design, which can quickly replace different types of mixing parts to realize one machine with multiple functions.

2. The high-shear mixing section has a higher speed, up to 22,000 rpm. The strong shear force can obtain a more refined treatment effect and reduce the particle size.
3. The unique strong circulation axial flow technology makes the material circulation more intense during the stirring process, and the shear mixing is more sufficient and uniform, thereby greatly improving the emulsification and dispersion efficiency and effectively shortening the processing time.
4. The strong circulation of the liquid flow also makes it have a good treatment effect on high-viscosity materials.

Detailed

Model	CM-HCM-2.5	Dimensions	L300xW325xH780(mm)
Speed	900-22000rpm; 900-10000rpm	Contacted part	SS316L; SUS304; PTFE
Power supply	Customiezd 1P/220V/50Hz	Max. Capacity	5L (based on water)
Output power	0.75KW	Weight	16KG

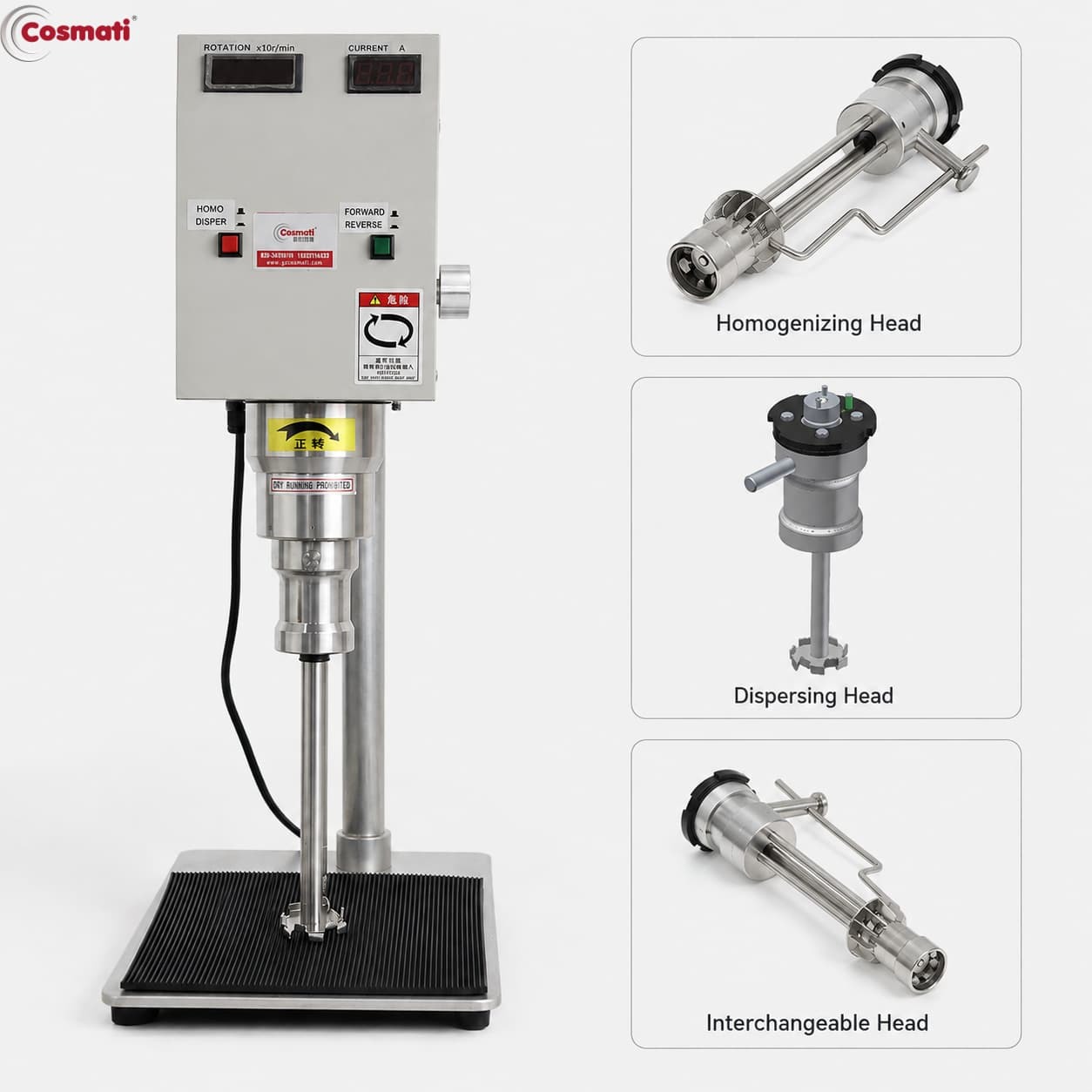

High shear homogenizer mixer head

Material: SS316L+PTFE

High speed dispersion mixer head

Material: SS316L

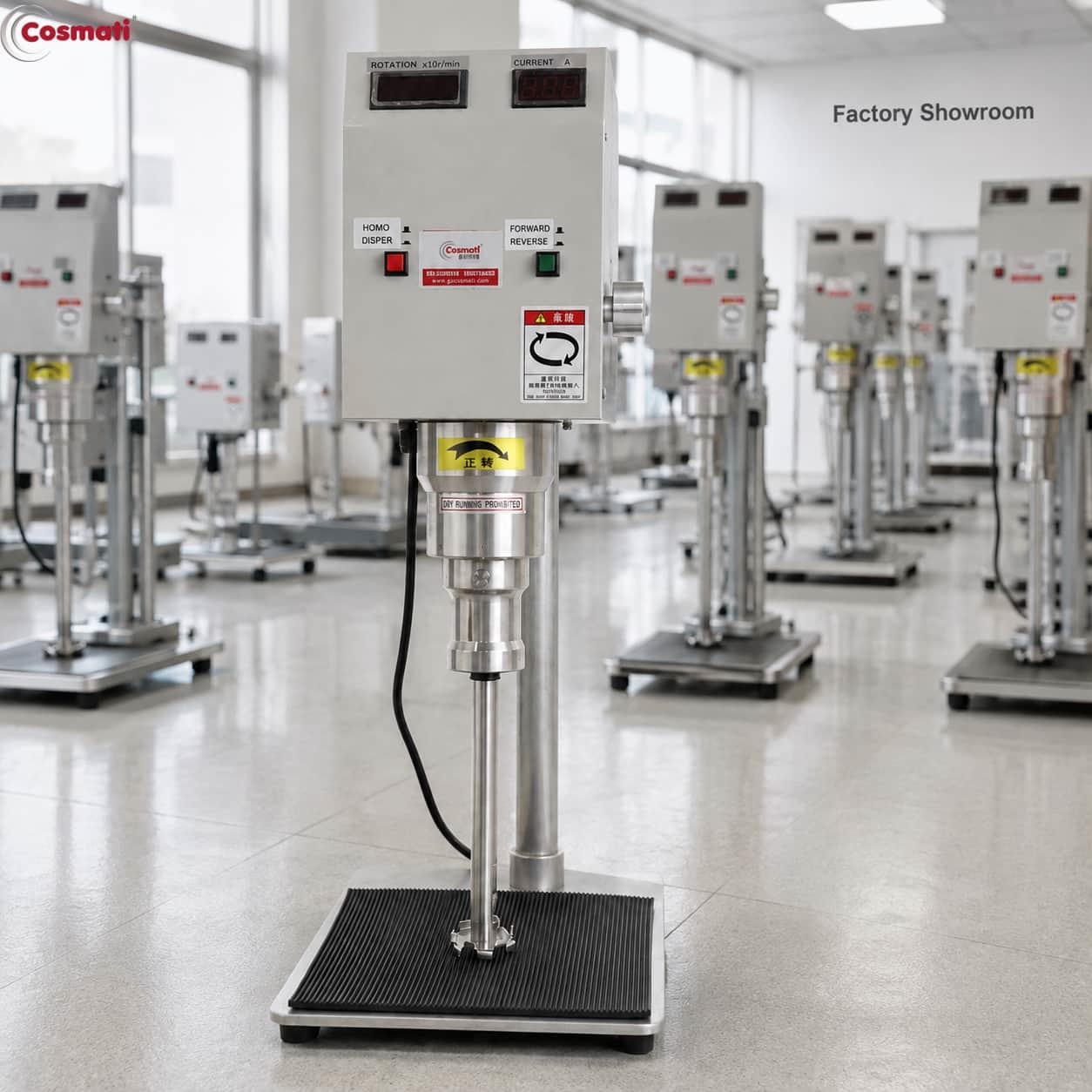

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

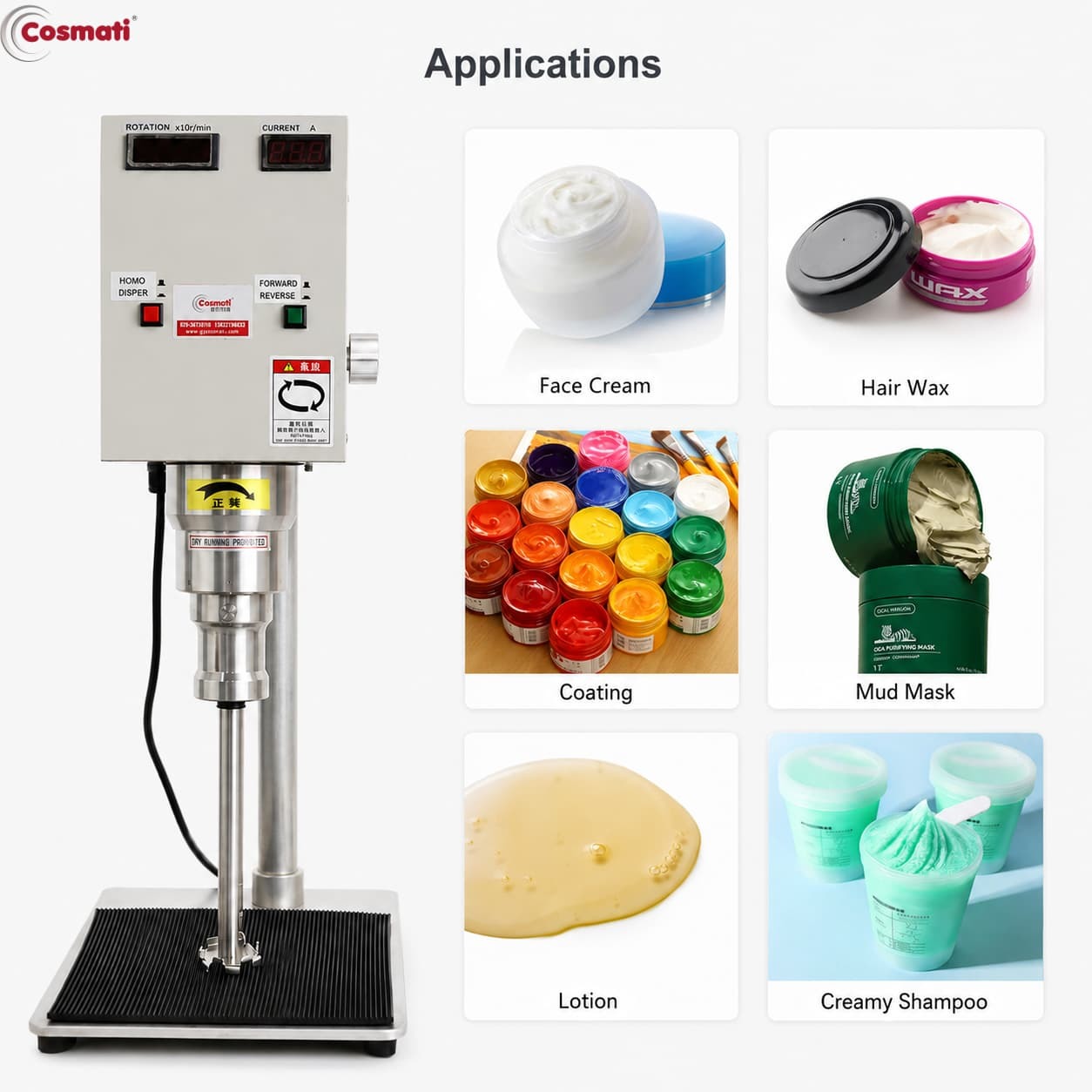

Application

FAQ

Q1: What products can this lab homogenizer process?
A: It is suitable for cosmetic, chemical and food formulations such as creams, lotions, gels, emulsions and other liquid or semi-liquid materials.

Q2: What is the speed range?
A: The adjustable speed range is approximately 1,200–22,000 rpm, allowing flexible processing for different formulations.

Q3: What is the motor power?
A: The standard motor power is 1 kW, suitable for laboratory testing, formulation development and small-batch processing.

Q4: What material is used for the homogenizing parts?
A: SUS304 and SUS316L stainless steel options are available according to product and processing requirements.

Q5: Is this machine suitable for laboratory use?
A: Yes. Its compact tabletop design and 16 kg weight make it suitable for R&D laboratories, sample testing and small-scale production.
