Home /Products/Vacuum Emulsifying Mixer/Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor

Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor

1
MOQ
$14,500-15,000
Price
Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor
Features Gallery Product Description Chat Now
Features
Specifications
Mixer Type: Agitator
Material Processed: Chemicals
Range Of Spindle Speed(r.p.m): 0 - 63 R.p.m
Weight (kg): 1280
Material: SUS304, SUS316L
Product Type: Cosmetic
Motor Type: DC Motor
Additional Capabilities: Homogenizing
Voltage: 3phase 380V 50Hz Or Customerized
Dimension(l*w*h): Refer To Drawings
Power (kW): 17 KW(22.80hp)
Warranty: 1 Year
Key Selling Points: High Productivity
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Motor, Gear, Bearing, Engine, Other
Capacity: 1000 L(264.17gal)
Keyword: Hand Cream Emulsifier Homogeneous And Oil Vacuum Mix
Product Name: Cosmetic Turbo Hand Cream Emulsifier Homogeneous And Oil Vacuum Mix
Layout Type: Verticle
Heating Method: Steam/Water Or Oil By Electric
Electric Cabinet: Buttons Or Touch Screen (Optional)
Cooling: Water Recirculation From Jacket
Stirrer Type: Forced Stirrer
Feature: Internal And External Circulation Homogenization
Application Scope: Cosmeceutical Industry
Highlight:

1000L PLC Vacuum Homogenizer Emulsifier

,

Facial Cleanser Vacuum Homogenizer Emulsifier

,

Oil Water Pot Vacuum Homogenizer Emulsifier
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: COSMATI
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

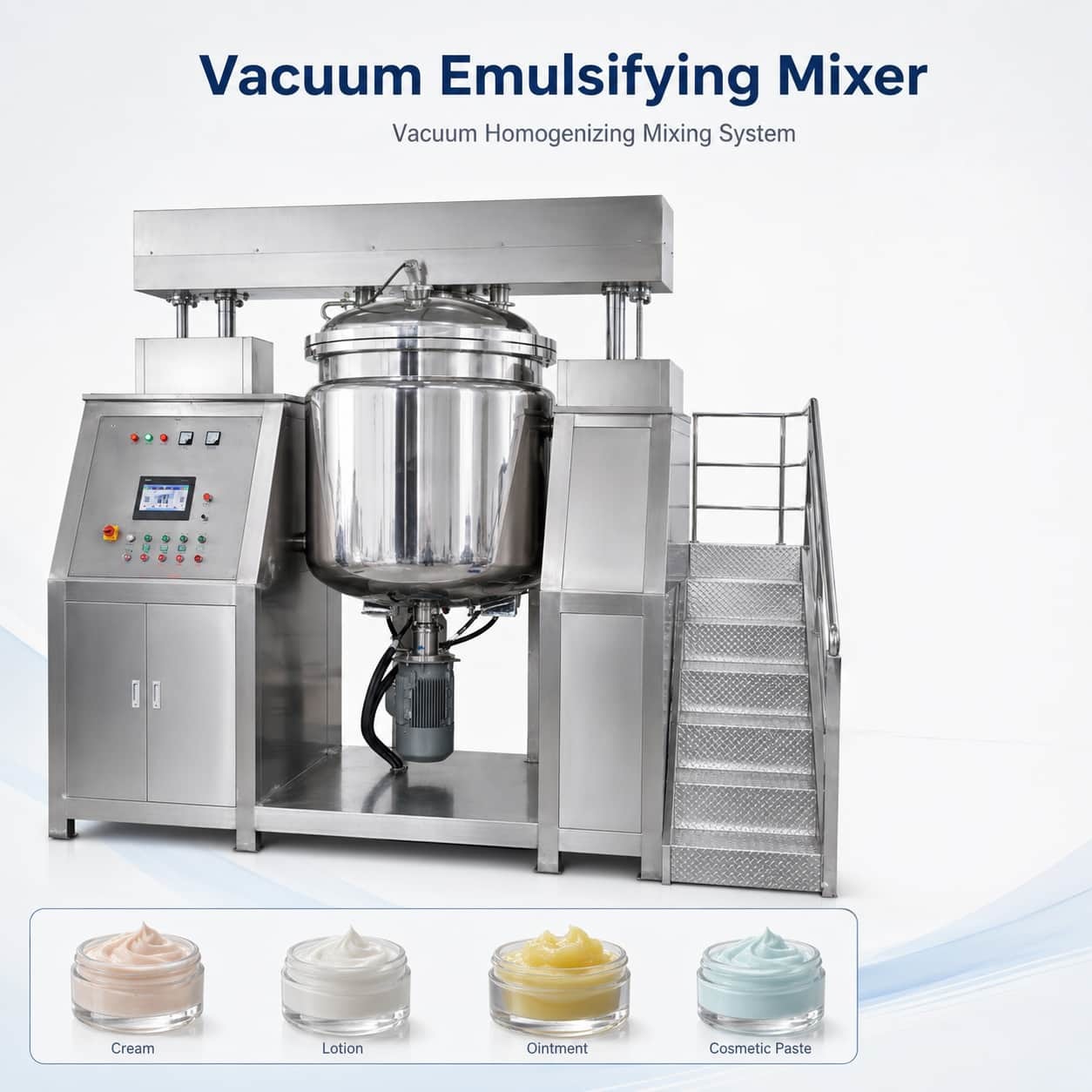

1000L PLC Control Lifting type vacuum emulsifier mixer homogenizer with oil and water pots

Introduction

The Vacuum Emulsifying Mixer is designed for high-speed shearing, emulsifying, dispersing, mixing and vacuum deaeration of liquid and paste materials. It combines low-speed scraping agitation with high-speed homogenization to achieve fine, uniform and stable emulsification while effectively reducing air bubbles during production.The machine is widely used in the cosmetic, personal care and daily chemical industries for producing cream, lotion, ointment, gel, shampoo, conditioner and other emulsified products. PLC touch screen control or push-button control is available according to different production requirements.

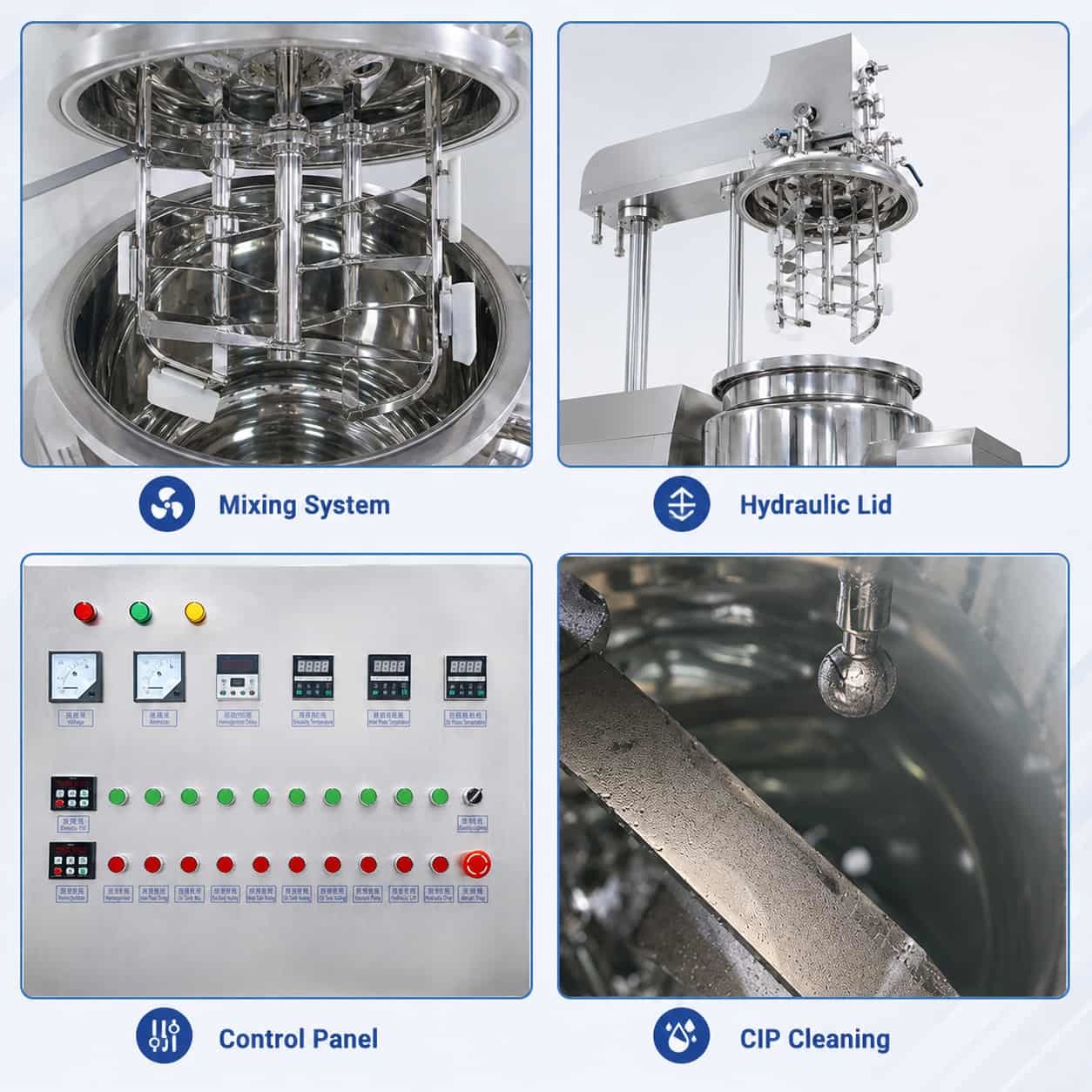

Features

  1. Vacuum Deaeration System
    Removes air bubbles during mixing and emulsification, helping improve product texture and stability.
  2. Hydraulic Lifting Lid
    The main tank lid can be lifted for easier cleaning, inspection and maintenance.
  3. Heating & Cooling Function
    The jacketed tank supports heating and cooling for better temperature control during production.
  4. High-Speed Homogenization
    Provides efficient shearing, dispersion and emulsification for a finer and more uniform product.
  5. SS316L Contact Parts & PTFE Scraper
    Product-contact parts are made of SS316L stainless steel, while the PTFE wall scraper helps improve mixing uniformity and easy cleaning.
Specification
Capacity
Wall scraper mixer
Homogenizer
Water and oil pot
Disperser
50L
0.75kw, 0-65rpm
2.2kw, 0-3600rpm
45/30L
0.37/0.37kw, 1440rpm
100L
1.1kw, 0-65rpm
4kw, 0-3600rpm
90/60L
0.55/0.55kw, 1440rpm
200L
1.5kw, 0-65rpm
5.5kw, 0-3600rpm
180/120L
0.75/0.75kw, 1440rpm
300L
3kw, 0-65rpm
7.5kw, 0-3600rpm
270/180L
1.1/1.1kw, 1440rpm
500L
4kw, 0-65rpm
11kw, 0-3600rpm
450/300L
1.5/1.5kw, 1440rpm
1000L
5KW, 0-60rpm
15kw, 0-3000rpm
600/500L
3/3kw, 1440rpm

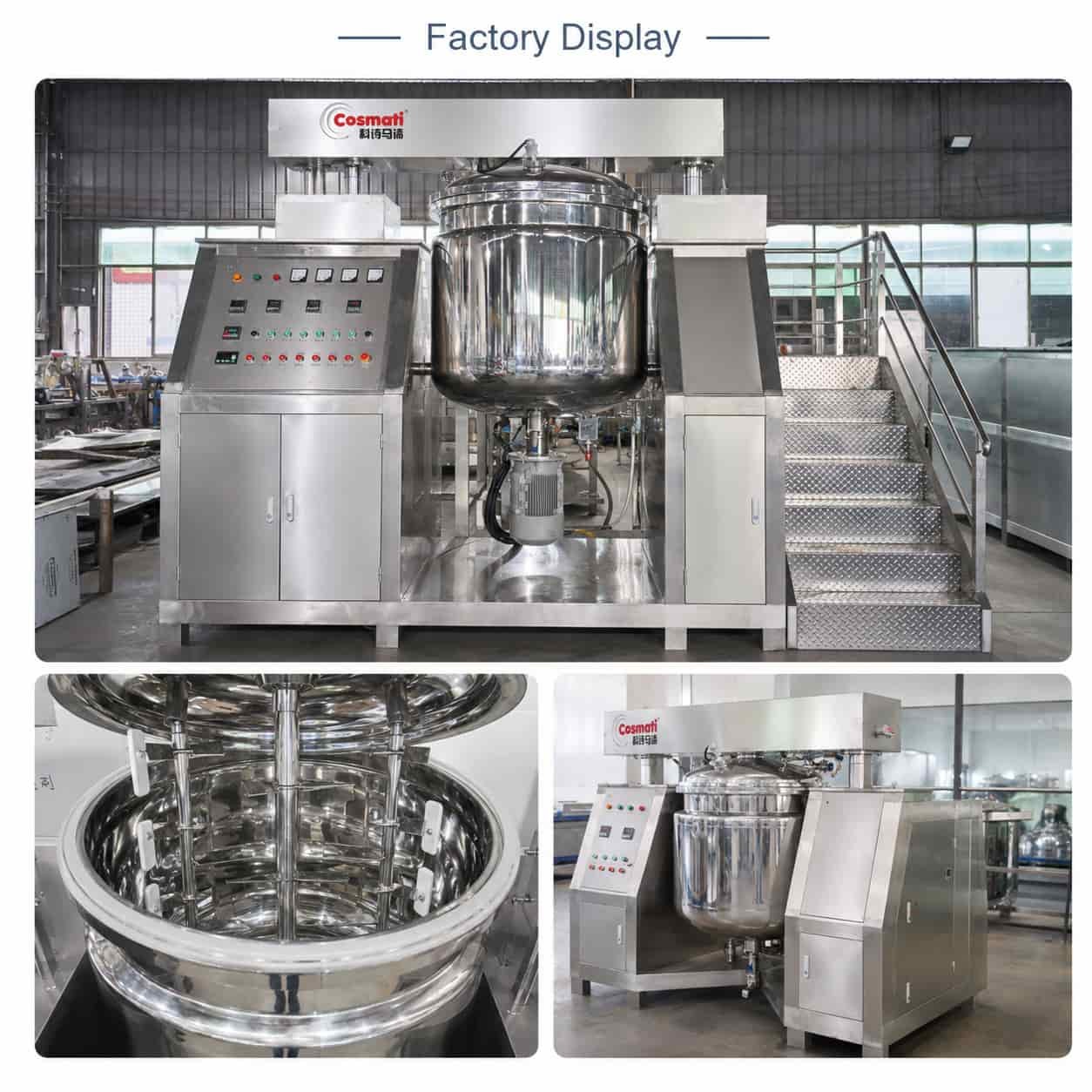

Factory profile
Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor


Engineer case
Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor
Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor
Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor
Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor

Trade show participation
Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor
Packaging & shipping specifications
Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor

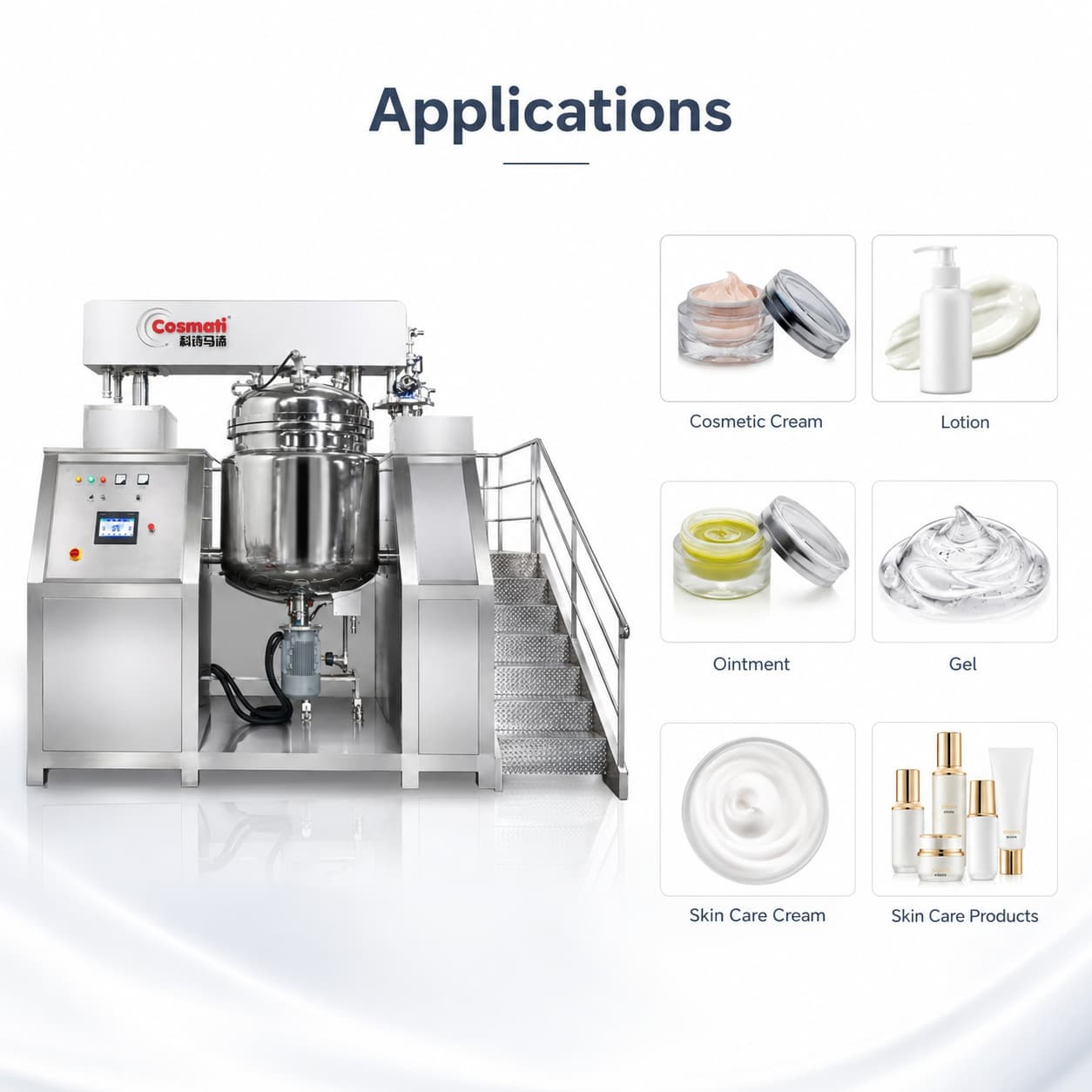

Application

Vacuum Homogenizing Emulsifier Mixer Cream Gel Facial Cleanser Chemical Reactor

FAQ

Q1: What products can this vacuum emulsifying mixer process?
A: It is suitable for cream, lotion, ointment, gel, shampoo, conditioner and other cosmetic or daily chemical liquid and paste products.

Q2: Can the machine handle high-viscosity materials?
A: Yes. The combination of wall-scraping agitation and high-speed homogenization is suitable for medium- to high-viscosity materials. The configuration can be

adjusted according to your product viscosity.

Q3: Does the machine support heating, cooling and vacuum?
A: Yes. The jacketed tank can be used for heating and cooling, while the vacuum system helps remove air bubbles during emulsification and mixing.

Q4: Is the machine easy to clean?
A: Yes. Product-contact parts are made of SS316L stainless steel, and the lifting lid provides easier access to the tank. CIP cleaning can also be configured if required.

Q5: Can the capacity and control system be customized?
A: Yes. Tank capacity, voltage, heating method, homogenizer power and control system can be customized. PLC touch screen and push-button control are both available.
