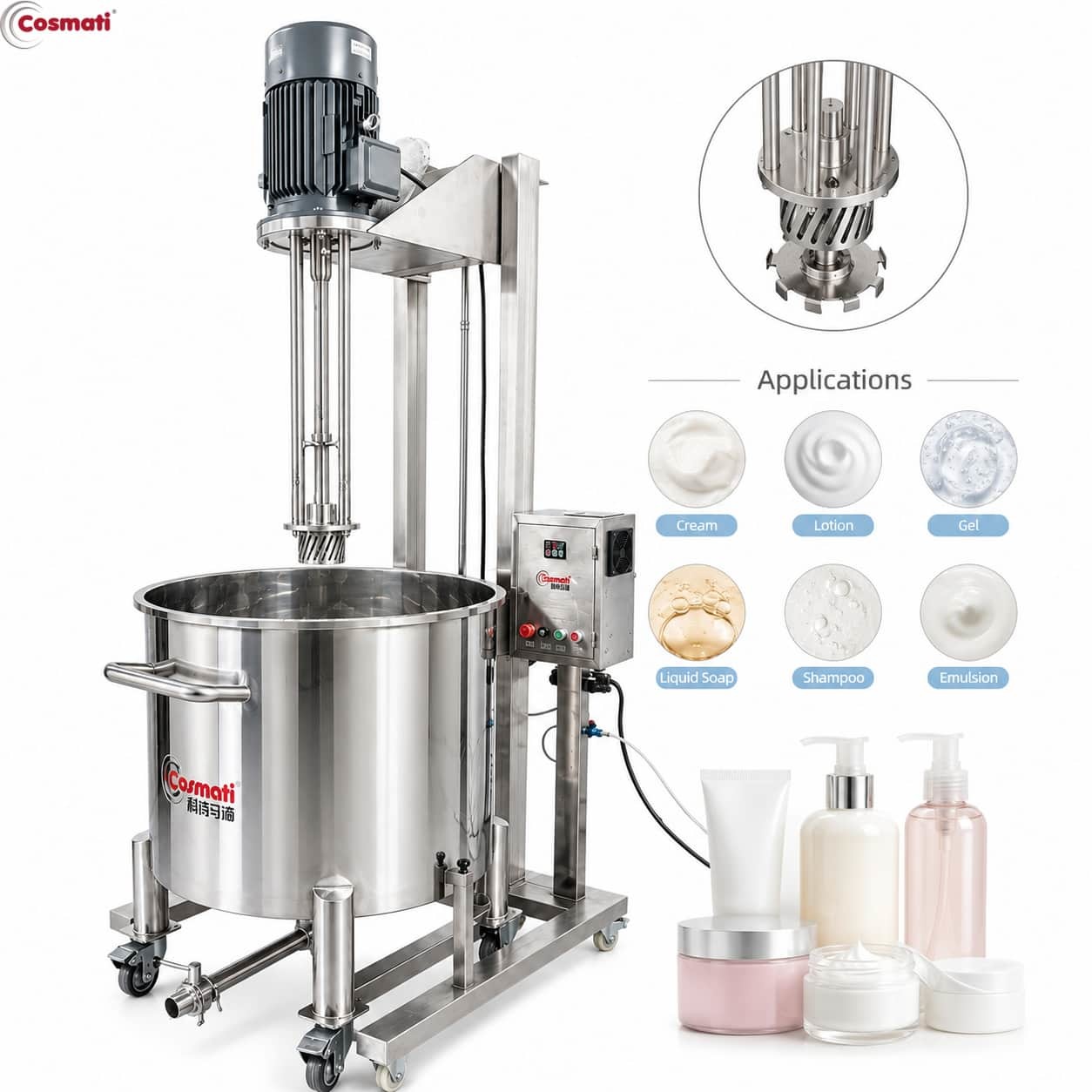

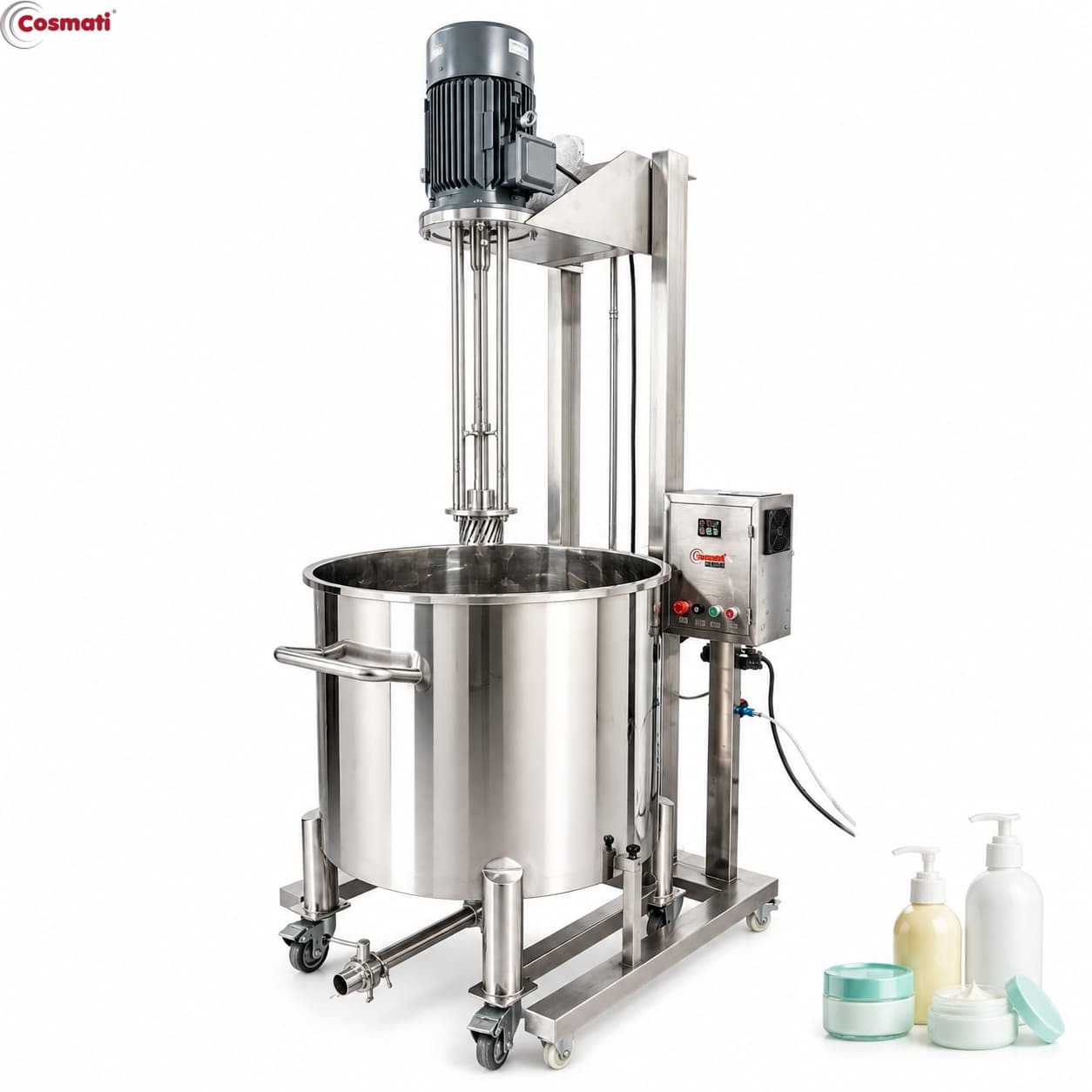

High Shear Homogenizer Mixer Pneumatic Lift for Cream Lotion Paint Pigment Disperser

5.5KW Power: Delivers robust performance for heavy-duty applications.

100L Capacity: Processes large batches efficiently.

SUS304+SS316L Material: Ensures durability and corrosion resistance.

High Safety Level: Meets stringent industrial safety standards.

CE ISO Certification: Proven reliability and compliance.

Introduction

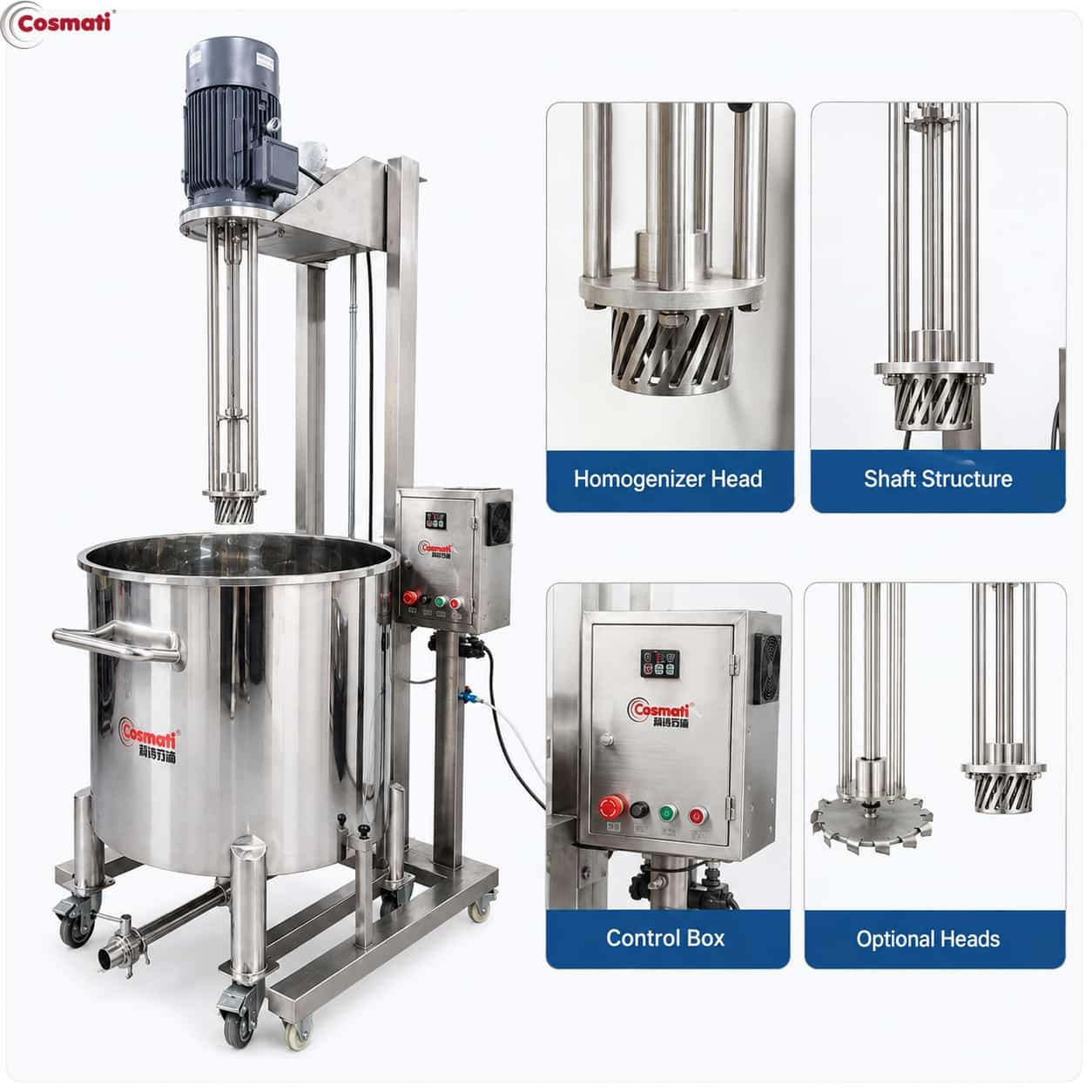

The High Shear Lift Homogenizer Disperser Mixer is designed for efficient mixing, dispersing and homogenizing of liquid, semi-liquid and medium-viscosity materials. The high-speed rotor-stator homogenizing head generates strong shear force to break down agglomerates and improve material dispersion, helping achieve a finer and more uniform product consistency.

The lifting structure allows the homogenizing head to be raised or lowered for convenient loading, container replacement and cleaning. The mobile stainless steel tank and compact machine design make it suitable for batch production across cosmetics, chemicals, coatings and other processing applications.

Features

1. High-speed homogenizing system provides efficient shearing, dispersion and uniform mixing.
2. Adjustable speed up to 3600 rpm supports different processing requirements.
3. Lift-type structure makes material loading, tank replacement and cleaning more convenient.
4. SUS304 or SUS316L stainless steel options are available according to production requirements.
5. 5.5 kW AC motor provides stable power for continuous mixing and homogenizing operation.
6. Mobile tank design allows flexible production arrangement and easier material handling.
7. Suitable for cosmetics, creams, lotions, coatings, pigments, inks and various liquid or semi-viscous products.

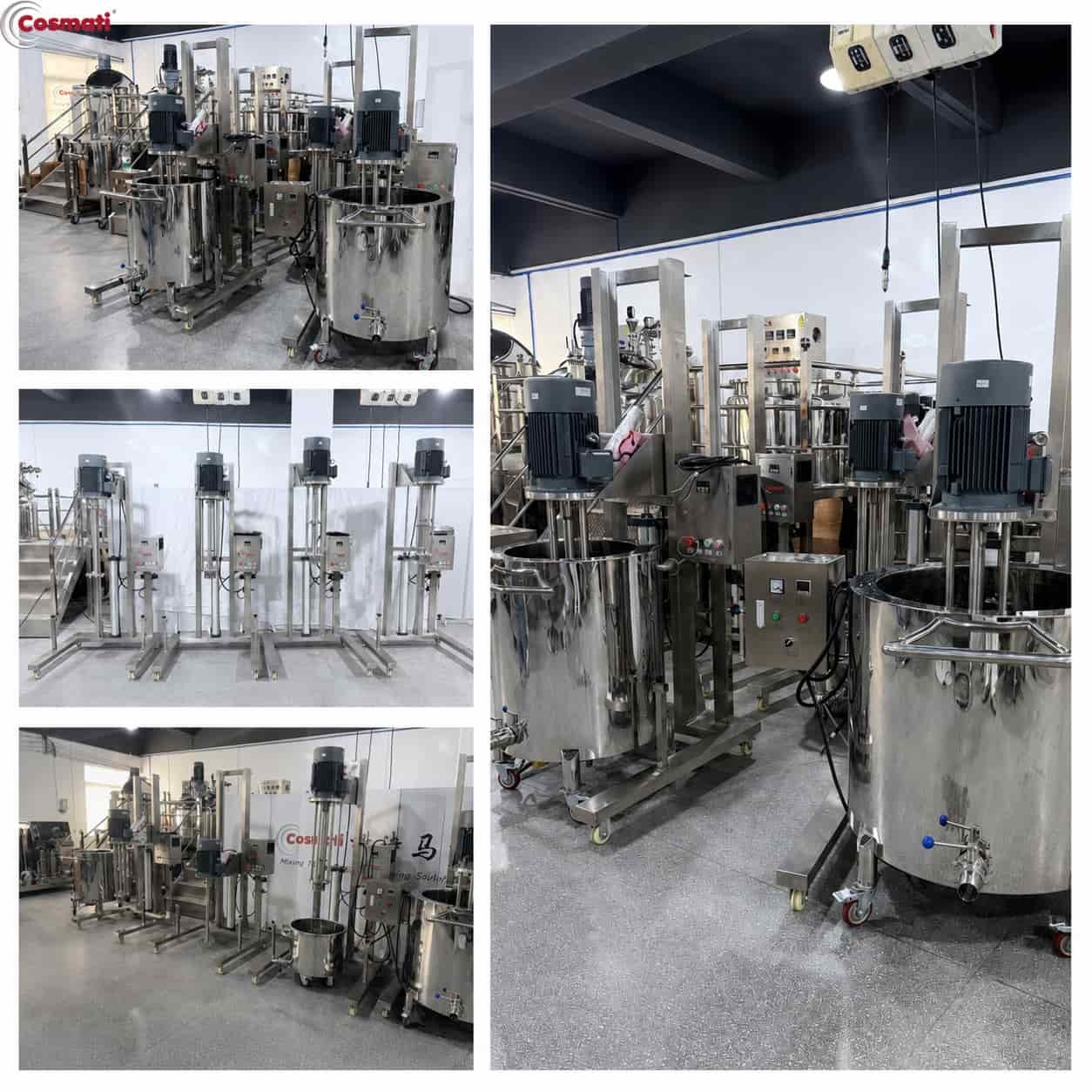

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

Application

FAQ

Q1: What is this machine mainly used for?
A: It is mainly used for high-speed homogenizing, dispersing and mixing of liquid, semi-liquid and medium-viscosity materials.

Q2: What products can the machine process?
A: It is suitable for creams, lotions, shampoo, gels, ointments, coatings, paint, pigments, inks and various liquid chemical products.

Q3: What is the maximum homogenizing speed?
A: The speed range is approximately 0–3600 rpm and can be adjusted according to the processing requirement.

Q4: What is the motor power?
A: The standard configuration shown uses a 5.5 kW AC motor.

Q5: What is the advantage of the lifting structure?
A: The lifting system allows the homogenizing head to move vertically, making tank replacement, product loading and equipment cleaning easier.
