Home /Products/Vacuum Emulsifying Mixer/Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit

Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit

1
MOQ
$4,000
Price
Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit
Features Gallery Product Description Chat Now
Features
Specifications
Mixer Type: Homogenizer
Material Processed: Chemicals, Food
Range Of Spindle Speed(r.p.m): 1200 - 22000 R.p.m
Weight (kg): 16
Material: SUS304, SUS316L
Product Type: Cosmetic
Additional Capabilities: Milling
Voltage: 220 V, 110 V
Dimension(l*w*h): 300*325*780mm(11.81*12.80*30.71in)
Power (kW): 1 KW(1.34hp)
Warranty: 1 Year
Key Selling Points: Long Service Life
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Motor, Bearing, Engine, Other
Capacity: 5 L(1.32gal)
Configuration: Vertical
Product Name: High-quality High Speed Laboratory Liquid Mixer
Keyword: Lab Scale Homogenizer
Material: Stainless Steel 304 / SUS316L
Function: Mixing Raw Material
Voltage: Custom Made
Machine Type: Dispersion Blender Mixer
Feature: High Efficiency
Working Pressure: 0.1-0.8MPa
Gas Consumption: 110L / Min
Mixing Capacity: 0-5l Water (optional)
Highlight:

Ultramix Silverson High Shear Homogenizer

,

22000rpm High Shear Homogenizer

,

Lab Mixing High Shear Homogenizer
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Cosmati
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

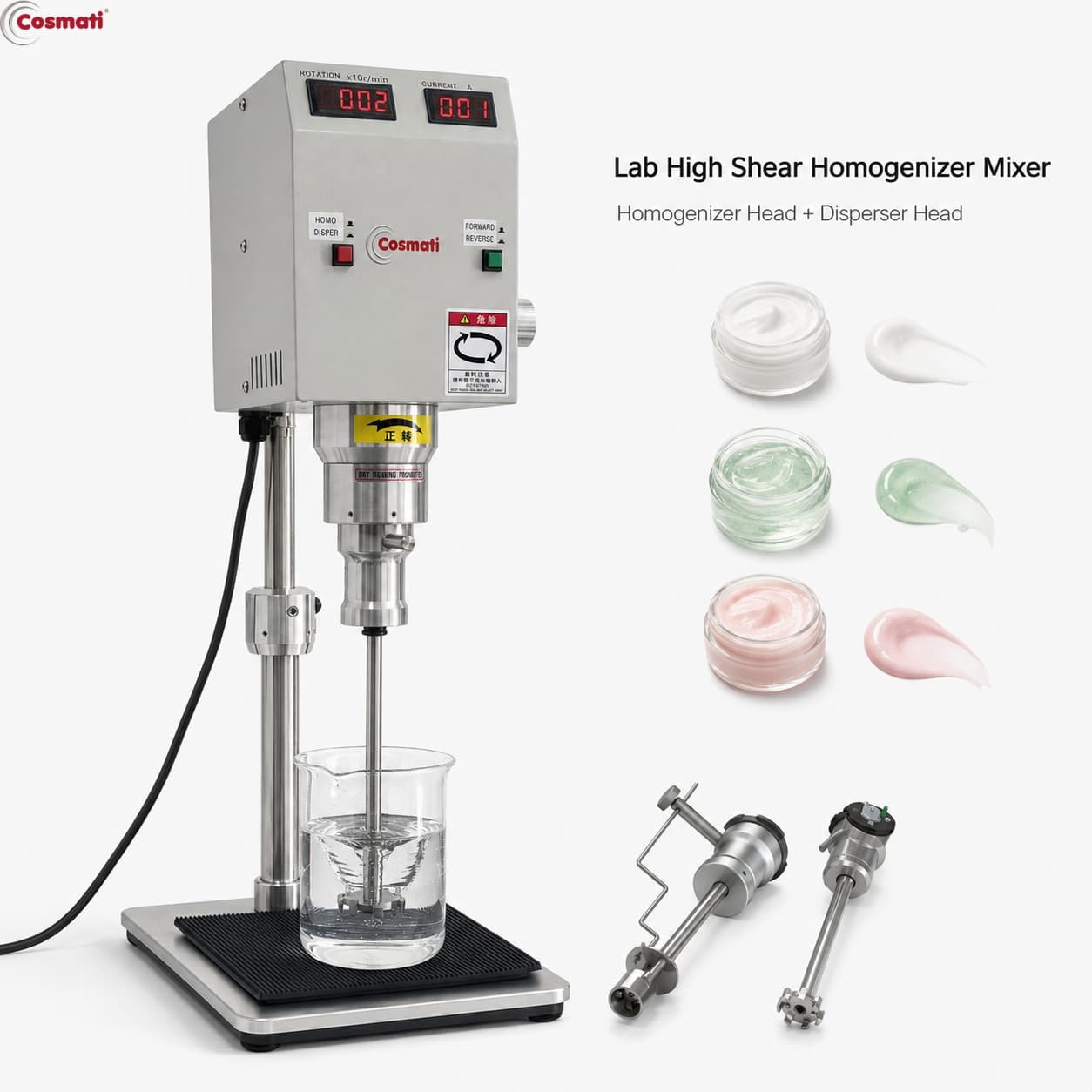

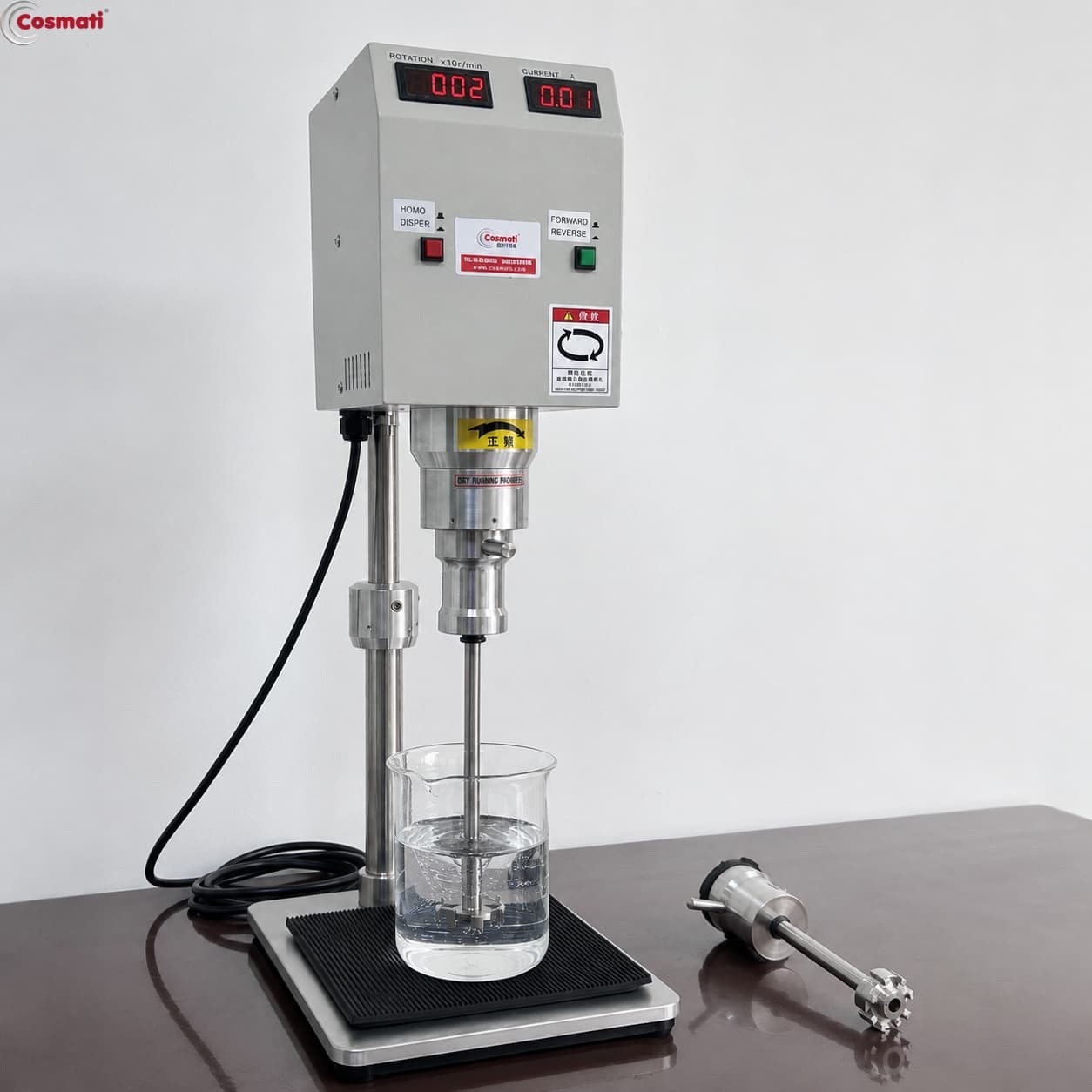

Ultramix Silverson Laboratory Homogenizer High Shear Dispersing Mixer Lab Mixing Unit

This laboratory high shear homogenizer is designed for small-batch mixing, dispersing, emulsifying and homogenizing applications. With adjustable speed up to 22,000 rpm, it generates strong shear force to improve material dispersion, reduce particle size and create a finer, more uniform mixture.

The compact benchtop design is suitable for laboratory testing, formulation development and R&D. Different mixing heads can be quickly replaced according to processing requirements, making the machine suitable for cosmetics, food, chemicals, coatings, adhesives, daily chemical products and other laboratory applications.

Features

  1. Quick-release mixing head design allows easy replacement of different mixing heads for multiple processing requirements.
  2. High-speed operation up to 22,000 rpm provides strong shear force for efficient homogenizing, dispersing and emulsifying.
  3. Strong axial circulation improves material movement inside the container, helping achieve faster and more uniform mixing.
  4. Suitable for liquid, semi-viscous and certain high-viscosity materials, depending on formulation and batch size.
  5. Compact tabletop structure is ideal for laboratory R&D, sample testing and small-batch formulation development.
  6. Product-contact parts are available in SS316L, SUS304 and PTFE for different processing requirements.

Detailed

Model
CM-HCM-2.5
Dimensions
L300xW325xH780(mm)
Speed
900-22000rpm;
900-10000rpm
Contacted part
SS316L; SUS304; PTFE
Power supply
Customiezd 1P/220V/50Hz
Max. Capacity
5L (based on water)
Output power
0.75KW
Weight
16KG

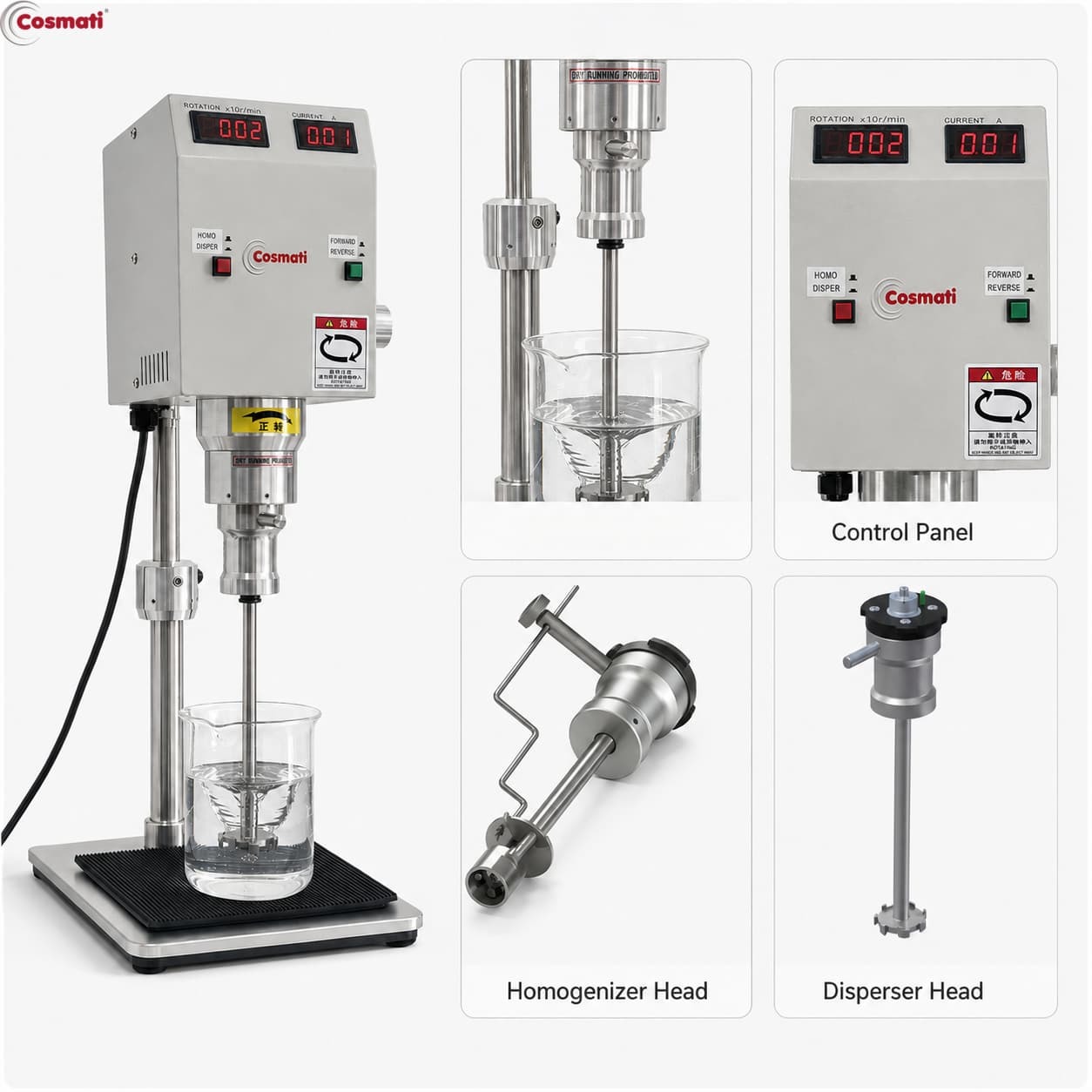

High shear homogenizer mixer head
Material: SS316L+PTFE
High speed dispersion mixer head
Material: SS316L

Factory profile
Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit


Engineer case
Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit
Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit

Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit

Trade show participation
Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit
Packaging & shipping specifications
Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit

Application

Ultramix Silverson Homogenizer High Shear Dispersing Mixer Lab Mixing Unit

FAQ

Q1: What materials can this laboratory homogenizer process?
A: It is suitable for creams, lotions, gels, emulsions, food formulations, coatings, adhesives and other liquid or semi-viscous materials.

Q2: What is the maximum processing capacity?
A: The maximum capacity is approximately 5L based on water. Actual capacity depends on material viscosity and processing conditions.

Q3: What is the adjustable speed range?
A: The machine supports speeds up to 22,000 rpm. Different mixing heads may have different recommended speed ranges.

Q4: Can different mixing heads be used?
A: Yes. The quick-release design allows different mixing heads to be replaced according to homogenizing, dispersing or emulsifying requirements.

Q5: Is it suitable for high-viscosity materials?
A: It can process certain semi-viscous and higher-viscosity formulations, but suitability depends on actual viscosity, batch size and selected mixing head.
