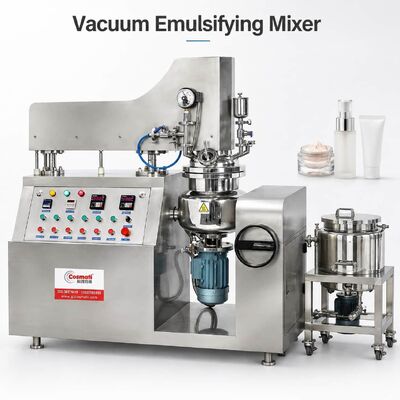

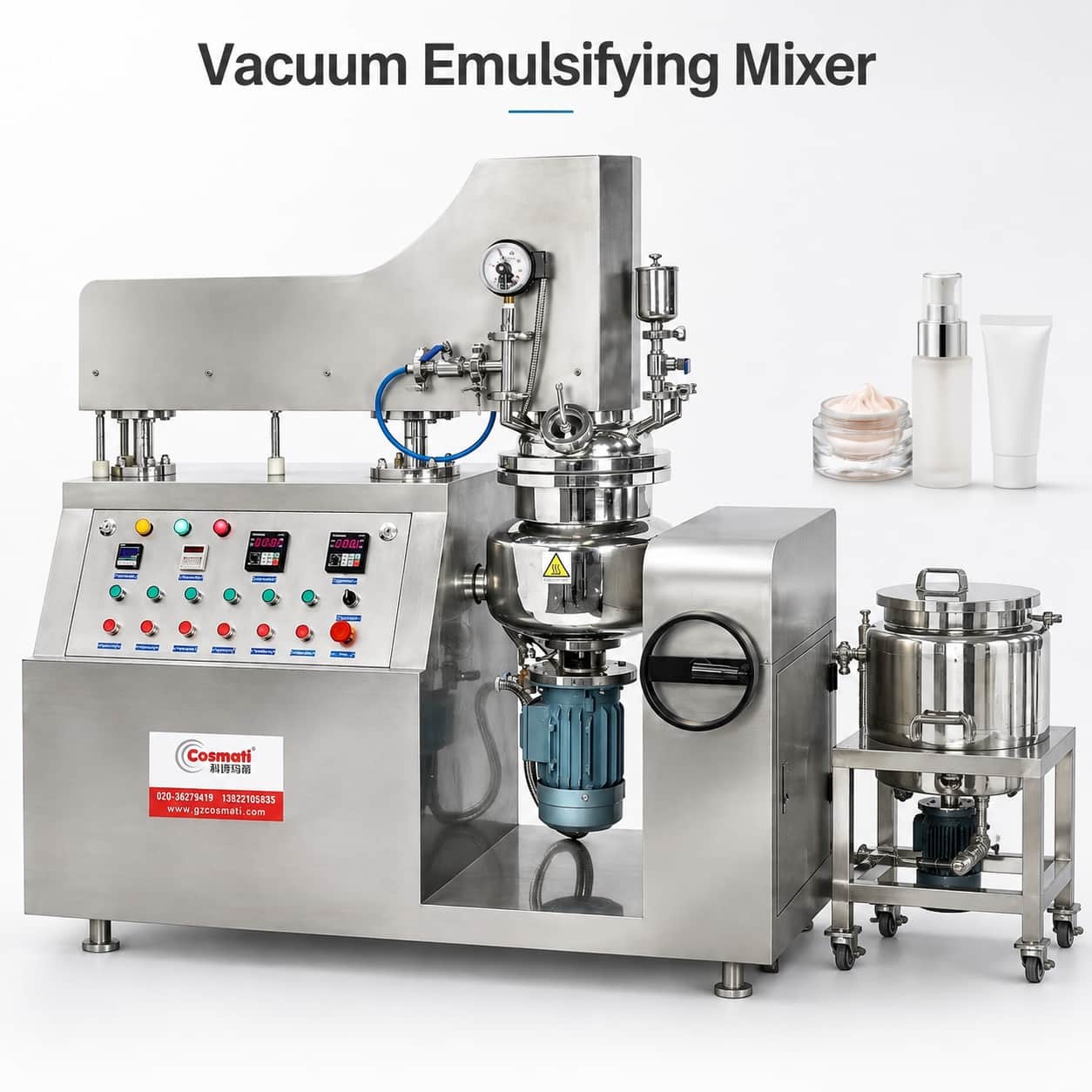

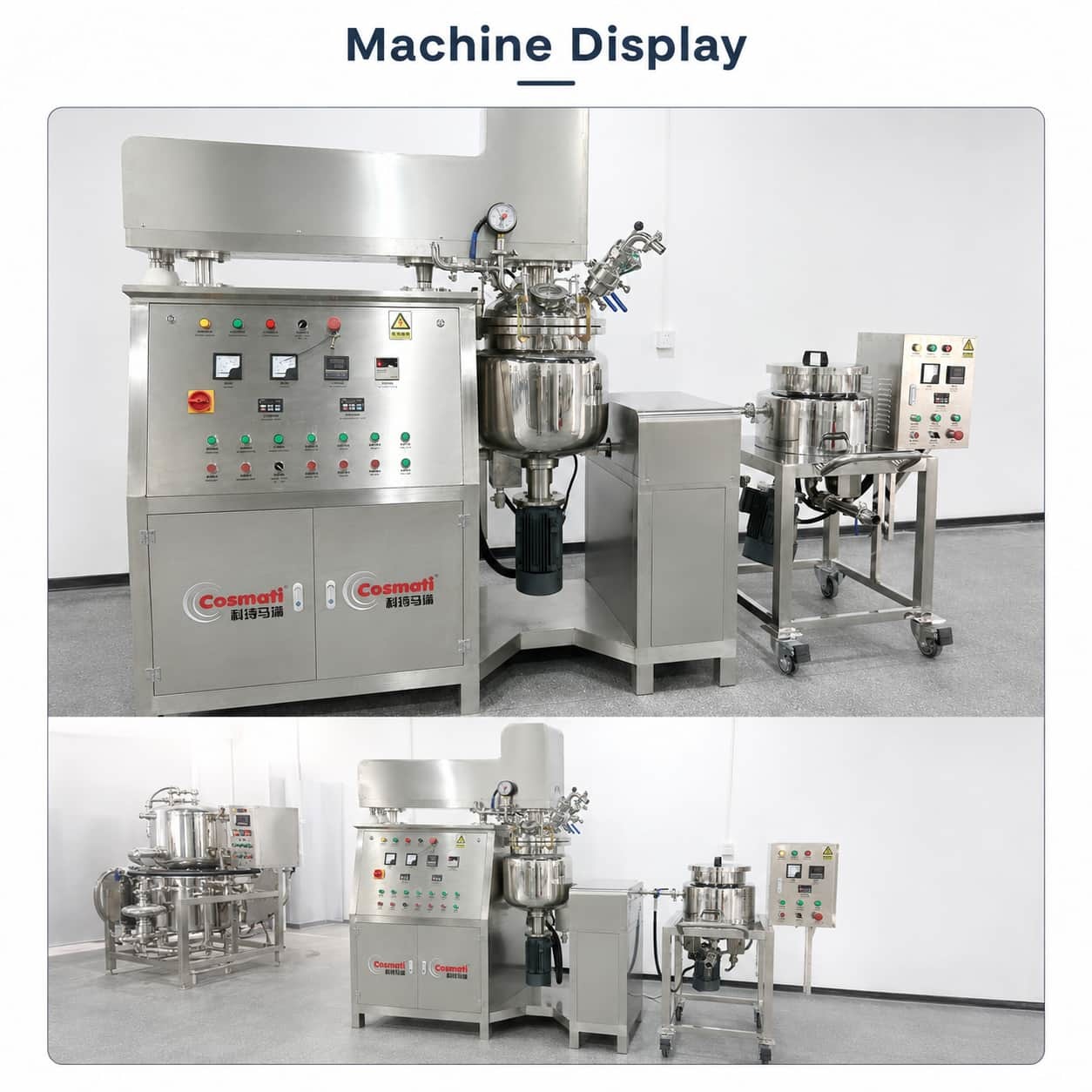

High Speed Vacuum Emulsifying Mixer Hand Cream Aloe Gel Homogenizer Machine

Introduction

The Vacuum Emulsifying Mixer Homogenizer is designed for high-speed shearing, emulsifying, dispersing, mixing and vacuum deaeration of liquid and paste materials.

The combination of low-speed scraping agitation and high-speed homogenization helps produce a smooth, uniform and fine product while reducing air bubbles during processing.

The machine can be equipped with heating and cooling functions, a vacuum system, variable-speed control and optional PLC touch screen or push-button operation.

Product-contact parts can be made of SUS316L stainless steel for good corrosion resistance and easy cleaning. Depending on the configuration, capacities from approximately 50L to 500L are available, with mixing speeds around 0–65 rpm and homogenizing speeds up to 3600 rpm. It is widely used for cream, lotion, ointment, gel, hair conditioner, shampoo and other cosmetic and daily chemical products.

Features

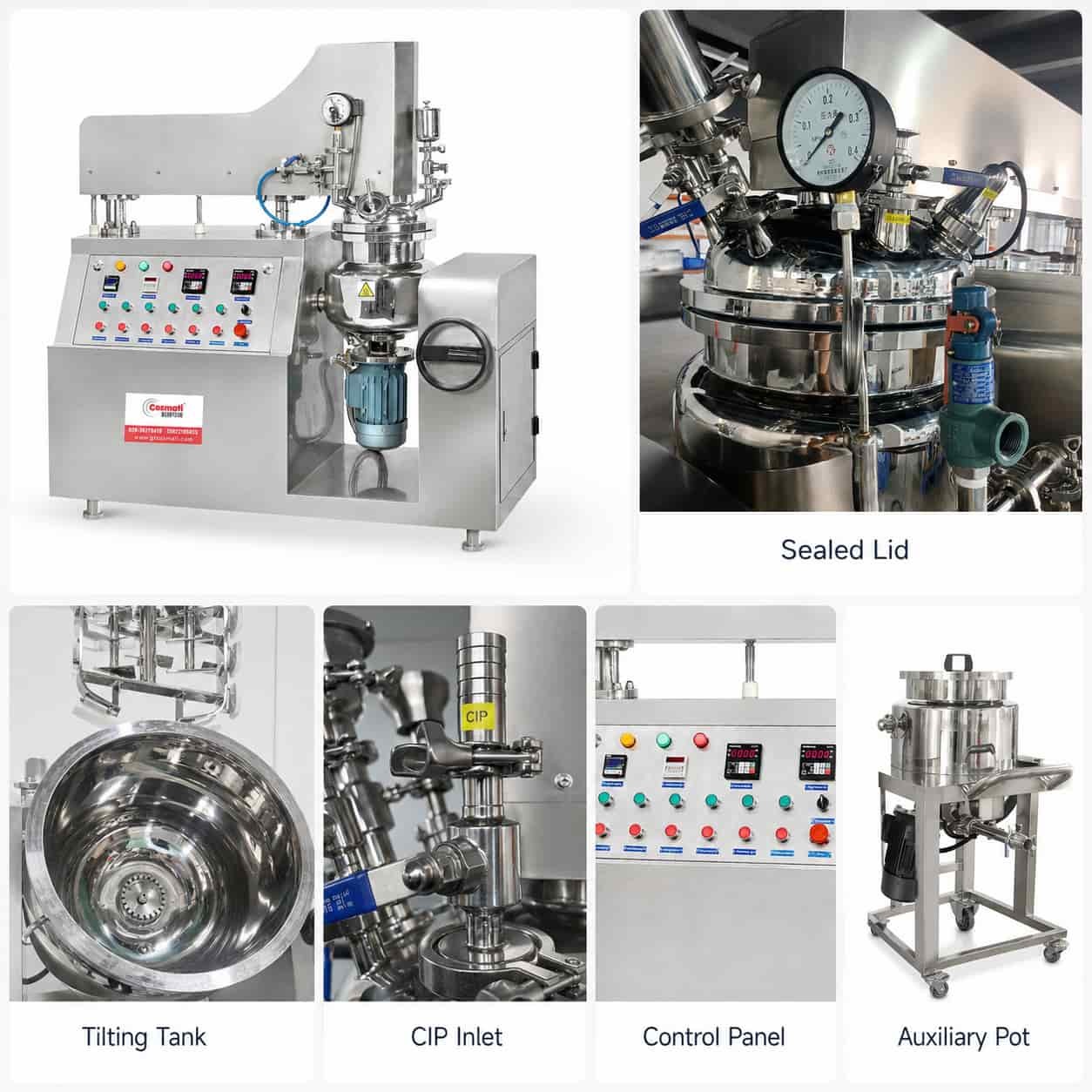

1. Vacuum Emulsifying System – Removes trapped air during mixing and helps achieve a smoother and more stable finished product.
2. High-Speed Homogenization – High shear homogenizer up to approximately 3600 rpm provides fine emulsification and effective dispersion.
3. Scraper Mixing System – Low-speed agitation with wall scraper continuously moves material from the tank wall for more uniform mixing.
4. Heating & Cooling – Jacketed tank design supports temperature control during different production processes.
5. SUS304 / SUS316L Construction – Product-contact parts can be made of SUS316L stainless steel for corrosion resistance and hygienic production.
6. Adjustable Mixing Speed – Mixing speed can be adjusted according to product viscosity and process requirements.
7. Optional Control System – Available with PLC touch screen or push-button control according to production needs and budget.
8. Multiple Capacity Options – Configurations such as 50L, 100L, 200L, 300L and 500L are available for different batch sizes.
9. Easy Cleaning & Discharge – Smooth stainless steel surfaces, convenient discharge structure and optional CIP configuration simplify daily cleaning.

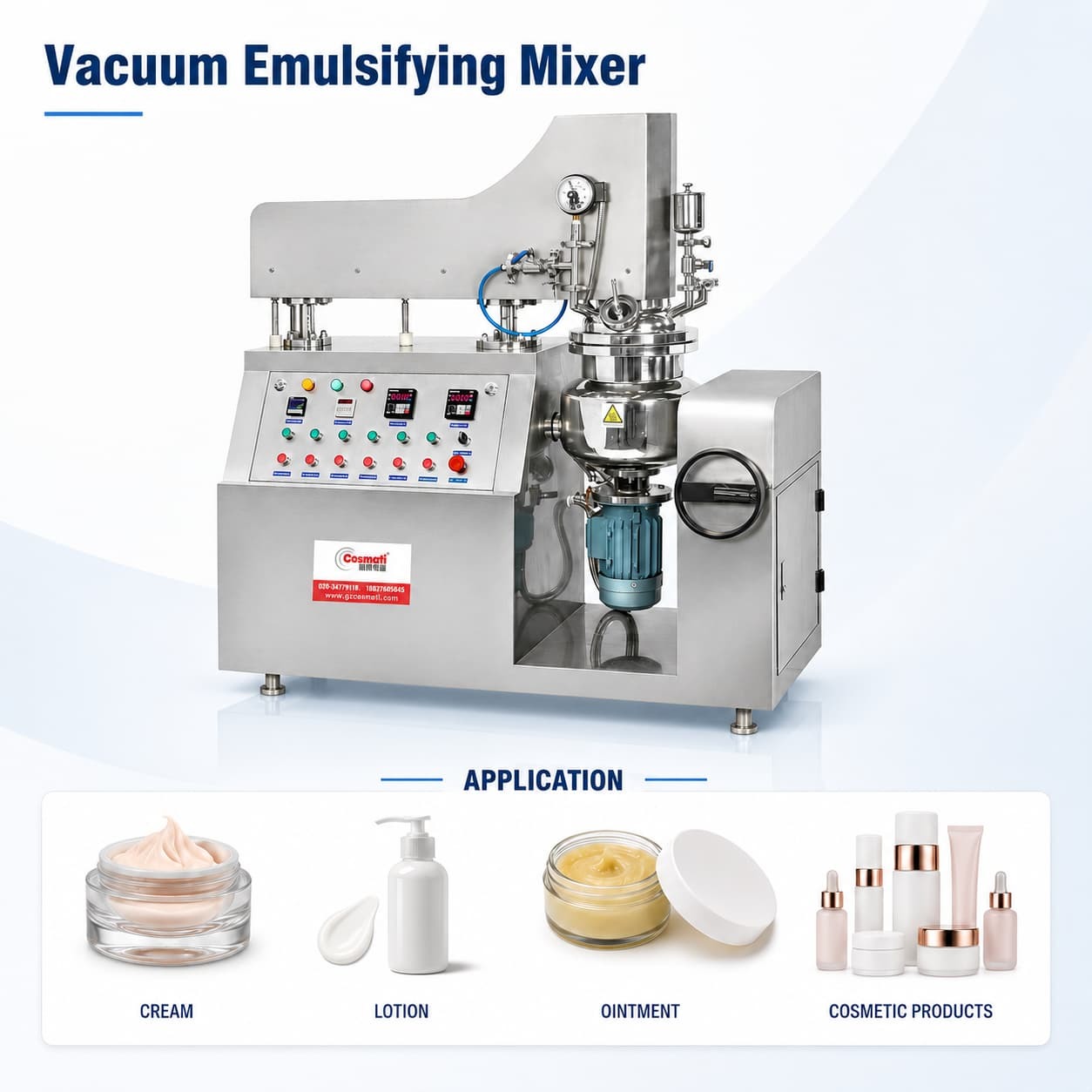

10. Wide Application – Suitable for face cream, body lotion, cosmetic emulsion, ointment, gel, shampoo, conditioner and other liquid or paste products.
