Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment

1
MOQ
$3,000-3,500
Price
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Features Gallery Product Description Chat Now
Features
Specifications
Mixer Type: Homogenizer
Material Processed: Chemicals, Food, Cosmetic
Range Of Spindle Speed(r.p.m): 0 - 3000 R.p.m
Weight (kg): 120
Material: SUS304, SUS316L
Product Type: Cosmetic
Additional Capabilities: Milling
Voltage: 220V/380V, Customized
Dimension(l*w*h): L1000*W1000*H2100mm
Power (kW): 5.5 KW
Warranty: 1 Year
Key Selling Points: Easy To Operate
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Motor, Gearbox, Bearing, Other
Capacity: 200 L
Product Name: Pneumatic Lifting Homogenizer Mixer
Product Type: Homogenizer
Keyword: Electric Lifting Homogenizer
Type: 50-500L(Customized)
Structure: Vertical
Control: Electronic Control
Mixing Type: Liquid Mixture Stirring
Sirrer: 0-3000rpm.
Dimension: L1000*W1000*H2100mm
Highlight:

Liquid Detergent High Shear Homogenizer

,

Shampoo Paint High Shear Homogenizer

,

Oil Water Mixing High Shear Homogenizer
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: COSMATI
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description
Pneumatic Lifting Homogenizer Mixer
Liquid Detergent Shampoo Paint Mixing Equipment

Usage

It makes full use of the high-speed rotation of the homogenizing head connected to the engine to make the material blend with oil and water and become more delicate. The material is continuously ejected from the radial direction at high speed, and the flow direction is changed under the resistance of the material itself and the container wall. At the same time, under the effect of the upper and lower axial suction forces generated in the rotor area, two strong turbulent turbulent flows are formed. The material passes through several cycles, and finally completes the process of dispersion, emulsification and homogenization.

Features

  1. It is efficient equipment for low-speed mixing, high-speed dispersion, dissolution and mixing of liquids and solids powders with different viscosities.
  2. Pneumatic lifting, simple operation, flexible movement, low noise and stable operation.
  3. The mixer adopts a motor with the power of 5.5kW, variable frequency speed regulation, rotating speed of 0-1440 rpm, and the support is made of stainless steel SUS304.
Capacity
50-100L(Customized)
Contacted part
SS316L
Frame material
SUS304
Electrical Appliances
DELIXI, China
Speed
0-3000rpm
Motor
, Germany
Power
5.5KW
Inverter
Delta, Taiwan
Size(L*W*H)
1000*1000*2100mm
Type
Pneumatic lifting

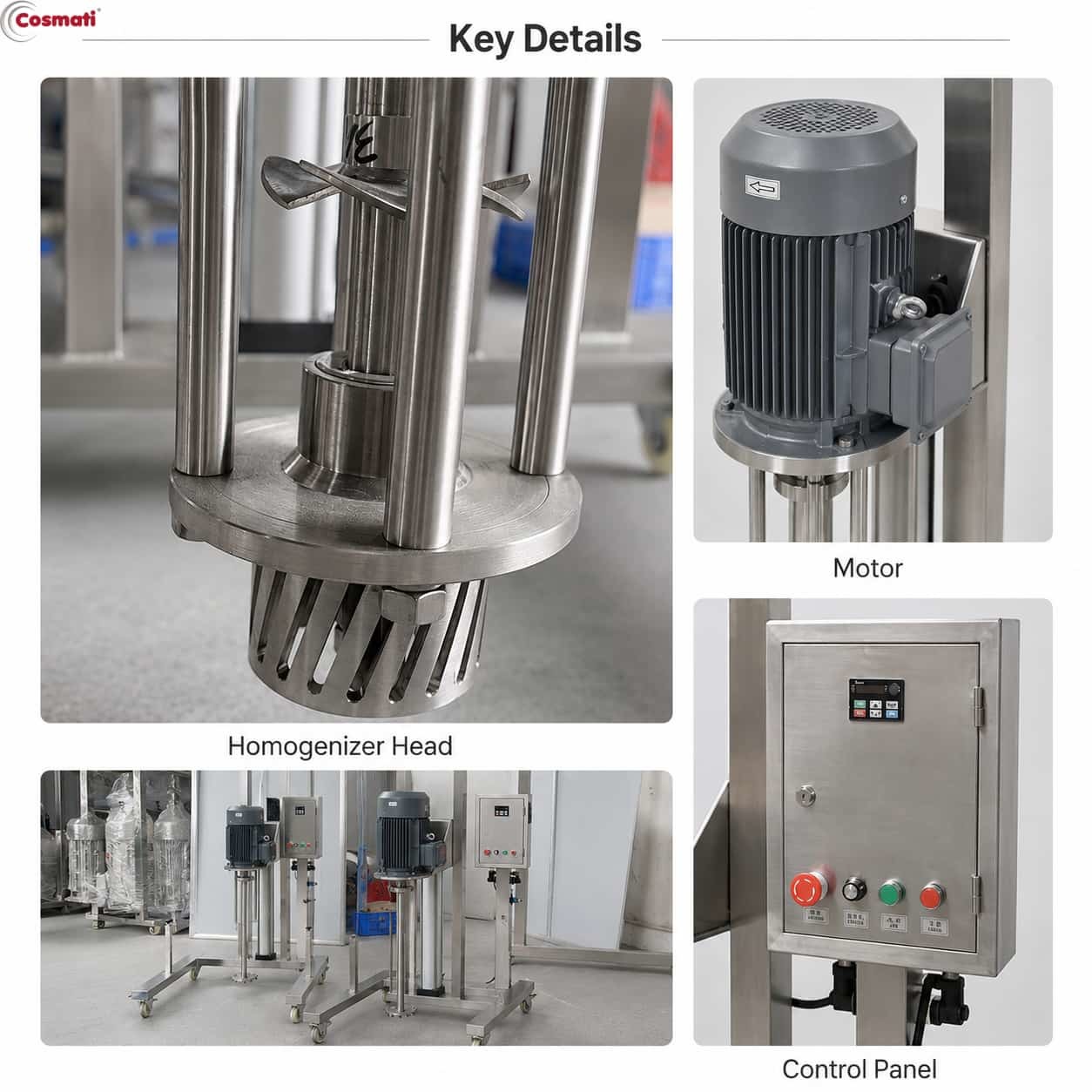

Details Images
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment

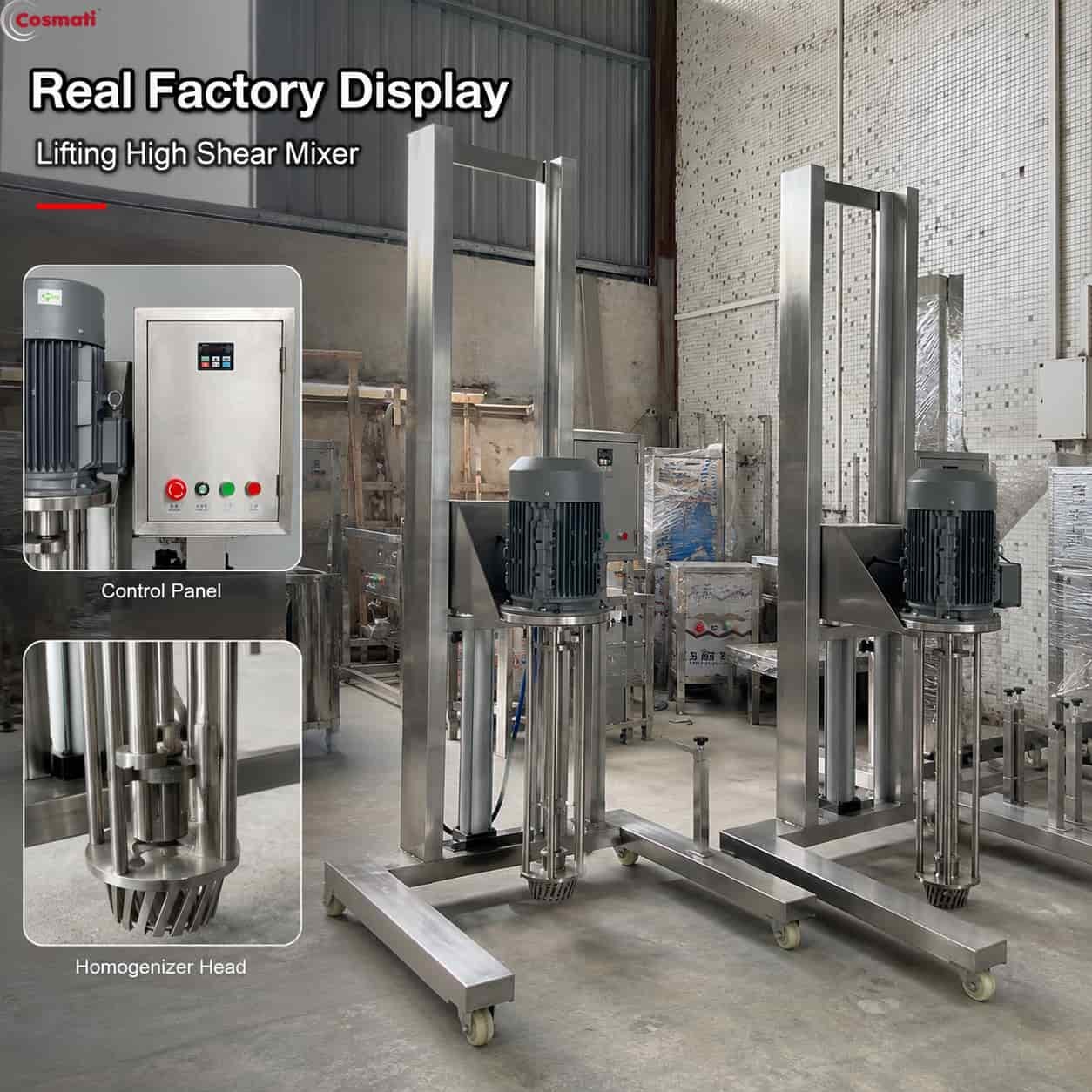

Factory profile
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment


Engineer case
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment

Trade show participation
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment
Packaging & shipping specifications
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment



Application
Pneumatic Lifting Homogenizer Liquid Detergent Shampoo Paint Mixing Equipment

FAQ

Q1: What products can this pneumatic lifting homogenizer process?
A: It is suitable for liquid detergent, shampoo, lotion, cosmetic liquids, paint, coatings and other chemical or liquid products requiring homogenizing and mixing.

Q2: What is the standard capacity?
A: The standard capacity shown is 200L. Other capacities can be customized according to production requirements.

Q3: What is the speed range?
A: The homogenizing speed can be adjusted from 0 to 3000 rpm according to different materials and processing needs.

Q4: What is the advantage of the pneumatic lifting system?
A: The pneumatic lifting structure allows the homogenizing head to move up and down conveniently, making tank replacement, material loading and cleaning easier.

Q5: What is the motor power?
A: The standard configuration uses a 5.5 kW motor.
