5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier

1
MOQ
$1,300-1,500
Price
5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier
Features Gallery Product Description Chat Now
Features
Specifications
Mixer Type: Homogenizer
Material Processed: Chemicals, Food, Cosmetics
Range Of Spindle Speed(r.p.m): 2000 - 15000
Weight (kg): 12
Material: SS316L
Product Type: Shampoo, Cosmetic
Voltage: 220 V
Dimension(l*w*h): 215*310*720
Power (kW): 1.35kw
Warranty: 1 Year
Key Selling Points: Easy To Operate
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Motor
Capacity: 30 L, 0.15-30L
Production Name: Lab Cream Lotion Paste Homogenizer Mixer
Key Words: Lab Scale Shampoo Conditioner Homogenizing Machine
Powder Supply: AC220/1P/50-60Hz
Speed: 2000-15000rpm
Input/output Power: 1350W/800W
Working Head Material: SS316L
Control Mode: Combined Control Knob
Working Temperature: Less Than 40℃
Timing Control Range: 1~1000 Minutes
Highlight:

20L High Shear Homogenizer

,

Lab Emulsifying High Shear Homogenizer

,

Particle Refining High Shear Homogenizer
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: COSMATI
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

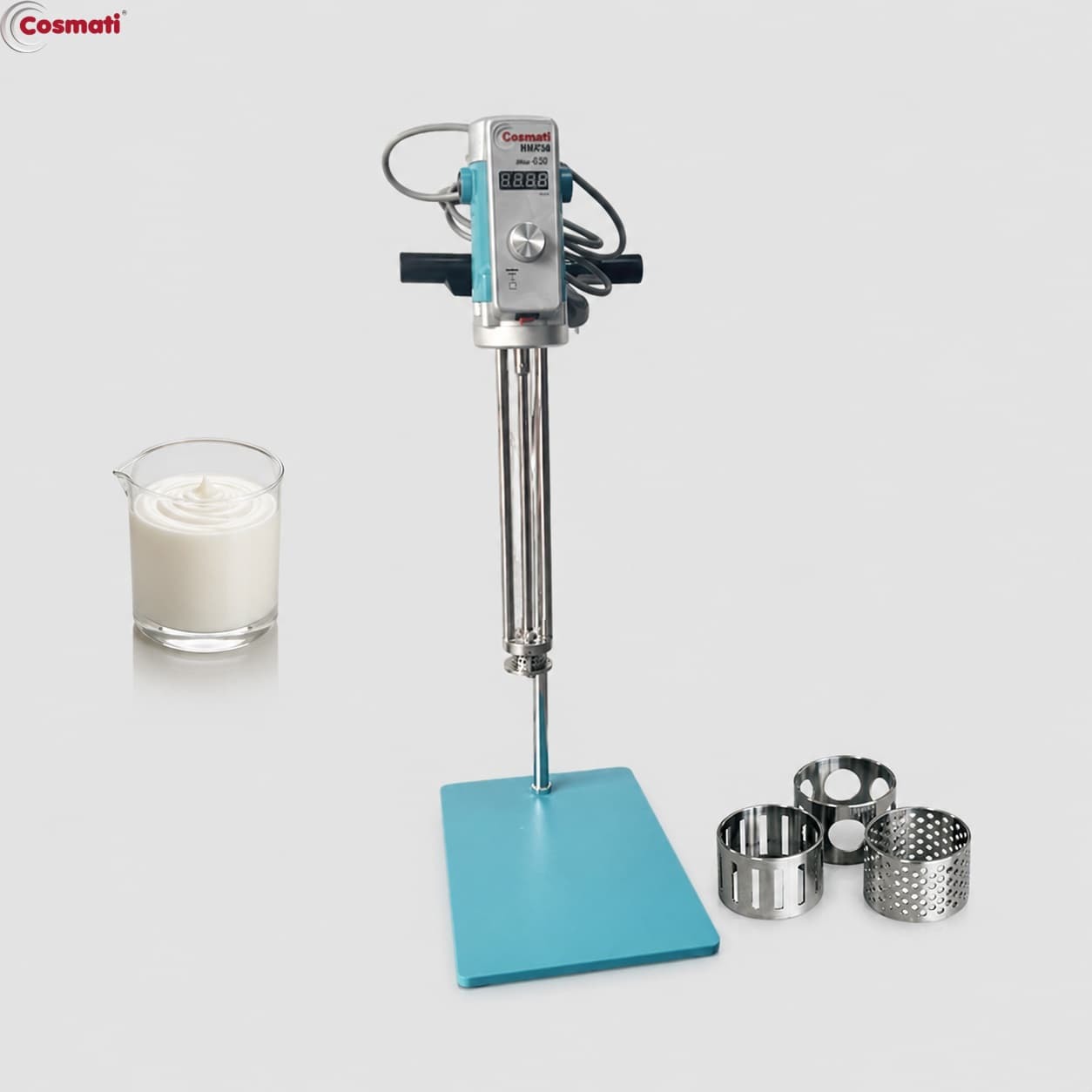

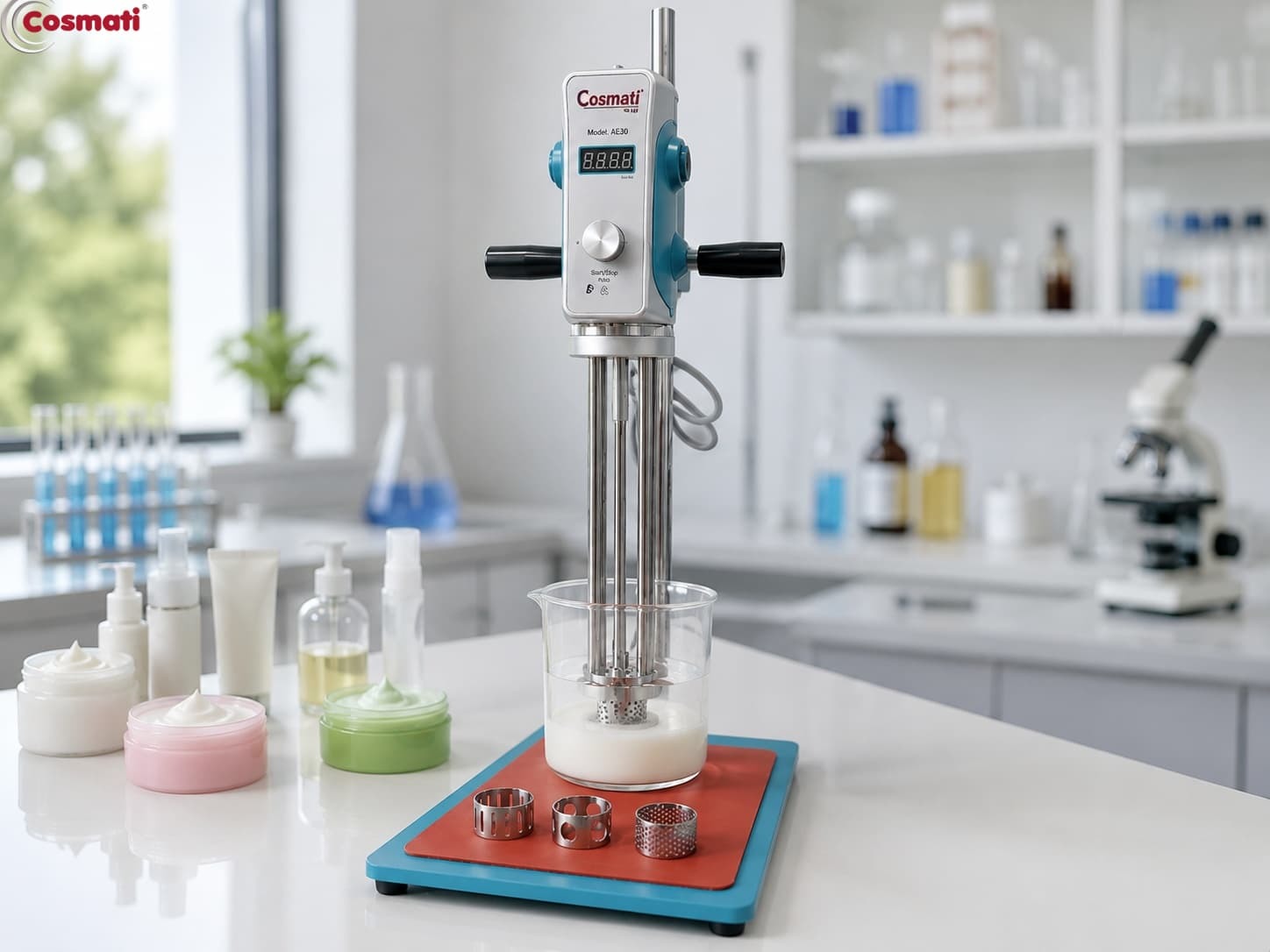

AE30 5L 10L 20L 30L High Shear Homogenizer Mixer Laboratory Emulsifier

Description

This high-speed laboratory homogenizer is designed for small-batch mixing, emulsifying, dispersing and homogenizing applications. The high-shear rotor-stator system provides efficient liquid-liquid emulsification and solid-liquid dispersion, helping reduce particle size and create a finer, more uniform mixture.With a compact laboratory stand design and adjustable operating speed, it is suitable for laboratory R&D, formulation development, sample preparation, quality control and small-batch testing. Different homogenizing heads can be selected according to batch size and material characteristics.The machine is widely used for cosmetic creams, lotions, shampoos, gels, liquid foundations, food formulations, coatings, adhesives, daily chemicals and other liquid or semi-viscous materials. It is suitable for laboratories, universities, research institutes, cosmetic manufacturers and product development departments requiring flexible small-scale homogenizing and emulsifying equipment.

Features

Rated voltage: AC220V ±10
Rated frequency: 50/60 Hz
 Input/output power: 1350W/800W
Operation control mode: combined control knob
Speed adjustment range: 2000~15000 rpm
Speed control type: stepless
Timing control range: 1～1000 minutes
Speed dynamic detection: Yes
Speed memory function: Yes
Overload protection function: Yes
Working head material: stainless steel 316
Working head diameter: Φ50 mm
Rotor diameter: Φ29 mm Stator and rotor clearance: 0.5 mm
Maximum peripheral speed: 22.8 m/s
Immersion depth: 38~260 mm

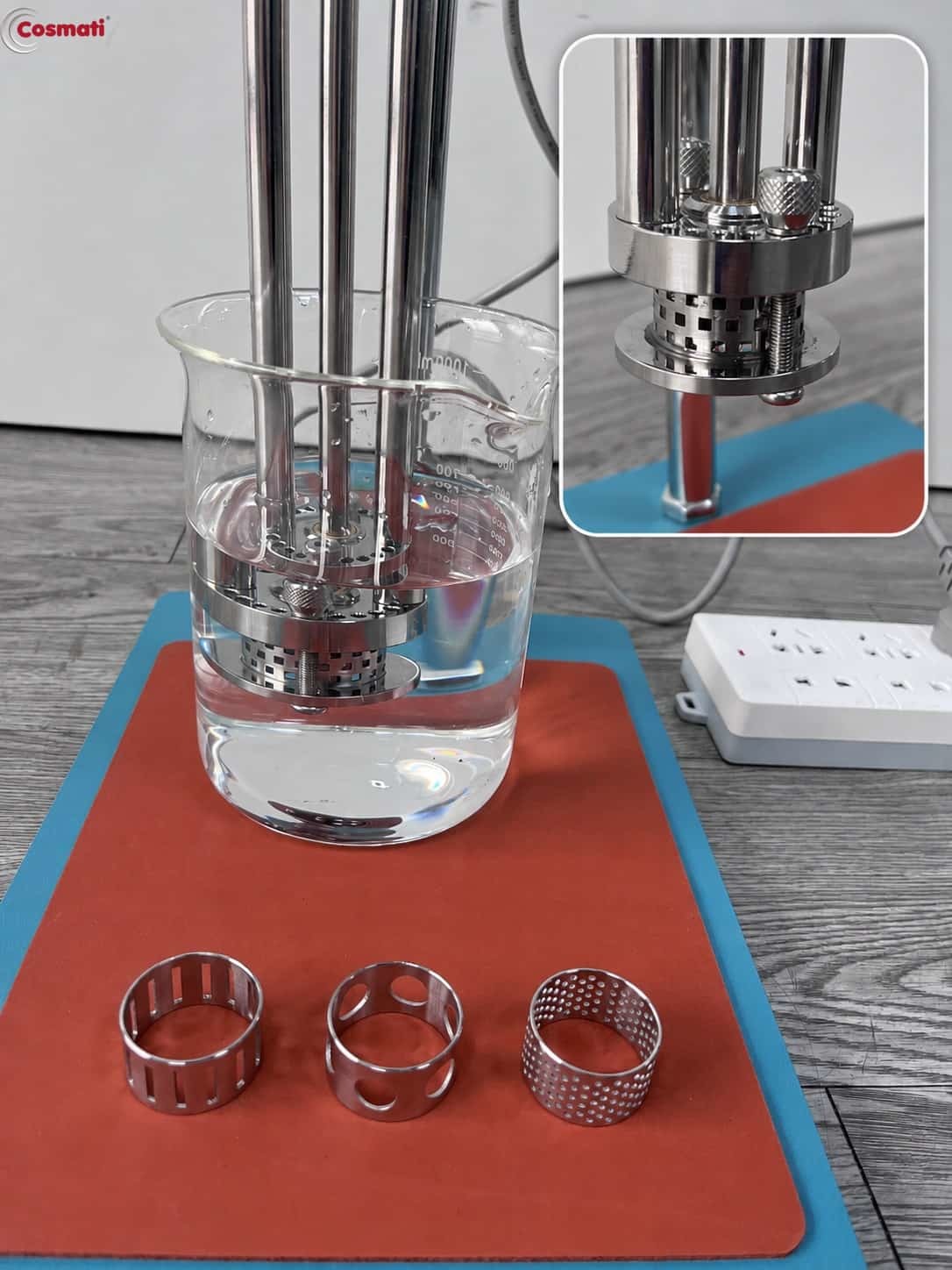

Standard configuration of stator: square hole/long hole/round hole/large round hole
Processing capacity: 150-30000ml
Allowable ambient temperature: no more than 40 ℃
Allowable relative humidity: no more than 80%
Overall dimensions: 215×310×720 mm
Details
Model
CM-LH-30
Packing size
715*310*720mm
Speed
2000-15000rpm
Contacted part
SS316L
Power supply
110V/220V
Capacity
150-30000ml(Customized)
Input/Output power
1.35 KW / 0.8 KW
Weight
12KG
Speed controller
Adopts stepless speed controlling, speed can reach up to 1200-15000rpm
Working head
Material is made of ss316l
Contacted part material is made of stainless steel 316l
Factory profile
5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier


Engineer case
5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier
5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier

5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier

Trade show participation
5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier
Packaging & shipping specifications
5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier

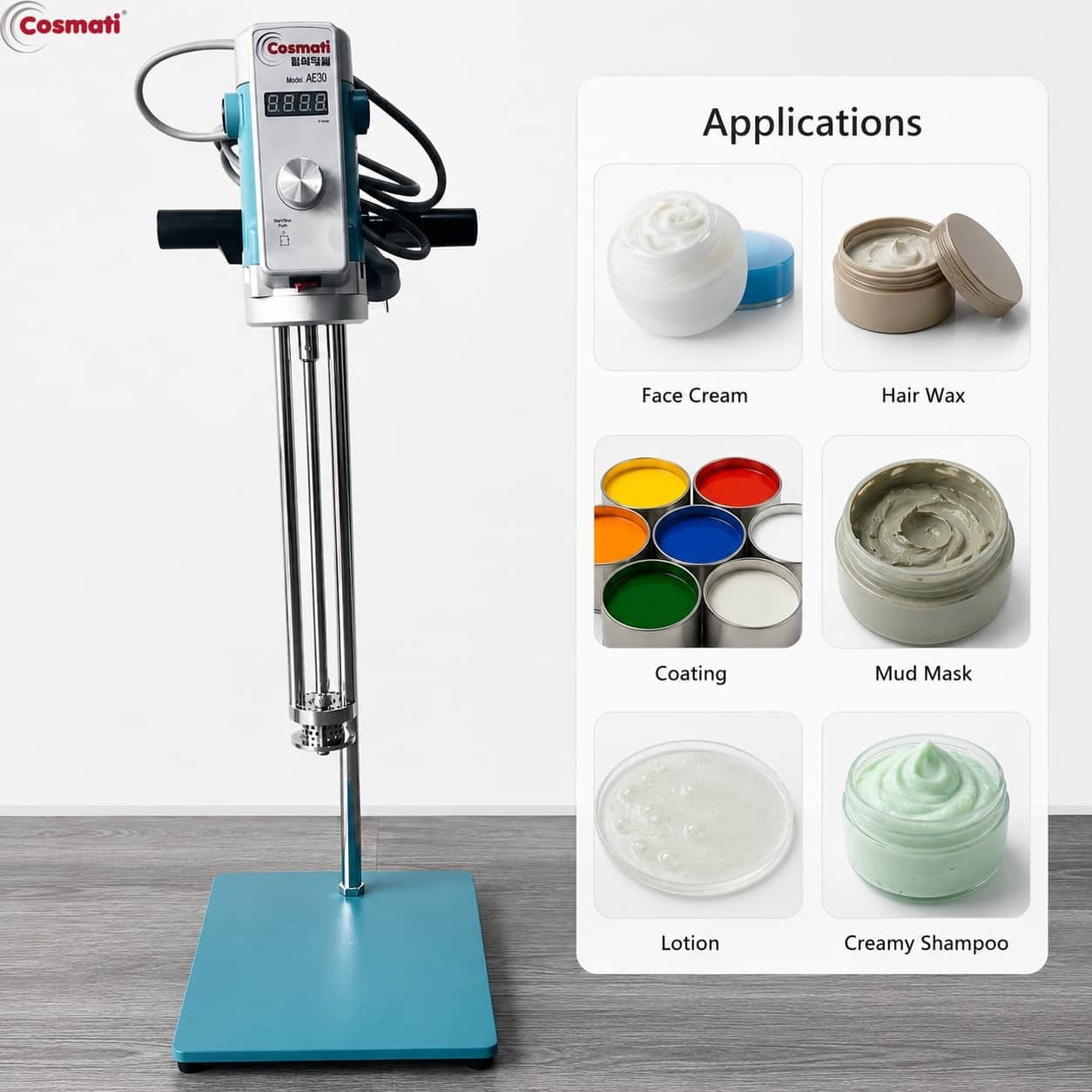

Application

5L 10L 20L 30L High Shear Homogenizer Mixer Lab Emulsifier

FAQ

Q1: What products can this laboratory homogenizer process?
A: It is suitable for cosmetic creams, lotions, shampoos, gels, liquid foundations, food formulations, coatings, adhesives and other liquid or semi-viscous materials.

Q2: What is the main function of this machine?
A: It is designed for high-shear mixing, emulsifying, dispersing and homogenizing during laboratory R&D and small-batch testing.

Q3: Can it mix both liquids and powders?
A: Yes. It can be used for liquid-liquid emulsification and solid-liquid dispersion, such as dispersing powders into liquid formulations.

Q4: Is this machine suitable for cosmetic product development?
A: Yes. It is suitable for formulation development, sample preparation, quality control and small-batch testing of creams, lotions, shampoos and other cosmetics.

Q5: Can different homogenizing heads be used?
A: Yes. Different homogenizing heads can be selected according to batch size, material viscosity and processing requirements.
