50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine

1
MOQ
$5,200-5,500
Price
50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine
Features Gallery Product Description Chat Now
Features
Specifications
Mixer Type: Homogenizer
Material Processed: Chemicals, Food, Cosmetic
Range Of Spindle Speed(r.p.m): 0 - 60 R.p.m
Weight (kg): 980
Material: SUS304, SUS316L
Product Type: Cosmetic
Motor Type: DC Motor
Additional Capabilities: Milling
Voltage: 220V/380V 50HZ
Dimension(l*w*h): Refer To Drawing
Power (kW): 75 KW
Warranty: 1 Year
Key Selling Points: Easy To Operate
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Motor, Gear, PLC, Bearing, Engine, Other
Capacity: 200 L, 10L-20000L
Configuration: Vertical
Product Name: Vacuum Emulsifier
Heating Mode: Electric Or Steam(optional)
Homogenizing Speed: 0-3000r/min
Type: Lifted Type/fixed Type
Control Panel: Key Control Or Touch Screen(optional)
Keyword: Homogenizing Emulsifier Machine For Cosmetic Cream Lotion
Function: High Shear Homogenizer And Emulsifying
Application: Homogenizing Emulsifying Machine
Structure: Main Emulsifying Pot +water Oil Tank
Highlight:

200L Vacuum Homogenizer Mixer

,

Hydraulic Tilting Vacuum Homogenizer Emulsifier

,

Wall Scraping Vacuum Homogenizer Mixer
Basic Infomation
Place of Origin: Guangdong
Brand Name: COSMATI
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description
50 100 200 Liters Cosmetics Cream Making Machine Lotion Paste Heated Stirring Pot Emulsion Mixing Equipment

Introduction

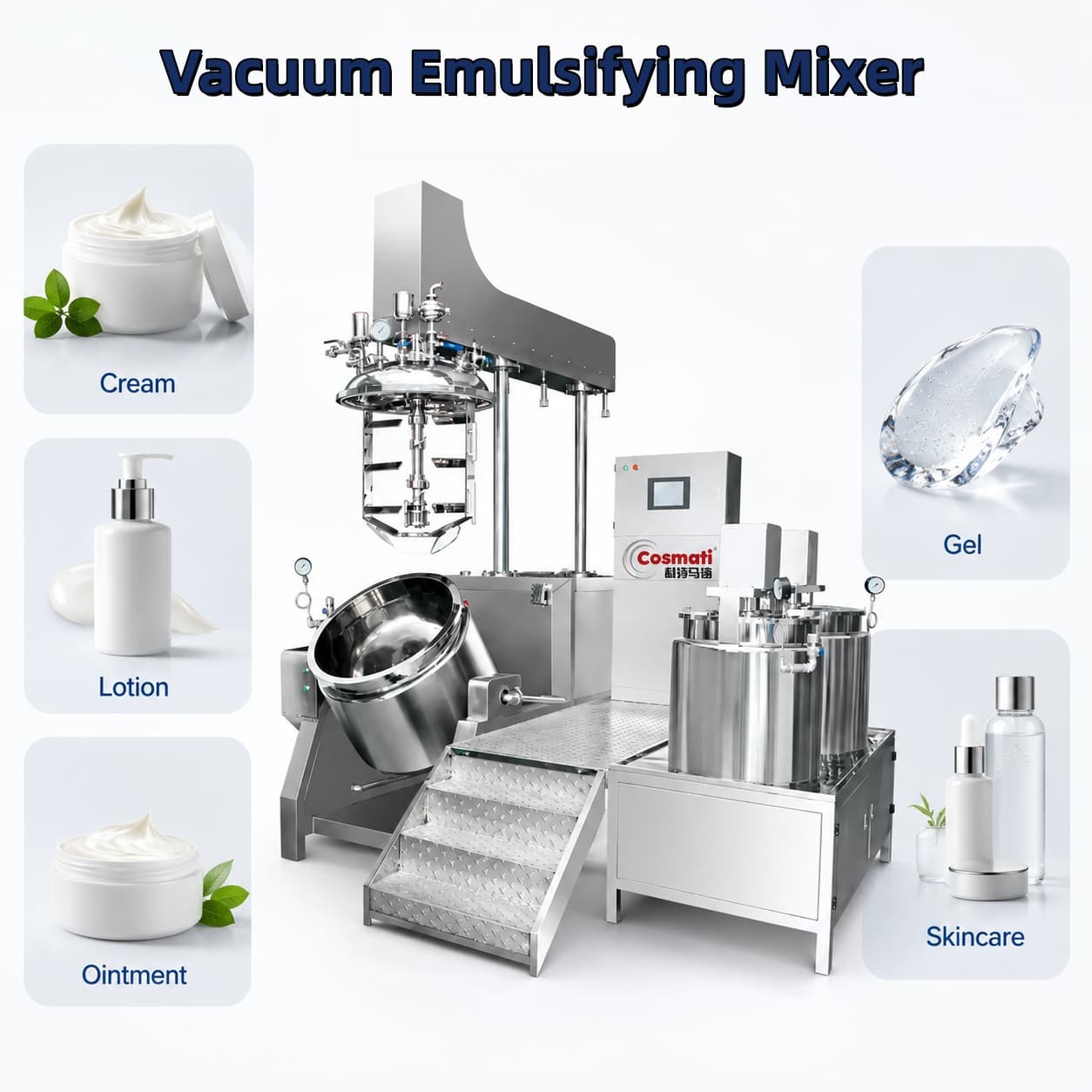

The 50–200L Vacuum Emulsifying Mixer is a compact production system developed for small and medium cosmetic batches. Its hydraulic lifting lid and tilting mixing tank make cleaning, inspection
and high-viscosity product discharge much easier. Combined with vacuum emulsification, wall scraping and high-shear homogenizing, it is ideal for producing cream, lotion, gel, ointment and other cosmetic paste product

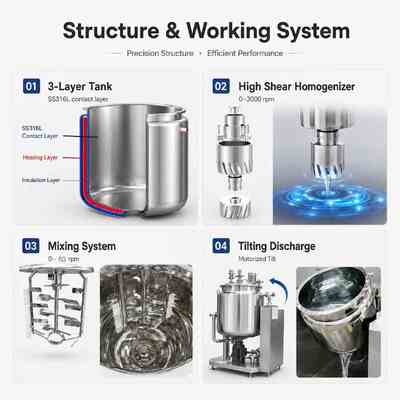

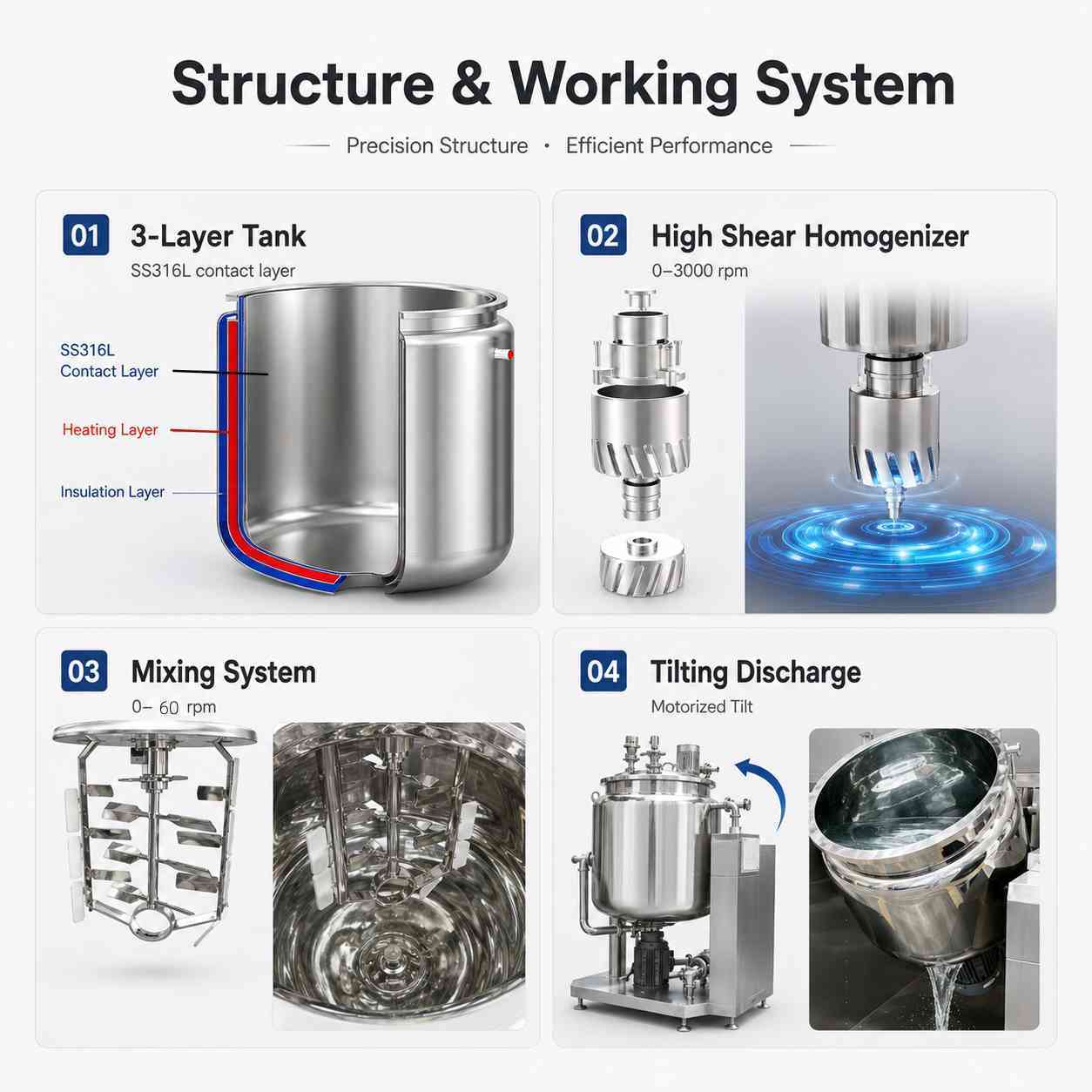

Features

  1. Vacuum Emulsifying & Deaeration
    The vacuum system helps remove trapped air during mixing, improving product texture, appearance and emulsification stability.

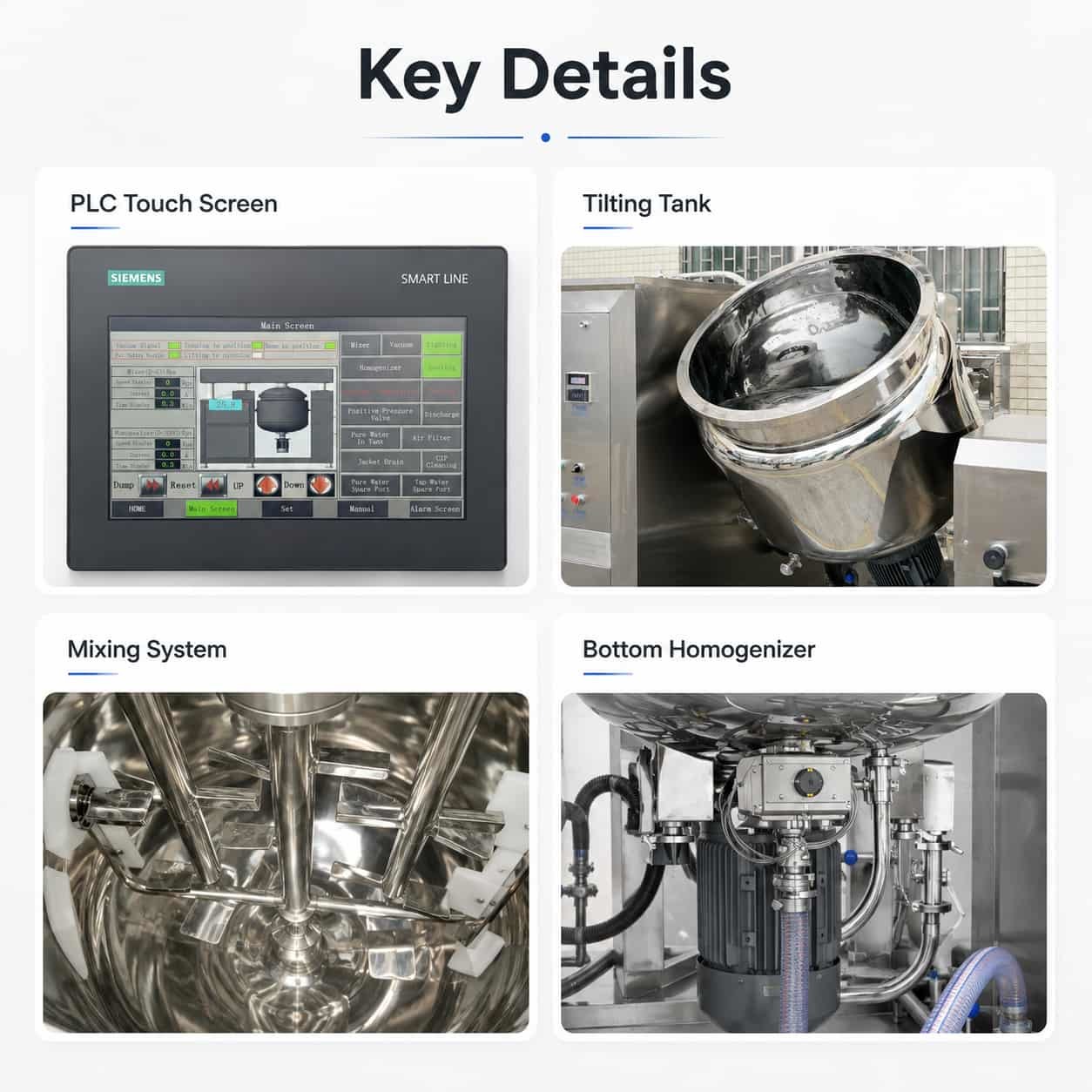

  2. Hydraulic Lifting & Tilting Tank
    The mixing lid can be hydraulically lifted for convenient cleaning and maintenance, while the tilting tank allows easier discharge of high-viscosity products.
  3. High-Shear Homogenizing System
    Provides strong shearing and dispersion to produce finer, smoother and more uniform emulsions.
  4. Heating & Cooling Jacket
    The jacketed tank supports heating and cooling for better temperature control during different production processes.
  5. SS316L Contact Parts & PTFE Scraper
    Product-contact parts can be made of SS316L stainless steel, while the PTFE wall scraper continuously removes material from the tank wall for more uniform mixing and heat transfer.
Capacity
Wall scraper mixer
Homogenizer
Water and oil pot
Disperser
50L
1.1kw, 0-65rpm
2.2kw, 0-3600rpm
45/30L
0.37/0.37kw, 1440rpm
100L
1.5kw, 0-65rpm
4kw, 0-3600rpm
90/60L
0.55/0.55kw, 1440rpm
200L
3kw, 0-65rpm
5.5kw, 0-3600rpm
180/120L
0.75/0.75kw, 1440rpm
300L
4kw, 0-65rpm
7.5kw, 0-3600rpm
270/180L
1.1/1.1kw, 1440rpm
500L
5.5kw, 0-65rpm
11kw, 0-3600rpm
450/300L
1.5/1.5kw, 1440rpm
Factory profile
50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine


Engineer case
50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine
50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine
50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine

Trade show participation
50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine
Packaging & shipping specifications
50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine

Application

50-200L Vacuum Homogenizing Emulsifier Mixer Cosmetic Cream Lotion Machine

FAQ

Q1: What products can this machine manufacture?
A: It is suitable for cream, lotion, gel, ointment, conditioner, shampoo and other cosmetic or daily chemical liquid and paste products.

Q2: What capacities are available?
A: Standard options include 50L, 100L and 200L. Other capacities can also be customized according to your batch size.

Q3: Can it process high-viscosity cream?
A: Yes. The wall-scraping mixer and high-shear homogenizer are suitable for medium- and high-viscosity materials such as cream, paste and ointment.

Q4: How is the machine cleaned after production?
A: The hydraulic lifting lid provides convenient access to the tank interior, and the smooth stainless steel surfaces are easy to clean. A CIP cleaning system can also be configured if required.

Q5: Can the machine configuration be customized?
A: Yes. Capacity, voltage, heating method, homogenizer power, control system and other configurations can be customized according to your production process.
