Features

Specifications

Mixer Type: Agitator

Material Processed: Chemicals, Food

Range Of Spindle Speed(r.p.m): 0 - 50 R.p.m

Weight (kg): 6800

Material: SUS304, SUS316

Product Type: Cosmetic

Motor Type: AC Motor

Additional Capabilities: Milling

Voltage: 380V

Dimension(l*w*h): Refer To Drawings

Power (kW): 85 KW

Warranty: 1 Year

Key Selling Points: High Productivity

Machinery Test Report: Provided

Video Outgoing-inspection: Provided

Core Components: Motor, Pressure Vessel, PLC, Other, Bearing

Capacity: 10000L, 50-5000l

Configuration: Vertical

Product Name: 10000L Double Jacket Stainless Steel Mixing Tank With Agitator

Keyword: 10000 Liter Heating Homogenizer Mixer

Heating Methord: Steam

Application: Liquid Soap, Shampoo, Detergent, Shower Gel, Hand Santizer

Homogenizer: 0-3000rpm

Jacket: 3 Layers 2 Jackets

Highlight:

20000L Emulsifying Mixer

GMP Standard Emulsifying Mixer

Body Lotion Emulsifying Mixer

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: Cosmati

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

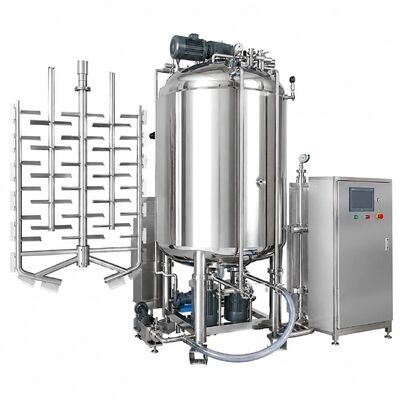

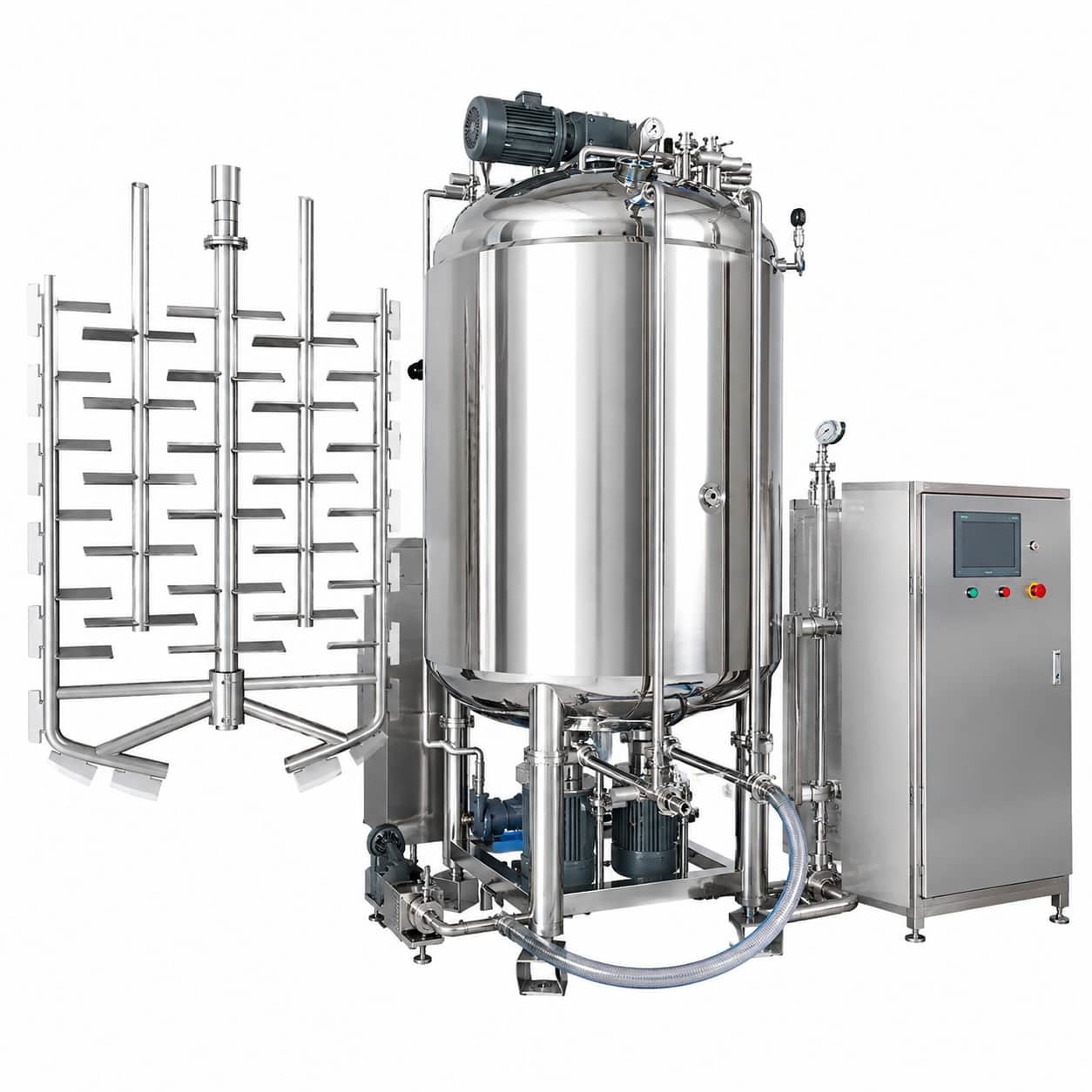

5000L-20000L Industrial Shampoo Detergent Soap Body Lotion Shoe Polish Mixer

Product Description

5000l 10000l 20000l industrial shampoo detergent soap body lotion shoe polish mixer

Introduction

1. Designed and manufactured in accordance with GMP standards (the overall support of the equipment is stainless steel, and the
pot body is polished 300U).
2. Low power consumption, strong mechanical protection function, constant torque work make the mechanical operation more stable.
3. The water circulation mechanical seal has good sealing performance and long service life. The homogenizer can work continuously
for 24 hours.
4. The relative movement of the upper wall scraping stirring paddle and the fixed paddle makes the material agitated more fullyand
evenly.

Volume	Mixer & Speed	Homogenizer & Speed	Heating mode	Design volume	Discharging valve
5000L	15KW, 0-50RPM	37KW, 0-3000RPM	Steam	6000L	76mm
10000L	18.5KW, 0-50RPM	30KW*2, 0-3000RPM	Steam	11000L	76mm

Factory profile

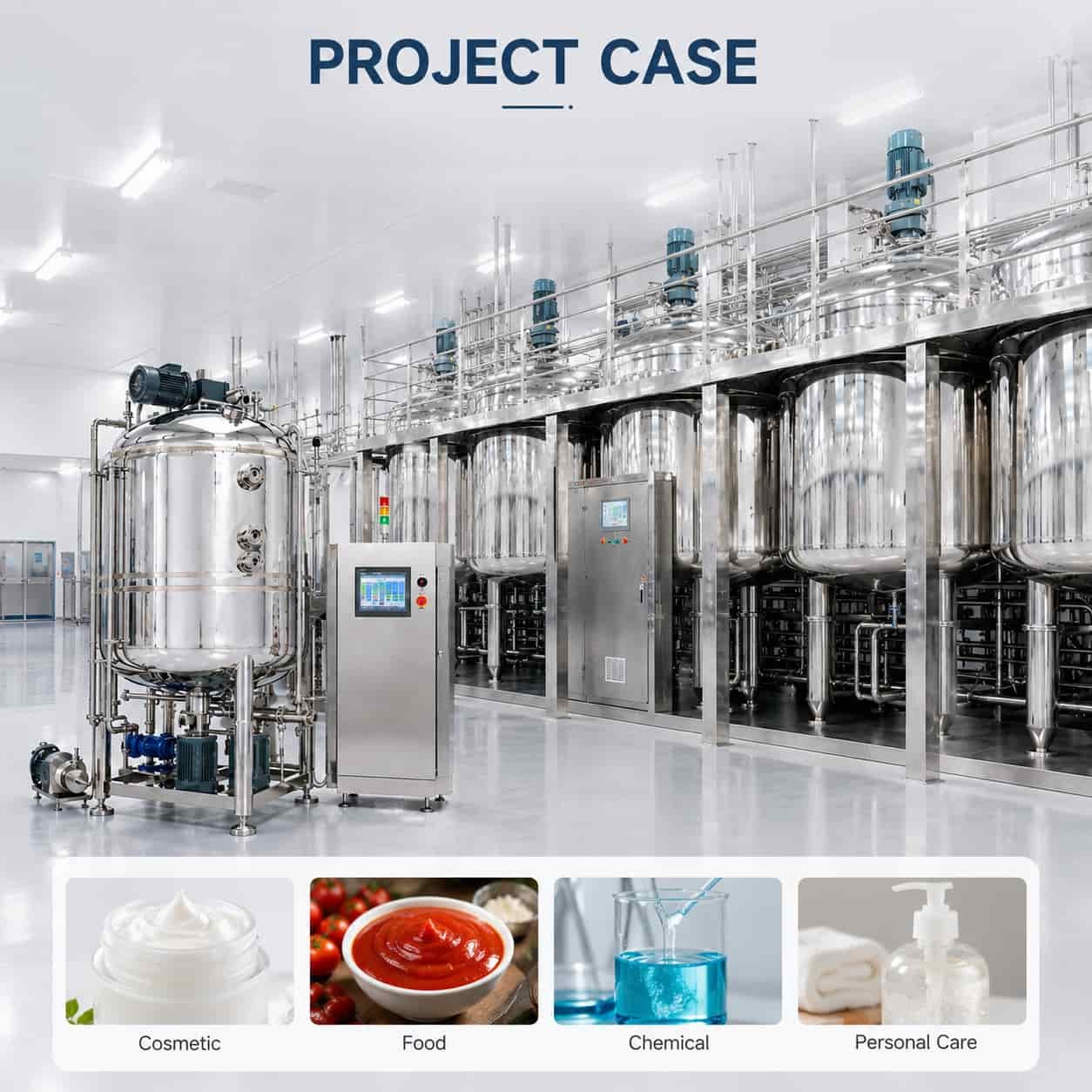

Engineer case

Trade show participation

Packaging & shipping specifications

Application

FAQ

Q1: What materials can this mixing tank process?
A: It is suitable for cosmetic, chemical, food and other liquid or paste materials that require mixing, homogenizing and blending.

Q2: Can the machine handle high-viscosity materials?
A: Yes. The large mixing frame provides strong material circulation, while the homogenizing system can be configured according to the viscosity and production process.

Q3: Can the mixing and homogenizing speeds be adjusted?
A: Yes. The machine uses variable-frequency control, allowing the mixing and homogenizing speeds to be adjusted according to different materials.

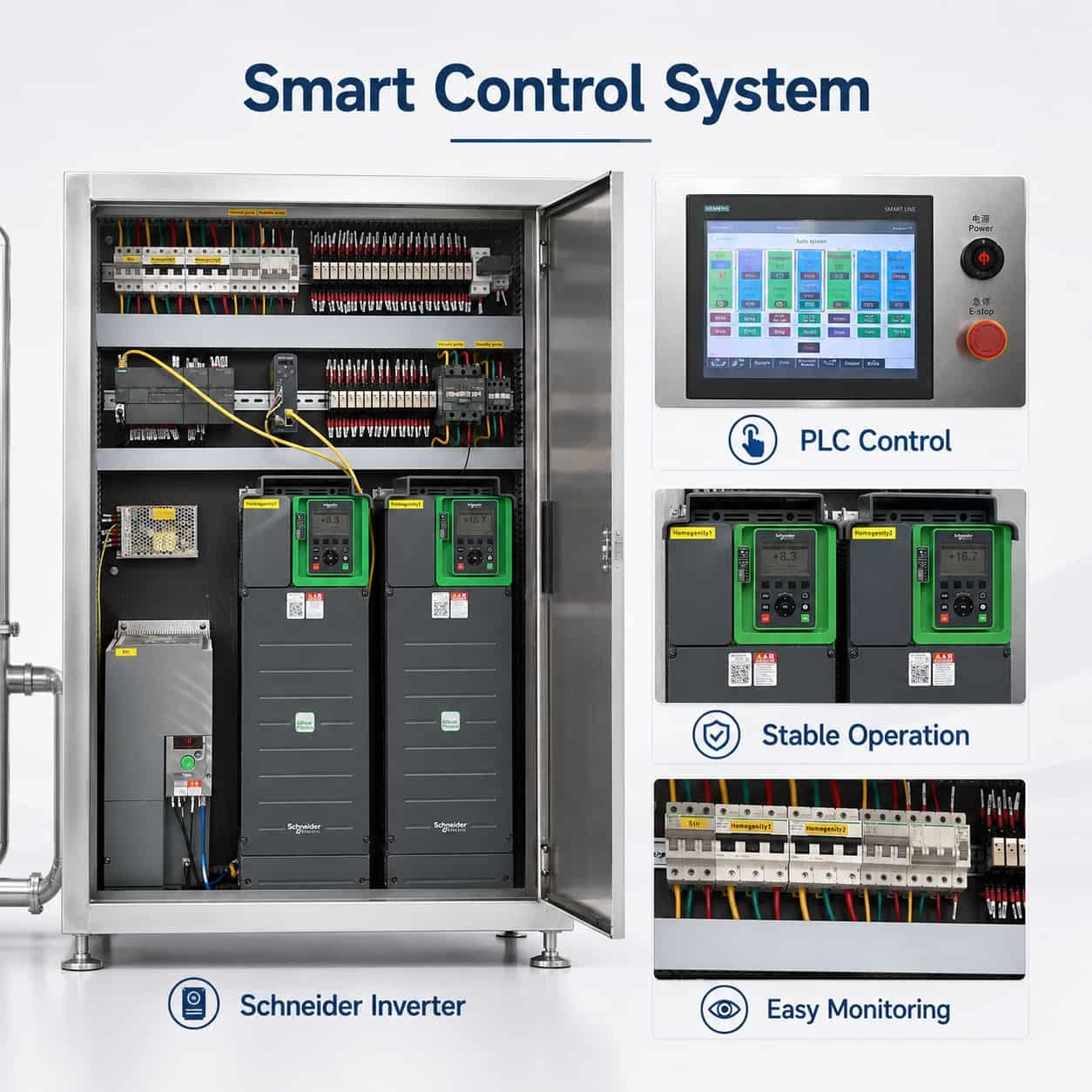

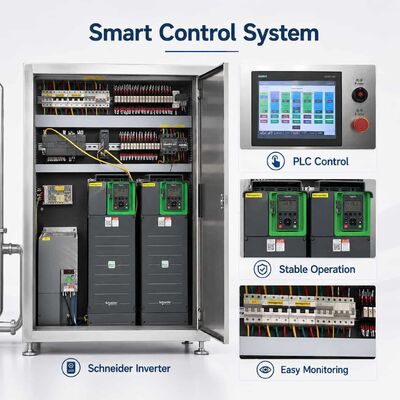

Q4: What control system does the machine use?
A: PLC touch screen control is available for convenient operation and monitoring of mixing, homogenizing and other processing functions.

Q5: Can the tank capacity and configuration be customized?
A: Yes. Tank capacity, motor power, voltage, mixing structure, homogenizer configuration and control system can be customized according to your production requirements.
