High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer

1
MOQ
$3,000-3,500
Price
High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer
Features Gallery Product Description Chat Now
Features
Specifications
Mixer Type: Agitator,Homogenizer
Material Processed: Chemicals
Range Of Spindle Speed(r.p.m): 0 - 3000 R.p.m
Weight (kg): 200
Material: SUS304, SUS316L
Product Type: Shampoo.Soap.Toothpaste.Paint,Cosmetic
Motor Type: AC Motor
Additional Capabilities: Milling
Voltage: 220V/380V, Customized
Dimension(l*w*h): L1000*W1000*H2100mm
Power (kW): 5.5 KW(7.38hp)
Warranty: 1 Year
Key Selling Points: Easy To Operate
Machinery Test Report: Provided
Video Outgoing-inspection: Provided
Core Components: Motor, Gear, Gearbox, Other
Capacity: 500 L, 200 L, 100 L, 100L
Configuration: Vertical
Product Name: Movable High Shear Homogenizer
Product Type: Homogenizer Disperser For High Viscosity Products
Usage: Chemical Industry
Keyword: Mixer
Structure: Vertical
Control: Electronic Control
Mixing Type: Liquid Mixture Stirring
Speed: 0-1440r/min
Dimension: L1000*W1000*H2100mm
Highlight:

AC Motor High Shear Homogenizer

,

Milling Chemical High Shear Homogenizer

,

Cosmetic Mixing High Shear Homogenizer
Basic Infomation
Place of Origin: Guangdong, China
Brand Name: Cosmati
Payment & Shipping Terms
Packaging Details: wooden cases
Delivery Time: 7 work days
Payment Terms: TT
Supply Ability: 10000 set
Product Description

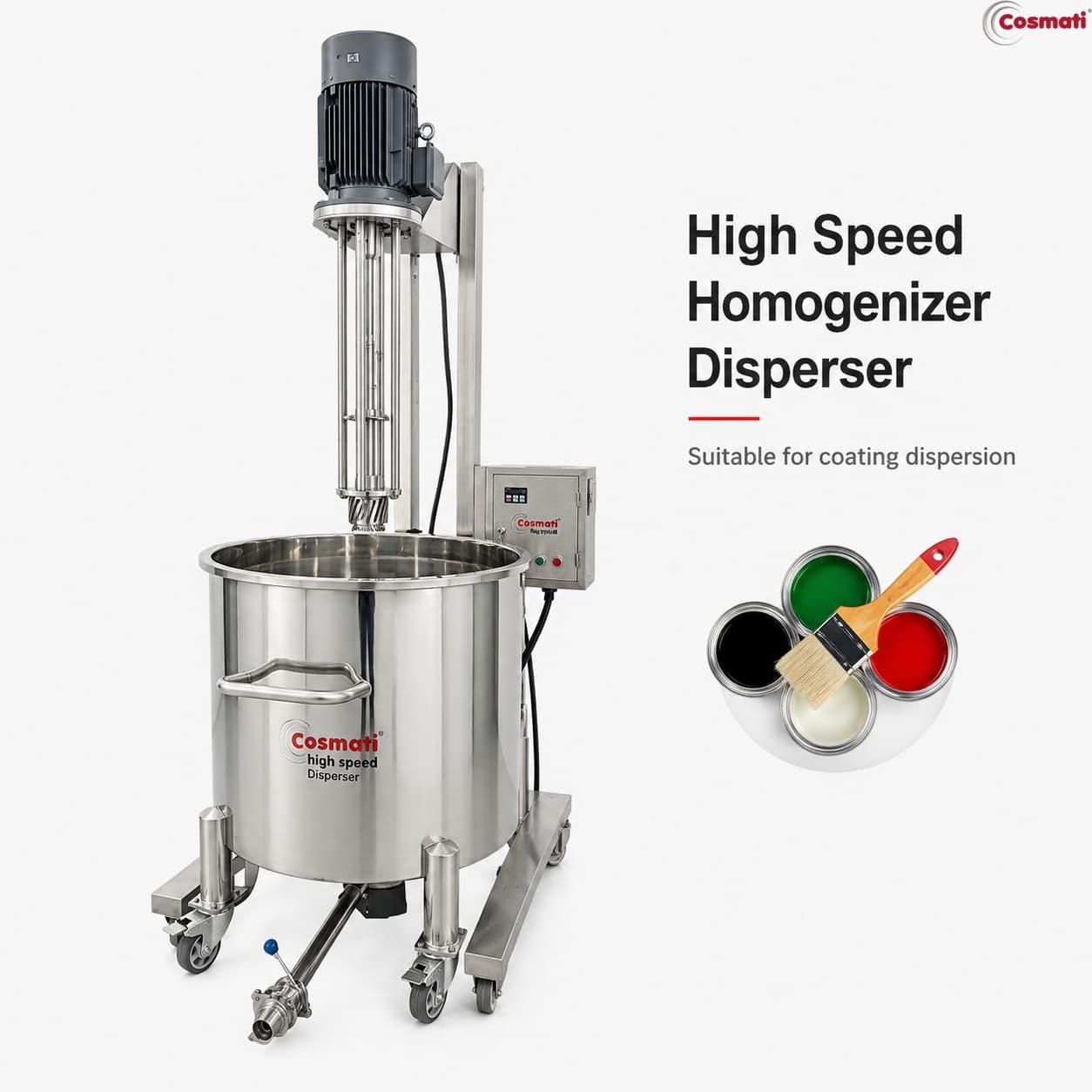

Pneumatic Lifting Shear Mixer Cosmetic Liquid High Shear Homogenizer High Speed Emulsifier Mixer

Usage

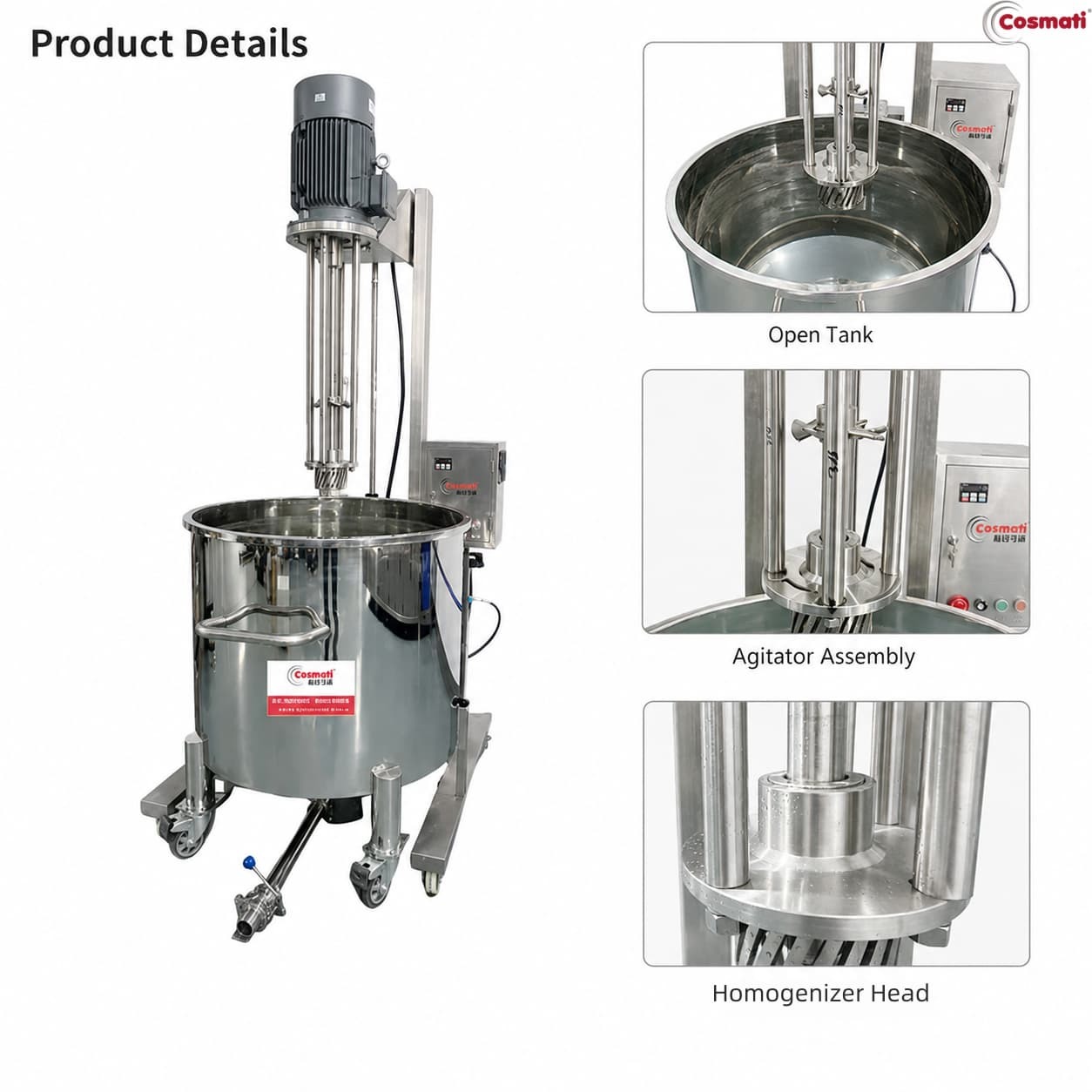

The movable high shear homogenizer is designed for efficient mixing, dispersing, emulsifying and homogenizing of liquid and semi-viscous materials. The high-speed rotor-stator homogenizing head generates strong shear force and intense material circulation, helping break down agglomerates and produce a finer, more uniform mixture.

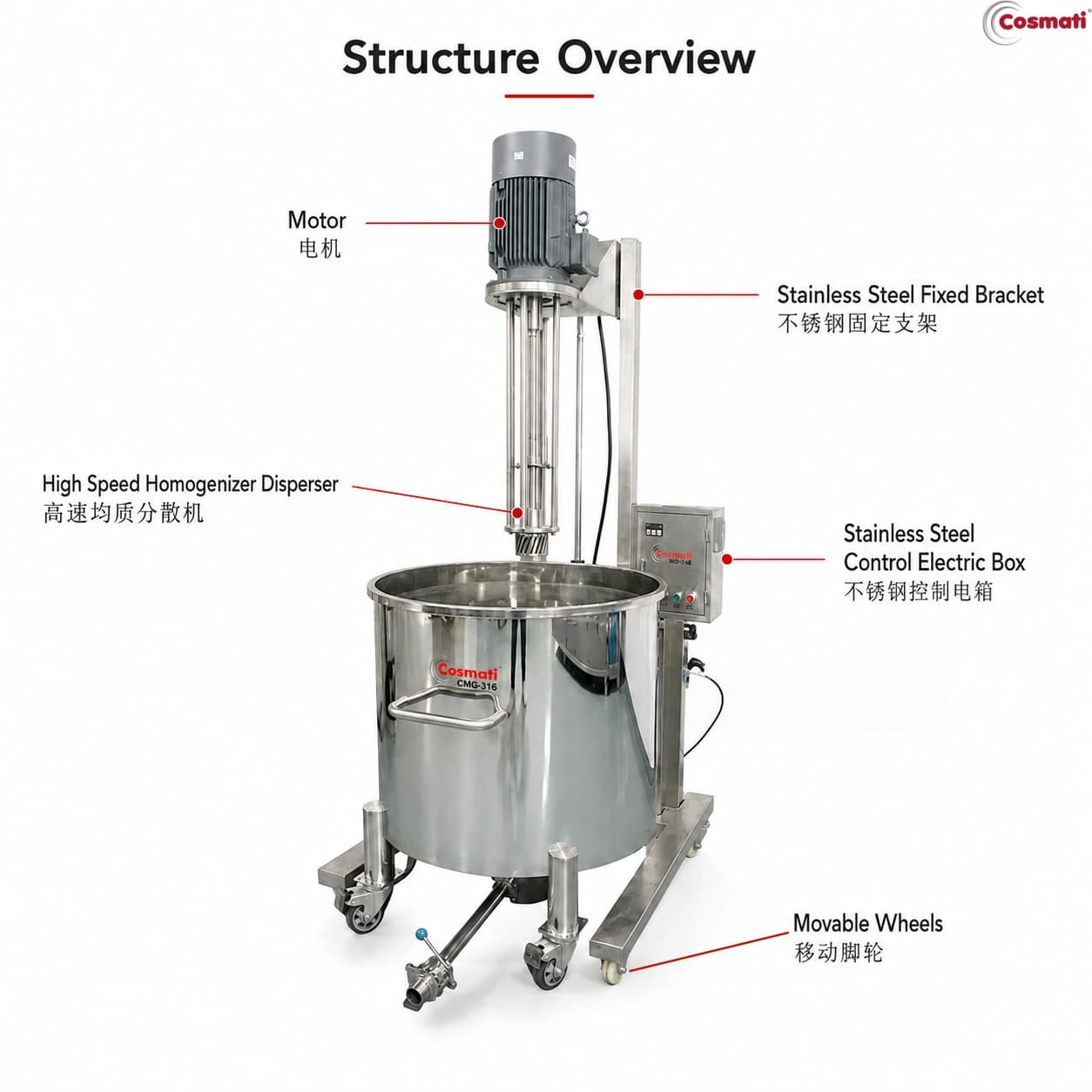

The lifting design allows the homogenizing head to move vertically for easier material loading, tank replacement and cleaning. The mobile stainless steel tank also provides greater flexibility for batch production.

It is suitable for cosmetics, shampoo, liquid soap, cream, lotion, paint, coatings and various chemical formulations.

Features

  1. High-shear rotor-stator homogenizing system provides efficient dispersion, emulsification and uniform mixing.
  2. Adjustable speed from 0 to 3000 rpm supports different materials and processing requirements.
  3. Lifting structure allows convenient adjustment of the homogenizing head and easier tank replacement.
  4. 5.5 kW AC motor provides stable power for batch homogenizing and dispersing applications.
  5. Mobile stainless steel tank design makes material handling and workshop operation more flexible.
  6. SUS304 and SUS316L stainless steel options are available according to different production requirements.
  7. Suitable for liquid and semi-viscous materials across cosmetic, chemical, coating and personal care applications.
Capacity
50-500L(Customized)
Contacted part
SS316L
Frame material
SUS304
Electrical Appliances
DELIXI, China
Speed
0-3000rpm
Motor
, Germany
Power
5.5KW
Inverter
Delta, Taiwan
Size(L*W*H)
1000*1000*2100mm
Type
Pneumatic lifting

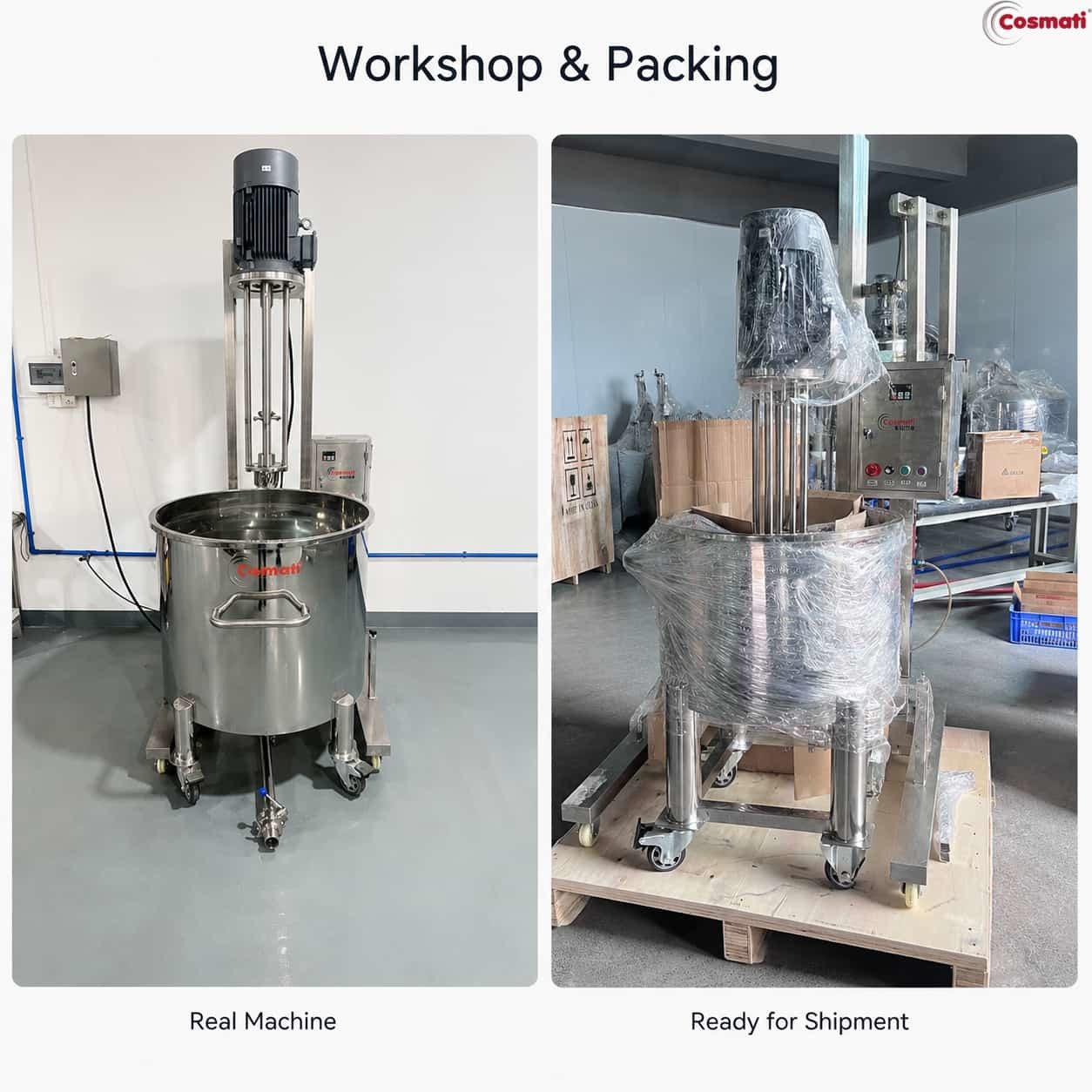

Factory profile
High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer


Engineer case
High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer
High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer
High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer

Trade show participation
High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer
Packaging & shipping specifications
High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer



Application
High Shear Homogenizer Emulsifier AC Motor Milling Cosmetic Chemical Mixer

FAQ

Q1: What products can this high shear homogenizer process?
A: It is suitable for shampoo, liquid soap, cream, lotion, gel, cosmetics, paint, coatings and various liquid or semi-viscous chemical products.

Q2: What is the speed range?
A: The operating speed can be adjusted from 0 to 3000 rpm according to different materials and homogenizing requirements.

Q3: What is the motor power?
A: The standard configuration shown uses a 5.5 kW AC motor.

Q4: What capacities are available?
A: 100L, 200L and 500L configurations are available. Other capacities can be discussed according to production requirements.

Q5: What is the advantage of the lifting structure?
A: The lifting system allows the homogenizing head to move vertically, making material loading, tank replacement and cleaning more convenient.
