Features

Specifications

Warranty: 1 Year

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Core Components: Pump, Gear, Engine, Motor, Pressure Vessel

Key Selling Points: Easy To Operate, Famous Brand PLC, Long Service Life, High Productivity, Accurate Temperature Control, Famous Brand Motor, High Safety Level

Weight (kg): 1000

Automatic Grade: Fully-Automatic

Machine Type: Mixing

End Product: Emulsions & Creams, Hair & Body Care, Liquid Serums & Toners / Sprays

Product Name: Vacuum Emulsifier Mixer

Keywords: Homogenizing Emulsifier Machine For Cosmetic Cream Lotion

Production Capacity: 10L-200000L

Homogenizing Speed: 0-3000r/min

Type: Lifted Type/fixed Type

Control Panel: Key Control Or Touch Screen(optional)

Function: High Shear Homogenizer And Emulsifying

Structure: Main Emulsifying Pot +water Oil Tank

Voltage: Can Be Customized

Size: Can Be Customized As Your Factory

Highlight:

Liquid Soap Vacuum Emulsifier

Cosmetics Chemical Emulsifying Mixer

500L Hydraulic Emulsifying Mixer

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: COSMATI

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

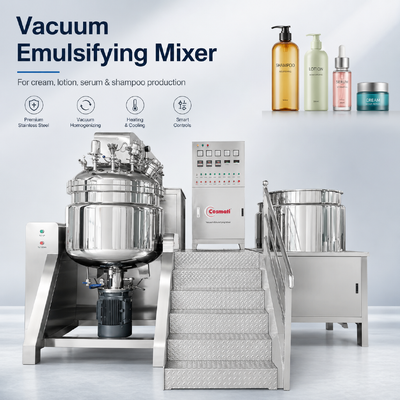

Cosmetics Chemical Liquid Soap Making Machine Mixing Equipment Hydraulic System

Product Description

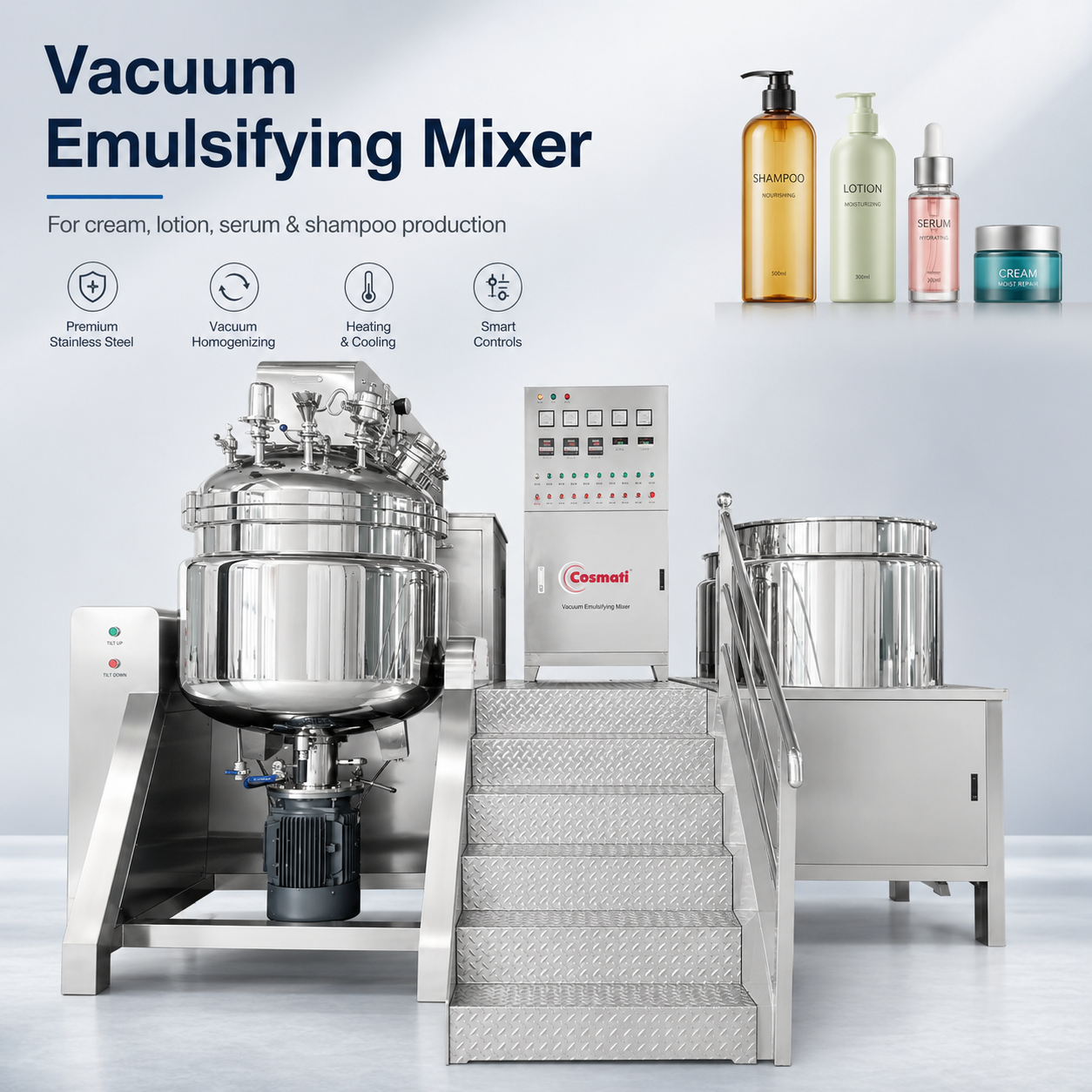

Customized 500L Homogenizer Mixing Equipment Shampoo Lotion Cream Vacuum Mixer

Emulsifier Cosmetics Making Machine

Introduction

The fixed type vacuum emulsifier can heat or cool the material according to the process requirements. The heating method can be

steam or electric heating according to the customer's requirements. The advanced electronic control system adopts PLC control and is

equipped with a true color touch screen to comprehensively monitor the material temperature and stir. and homogenization speed.

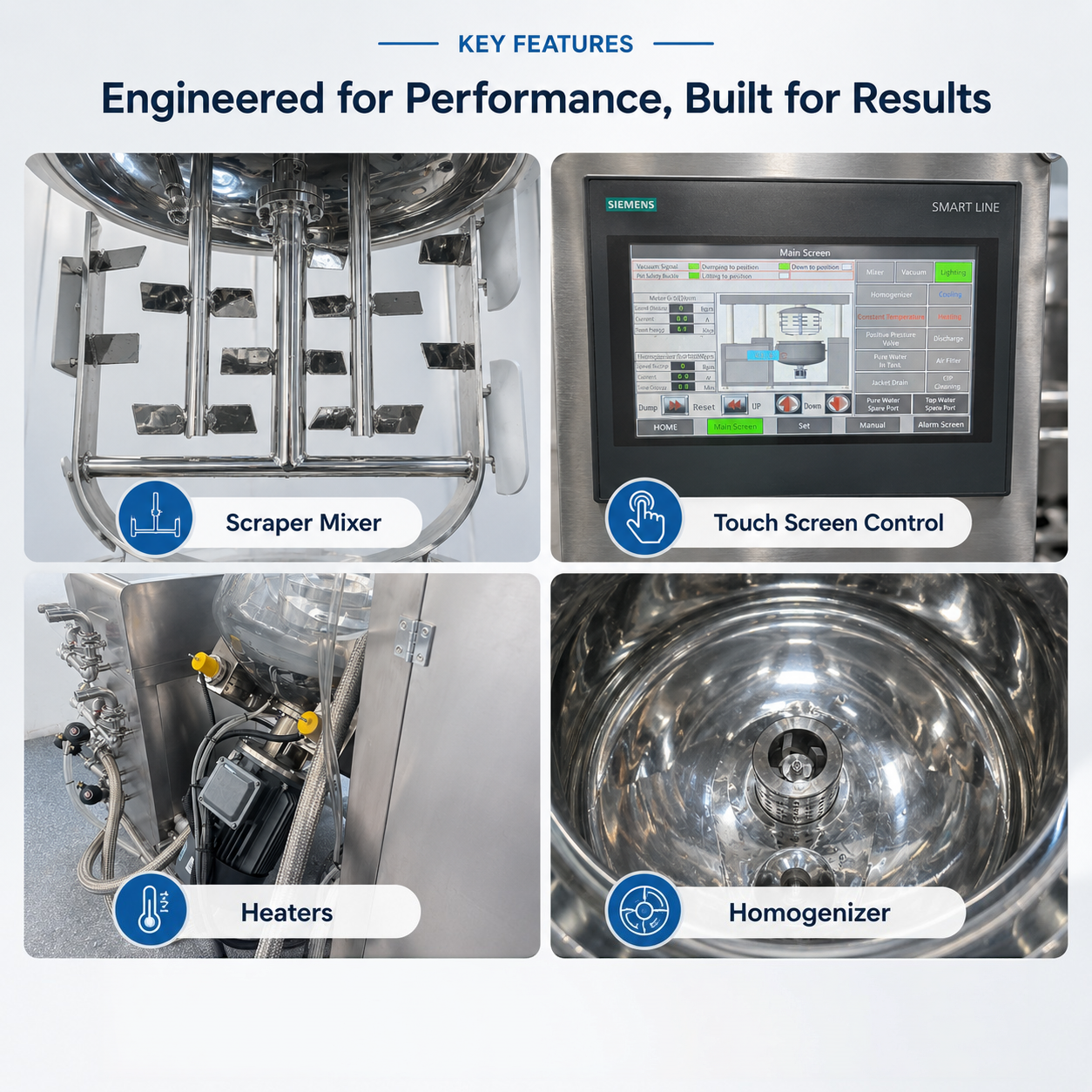

Features

1. Designed and manufactured in accordance with GMP standards (the overall support of the equipment is stainless steel, and the pot body is polished 300U).
2. 316L material is used for material contact parts.
3. The bearing adopts Japanese NSK bearing.
4. Low power consumption, strong mechanical protection function, constant torque work make the mechanical operation more stable.
5. The water circulation mechanical seal has good sealing performance and long service life. The homogenizer can work continuously for 24 hours.
6. The relative movement of the upper wall scraping stirring paddle and and the fixed paddle makes the material agitated more fullyand evenly.
7. Many safety protection functions make production safer.

and the fixed paddle makes the material agitated more fullyand evenly.

Main pot	Working volume:500L； Full volume:540L
Structure	1. Three-layer stainless steel, tank can be heated and cooled, and it has vacuum functions. 2. Stairs with platform 3. Top one-way mixing with wall scraper, bottom high-speed shearing homogenizer 4. Button control 5.Delta dual frequency conversion 6. Electric heating
Inner layer	Cylinder body: material 316L; wall thickness: 6mm
Jacket layer	Material:304; wall thickness: 5mm
Outer layer	Cylinder: material SUS304; wall thickness: 2mm
Voltage	3P/380V/50Hz

Factory profile

Engineer case

Trade show participation

Packaging & shipping specifications

Application

FAQ

1. What products can this vacuum mixer produce?

It is suitable for creams, lotions, gels, shampoos, conditioners, ointments, serums, and other cosmetic or personal care products.

2. Is the machine easy to clean?

Yes. The stainless-steel vessel and smooth internal surfaces are designed for easy cleaning. CIP cleaning can also be customized according to production requirements.

3. Can the machine be customized?

Yes. Capacity, mixing system, homogenizer, heating method, vacuum system, PLC control, voltage, and discharge method can be customized.

4. How do I choose the right capacity?

Please provide your product type, batch size, viscosity, heating requirement, and local voltage. We will recommend a suitable configuration for your production.
