Introduction

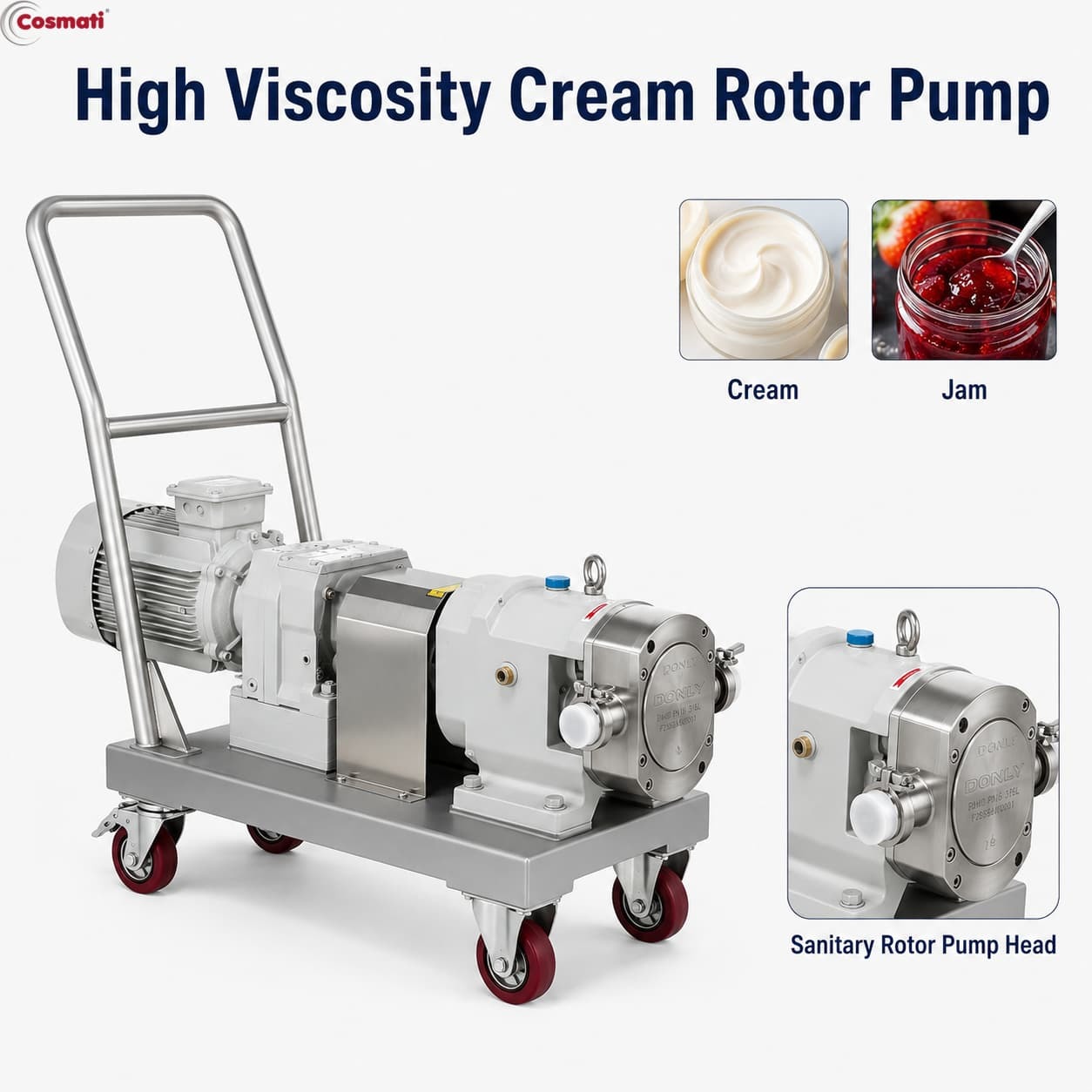

The Mobile Sanitary Lobe Pump, also called a rotor pump or rotary lobe pump, is designed for transferring medium and high viscosity materials such as cosmetic cream, body lotion, honey, yogurt, syrup, liquid soap and chemical liquids.

The pump uses a positive displacement rotor structure to provide stable material transfer while reducing excessive agitation during conveying. Stainless steel SUS304 or SUS316 configurations are available for cosmetic, food and chemical processing applications.

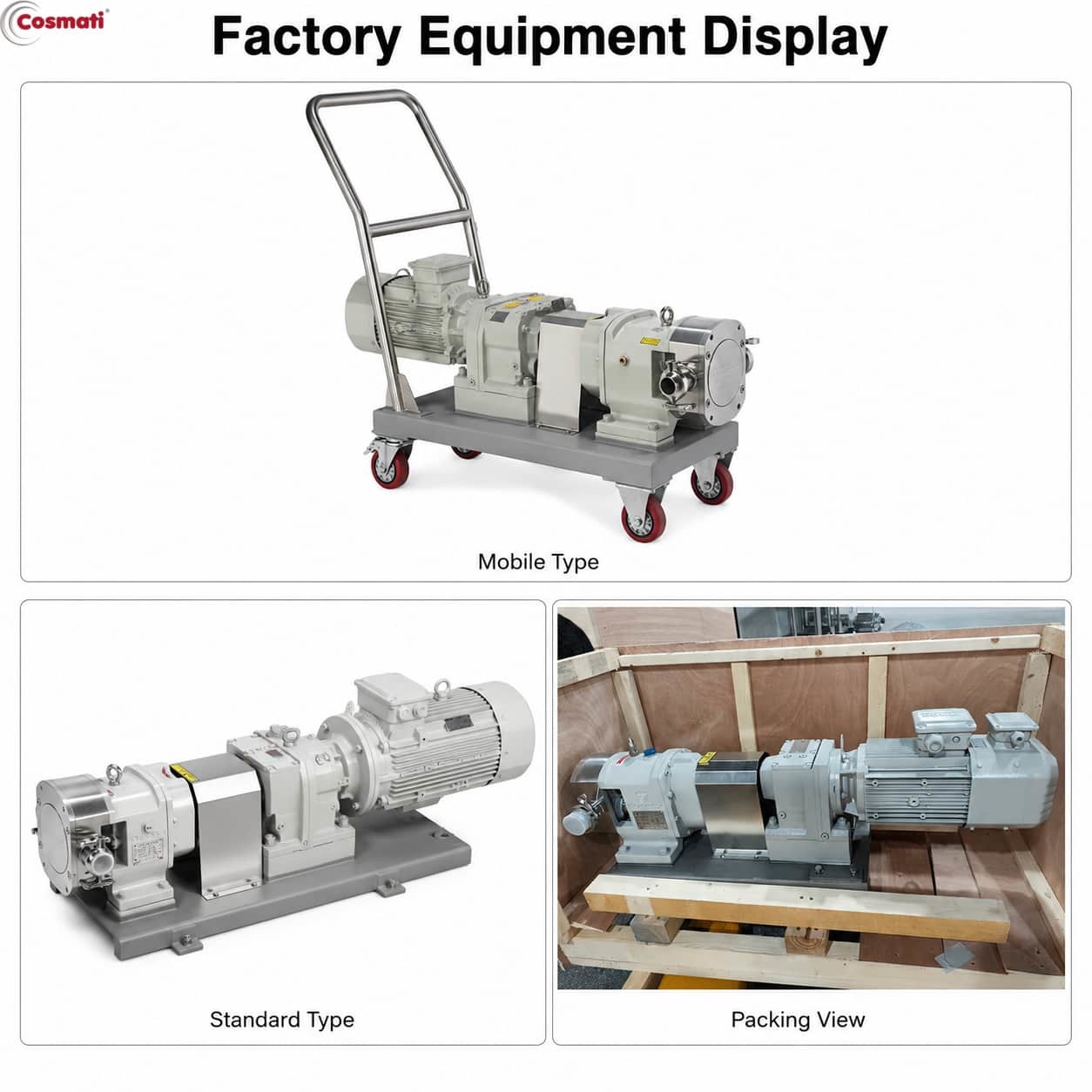

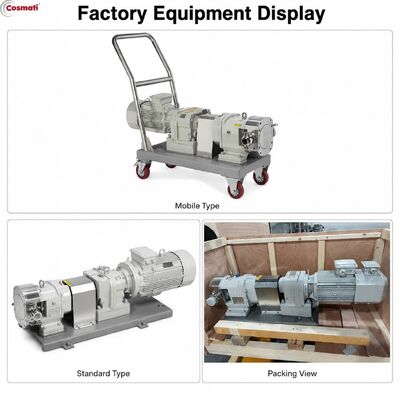

The mobile base and integrated control box make the unit convenient to move between mixing tanks, storage tanks, filling machines and other processing equipment. Different motor powers and flow capacities can be selected according to product viscosity and required transfer distance.

Key Features

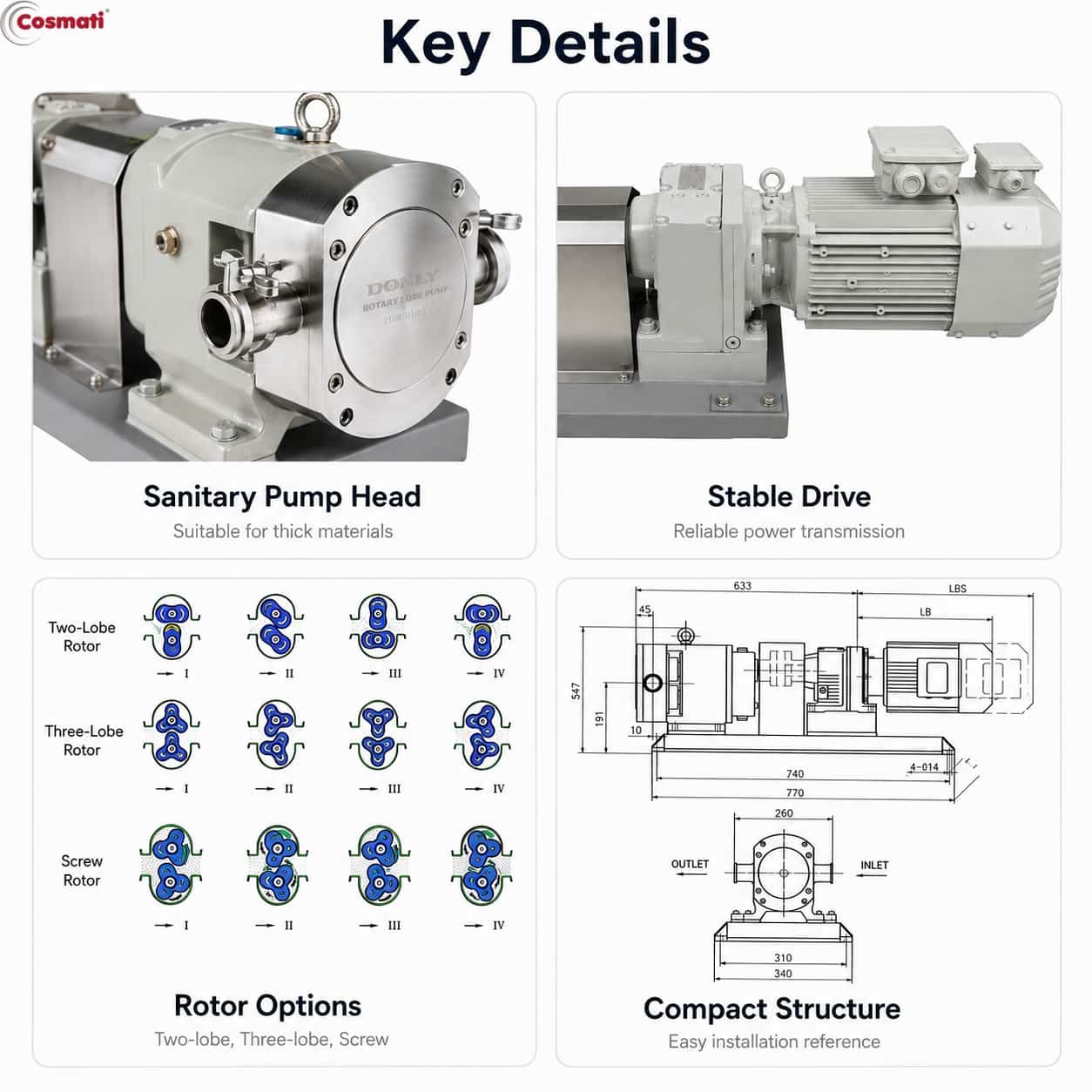

1. Rotary lobe positive displacement design suits viscous liquid transfer.
2. Suitable for cream lotion honey yogurt syrup liquid soap and chemical liquids.
3. SUS304 and SUS316 stainless steel configurations are available.
4. Mobile pump structure supports flexible workshop use.
5. Reference flow rate reaches approximately 5m³/h.
6. Reference rotor speed is approximately 312rpm.
7. 40mm sanitary clamp connection simplifies pipeline connection.
8. Motor power can be selected according to viscosity and required flow.
9. Integrated electrical control box provides convenient operation.
10. Suitable for connecting mixing tanks storage tanks and filling equipment.
11. Machinery test report and outgoing inspection video can be provided.
