High Viscosity Cream Paste Transfer: Ideal for cosmetics, food, and chemical applications.

Stainless Steel Construction: Ensures durability and hygiene in food-grade processes.

2.2-35 kW Power Range: Suitable for various industrial needs.

CE Certification: Meets international safety standards.

80 kg Weight: Portable yet robust for mobile use.

Introduction

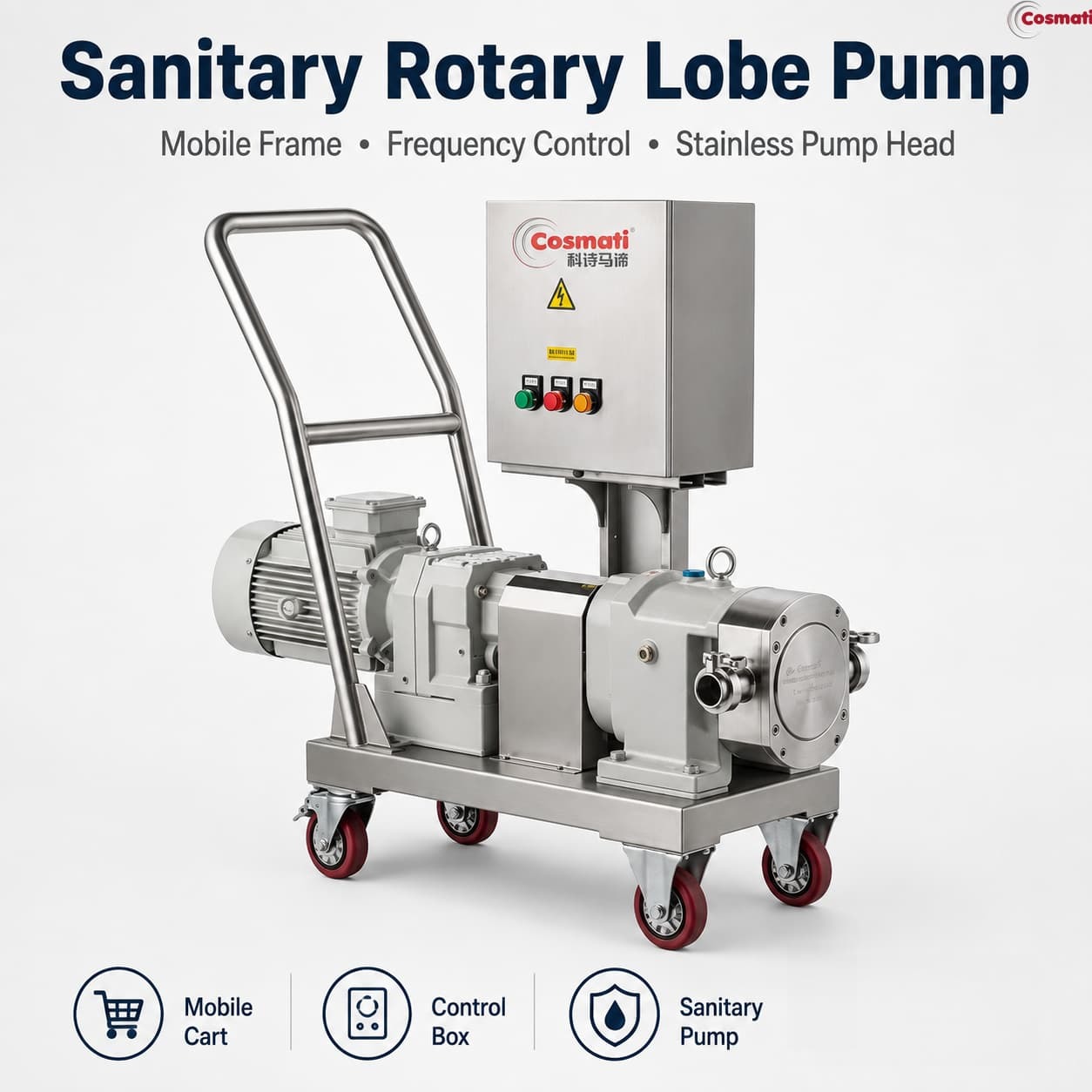

The Mobile High Viscosity Rotor Transfer Pump is designed for stable transfer of viscous and semi-viscous materials used in cosmetic, food and chemical production.

The machine combines a stainless steel rotor pump, motor, gearbox and electrical control system on a movable frame, making it convenient for material transfer between mixing tanks, storage tanks and downstream processing equipment.

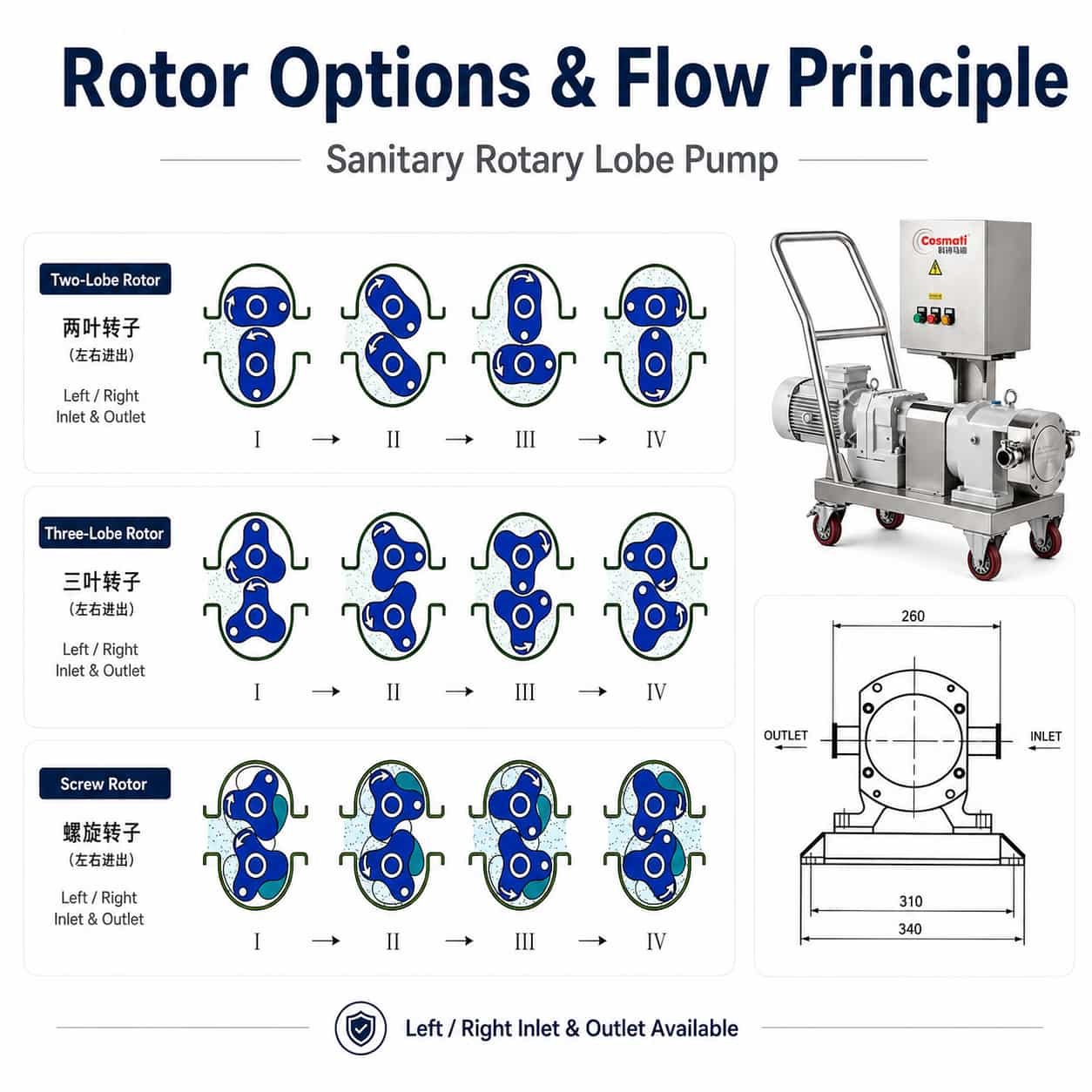

The low-speed rotor design is suitable for transferring creams, pastes and other viscous materials while maintaining a steady flow. SUS304 and SUS316 stainless steel options are available, and the sanitary clamp connection allows convenient connection, disassembly and cleaning.

Features

1. Designed for transferring high-viscosity creams, pastes and other viscous materials.
2. Mobile frame with wheels and handles allows convenient movement between different production areas.
3. Stainless steel pump head is available in SUS304 or SUS316 according to material requirements.
4. Motor and gearbox drive provide stable operation for continuous material transfer.
5. Reference operating speed of approximately 312 rpm supports stable transfer of viscous products.
6. Sanitary clamp connection provides convenient installation, disassembly and cleaning.
7. Different motor powers can be configured according to viscosity, required flow rate and transfer conditions.
8. Suitable for cosmetic, food and chemical processing applications.

Factory profile

Engineer case

Trade show participation

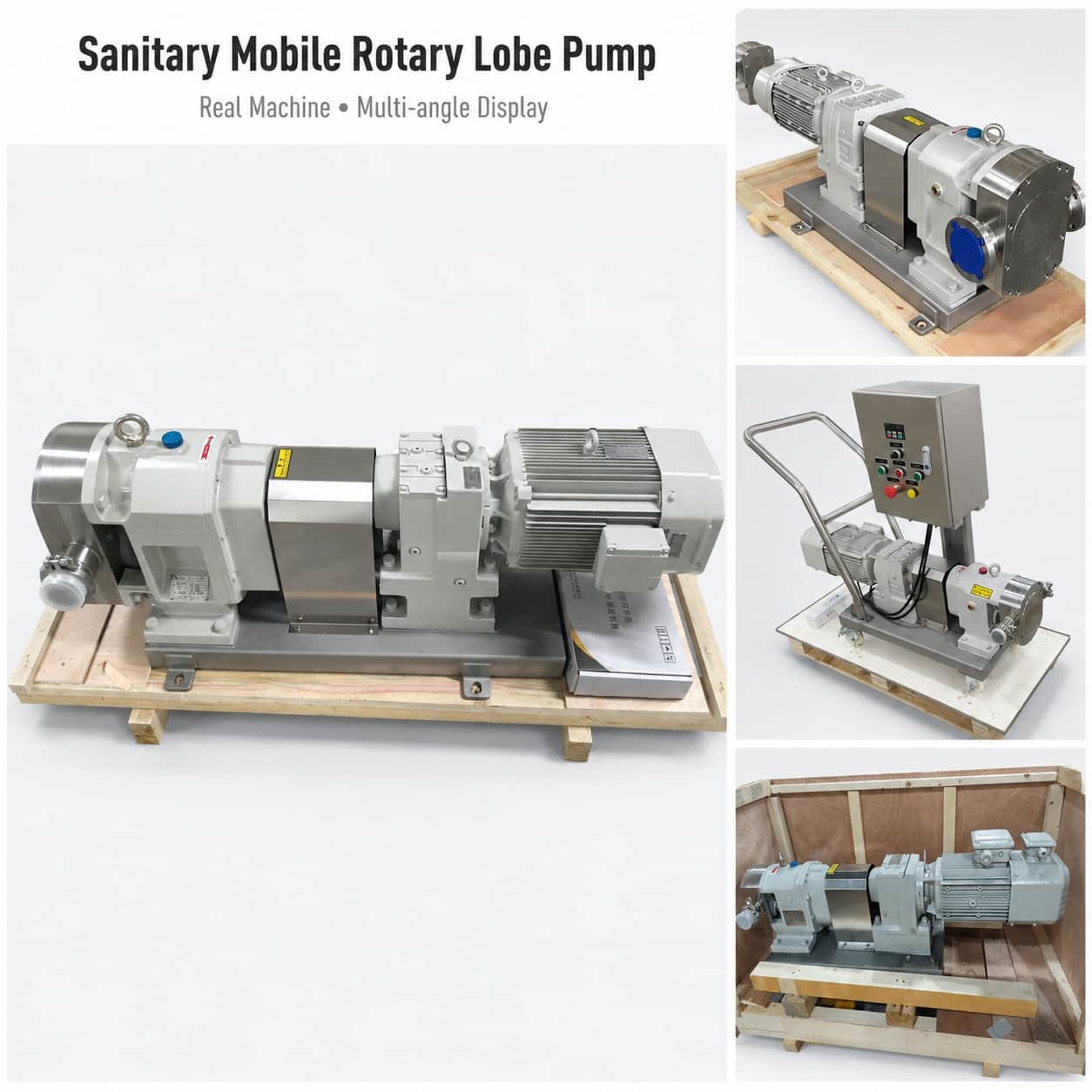

Packaging & shipping specifications

Application

FAQ

Q1: What materials can this rotor pump transfer?
A: It is designed for creams, pastes and other viscous or semi-viscous materials used in cosmetic, food and chemical production.

Q2: Is this pump suitable for high-viscosity products?
A: Yes. High-viscosity material transfer is one of the main applications of this rotor pump. The final motor and pump configuration should be selected according to actual viscosity.

Q3: What is the flow rate?
A: The reference flow rate of the current configuration is approximately 5 m³/h. Actual flow depends on product viscosity, pump speed and transfer conditions.

Q4: What is the standard motor power?
A: The current reference configuration uses approximately 2.2 kW. Higher motor powers can be selected according to required flow rate and material viscosity.

Q5: What stainless steel materials are available?
A: SUS304 and SUS316 stainless steel options are available according to product and processing requirements.

Q6: Is the machine movable?
