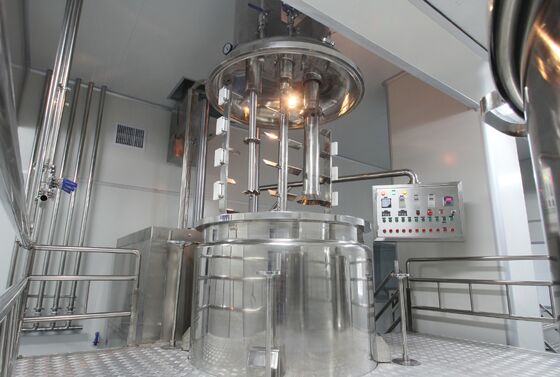

Toothpaste Toothpaste Production Line Shampoo Mixing tank Hand Cream Making Machine
2. Vacuum pumps and sync solenoid valves
3. emulsifier and material filter
4. Hydraulic lifting system and mixing system
5. Stainless steel platform
6. Inverter and electrical control box
Toothpaste making machine, toothpaste mixer Guangzhou means when the materials are under the vacuum condition, it makes use of the high shear emulsifier to distribute one or several to another continuous phase rapidly and evenly. The materials will be processed in the narrow space between stator and rotor by strong energy of motion produced by the machine effect.
By the operation of hydraulic shearing, centrifugal extruding, impacting, breaking and turbulence for over 199 thousand times per minute, the materials will be disperesed and emulsifed instantly and evenly. After reciprocating circulation at high frequency, the fine finished products of stable and high quality without bubbles will be achieved.
The product of vacuum emulsifying mixer machine mainly applied in such industries as daily chemical care products, biopharmacutical industry, food industry, paint and ink ,nanometer materials, petrochemical Industry, printing and dyeing auxiliaries, pulp & paper, pesticide, ferilizer, plastic & rubber, electronic and electronics, fine chemical industry, etc.
The emulsifying effect is more prominent for materials of high base viscosity and high solid content.
|
Item
|
description
|
VME-H100
|
VHM-H200
|
Remark
|
|
Emulsifying pot
|
Design Volume(L)
|
120
|
240
|
|
|
Capacity(L)
|
100
|
200
|
SUS304&316L
|
|
|
Scraper Stirring Power(kw)
|
2.2
|
3
|
Famous brand motor
|
|
|
Scraper Stirring Speed(rpm)
|
0-63
|
0-63
|
Frequency converter
|
|
|
Homogenizer power(kw)
|
3
|
4
|
Famous brand motor
|
|
|
Electrical heating power(kw)
|
6
|
6
|
|
|
|
Homogenizer speed (rpm)
|
0-3500
|
0-3500
|
Frequency converter
|
|
|
Water pot
|
Design Volume(L)
|
96
|
200
|
|
|
Capacity(L)
|
80
|
160
|
SUS304&316L
|
|
|
power(kw)
|
0.75
|
1.1
|
Famous brand motor
|
|
|
speed(rpm)
|
1400
|
1400
|
|
|
|
Electrical heating power(kw)
|
9
|
9
|
|
|
|
Oil pot
|
Design Volume (L)
|
48
|
96
|
|
|
Capacity (L)
|
40
|
80
|
SUS304&316L
|
|
|
power (kw)
|
0.75
|
1.1
|
Famous brand motor
|
|
|
speed (rpm)
|
1400
|
1400
|
|
|
|
Electrical heating power (kw)
|
6
|
6
|
|
|
|
Dimension
|
Emulsifying (Length X Width X Height)mm
|
1950×750×(2200~3000)
|
2000×800×(220~3000)
|
|
|
Water boiler and Oil boiler (Length X Width X Height)
|
1200×750×1250
|
1500*800*1400
|
||
![]()
Our Main Products:
|
|
|
|
| Mixing equipment | Vacuum homogenization emulsifier | Labeling machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
|
|
|
|
| Liquid paste filling machine | Digital small liquid filling machine | Aerosol filling machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
| Perfume filling machine | Cosmetic powder press machine | Grinding machine |
| Inquiry Now | Inquiry Now | Inquiry Now |
Application:
![]()
![]()
FAQ
1. What products can this vacuum homogenizing system produce?
This machine is suitable for producing compatible toothpaste, hand cream, body cream, facial cream, ointment, lotion, gel and other high-viscosity cosmetic or personal-care products.
2. Is this machine suitable for toothpaste production?
Yes. The vacuum homogenizing system can be configured for toothpaste mixing, homogenizing and deaeration, especially for formulations that require uniform dispersion and reduced air bubbles.
3. Can it produce hand cream and cosmetic cream?
Yes. Hand cream, face cream, body cream and similar emulsified products are typical applications of this equipment.
4. Can this machine process high-viscosity materials?
Yes. It is designed for compatible viscous creams, pastes and emulsions, with the final agitator and homogenizer configuration selected according to product viscosity.
5. Is this a normal mixing tank or a homogenizing system?
This model is a vacuum homogenizing and emulsifying system, not simply a conventional agitator tank.
