Features

Specifications

Warranty: 1 Year

Video Outgoing-inspection: Provided

Machinery Test Report: Provided

Core Components: Motor

Key Selling Points: High Safety Level

Weight (kg): 70

Product Name: 4 Nose Vertical Filling Machine Fragrance

Filling Volume: 10-1000ml

Air Source: 0.4-0.6Mpa

Automatic Grade: Semi-automatic

Specification: Stainless Steel 304/316L

Fill Speed: 10-30 Bottles/Min.

Advantage: Vacuum Filling

Control: PLC+Button

Type: Suitable For Different Bottle Type

Filling Material: Beer, Other, Milk, Water, Oil

Highlight:

4 Nozzle Vacuum Perfume Filling Machine

Fragrance Reed Diffuser Filler

Vacuum Perfume Filler

Basic Infomation

Place of Origin: Guangdong, China

Brand Name: COSMATI

Payment & Shipping Terms

Packaging Details: wooden cases

Delivery Time: 7 work days

Payment Terms: TT

Supply Ability: 10000 set

Gallery

4 Nozzle Vacuum Perfume Filling Machine Fragrance Reed Diffuser Filler

Product Description

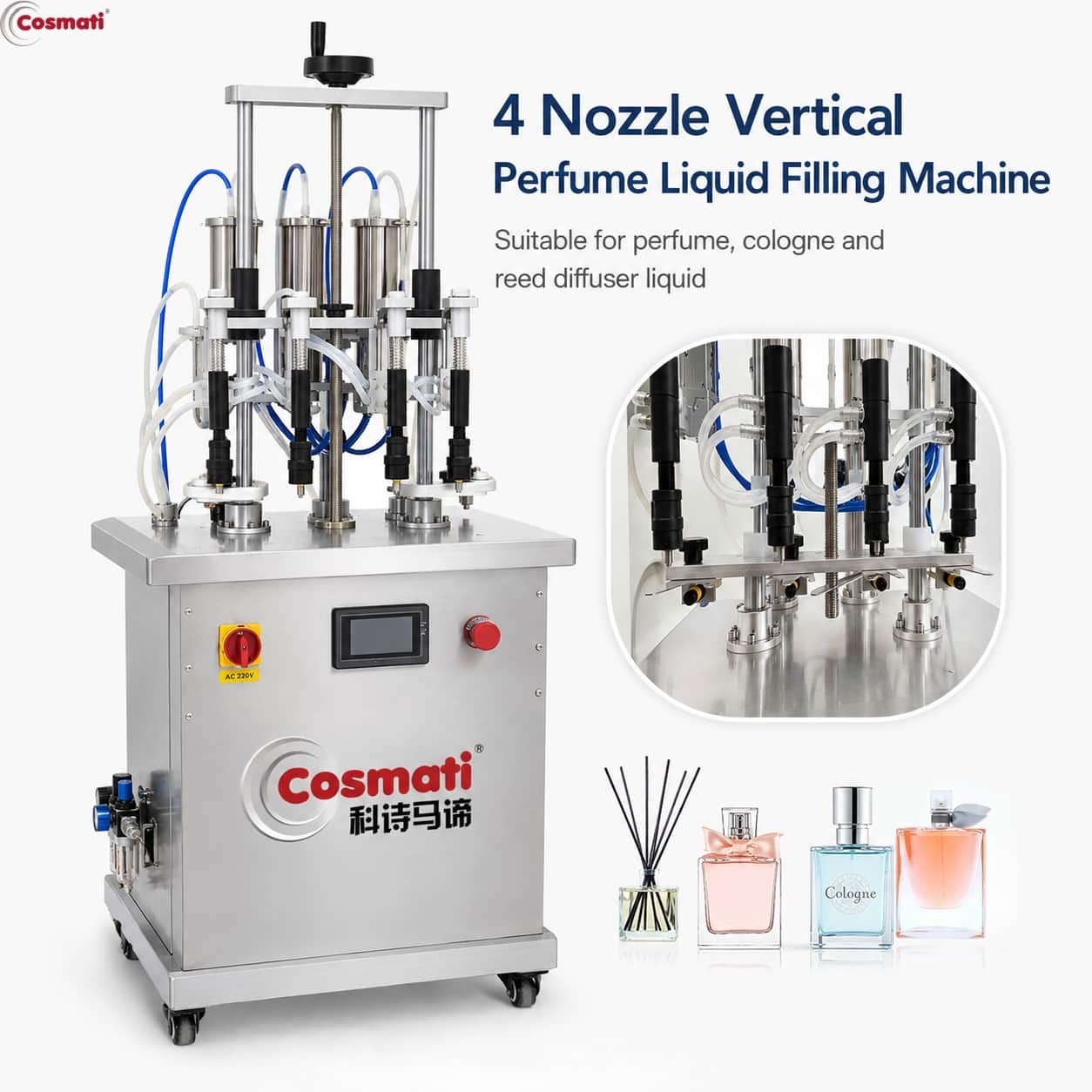

Hot Sales 4 Nose Vertical Small Perfume Liquid Bottle Filling Machine Aromatherapy Reed Diffuser Filler

This semi automatic perfume filling machine is suitable for filling products with good fluidity such as various water preparations and high-foaming products. The machine is compact and reasonable in design and simple in appearance.

It has 4 vacuum filling heads, and its capacity is about 20-40 bpm.

PLC adopts YIKAI brand, it's easy to operate the machine

Filling nozzle material adopts SS316L material, which is stable and durable

4 Filling Nozzle adopts vacuum suction function

Introduction & Features

1. The semi-automatic vacuum negative pressure filling machine is pure pneumatic equipment, adopts PLC time control, electric eye detection, no bottle no filling, this machine has the characteristics of filling and constant liquid level, the filling head has a double tube, one filling, One pulls the excess filling materials back into the raw material barrel, reducing the waste of raw materials. The filling volume is determined by the depth that the filling head extends into the container, so no matter whether the bottle volume is the same, the filling level will remain the same. Especially suitable for perfumes and liquid medicines, etc.
2. The filling of the liquid level is your ideal choice for wiring or stand-alone use.

Capacity	20-40 bottles/min (filling speed and pumping speed can be adjusted according to the characteristics of the material)
Filling accuracy	Liquid level: ±1mm
Filling head (double layer)	4pcs; Outer diameter 8mm, inner diameter 6mm (outer) outer diameter 4mm, inner diameter 2mm (inner)
Power supply	1P/220V, 120W
Filling range	2-1000ml
Weight	About 40KG
Tray	Height adjustment
Way of working	The filling head can seal the bottle, and the vacuum generator can produce a vacuum on the bottle, so as to achieve vacuum filling.
Control	PLC simple operation, stable performance, easy to disassemble and wash. The original fool operation circuit, suitable for any non-professional training can be used.
Gas source	After drying, the working pressure is ≥6kg/cm2, and the air consumption varies with the output.

Company Profile

Trade show participation

Packaging & shipping specifications

Application

FAQ

Q1: What products can this machine fill?
A: It is mainly suitable for perfume, fragrance, reed diffuser liquid, aromatherapy liquid and other low-viscosity products.

Q2: How many filling nozzles does the machine have?
A: The current configuration uses four filling nozzles, allowing multiple bottles to be filled simultaneously.

Q3: What is the advantage of vacuum filling?
A: Vacuum filling helps maintain a consistent liquid level in bottles and is particularly suitable for low-viscosity perfume and fragrance products.

Q4: What is the filling volume range?
A: The reference range is approximately 10–1000 mL. Actual suitability depends on bottle dimensions and machine adjustment.

Q5: What is the production speed?
A: The reference capacity is approximately 10–30 bottles per minute. Actual output depends on bottle size, filling volume and operator workflow.
